DTC P16F3 (2016 2017 2018 2019 2020 16-20 With Auto Idle Stop System)
DTC P16F3 : Starter Cut Relay 1 Control Circuit Low Voltage
| DTC Description | Confirmed DTC | Pending DTC | Freeze Frame |
|---|---|---|---|
| P16F3 Starter Cut Relay 1 Control Circuit Low Voltage |
DTC (PGM-FI)
- Engine starting check
-1. Try to start the engine.
Does the engine start?
YES
Go to step 2.
NO
Go to step 4.
- Problem verification
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Turn the vehicle to the ON mode.
- 3. Clear the DTC with the HDS.
- 4. Check for Pending or Confirmed DTCs with the HDS.
DTC Description Confirmed DTC Pending DTC Freeze Frame P16F3 Starter Cut Relay 1 Control Circuit Low Voltage DTC (PGM-FI)
Is DTC P16F3 indicated?
YES
The failure is duplicated. Go to step 3.
NO
Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at starter cut relay 1 and the PCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.
- Shorted wire check (STRLY line)
-1. Turn the vehicle to the OFF (LOCK) mode.

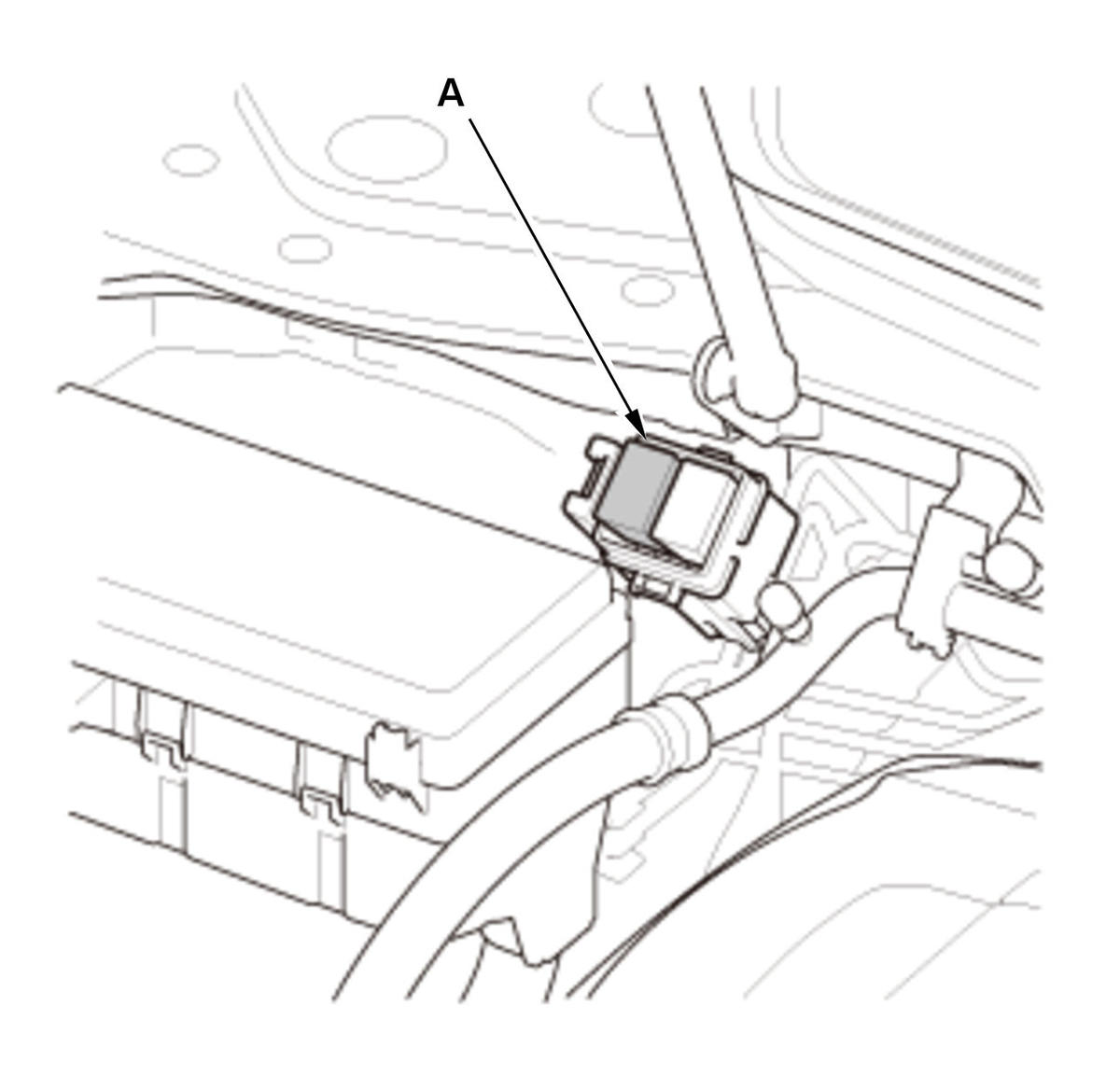

- 2. Remove starter cut relay 1 (A) from the auxiliary under-hood relay block.
- 3. Jump the SCS line with the HDS.
SCS short
- 4. Disconnect the following connector.
PCM connector A (51P) - 5. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Starter cut relay 1: disconnected PCM connector A (51P): disconnected Test point 1 PCM connector A (51P) No. 3 - Refer to: PCM Connector for Inputs and Outputs (2014 2015), or PCM Connector for Inputs and Outputs (2016), or PCM Connector for Inputs and Outputs (2017 2018 2019 2020) Test point 2 Body ground Is there continuity?
YES
Repair a short in the STRLY wire between the PCM (A3) and starter cut relay 1.
NO
The STRLY wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM - Refer to: PCM Removal and Installation (2014 2015), or PCM Removal and Installation (2016) .
- Starter system check
-1. Turn the vehicle to the ON mode.
- 2. Shift the transmission to P or N position/mode.
- 3. Check the parameter(s) below with the HDS.
Signal Threshold Current conditions Values Unit Values Unit STARTER CUT CTRL RETURN ON Do the current condition(s) match the threshold?
YES
Go to step 5.
NO
Go to the symptom troubleshooting for engine will not start - Refer to: Fuel and Emissions Systems Symptom Troubleshooting - Engine stalls, or Fuel and Emissions Systems Symptom Troubleshooting - Engine will not start, engine starts but stalls immediately, or engine is hard to start .
- Determine possible failure area (PCM, others)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Jump the SCS line with the HDS.
SCS short
- 3. Disconnect the following connector.
PCM connector A (51P) - 4. Turn the vehicle to the ON mode.
- 5. Measure the voltage between test points 1 and 2.
Test condition Vehicle ON mode PCM connector A (51P): disconnected Test point 1 PCM connector A (51P) No. 3 - Refer to: PCM Connector for Inputs and Outputs (2014 2015), or PCM Connector for Inputs and Outputs (2016), or PCM Connector for Inputs and Outputs (2017 2018 2019 2020) Test point 2 Body ground Is there battery voltage?
YES
Update the PCM if it does not have the latest software, or substitute a known-good PCM - Refer to: PCM Removal and Installation (2014 2015), or PCM Removal and Installation (2016) .
NO
Go to step 6.
- Open wire check (STRLY line)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Remove starter cut relay 1 (A) from the auxiliary under-hood relay block.
- 3. Check for continuity between test points 1 and 2.

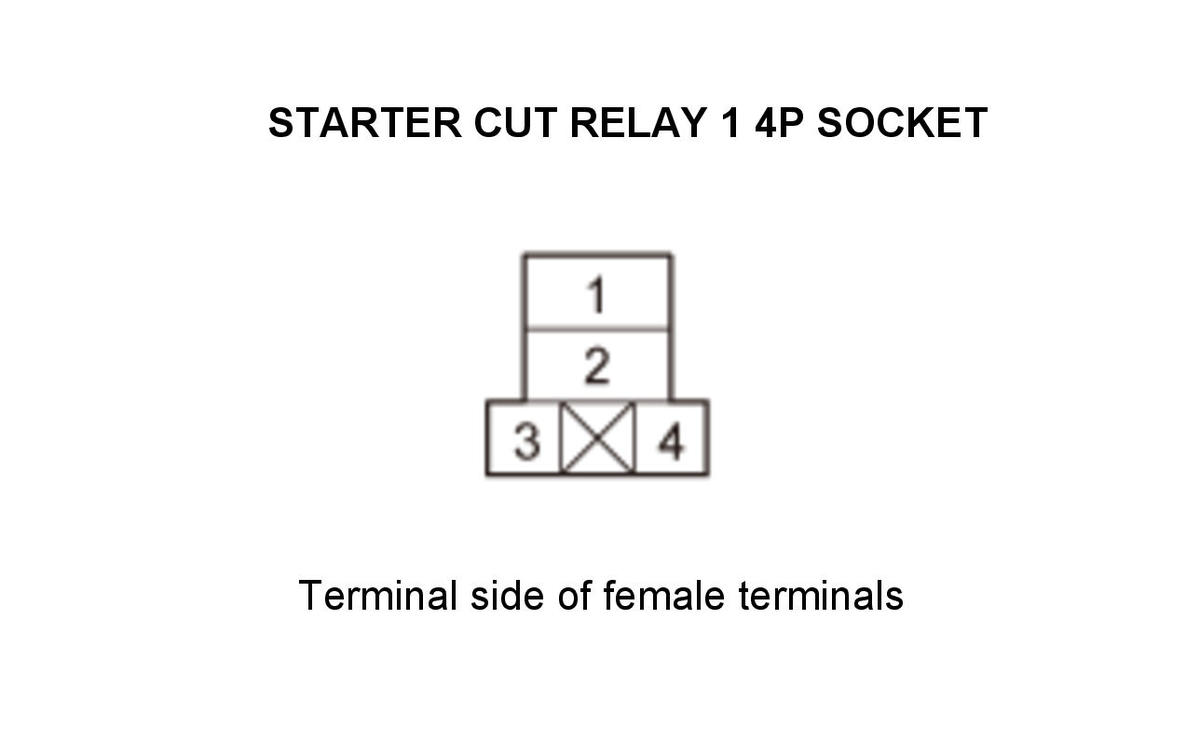

Test condition Vehicle OFF (LOCK) mode PCM connector A (51P): disconnected Starter cut relay 1: disconnected Test point 1 Starter cut relay 1 4P socket No. 4 Test point 2 PCM connector A (51P) No. 3 - Refer to: PCM Connector for Inputs and Outputs (2014 2015), or PCM Connector for Inputs and Outputs (2016), or PCM Connector for Inputs and Outputs (2017 2018 2019 2020) Is there continuity?
YES
The STRLY wire is OK. Go to step 7.
NO
Repair an open in the STRLY wire between the PCM (A3) and starter cut relay 1.
- Fuse check
-1. Check the following fuse.
Fuse No. C7 (7.5 A) Location Under-hood fuse/relay box Is the fuse OK?
YES
Go to step 8.
NO
Check for a short in the IG1 START CUT wire between the No. C7 (7.5 A) fuse and the under-hood fuse/relay box, and repair it if needed. Also replace the No. C7 (7.5 A) fuse.
- Open wire check (IG1 START CUT line)
-1. Turn the vehicle to the ON mode.
- 2. Measure the voltage between test points 1 and 2.
Test condition Vehicle ON mode PCM connector A (51P): disconnected Starter cut relay 1: disconnected Test point 1 Starter cut relay 1 4P socket No. 3 Test point 2 Body ground Is there battery voltage?
YES
Replace starter cut relay 1.
NO
Repair an open in the IG1 START CUT wire between starter cut relay 1 and the under-hood fuse/relay box.
