DTC P0705

DTC P0705  : Transmission Range Switch (Multiple Shift - Position Input)

DTC Description Confirmed DTC Pending DTC Freeze Frame
P0705 Transmission Range Switch (Multiple Shift - Position Input)

DTC (A/T)

  1. Problem verification

    -1. Turn the vehicle to the ON mode.

    - 2. Compare the transmission range switch signal inputs with the HDS to the following table, in each shift lever position.

      A/T P Switch A/T R Switch A/T N Switch A/T D Switch A/T S Switch Forward Switch(ATPFWD) Reverse Switch(ATPRVS)
    P ON OFF OFF OFF OFF OFF OFF
    R OFF ON OFF OFF OFF OFF ON
    N OFF OFF ON OFF OFF OFF OFF
    D OFF OFF OFF ON OFF ON OFF
    S OFF OFF OFF OFF ON ON OFF
    Signal Current conditions
    Values Unit
    A/T P Switch
    A/T R Switch
    A/T N Switch
    A/T D Switch
    A/T S Switch
    Forward Switch(ATPFWD)
    Reverse Switch(ATPRVS)

    Do the signals match?

    YES

    Intermittent failure, the system is OK at this time. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

    NO

    The failure is duplicated. Go to step 2.

  2. Transmission range switch signal check

    -1. Compare the transmission range switch signal inputs with the HDS to table in step 1-2, in each shift lever position.

    Signal Current conditions
    Values Unit
    A/T P Switch
    A/T R Switch
    A/T N Switch
    A/T D Switch
    A/T S Switch
    Forward Switch(ATPFWD)
    Reverse Switch(ATPRVS)

    Are any signals ON in all shift lever positions?

    YES

    Go to step 5.

    NO

    Record the abnormal circuit, then go to step 3.

  3. Transmission range switch check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Disconnect the following connector.

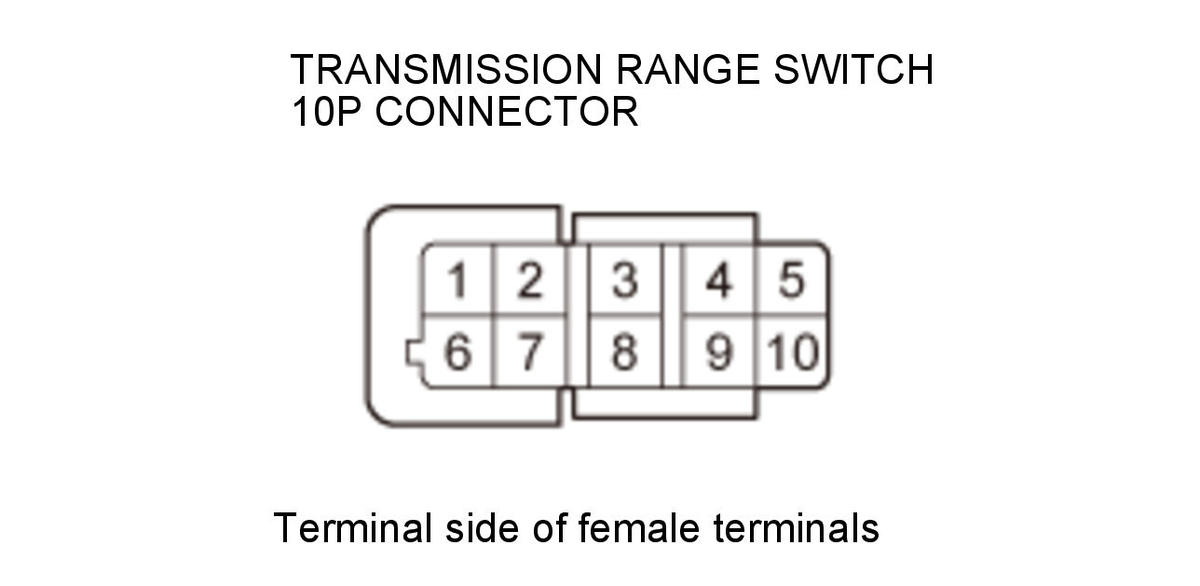

    Transmission range switch 10P connector

    - 3. Connect terminals A and B with a jumper wire.

    Terminal A Corresponding circuit (incorrectly indicated ON in step 2); refer to following table
    Terminal B Body ground
    Connector Signal Circuit Terminal
    Transmission range switch 10P connector A/T P Switch ATPP No. 9 (BLU)
    A/T R Switch ATPR No. 8 (WHT)
    A/T N Switch ATPN No. 2 (PUR)
    A/T D Switch ATPD No. 7 (LT GRN)
    A/T S Switch ATPS No. 6 (RED)
    Forward Switch(ATPFWD) ATPFWD No. 1 (YEL)
    Reverse Switch(ATPRVS) ATPRVS No. 5 (PNK)
    GHH319294Courtesy of HONDA, U.S.A., INC.

    - 4. Turn the vehicle to the ON mode.

    - 5. Check the parameter(s) below with the HDS.

    Signal Current conditions
    Values Unit
    A/T P Switch
    A/T R Switch
    A/T N Switch
    A/T D Switch
    A/T S Switch
    Forward Switch(ATPFWD)
    Reverse Switch(ATPRVS)

    Do multiple signals indicate ON?

    YES

    The transmission range switch is OK. Go to step 4.

    NO

    Replace the transmission range switch .

  4. A/T gear position indicator check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Disconnect the following connectors..

    A/T gear position indicator connector (12P)

    - 3. Turn the vehicle to the ON mode.

    - 4. Check the parameter(s) below that remained ON with the HDS.

    Signal Current conditions
    Values Unit
    A/T P Switch
    A/T R Switch
    A/T N Switch
    A/T D Switch
    A/T S Switch
    Forward Switch(ATPFWD)
    Reverse Switch(ATPRVS)

    Do multiple signals indicate ON?

    YES

    The A/T gear position indicator is OK. Repair a short in the wires between the corresponding transmission range switch connector terminal, the A/T gear position indicator, and the PCM. Refer to the following table.

      ATP-P/ATPP ATP-R/ATPR ATPN ATPD ATPS ATPFWD ATPRVS
    PCM A37 A16 B30 B23 B34 B29 B38
    Transmission range switch 9 8 2 7 6 1 5

    NO

    Replace the A/T gear position indicator .

  5. Transmission range switch check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Disconnect the following connector.

    Transmission range switch 10P connector

    - 3. Turn the vehicle to the ON mode.

    - 4. Check the parameter(s) below that remained ON with the HDS.

    Signal Current conditions
    Values Unit
    A/T P Switch
    A/T R Switch
    A/T N Switch
    A/T D Switch
    A/T S Switch
    Forward Switch(ATPFWD)
    Reverse Switch(ATPRVS)

    Do any signals remain ON?

    YES

    The transmission range switch is OK. Go to step 6.

    NO

    Replace the transmission range switch .

  6. A/T gear position indicator check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Remove the A/T gear position indicator.

    - 3. Turn the vehicle to the ON mode.

    - 4. Check the parameter(s) below that remained ON with the HDS.

    Signal Current conditions
    Values Unit
    A/T P Switch
    A/T R Switch
    A/T N Switch
    A/T D Switch
    A/T S Switch
    Forward Switch(ATPFWD)
    Reverse Switch(ATPRVS)

    Do any signals remain ON?

    YES

    The A/T gear position indicator is OK. Got to step 7.

    NO

    Replace the A/T gear position indicator .

  7. Shorted wire check (ATPP, ATPR, ATPN, ATPD, ATPS, ATPFWD, ATPRVS line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Jump the SCS line with the HDS.

    - 3. Disconnect the following connectors.

    PCM connector A (51P) - Refer to: How to Troubleshoot the A/T System (2014 2015), or How to Troubleshoot the Fuel and Emissions Systems, or How to Troubleshoot the Brake Booster Pressure Monitoring System (2016 2017 2018 2019 2020), or How to Troubleshoot the Fuel and Emissions Systems(With Auto Idle Stop System) (2016)
    PCM connector B (51P) - Refer to: How to Troubleshoot the Fuel and Emissions Systems, or How to Troubleshoot the Brake Booster Pressure Monitoring System (2016 2017 2018 2019 2020), or How to Troubleshoot the Fuel and Emissions Systems(With Auto Idle Stop System) (2016), or How to Troubleshoot the A/T System (2014 2015)

    - 4. Check for continuity between these test points and body ground individually.

    Test condition Vehicle OFF (LOCK) mode
      Transmission range switch 10P connector: disconnected
      PCM connector A (51P): disconnected
      PCM connector B (51P): disconnected
      A/T gear position indicator 12P connector: disconnected
    Test circuit Corresponding circuit (indicated ON in step 5); refer to following table
    Connector Signal Test circuit Terminal
    Transmission range switch 10P connector A/T P Switch ATPP No. 9 (BLU)
    A/T R Switch ATPR No. 8 (WHT)
    A/T N Switch ATPN No. 2 (PUR)
    A/T D Switch ATPD No. 7 (LT GRN)
    A/T S Switch ATPS No. 6 (RED)
    Forward Switch(ATPFWD) ATPFWD No. 1 (YEL)
    Reverse Switch(ATPRVS) ATPRVS No. 5 (PNK)
    GHH319295Courtesy of HONDA, U.S.A., INC.

    Does the circuit that indicated ON have continuity to body ground?

    YES

    Repair a short to ground in the wire between the corresponding transmission range switch connector terminal, the A/T gear position indicator, and the PCM.

    NO

    The wires are OK. Update the PCM if it does not have the latest software . If the PCM was updated, replace the PCM - Refer to: PCM Removal and Installation (2016), or PCM Removal and Installation (2014 2015) .
