DTC P064A

DTC P064A  : High Pressure Fuel Pump System Malfunction

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   - 2. Clear the DTC with the HDS.

   - 3. Start the engine.

   NOTE: If the engine does not start, keep cranking for 20 seconds.

   - 4. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P064A High Pressure Fuel Pump System Malfunction

   Is DTC P064A indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

2. Engine starting check

   -1. Check the result in step 1-3.

   Did the engine start?

   YES

   Go to step 11.

   NO

   Go to step 3.

3. Relay check

   -1. Turn the vehicle to the OFF (LOCK) mode.

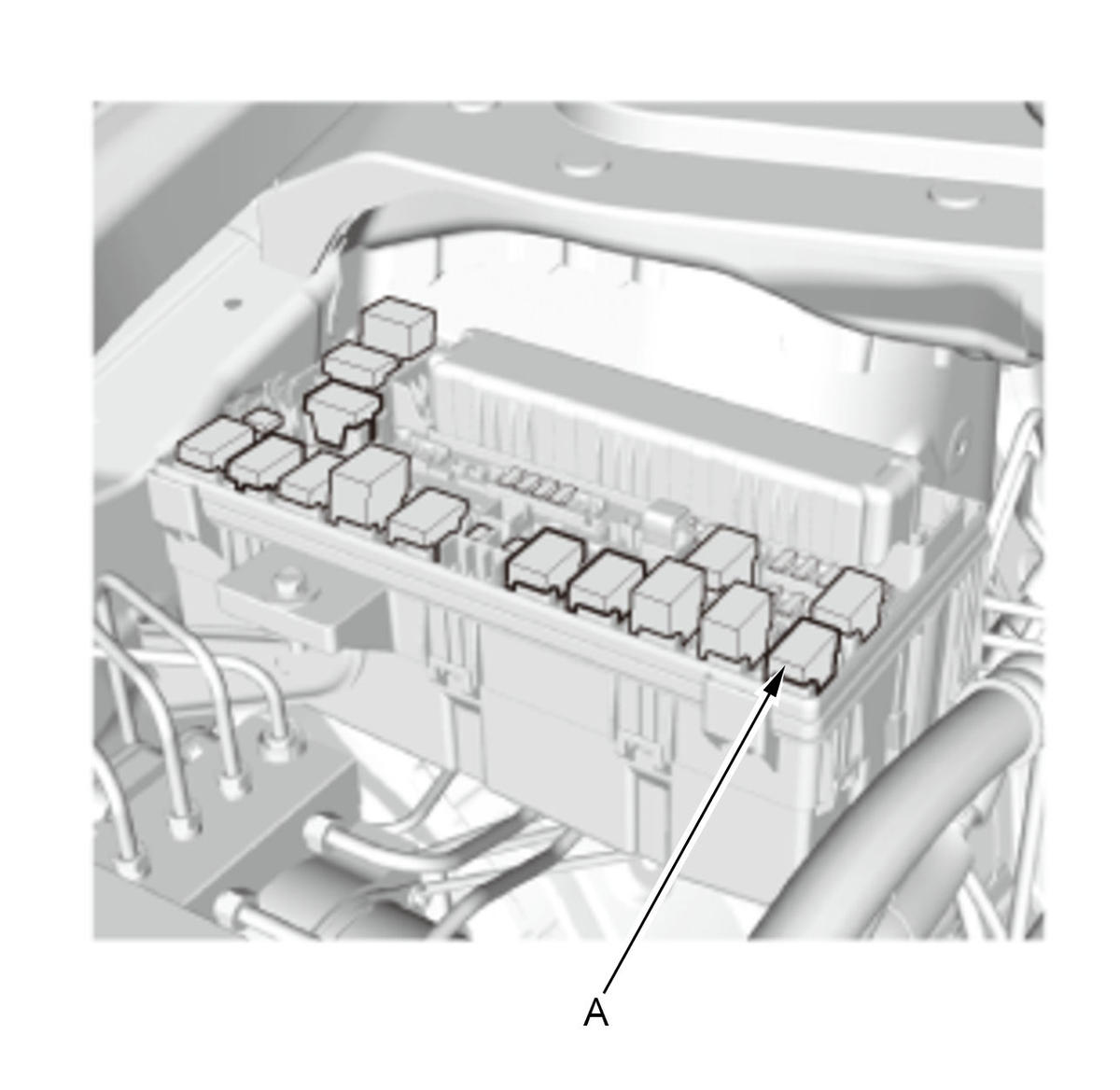

   - 2. Remove the injector relay (A) from the under-hood fuse/relay box.

   Courtesy of HONDA, U.S.A., INC.

   - 3. Test the injector relay.

   Is the relay OK?

   YES

   Go to step 4.

   NO

   Replace the injector relay.

4. Open wire check (IGP line)

   -1. Turn the vehicle to the ON mode.

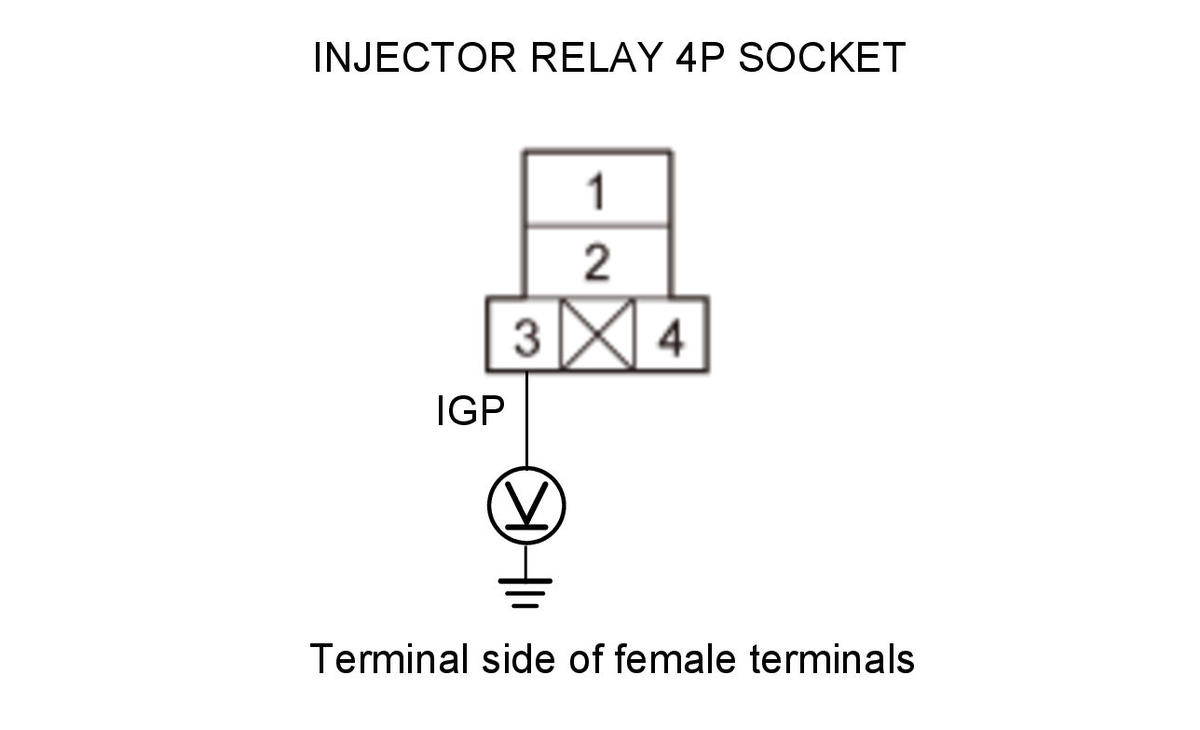

   - 2. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Injector relay: disconnected
   Test circuit	IGP
   Test point 1	Injector relay 4P socket No. 3
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Go to step 5.

   NO

   Repair an open in the IGP wire between PGM-FI main 1 relay and the injector relay.

5. Determine possible failure area (+B INJ line, others)

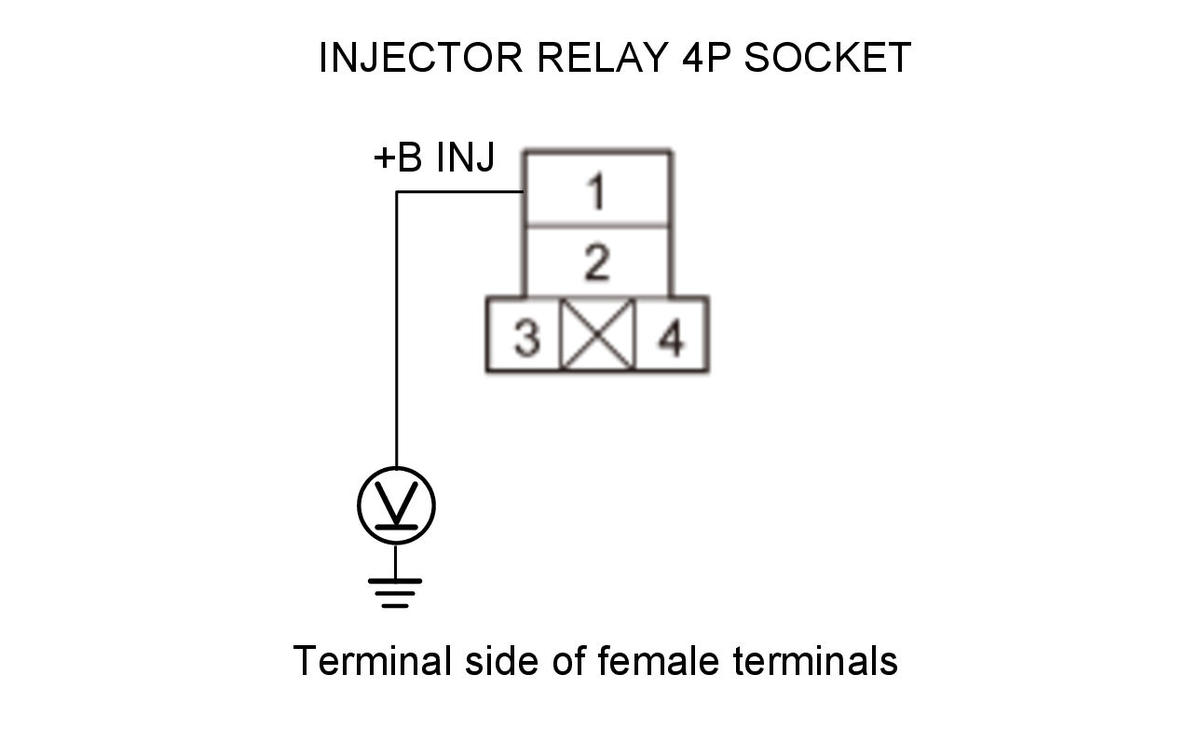

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Injector relay: disconnected
   Test circuit	+B INJ
   Test point 1	Injector relay 4P socket No. 1
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Go to step 7.

   NO

   Go to step 6.

6. Fuse check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Check the following fuse.

   Fuse	No. C14 (20 A)
   Location	Under-hood fuse/relay box

   Is the fuse OK?

   YES

   Repair an open in the +B INJ wire between the injector relay and the No. C14 (20 A) fuse.

   NO

   Repair a short in the +B INJ wire between the No. C14 (20 A) fuse and the injector relay. Also replace the No. C14 (20 A) fuse. Replace the under-hood fuse/relay box if needed .

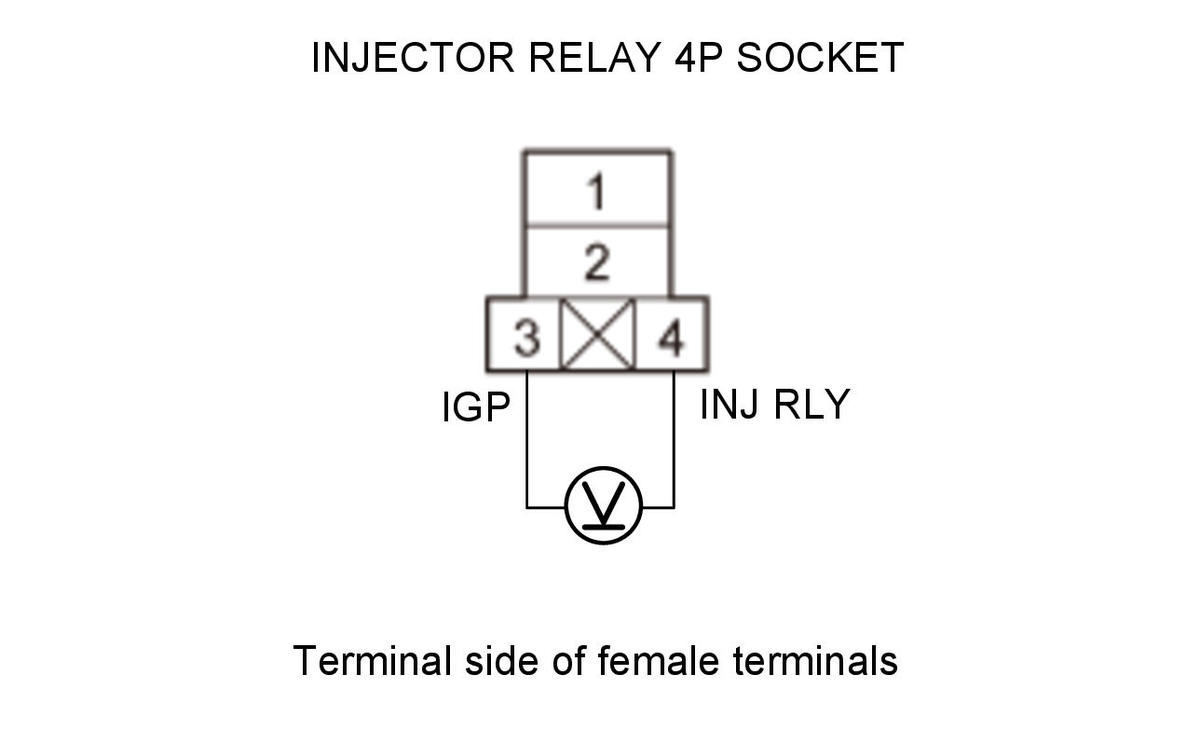

7. Determine possible failure area (INJ RLY line, others)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Injector relay: disconnected
   Test circuit	IGP, INJ RLY
   Test point 1	Injector relay 4P socket No. 3
   Test point 2	Injector relay 4P socket No. 4

   Courtesy of HONDA, U.S.A., INC.

   Is there any voltage?

   YES

   Go to step 9.

   NO

   Go to step 8.

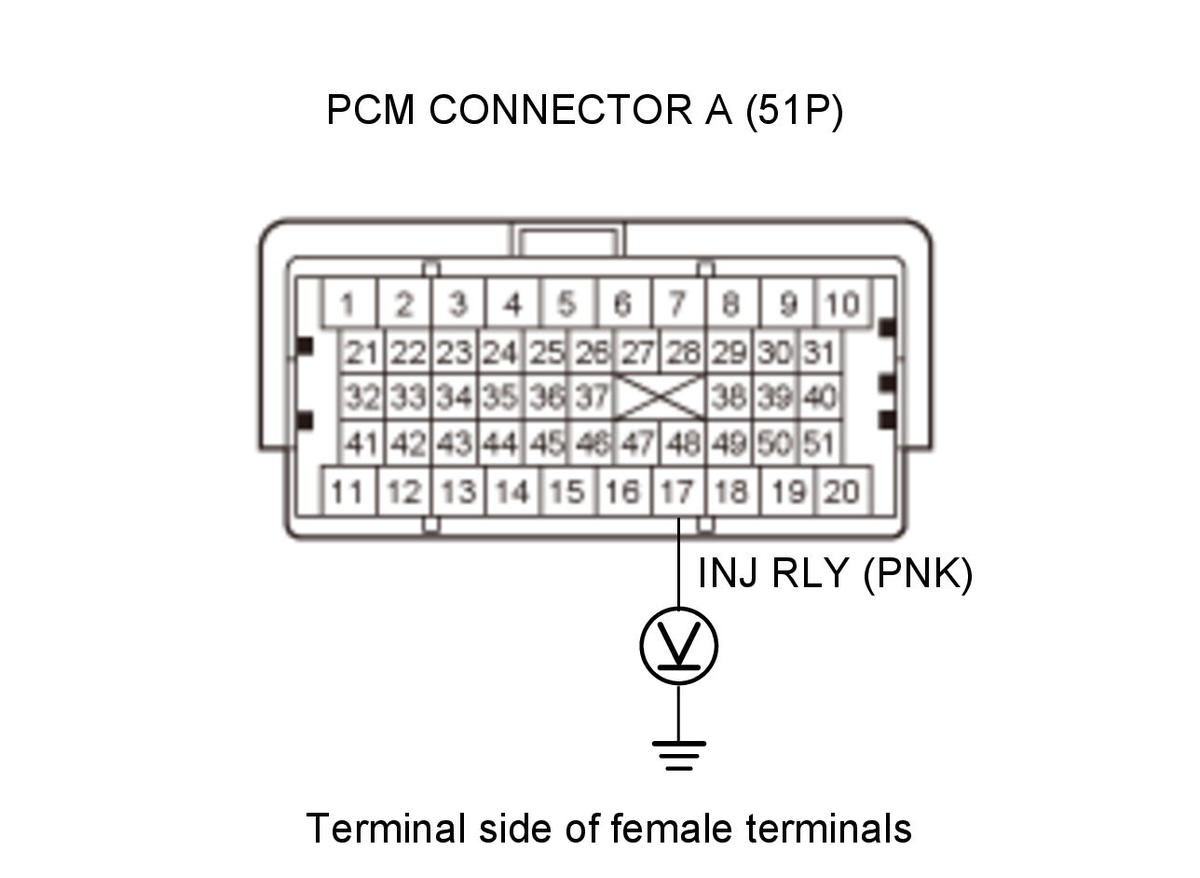

8. Open wire check (INJ RLY line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Reinstall the injector relay.

   - 3. Jump the SCS line with the HDS.

   - 4. Disconnect the following connector.

   PCM connector A (51P) - Refer to: How to Troubleshoot the A/T System (2014 2015), or How to Troubleshoot the Fuel and Emissions Systems, or How to Troubleshoot the Brake Booster Pressure Monitoring System (2016 2017 2018 2019 2020), or How to Troubleshoot the Fuel and Emissions Systems(With Auto Idle Stop System) (2016)

   - 5. Turn the vehicle to the ON mode.

   - 6. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	PCM connector A (51P): disconnected
   Test circuit	INJ RLY
   Test point 1	PCM connector A (51P) No. 17 (PNK)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there any voltage?

   YES

   The INJ RLY wire is OK. Check for poor connections or loose terminals at the injector relay, the injector control module, the high pressure fuel pump, and the PCM. Update the PCM if it does not have the latest software, or substitute a known-good PCM - Refer to: PCM Removal and Installation (2014 2015), or PCM Removal and Installation (2016) , then recheck. If DTC P064A goes away and the PCM was updated, troubleshooting is complete. If DTC P064A goes away and the PCM was substituted, replace the original PCM - Refer to: PCM Removal and Installation (2014 2015), or PCM Removal and Installation (2016) .

   NO

   Repair an open in the INJ RLY wire between the PCM (A17) and the injector relay.

9. Open wire check (INJ RLY OUT/IG(EDU)1 line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   Injector control module connector D (4P)

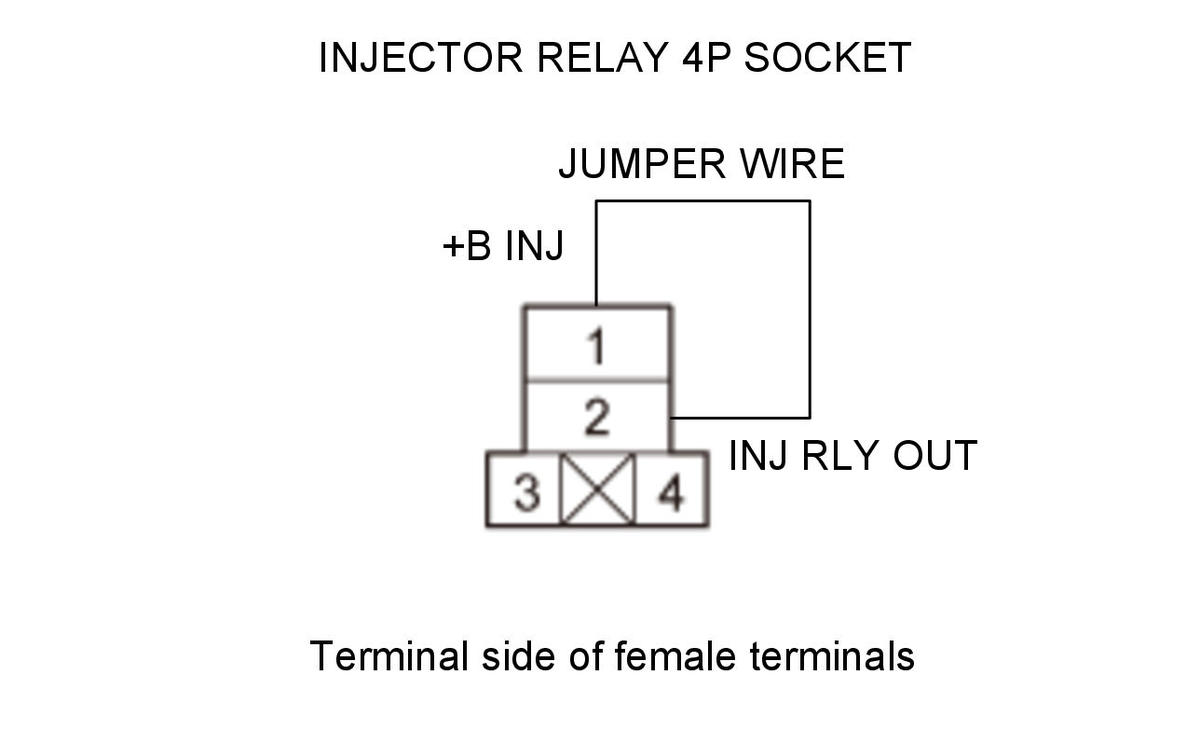

   - 3. Connect terminals A and B with a jumper wire.

   Terminal A	Injector relay 4P socket No. 1
   Terminal B	Injector relay 4P socket No. 2

   Courtesy of HONDA, U.S.A., INC.

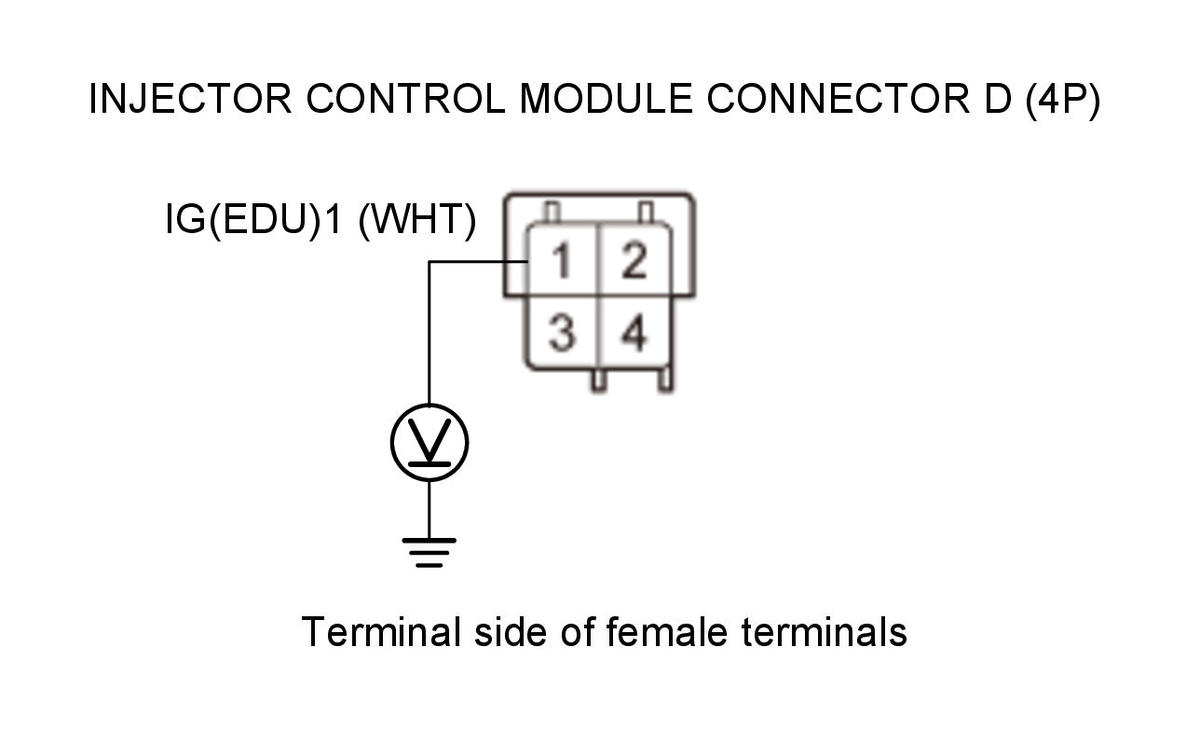

   - 4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Injector relay: disconnected
   	Injector control module connector D (4P): disconnected
   	Injector relay 4P socket No. 1 and No. 2: jumped
   Test circuit	IG(EDU)1
   Test point 1	Injector control module connector D (4P) No. 1 (WHT)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Go to step 10.

   NO

   Repair an open in the INJ RLY OUT/IG(EDU)1 wire between the injector relay and the injector control module.

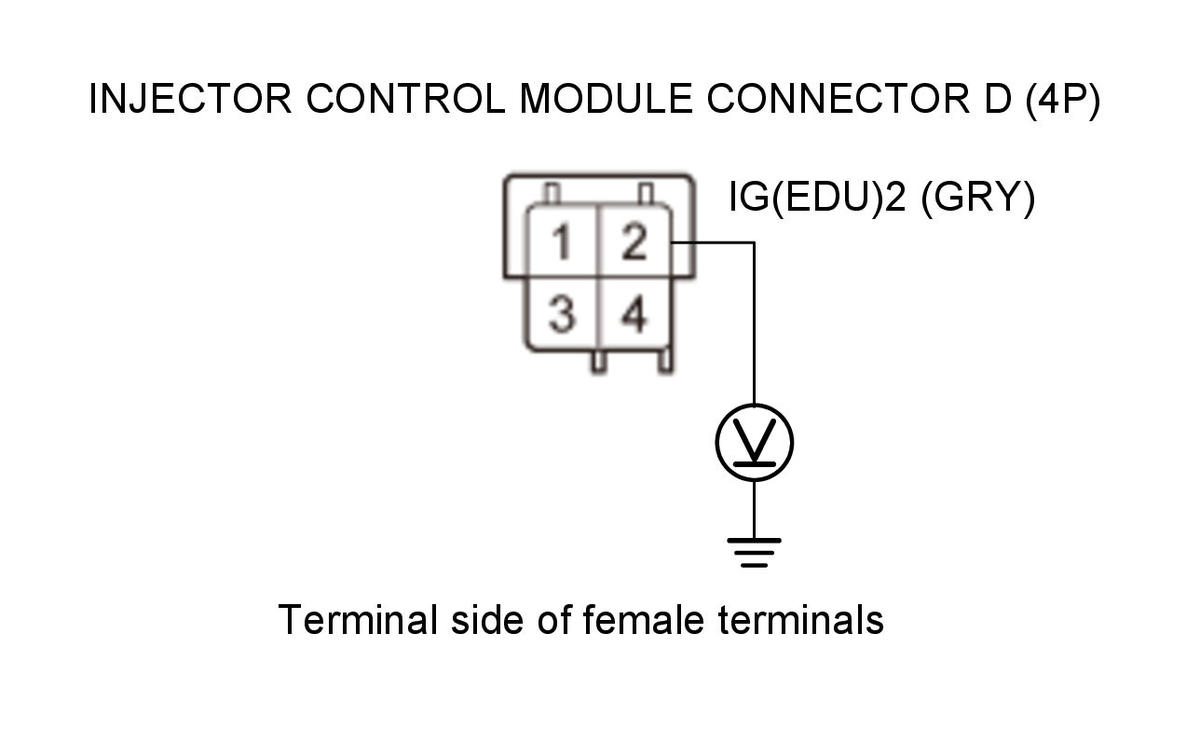

10. Open wire check (INJ RLY OUT/IG(EDU)2 line)

    -1. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector relay: disconnected
    	Injector control module connector D (4P): disconnected
    	Injector relay 4P socket No. 1 and No. 2: jumped
    Test circuit	IG(EDU)2
    Test point 1	Injector control module connector D (4P) No. 2 (GRY)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Go to step 11.

    NO

    Repair an open in the INJ RLY OUT/IG(EDU)2 wire between the injector relay and the injector control module.

11. Open wire check (HPT1 line)

    -1. If needed, remove the jumper wire from injector relay 4P socket, then reinstall the injector relay.

    - 2. If needed, reinstall the injector relay.

    - 3. If needed, reconnect the following connector.

    Injector control module connector D (4P)

    - 4. Jump the SCS line with the HDS.

    - 5. Disconnect the following connectors.

    Injector control module connector C (12P)

    PCM connector C (51P) - Refer to: How to Troubleshoot the Fuel and Emissions Systems, or How to Troubleshoot the A/T System (2014 2015), or How to Troubleshoot the Brake Booster Pressure Monitoring System (2016 2017 2018 2019 2020), or How to Troubleshoot the Fuel and Emissions Systems(With Auto Idle Stop System) (2016)

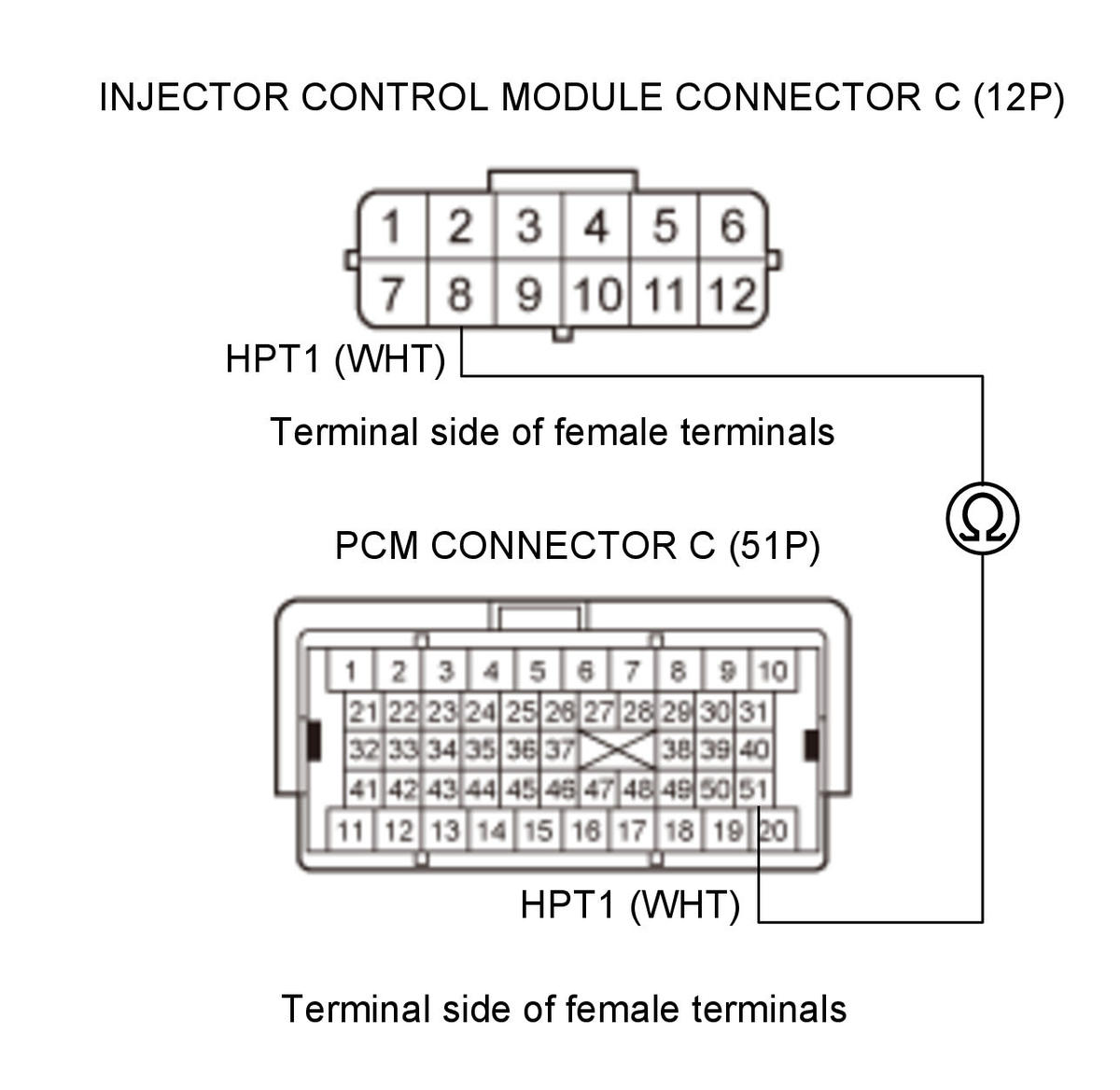

    - 6. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector control module connector C (12P): disconnected
    	PCM connector C (51P): disconnected
    Test circuit	HPT1
    Test point 1	Injector control module connector C (12P) No. 8 (WHT)

    Test point 2

    PCM connector C (51P) No. 51 (WHT)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Go to step 12.

    NO

    Repair an open in the HPT1 wire between the PCM (C51) and the injector control module.

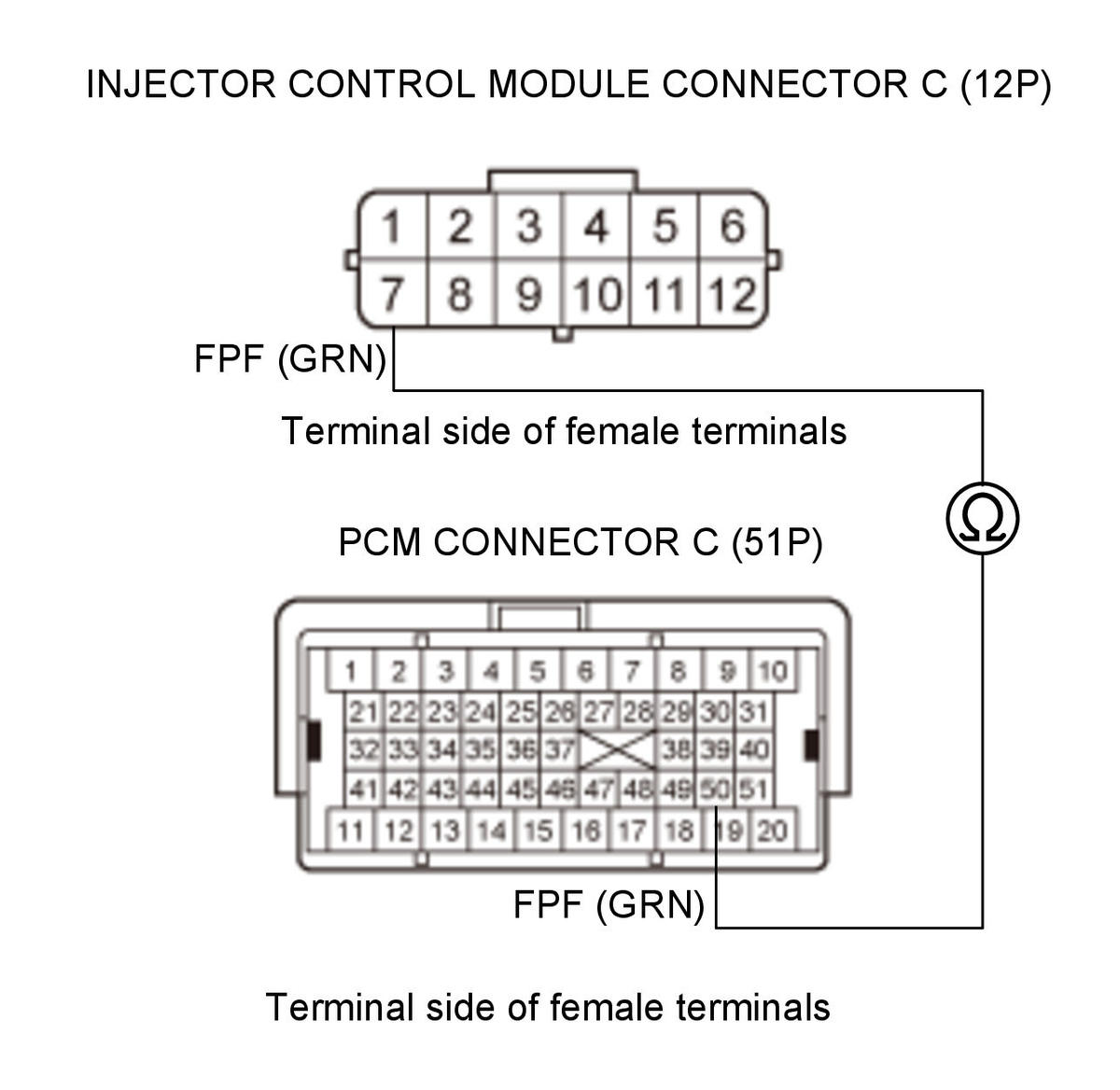

12. Open wire check (FPF line)

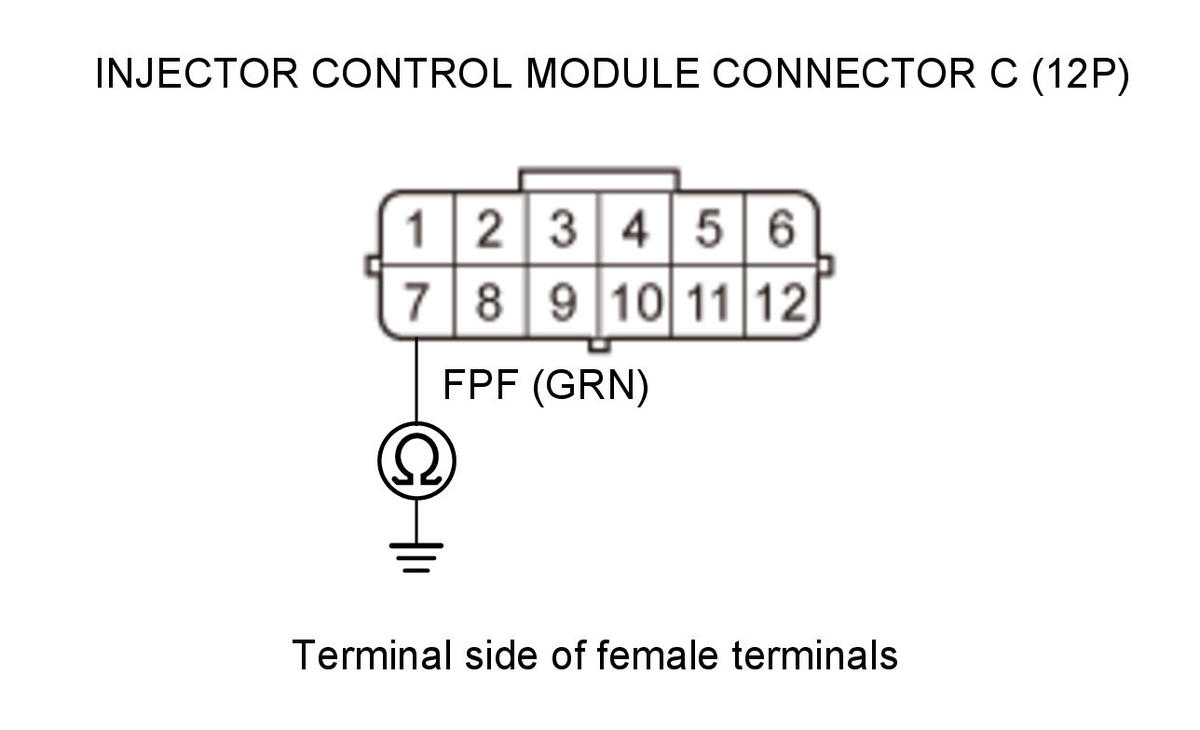

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector control module connector C (12P): disconnected
    	PCM connector C (51P): disconnected
    Test circuit	FPF
    Test point 1	Injector control module connector C (12P) No. 7 (GRN)
    Test point 2	PCM connector C (51P) No. 50 (GRN)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Go to step 13.

    NO

    Repair an open in the FPF wire between the PCM (C50) and the injector control module.

13. Determine possible failure area (open in FP+B1/HP+B1 line or FP-B1/HP-B1 line, others)

    -1. Disconnect the following connector.

    Injector control module connector D (4P)

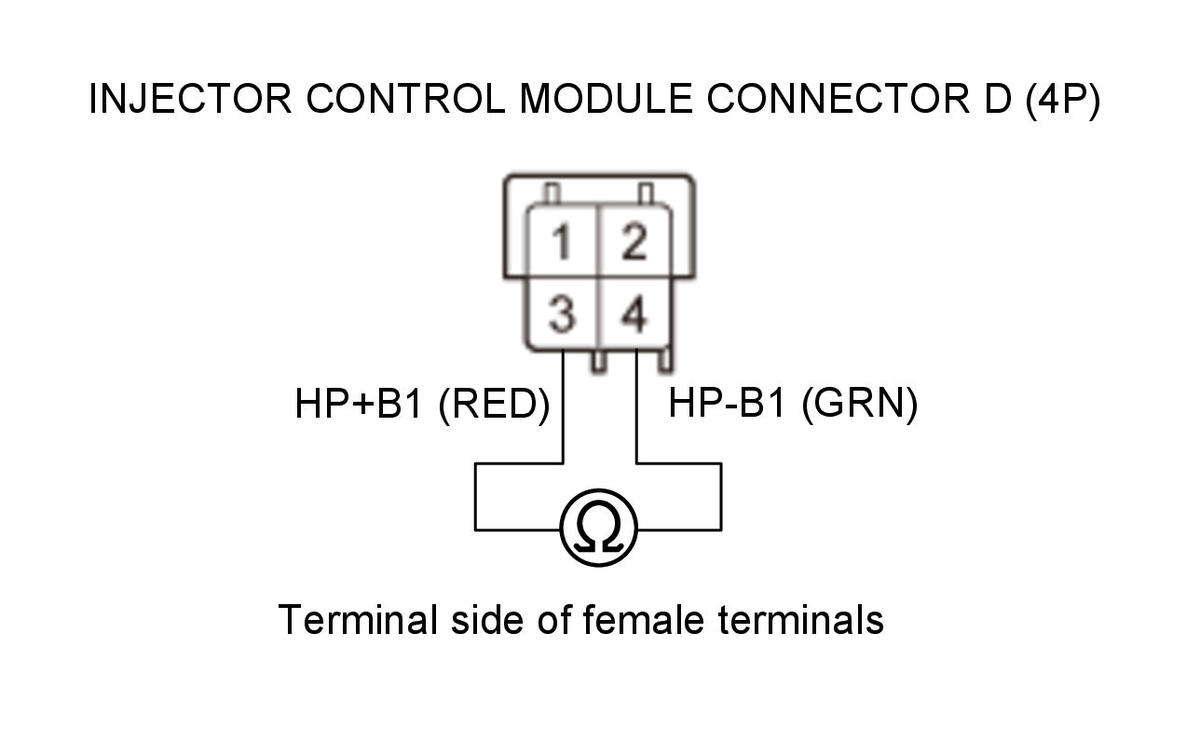

    - 2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector control module connector C (12P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector D (4P): disconnected
    Test circuit	HP+B1, HP-B1
    Test point 1	Injector control module connector D (4P) No. 3 (RED)
    Test point 2	Injector control module connector D (4P) No. 4 (GRN)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Go to step 16.

    NO

    Go to step 14.

14. Open wire check (FP+B1/HP+B1 line)

    -1. Disconnect the following connector.

    High pressure fuel pump 2P connector

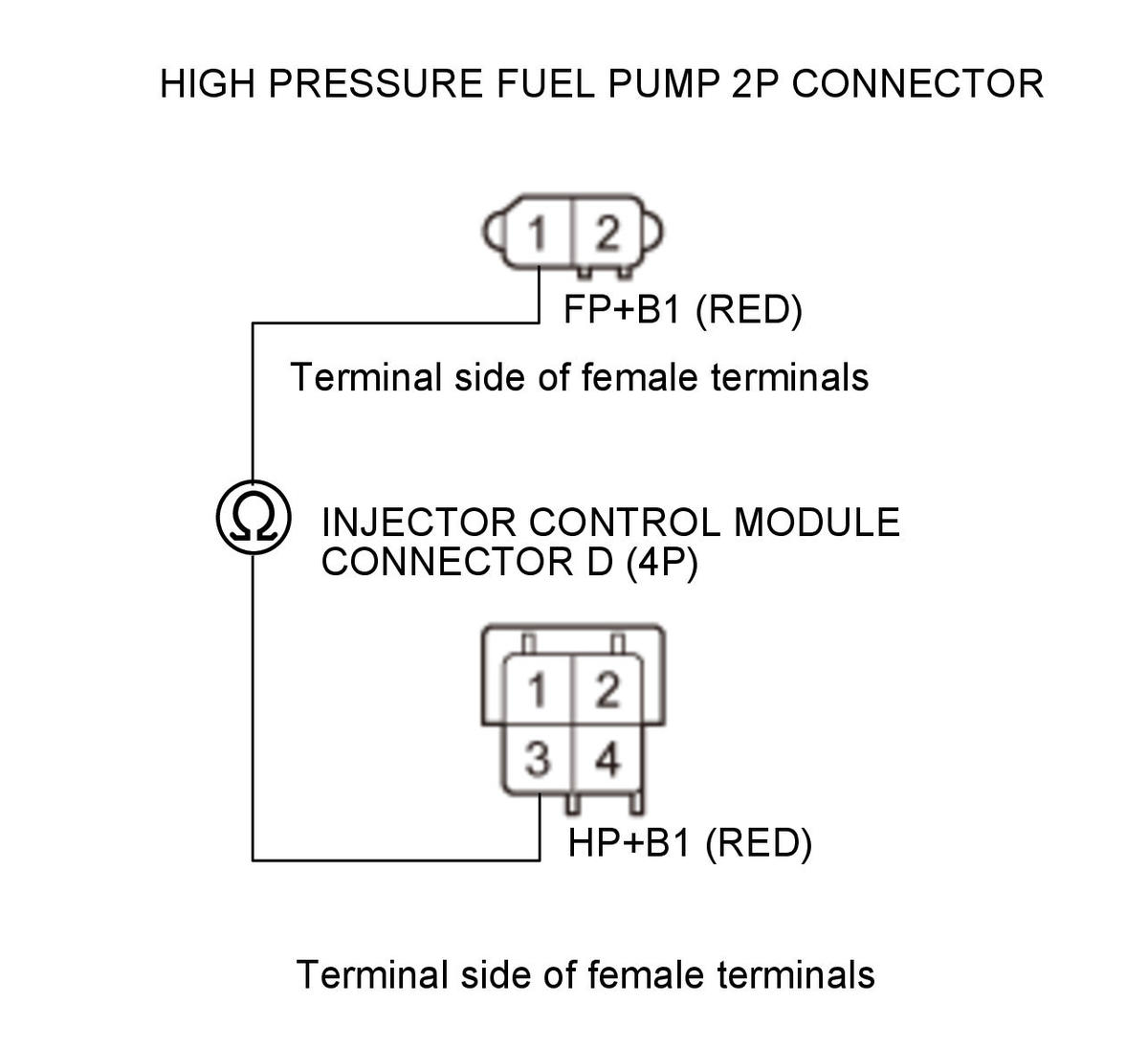

    - 2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector control module connector C (12P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector D (4P): disconnected
    	High pressure fuel pump 2P connector: disconnected
    Test circuit	FP+B1, HP+B1
    Test point 1	High pressure fuel pump 2P connector No. 1 (RED)
    Test point 2	Injector control module connector D (4P) No. 3 (RED)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Go to step 15.

    NO

    Repair an open in the FP+B1/HP+B1 wire between the high pressure fuel pump and the injector control module.

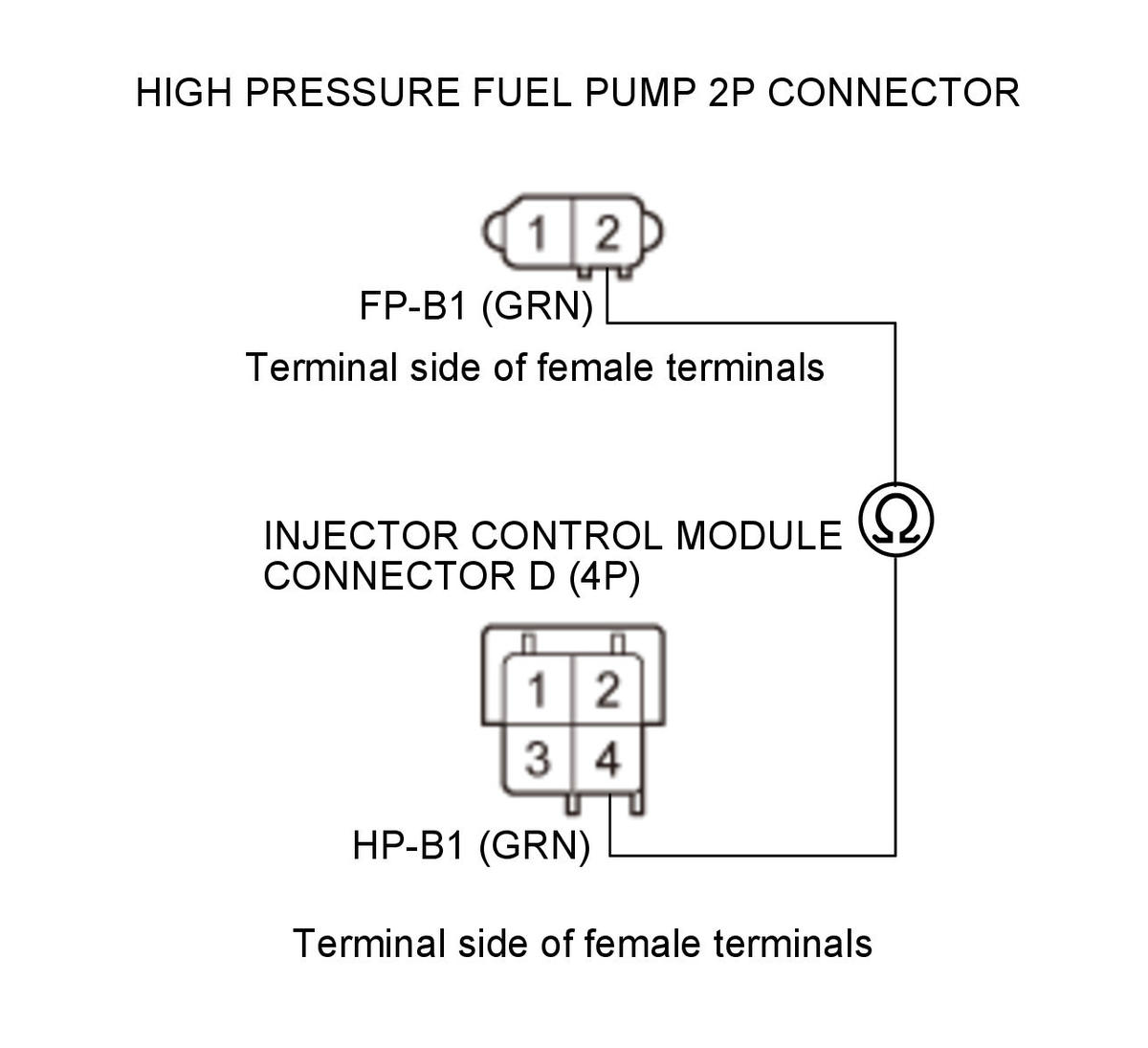

15. Open wire check (FP-B1/HP-B1 line)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector control module connector C (12P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector D (4P): disconnected
    	High pressure fuel pump 2P connector: disconnected
    Test circuit	FP-B1, HP-B1
    Test point 1	High pressure fuel pump 2P connector No. 2 (GRN)
    Test point 2	Injector control module connector D (4P) No. 4 (GRN)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Check for poor connections or loose terminals at the injector relay, the injector control module, the high pressure fuel pump, and the PCM. Substitute a known-good injector control module , then recheck. If the DTC P064A goes away and the injector control module was substituted, replace the original injector control module .

    NO

    Repair an open in the FP-B1/HP-B1 wire between the high pressure fuel pump and the injector control module.

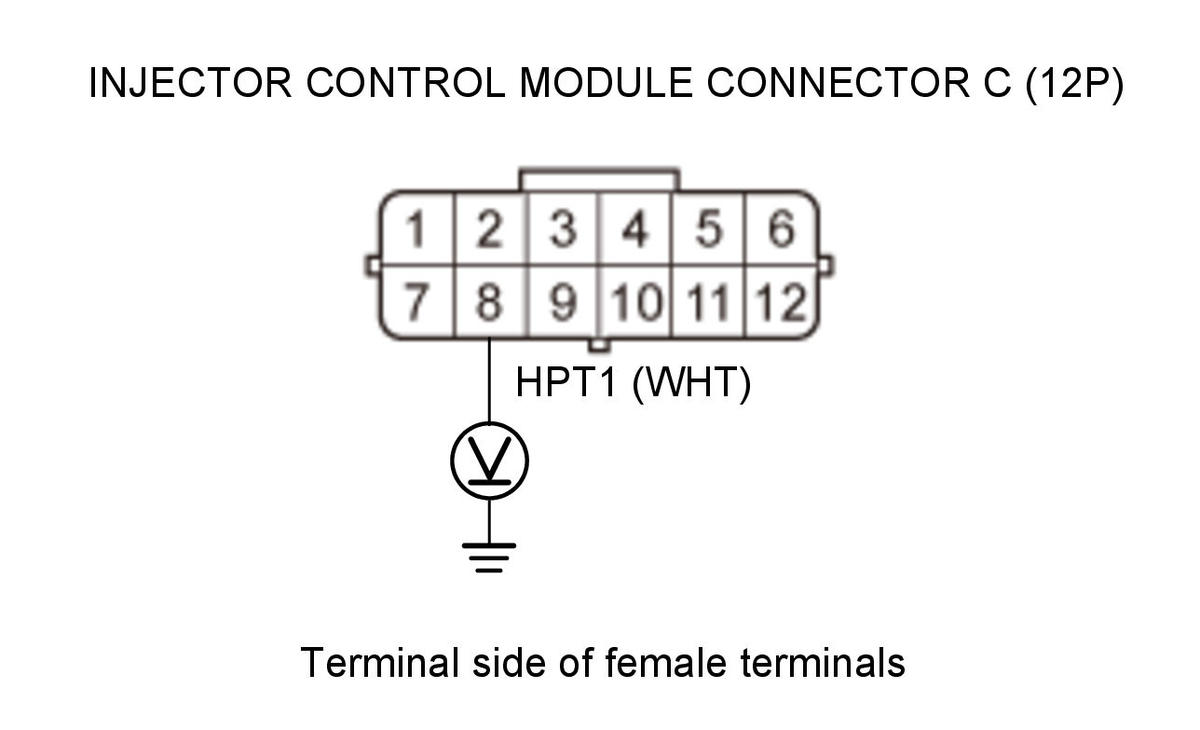

16. Shorted wire check (HPT1 line to power)

    -1. Turn the vehicle to the ON mode.

    - 2. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle ON mode
    	Injector control module connector C (12P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector D (4P): disconnected
    Test circuit	HPT1
    Test point 1	Injector control module connector C (12P) No. 8 (WHT)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there any voltage?

    YES

    Repair a short to power in the HPT1 wire between the PCM (C51) and the injector control module.

    NO

    Go to step 17.

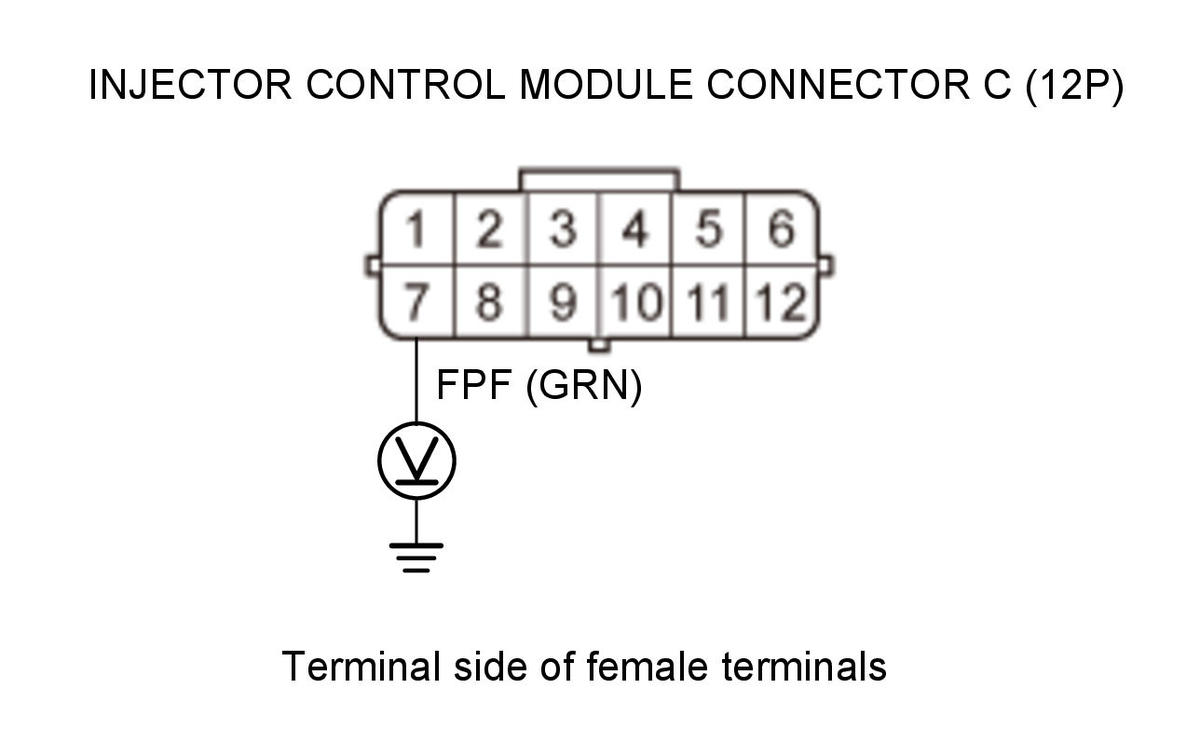

17. Shorted wire check (FPF line to power)

    -1. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle ON mode
    	Injector control module connector C (12P): disconnected
    	PCM connector A (51P): disconnected
    	Injector control module connector D (4P): disconnected
    Test circuit	FPF
    Test point 1	Injector control module connector C (12P) No. 7 (GRN)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there any voltage?

    YES

    Repair a short to power in the FPF wire between the PCM (C50) and the injector control module.

    NO

    Go to step 18.

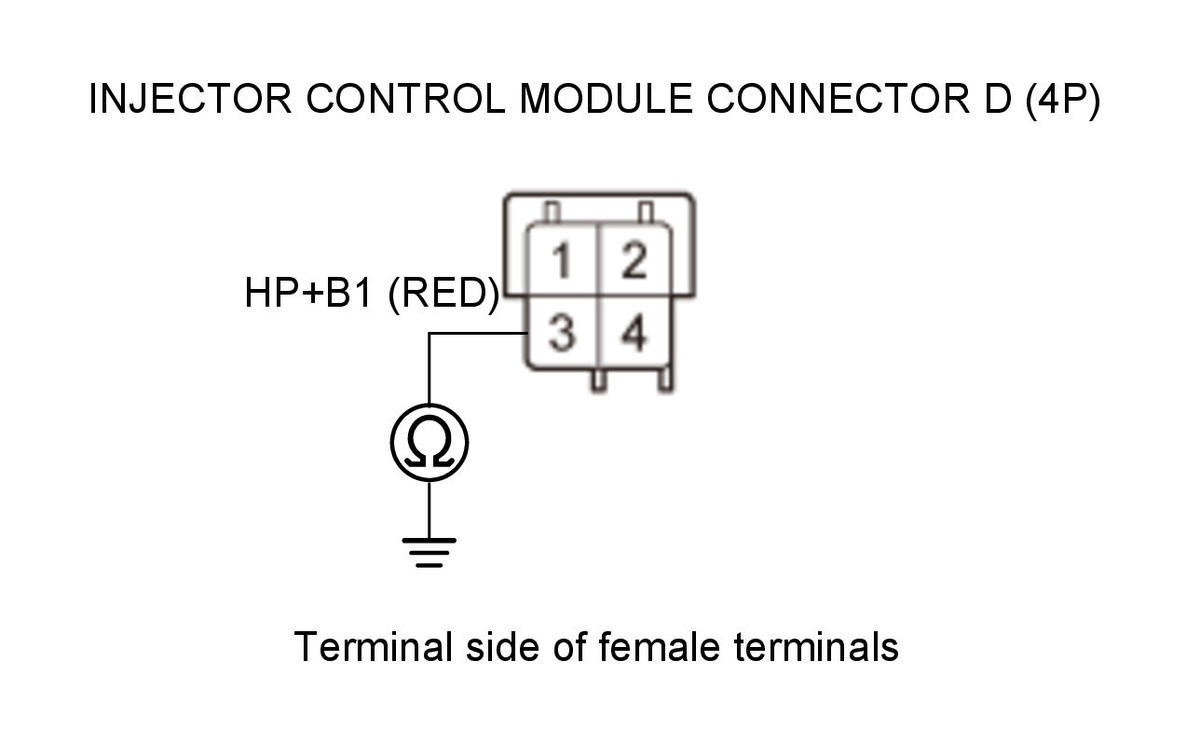

18. Shorted wire check (FP+B1/HP+B1 line to power)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Disconnect the following connector.

    High pressure fuel pump 2P connector

    - 3. Turn the vehicle to the ON mode.

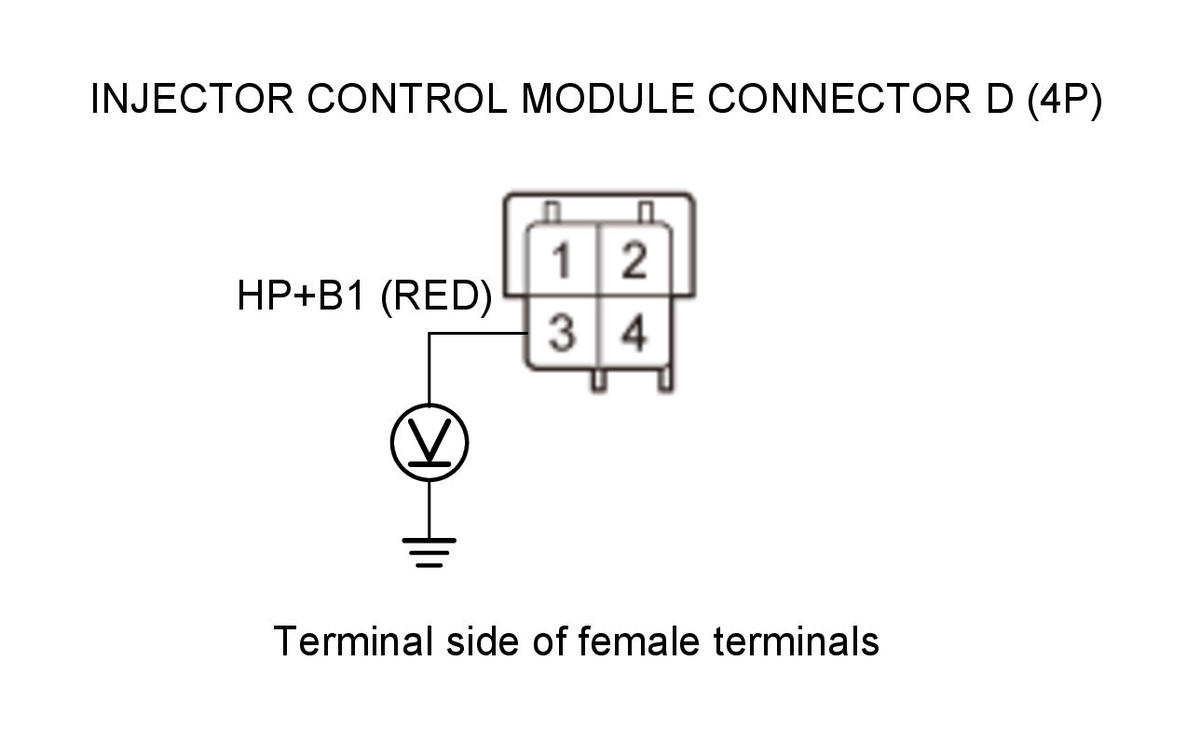

    - 4. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle ON mode
    	Injector control module connector C (12P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector D (4P): disconnected
    	High pressure fuel pump 2P connector: disconnected
    Test circuit	HP+B1
    Test point 1	Injector control module connector D (4P) No. 3 (RED)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there any voltage?

    YES

    Repair a short to power in the FP+B1/HP+B1 wire between the high pressure fuel pump and the injector control module.

    NO

    Go to step 19.

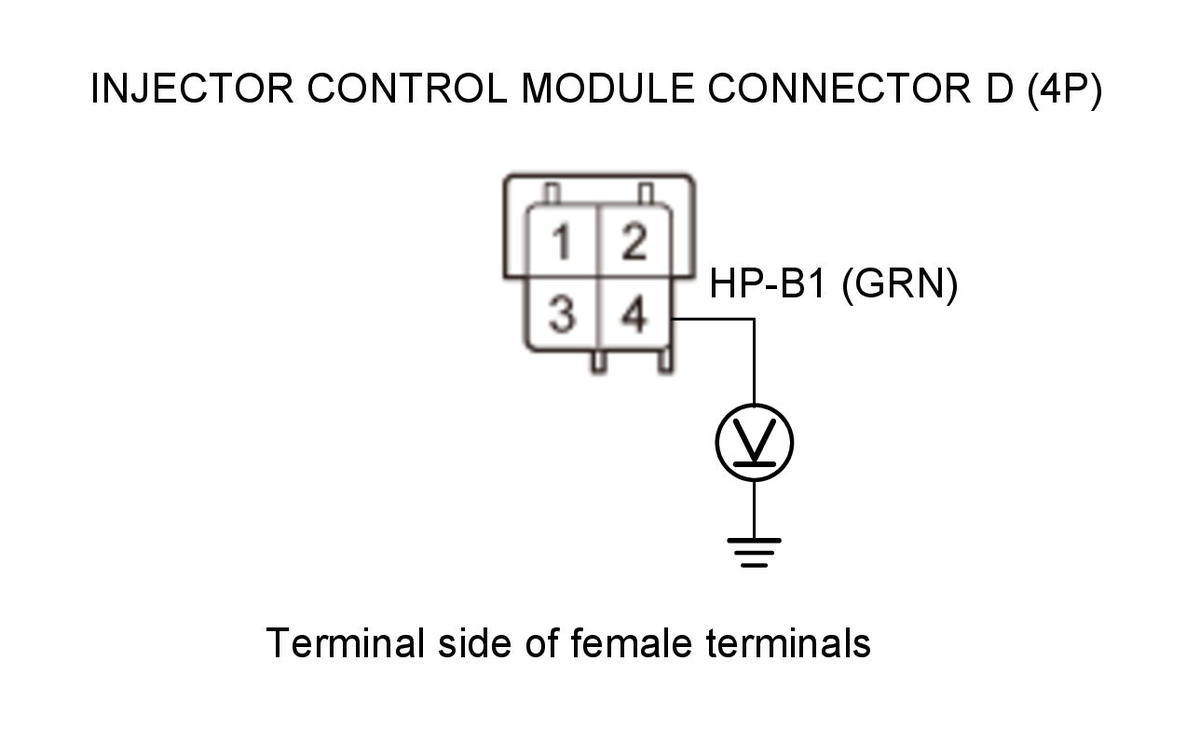

19. Shorted wire check (FP-B1/HP-B1 line to power)

    -1. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle ON mode
    	Injector control module connector C (12P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector D (4P): disconnected
    	High pressure fuel pump 2P connector: disconnected
    Test circuit	HP-B1
    Test point 1	Injector control module connector D (4P) No. 4 (GRN)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there any voltage?

    YES

    Repair a short to power in the FP-B1/HP-B1 wire between the high pressure fuel pump and the injector control module.

    NO

    Go to step 20.

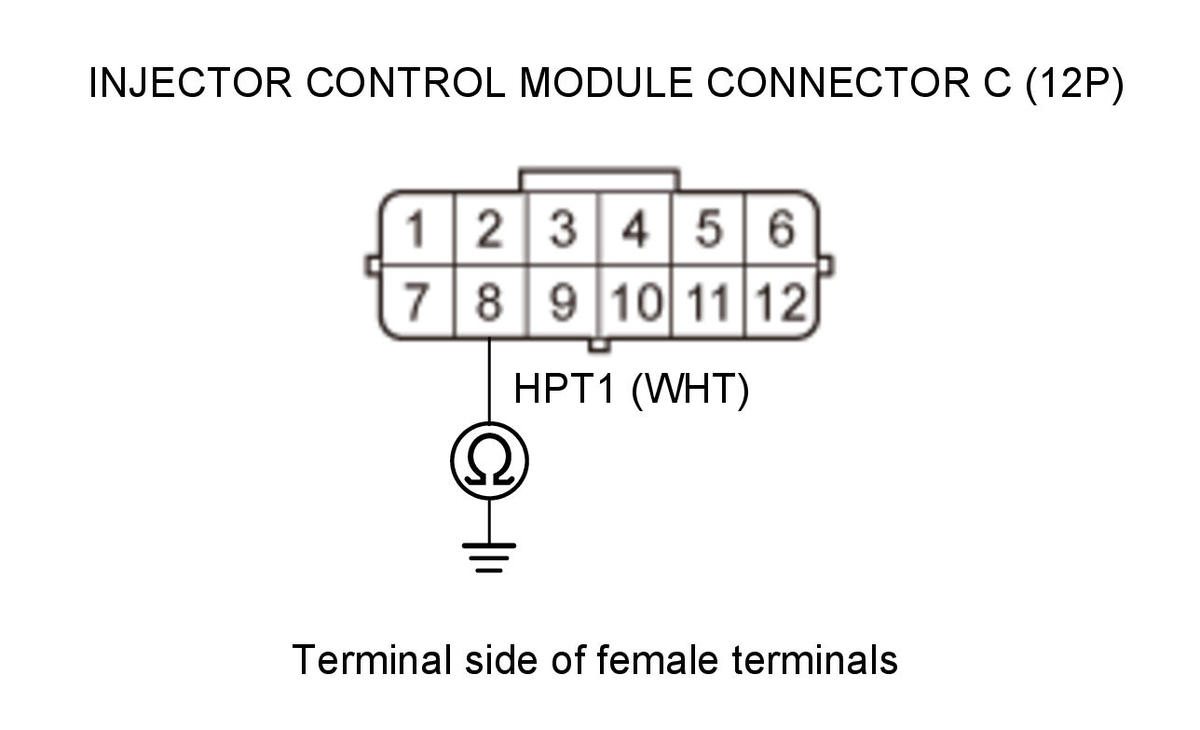

20. Shorted wire check (HPT1 line to ground)

    -1. Turn the vehicle to the OFF (LOCK) mode.

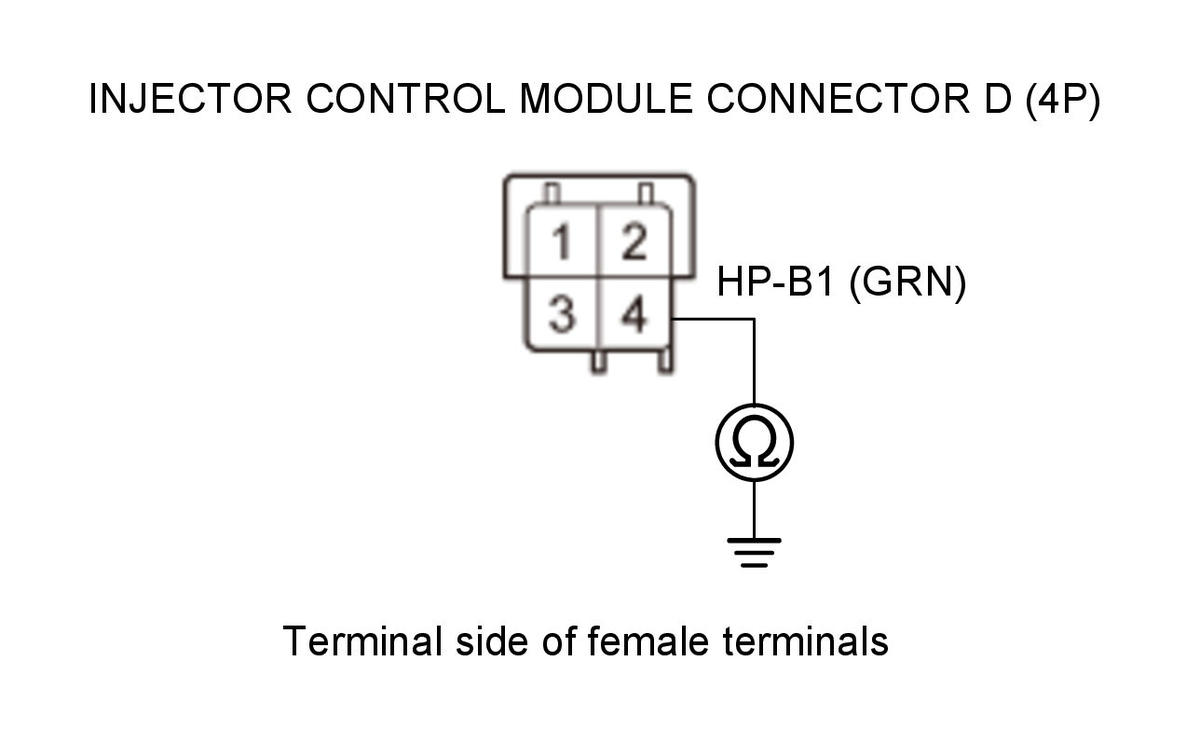

    - 2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector control module connector C (12P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector D (4P): disconnected
    	High pressure fuel pump 2P connector: disconnected
    Test circuit	HPT1
    Test point 1	Injector control module connector C (12P) No. 8 (WHT)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the HPT1 wire between the PCM (C51) and the injector control module.

    NO

    Go to step 21.

21. Shorted wire check (FPF line to ground)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector control module connector C (12P): disconnected
    	PCM connector A (51P): disconnected
    	Injector control module connector D (4P): disconnected
    	High pressure fuel pump 2P connector: disconnected
    Test circuit	FPF
    Test point 1	Injector control module connector C (12P) No. 7 (GRN)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the FPF wire between the PCM (C50) and the injector control module.

    NO

    Go to step 22.

22. Shorted wire check (FP+B1/HP+B1 line to ground)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector control module connector C (12P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector D (4P): disconnected
    	High pressure fuel pump 2P connector: disconnected
    Test circuit	HP+B1
    Test point 1	Injector control module connector D (4P) No. 3 (RED)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the FP+B1/HP+B1 wire between the high pressure fuel pump and the injector control module.

    NO

    Go to step 23.

23. Shorted wire check (FP-B1/HP-B1 line to ground)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector control module connector C (12P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector D (4P): disconnected
    	High pressure fuel pump 2P connector: disconnected
    Test circuit	HP-B1
    Test point 1	Injector control module connector D (4P) No. 4 (GRN)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the FP-B1/HP-B1 wire between the high pressure fuel pump and the injector control module.

    NO

    Substitute a known-good injector control module , then recheck. If the DTC P064A goes away and the injector control module was substituted, replace the original injector control module .
