DTC P0557 (2016 With Auto Idle Stop System)

DTC P0557  : Brake Booster Pressure Sensor A Circuit Low Voltage

DTC (EVPS)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   - 2. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current Condition
   	Values	Unit	Values	Unit
   BRAKE BOOSTER PRESSURE SENSOR (A) VOLTAGE	Less than 0.43	V

   Do the current condition(s) match the threshold?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the brake booster pressure sensor and the PCM.

2. Determine possible failure area (MPMON line, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   Brake booster pressure sensor 3P connector

   - 3. Turn the vehicle to the ON mode.

   - 4. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current Condition
   	Values	Unit	Values	Unit
   BRAKE BOOSTER PRESSURE SENSOR (A) VOLTAGE	About 5.0	V

   Do the current condition(s) match the threshold?

   YES

   Go to step 3.

   NO

   Go to step 5.

3. Brake booster pressure sensor check

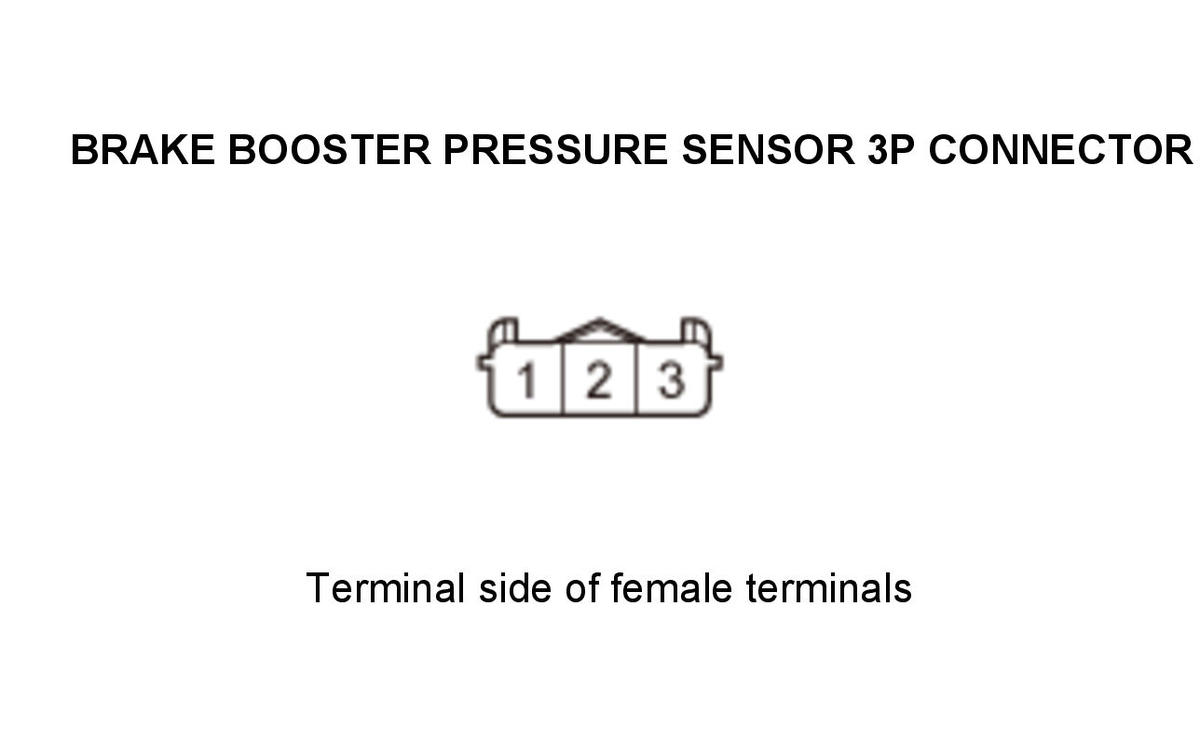

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Brake booster pressure sensor 3P connector: disconnected
   Test point 1	Brake booster pressure sensor 3P connector No. 1
   Test point 2	Brake booster pressure sensor 3P connector No. 3

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   Replace the brake booster pressure sensor .

   NO

   Go to step 4.

4. Open wire check (VCC7 line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Short the SCS line with the HDS.

   - 3. Disconnect the following connector.

   PCM connector A (51P)

   - 4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Brake booster pressure sensor 3P connector: disconnected
   	PCM connector A (51P): disconnected
   Test point 1	Brake booster pressure sensor 3P connector No. 3
   Test point 2	PCM connector A (51P) No. 19 - Refer to: PCM Connector for Inputs and Outputs (2016)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Update the PCM if it does not have the latest software, or substitute a known-good PCM - Refer to: PCM Removal and Installation (2016 2017 2018 2019 2020) , then recheck. If the symptom/indication goes away with a known-good PCM, replace the original PCM - Refer to: PCM Removal and Installation (2016 2017 2018 2019 2020) .

   NO

   Repair an open in the VCC7 wire between PCM connector A (51P) terminal No. 19 and the brake booster pressure sensor.

5. Shorted wire check (MPMON line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Short the SCS line with the HDS.

   - 3. Disconnect the following connector.

   PCM connector A (51P)

   - 4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Brake booster pressure sensor 3P connector: disconnected
   	PCM connector A (51P): disconnected
   Test point 1	Brake booster pressure sensor 3P connector No. 2
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short in the MPMON wire between PCM connector A (51P) terminal No. 36 and the brake booster pressure sensor.

   NO

   Update the PCM if it does not have the latest software, or substitute a known-good PCM - Refer to: PCM Removal and Installation (2016 2017 2018 2019 2020) , then recheck. If the symptom/indication goes away with a known-good PCM, replace the original PCM .
