DTC P0452 (2014 2015 2016)
DTC P0452 : FTP Sensor Circuit Low Voltage
| DTC Description | Confirmed DTC | Pending DTC | Freeze Frame |
|---|---|---|---|
| P0452 FTP Sensor Circuit Low Voltage |
DTC (PGM-FI)
- EVAP system check
-1. Turn the vehicle to the ON mode.
- 2. Clear the DTC with the HDS.
- 3. Turn the vehicle to the OFF (LOCK) mode.
- 4. Remove the fuel fill cap.
- 5. Check the parameter(s) below with the HDS.
Signal Threshold Current conditions Values Unit Values Unit FTP SENSOR Less than 0.3 V Do the current condition(s) match the malfunction threshold?
YES
Go to step 3.
NO
Go to step 2.
- Problem verification
-1. Install the fuel fill cap.
- 2. Start the engine, and let it idle.
- 3. Monitor the OBD STATUS for DTC P0452 in the DTCs MENU with the HDS.
DTC Description OBD STATUS P0452 FTP Sensor Circuit Low Voltage Does the HDS indicate FAILED?
YES
The failure is duplicated. Go to step 3.
NO
If the HDS indicates PASSED, intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the FTP sensor and the PCM.
- Determine possible failure area (PTANK line, others)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the following connector.
FTP sensor 3P connector - 3. Turn the vehicle to the ON mode.
- 4. Check the parameter(s) below with the HDS.
Signal Threshold Current conditions Values Unit Values Unit FTP SENSOR Less than 0.3 V Do the current condition(s) match the malfunction threshold?
YES
Go to step 4.
NO
Go to step 5.
- Shorted wire check (PTANK line)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Jump the SCS line with the HDS.
- 3. Disconnect the following connector.
- 4. Check for continuity between test points 1 and 2.

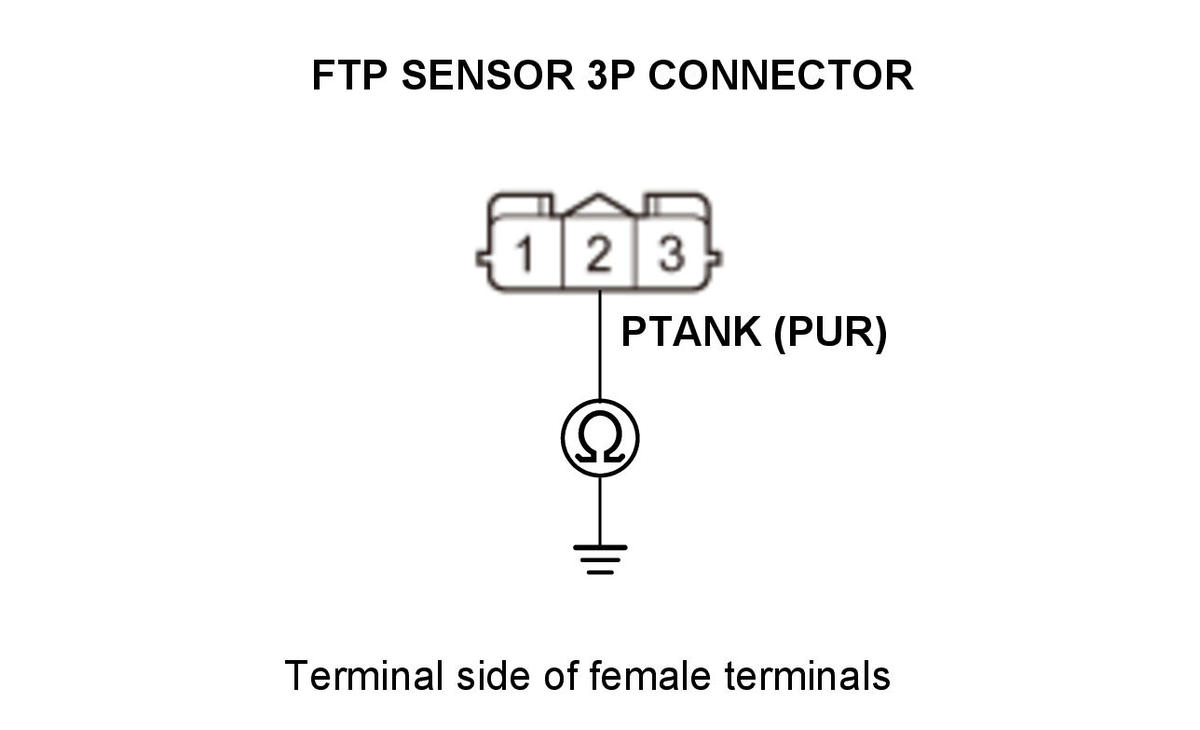

Test condition Vehicle OFF (LOCK) mode FTP sensor 3P connector: disconnected PCM connector A (51P): disconnected Test circuit PTANK Test point 1 FTP sensor 3P connector No. 2 (PUR) Test point 2 Body ground Is there continuity?
YES
Repair a short in the PTANK wire between the PCM (A30) and the FTP sensor.
NO
The PTANK wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM - Refer to: PCM Removal and Installation (2014 2015), or PCM Removal and Installation (2016) .
- Determine possible failure area (FTP sensor, others)
-1. Measure the voltage between test points 1 and 2.

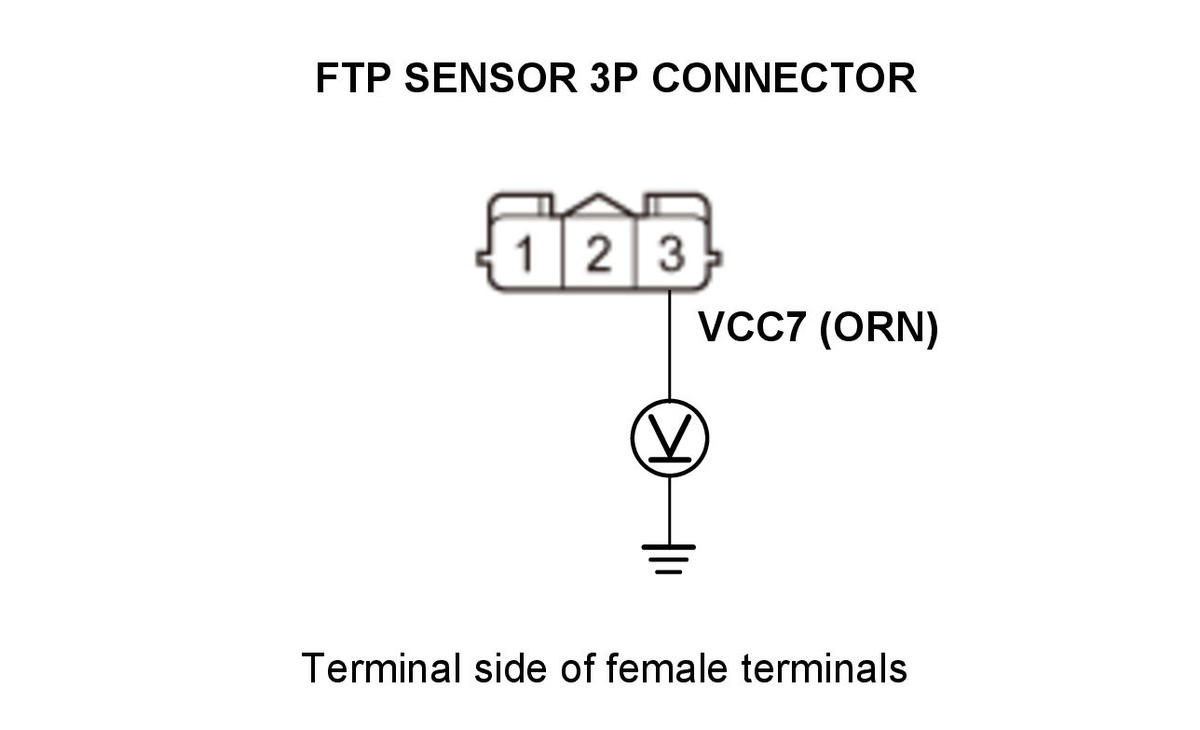

Test condition Vehicle ON mode FTP sensor 3P connector: disconnected Test circuit VCC7 Test point 1 FTP sensor 3P connector No. 3 (ORN) Test point 2 Body ground Is there about 5.0 V?
YES
NO
Go to step 6.
- Open wire check (VCC7 line)
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Jump the SCS line with the HDS.
- 3. Disconnect the following connector.

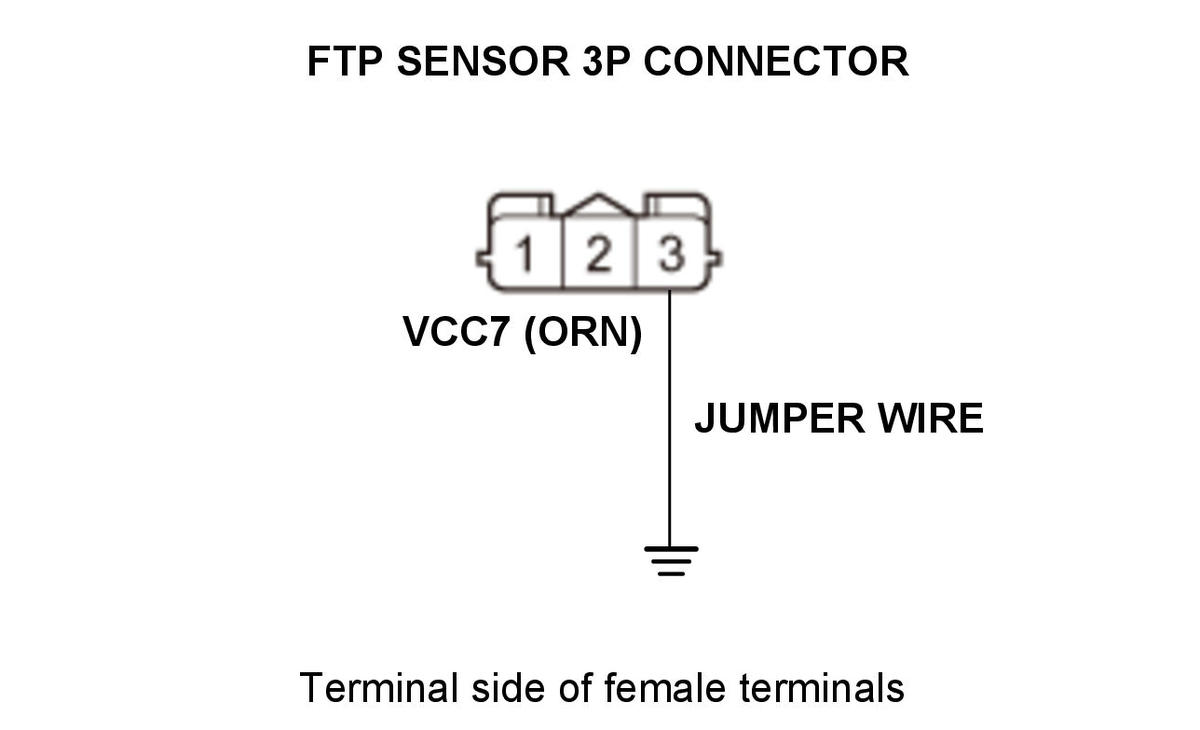

- 4. Connect terminals A and B with a jumper wire.
Terminal A FTP sensor 3P connector No. 3 (ORN) Terminal B Body ground - 5. Check for continuity between test points 1 and 2.

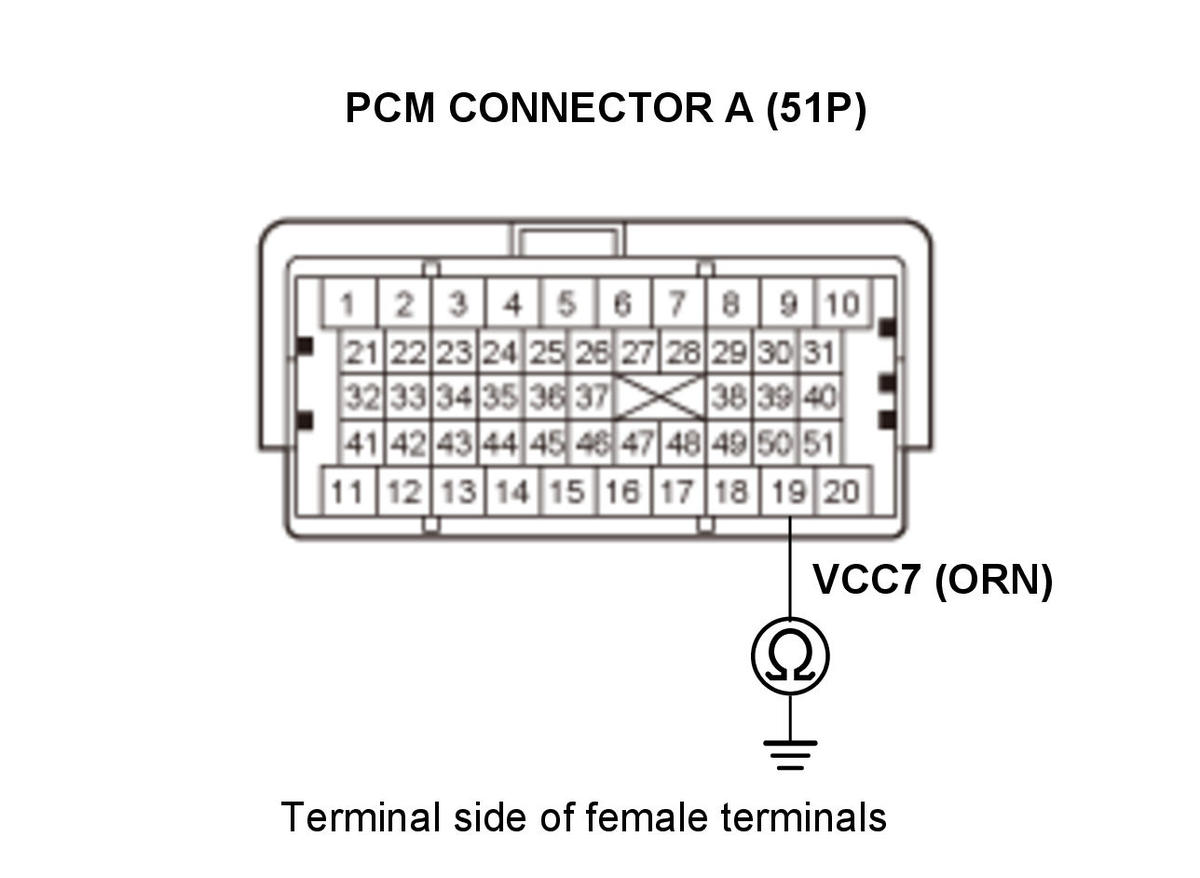

Test condition Vehicle OFF (LOCK) mode FTP sensor 3P connector: disconnected FTP sensor 3P connector No. 3: jumped to body ground PCM connector A (51P): disconnected Test circuit VCC7 Test point 1 PCM connector A (51P) No. 19 (ORN) Test point 2 Body ground Is there continuity?
YES
The VCC7 wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM - Refer to: PCM Removal and Installation (2014 2015), or PCM Removal and Installation (2016) .
NO
Repair an open in the VCC7 wire between the PCM (A19) and the FTP sensor.
