DTC P0135, P0155

DTC P0135  : Rear A/F Sensor (Bank 1, Sensor 1) Heater Circuit Malfunction DTC P0155  : Front A/F Sensor (Bank 2, Sensor 1) Heater Circuit Malfunction

NOTE:

DTC Description Confirmed DTC Pending DTC Freeze Frame
P0135 Rear A/F Sensor (Bank 1, Sensor 1) Heater Circuit Malfunction
P0155 Front A/F Sensor (Bank 2, Sensor 1) Heater Circuit Malfunction

DTC (PGM-FI)

  1. Problem verification

    -1. Turn the vehicle to the ON mode.

    - 2. Clear the DTC with the HDS.

    - 3. Start the engine.

    - 4. Check for Pending or Confirmed DTCs with the HDS.

    DTC Description Confirmed DTC Pending DTC Freeze Frame
    P0135 Rear A/F Sensor (Bank 1, Sensor 1) Heater Circuit Malfunction
    P0155 Front A/F Sensor (Bank 2, Sensor 1) Heater Circuit Malfunction

    Is DTC P0135 and/or P0155 * indicated?

    YES

    The failure is duplicated. Go to step 2.

    NO

    Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the A/F sensor (Sensor 1), the PGM-FI subrelay, and the PCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

  2. Fuse check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Check the following fuse.

    Fuse No. C8 (15 A)
    Location Under-hood fuse/relay box

    Is the fuse OK?

    YES

    Go to step 3.

    NO

    Go to step 11.

  3. Relay check

    -1. Remove the PGM-FI subrelay (A) from the under-hood fuse/relay box.

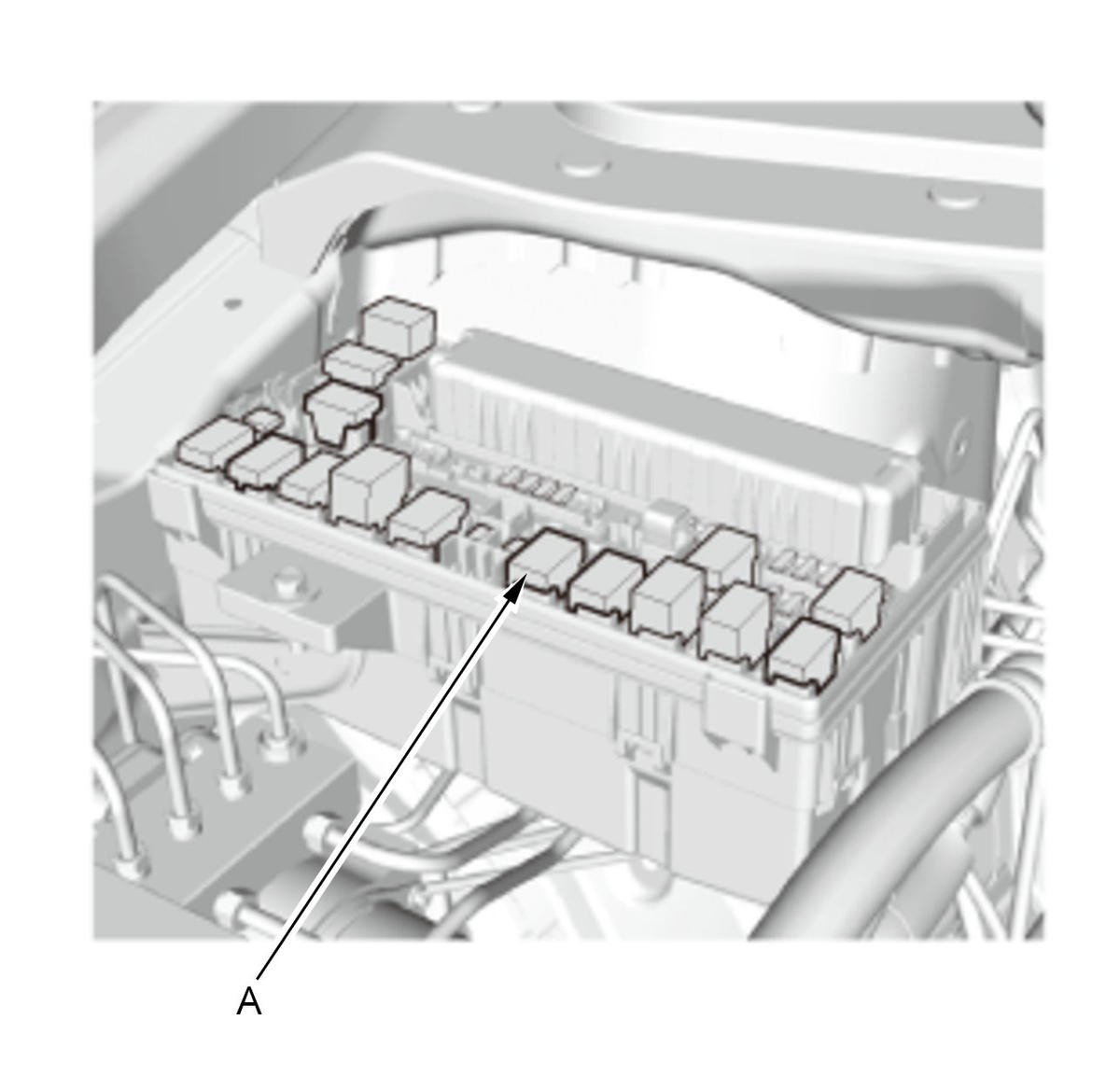

    GHH318697Courtesy of HONDA, U.S.A., INC.

    - 2. Test the PGM-FI subrelay.

    Is the relay OK?

    YES

    Go to step 4.

    NO

    Replace the PGM-FI subrelay.

  4. A/F sensor (Sensor 1) internal heater resistance check

    -1. Disconnect the following connector.

    A/F sensor (Sensor 1) 6P connector

    - 2. At the sensor side, measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      PGM-FI subrelay: disconnected
      A/F sensor (Sensor 1) 6P connector: disconnected
    Test circuit AFHT B1 (AFHT B2) *, IG(LAF O2)
    Test point 1 A/F sensor (Sensor 1) 6P connector No. 2 (A/F sensor (Sensor 1) side)
    Test point 2 A/F sensor (Sensor 1) 6P connector No. 3 (A/F sensor (Sensor 1) side)

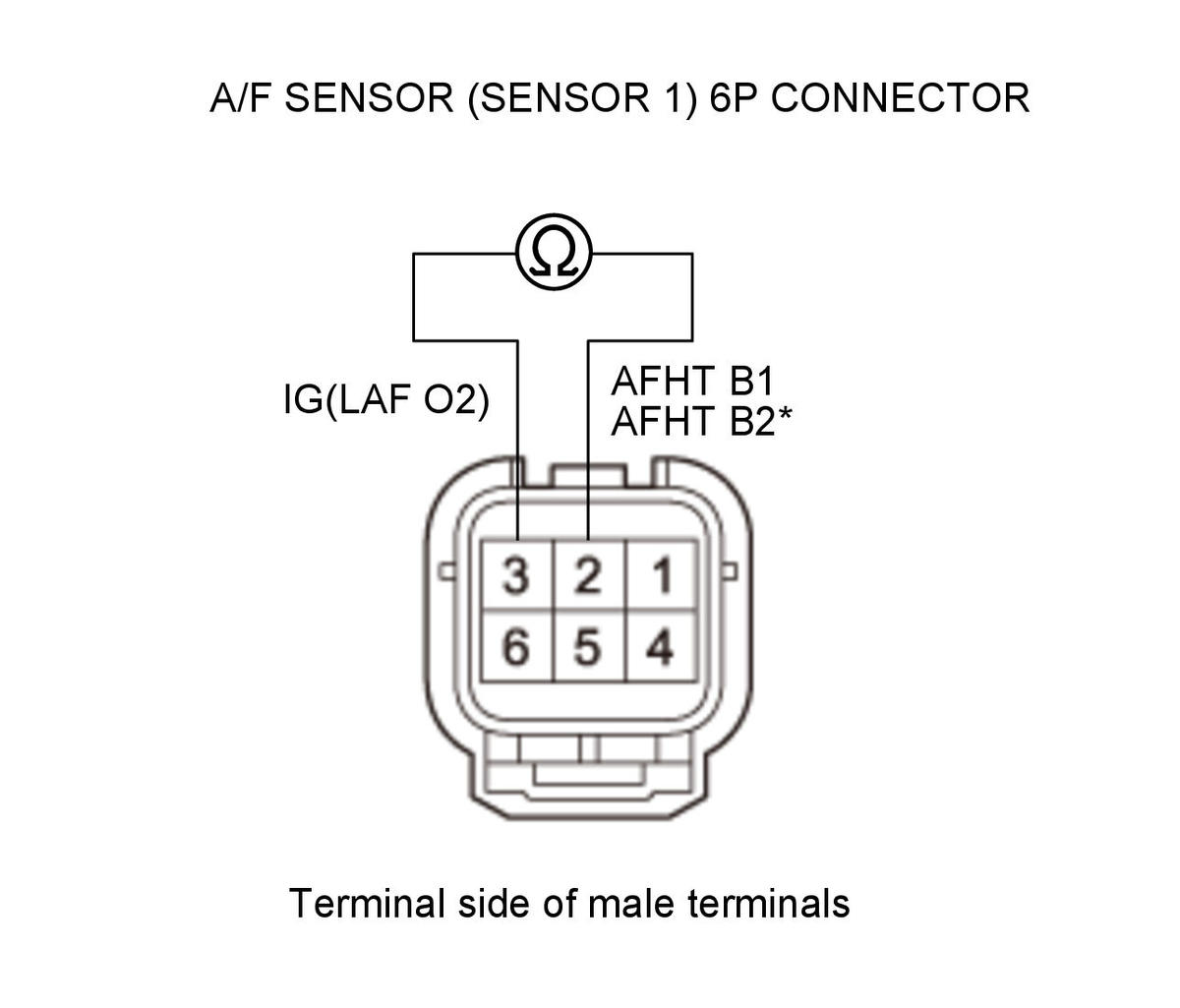

    GHH318698Courtesy of HONDA, U.S.A., INC.

    Is there 5.4-6.6 Ω at room temperature?

    YES

    Go to step 5.

    NO

    Replace the A/F sensor (Sensor 1) .

  5. A/F sensor internal circuit check 1

    -1. Check for continuity between the following test points and body ground individually.

    Test condition Vehicle OFF (LOCK) mode
      PGM-FI subrelay: disconnected
      A/F sensor (Sensor 1) 6P connector: disconnected
    Connector Test circuit Terminal
    A/F sensor (Sensor 1) (A/F sensor (Sensor 1) side) AFHT B1 No. 2
    AFHT B2 *
    IG(LAF O2) No. 3
    VCENTB1 No. 4
    VCENTB2 *
    IPB1 No. 5
    IPB2 *
    VSB1 No. 6
    VSB2 *

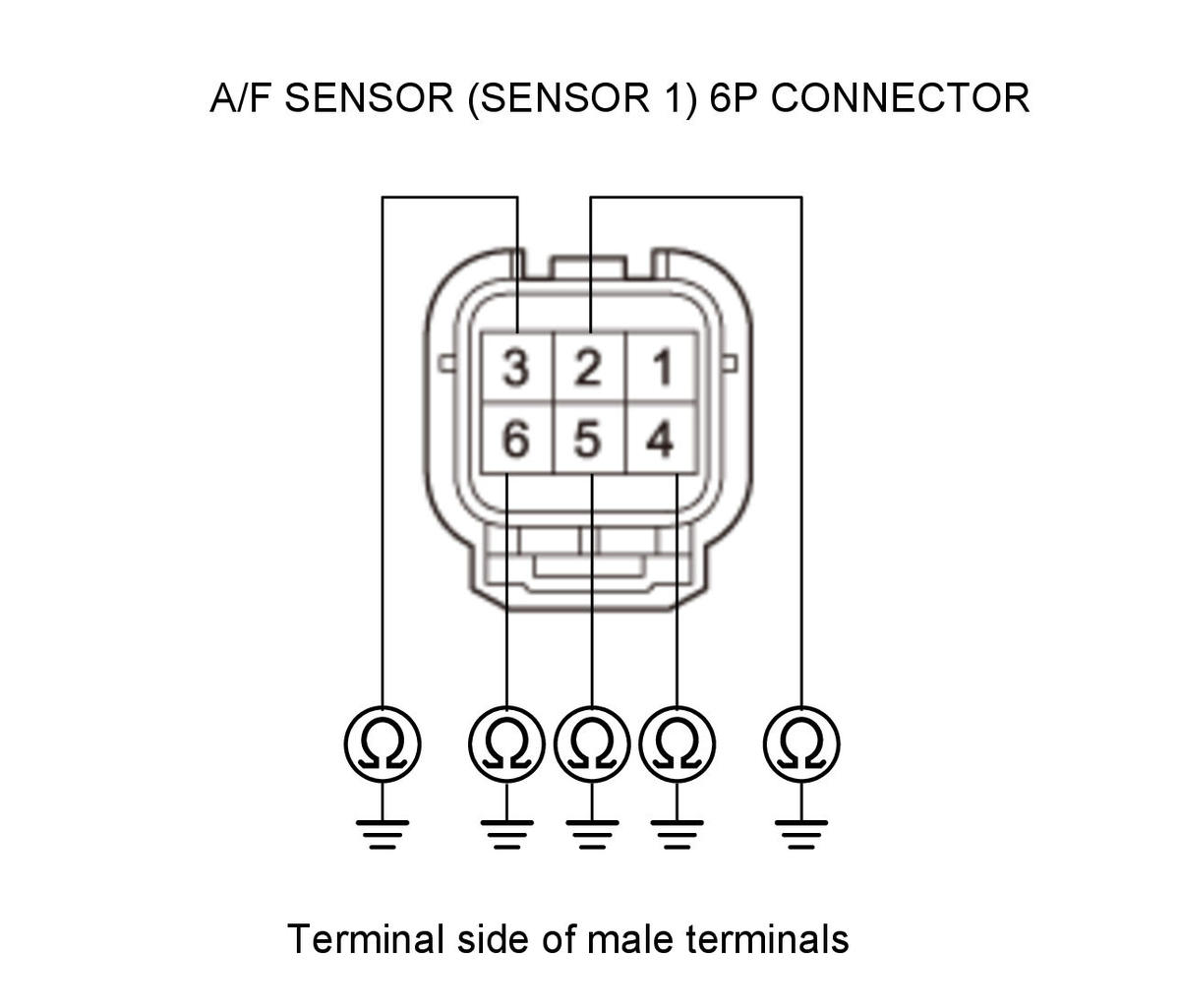

    GHH318699Courtesy of HONDA, U.S.A., INC.

    Is there continuity to body ground at any terminal?

    YES

    Replace the A/F sensor (Sensor 1) .

    NO

    Go to step 6.

  6. A/F sensor (Sensor 1) internal circuit check

    -1. Check for continuity between the following test points and the A/F sensor (Sensor 1) 6P connector terminal No. 3 individually.

    Test condition Vehicle OFF (LOCK) mode
      PGM-FI subrelay: disconnected
      A/F sensor (Sensor 1) 6P connector: disconnected
    Connector Test circuit Terminal
    A/F sensor (Sensor 1) (A/F sensor (Sensor 1) side) VCENTB1 No. 4
    VCENTB2 *
    IPB1 No. 5
    IPB2 *
    VSB1 No. 6
    VSB2 *

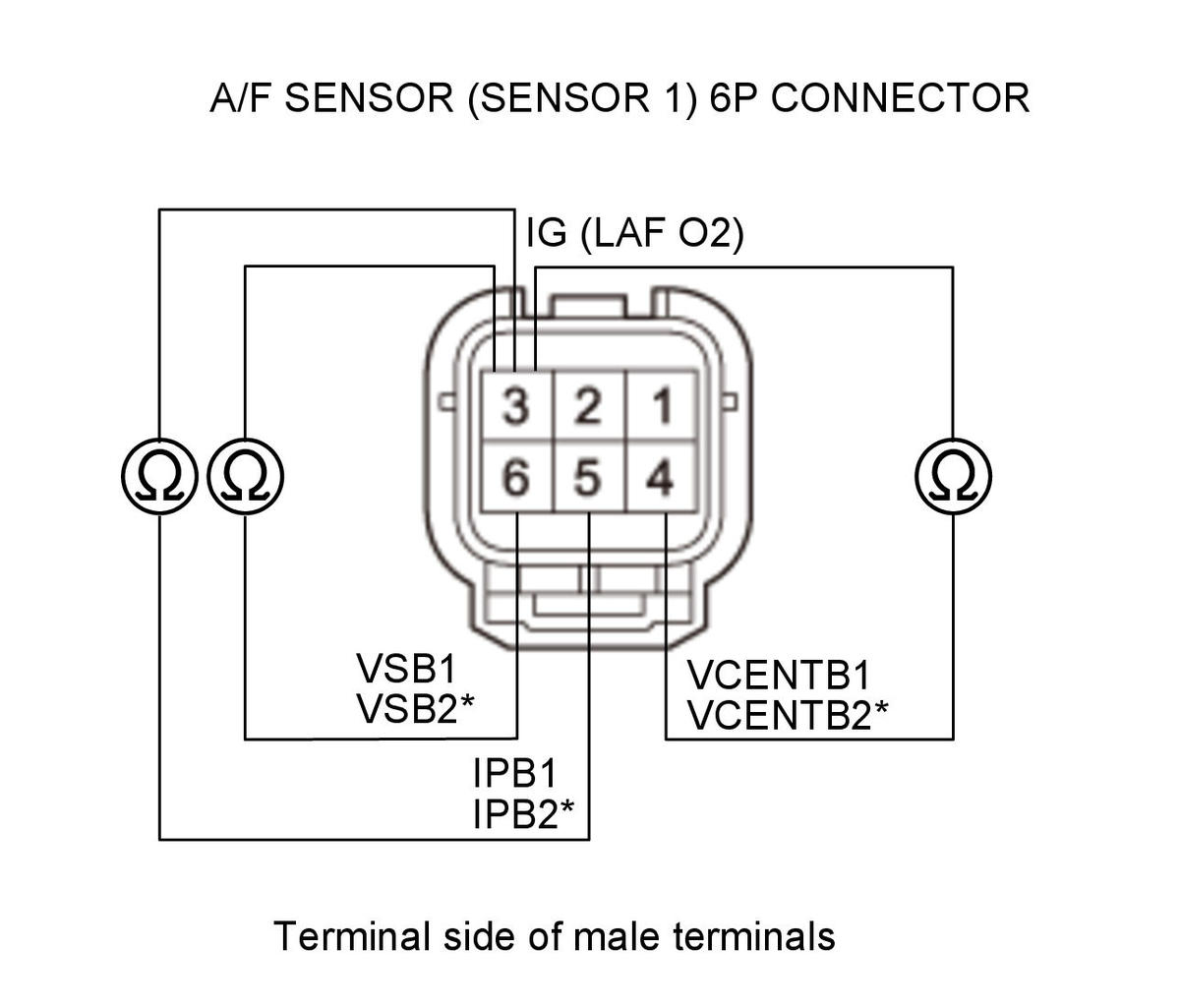

    GHH318700Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Replace the A/F sensor (Sensor 1) .

    NO

    Go to step 7.

  7. Shorted wire check (AFHT B1 (AFHT B2) * line):

    - 1.Jump the SCS line with the HDS.

    - 2. Disconnect the following connector.

    PCM connector C (51P) - Refer to: How to Troubleshoot the A/T System (2014 2015),  or How to Troubleshoot the Fuel and Emissions Systems,  or How to Troubleshoot the Brake Booster Pressure Monitoring System (2016 2017 2018 2019 2020), or How to Troubleshoot the Fuel and Emissions Systems(With Auto Idle Stop System) (2016)

    - 3. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      PGM-FI subrelay: disconnected
      A/F sensor (Sensor 1) 6P connector: disconnected
      PCM connector C (51P): disconnected
    Test circuit AFHT B1 (AFHT B2) *
    Test point 1 PCM connector C (51P) No. 6 (TAN)
      PCM connector C (51P) No. 8 (GRY) *
    Test point 2 Body ground

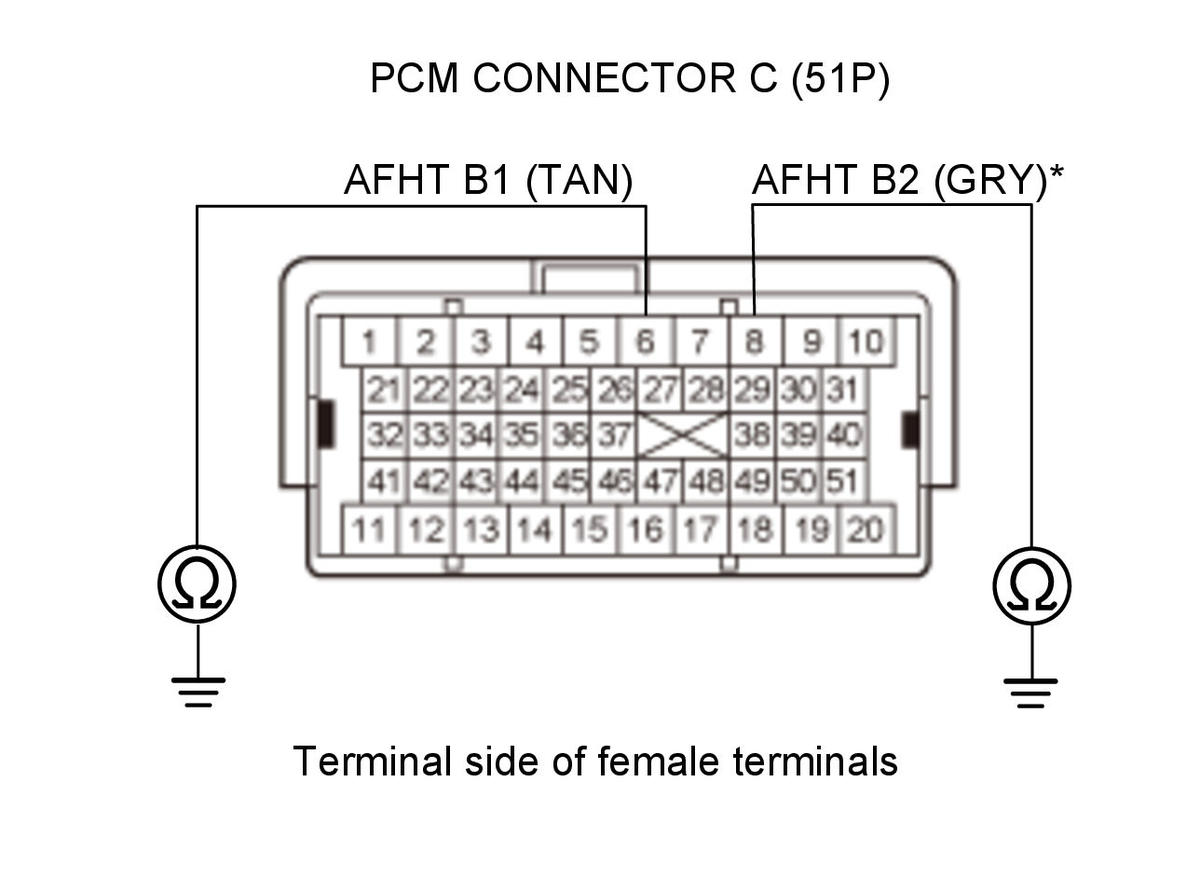

    GHH318701Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short in the AFHT B1 (AFHT B2) * wire between the PCM (C6 (C8) *) and the A/F sensor (Sensor 1).

    NO

    The AFHT B1 (AFHT B2) * wire is not shorted. Go to step 8.

  8. Open wire check (AFHT B1 (AFHT B2) * line):

    - 1.Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      PGM-FI subrelay: disconnected
      A/F sensor (Sensor 1) 6P connector: disconnected
      PCM connector C (51P): disconnected
    Test circuit AFHT B1 (AFHT B2) *
    Test point 1 Rear A/F sensor (Bank 1, Sensor 1) 6P connector No. 2 (TAN)
      Front A/F sensor (Bank 2, Sensor 1) 6P connector No. 2 (GRY) *
    Test point 2 PCM connector C (51P) No. 6 (TAN)
      PCM connector C (51P) No. 8 (GRY) *

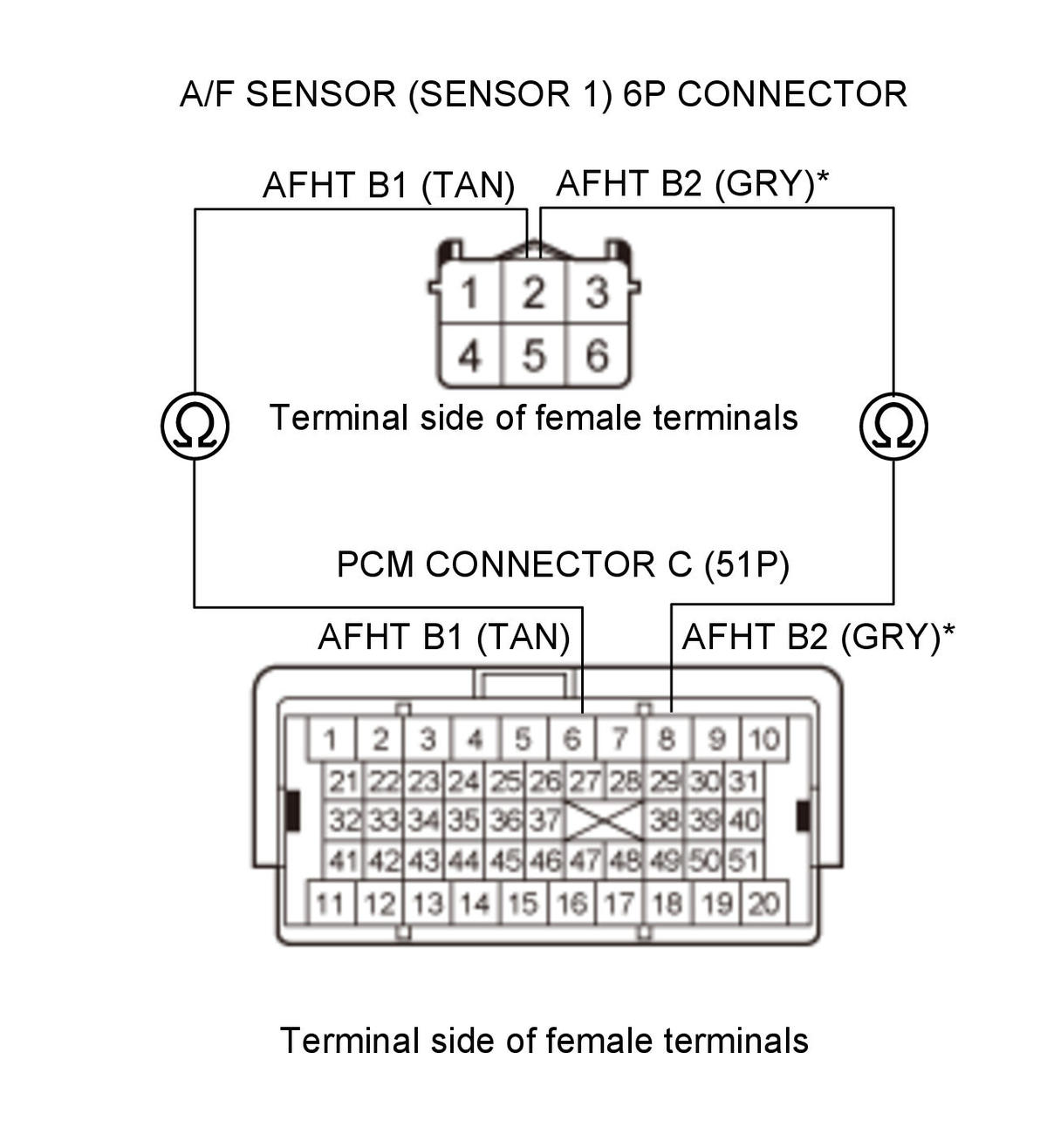

    GHH318702Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The AFHT B1 (AFHT B2) * wire is OK. Go to step 9.

    NO

    Repair an open in the AFHT B1 (AFHT B2) * wire between the PCM (C6 (C8) *) and the A/F sensor (Sensor 1).

  9. Open wire check (IG(LAF O2)/FI SUB line)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      PGM-FI subrelay: disconnected
      A/F sensor (Sensor 1) 6P connector: disconnected
      PCM connector C (51P): disconnected
    Test circuit IG(LAF O2)/FI SUB
    Test point 1 A/F sensor (Sensor 1) 6P connector No. 3 (PNK)
    Test point 2 PGM-FI subrelay 4P socket No. 2

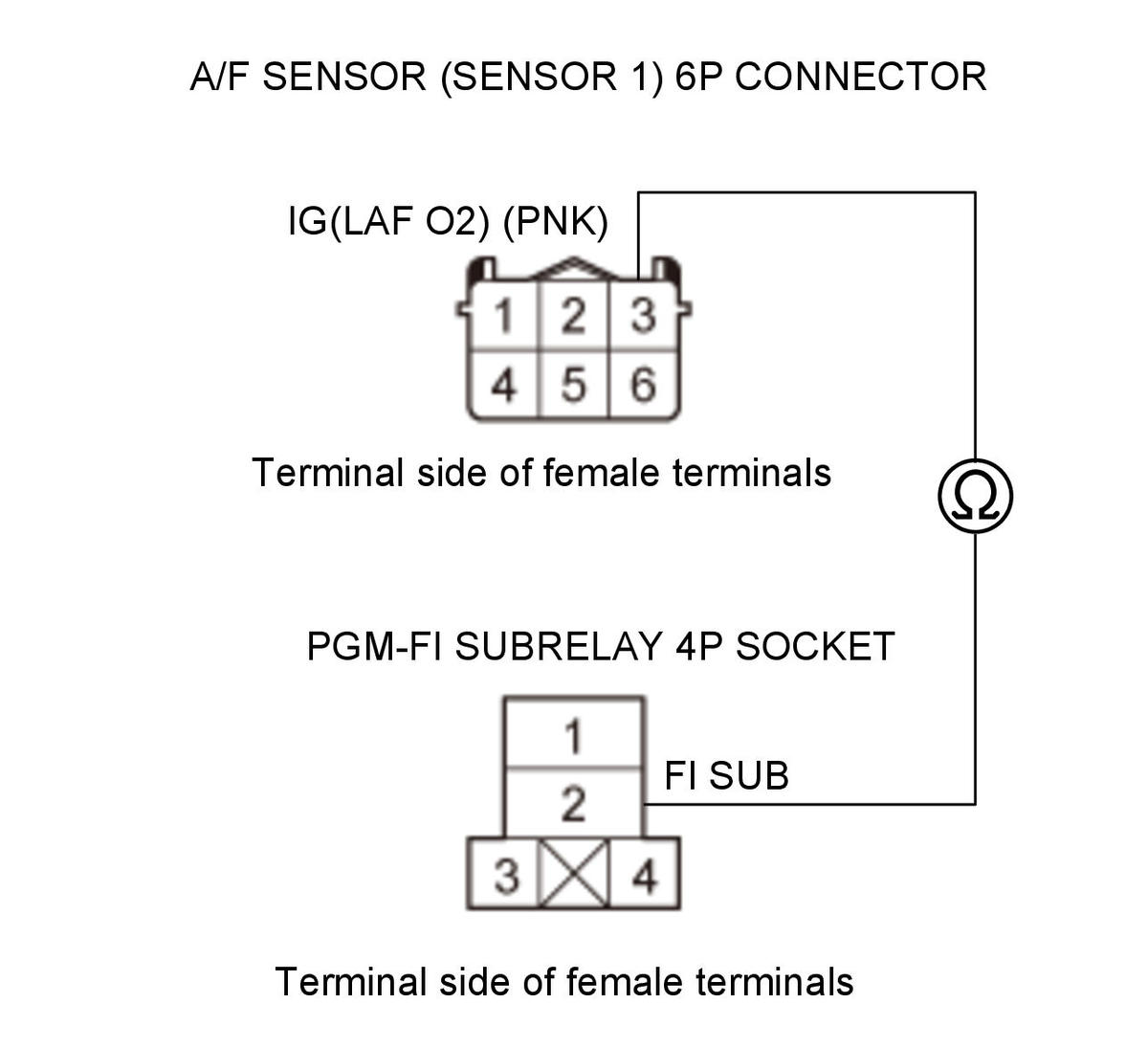

    GHH318703Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The IG(LAF O2)/FI SUB wire is OK. Go to step 10.

    NO

    Repair an open in the IG(LAF O2)/FI SUB wire between the A/F sensor (Sensor 1) and the PGM-FI subrelay.

  10. Open wire check (LAF RLY line)

    -1. Disconnect the following connector.

    PCM connector A (51P) - Refer to: How to Troubleshoot the Brake Booster Pressure Monitoring System (2016 2017 2018 2019 2020), or How to Troubleshoot the Fuel and Emissions Systems(With Auto Idle Stop System) (2016),  or How to Troubleshoot the A/T System (2014 2015),  or How to Troubleshoot the Fuel and Emissions Systems

    - 2. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      PGM-FI subrelay: disconnected
      A/F sensor (Sensor 1) 6P connector: disconnected
      PCM connector A (51P): disconnected
    Test circuit LAF RLY
    Test point 1 PGM-FI subrelay 4P socket No. 4
    Test point 2 PCM connector A (51P) No. 14 (PNK)

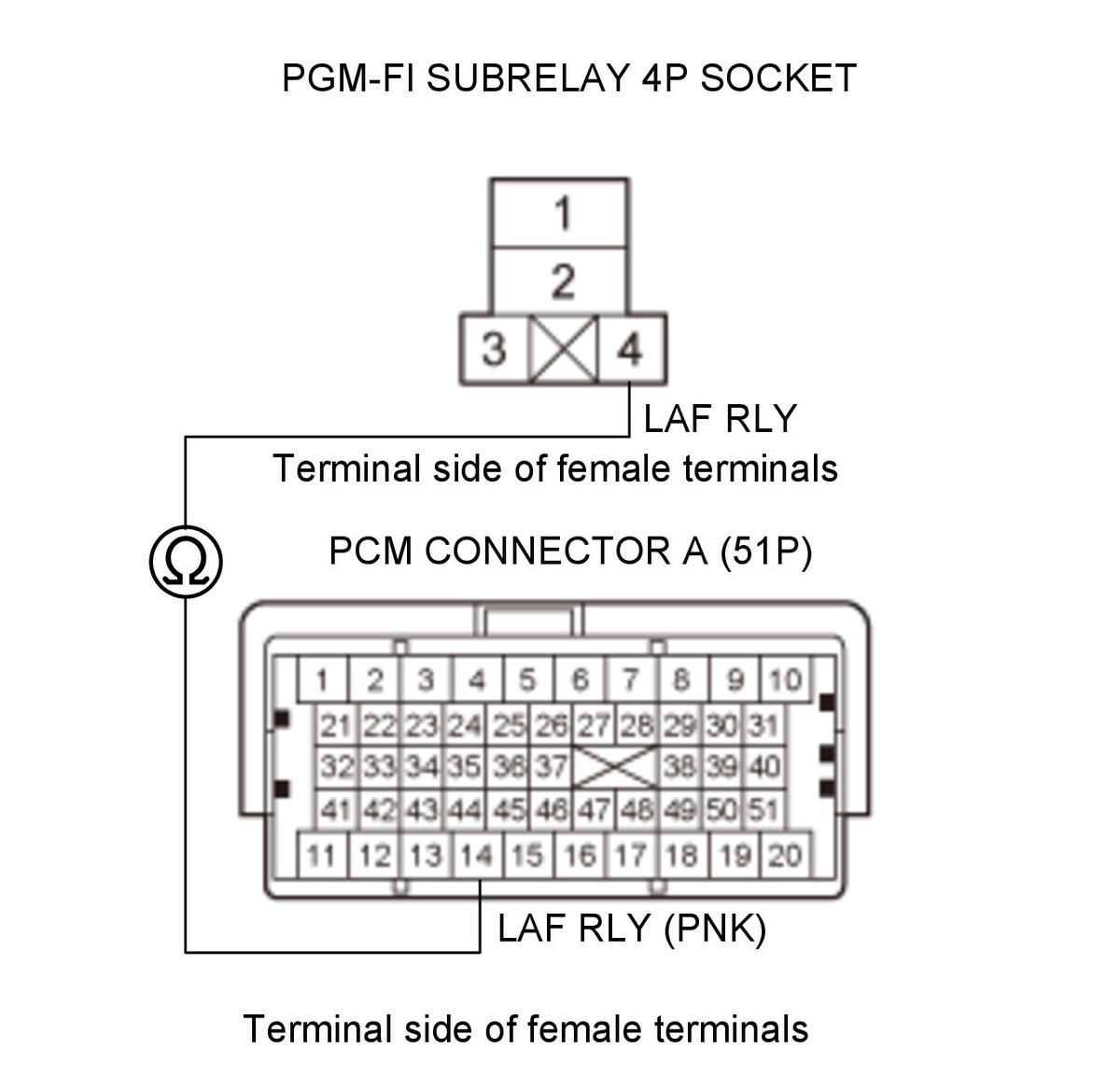

    GHH318704Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The LAF RLY wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM - Refer to: PCM Removal and Installation (2014 2015), or PCM Removal and Installation (2016) .

    NO

    Repair an open in the LAF RLY wire between the PCM (A14) and the PGM-FI subrelay.

  11. Shorted wire check (IG(LAF O2)/FI SUB line)

    -1. Remove the PGM-FI subrelay (A) and the No. C28 (7.5 A) fuse from the under-hood fuse/relay box.

    GHH318705Courtesy of HONDA, U.S.A., INC.

    - 2. Jump the SCS line with the HDS.

    - 3. Disconnect the following connectors.

    PCM connector A (51P) - Refer to: How to Troubleshoot the Fuel and Emissions Systems,  or How to Troubleshoot the A/T System (2014 2015),  or How to Troubleshoot the Brake Booster Pressure Monitoring System (2016 2017 2018 2019 2020), or How to Troubleshoot the Fuel and Emissions Systems(With Auto Idle Stop System) (2016)
    Front and rear A/F sensor (Sensor 1) 6P connectors
    Front and rear secondary HO2S (Sensor 2) 4P connectors
    EVAP canister vent shut valve 2P connector

    - 4. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    PGM-FI subrelay: disconnected
    No. C8 (15 A) fuse: disconnected
    PCM connector A (51P): disconnected
    Front and rear secondary HO2S (Sensor 2) 4P connectors: disconnected
    Front and rear A/F sensor (Sensor 1) 6P connectors: disconnected
      EVAP canister vent shut valve 2P connector: disconnected
    Test circuit IG(LAF O2)/FI SUB
    Test point 1 A/F sensor (Sensor 1) 6P connector No. 3 (PNK)
    Test point 2 Body ground

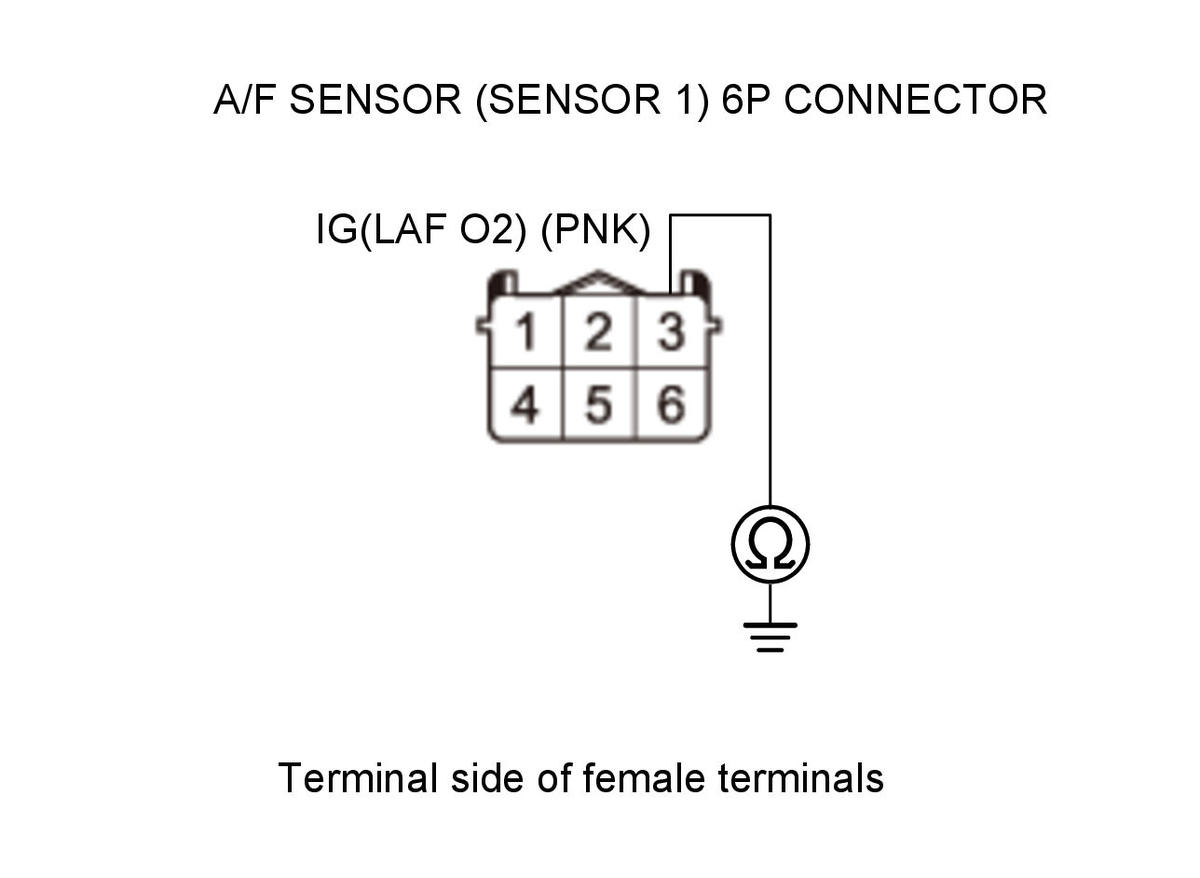

    GHH318706Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short in the IG(LAF O2)/FI SUB wire between the PGM-FI subrelay, secondary HO2S (Sensor 2), the A/F sensor (Sensor 1), the EVAP canister vent shut valve, and the PCM. Also replace the No. C8 (15 A) fuse.

    NO

    The IG(LAF O2)/FI SUB wire is OK. Check the under-hood fuse/relay box, and replace it if needed. Also replace the No. C8 (15 A) fuse.
