Console Accessory Power Socket Circuit Troubleshooting

Console Accessory Power Socket Circuit Troubleshooting

1. Problem verification

   - 1. Test the console accessory power socket.

   Does the console accessory power socket workΩ

   YES

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

   NO

   Go to step 2.

2. Fuse check

   - 1. Check the following fuses.

   Fuse	No. D13 (7. 5 A)
   Location	Driver's under-dash fuse/relay box

   Fuse	No. E27 (20 A)
   Location	Passenger's under-dash fuse/relay box

   Is each fuse OK?

   YES

   Go to step 3.

   NO

   Replace the fuse. If the fuse blows again, repair a short to ground in the No. D13 (7. 5 A), and/or No. E27 (20 A) fuse circuit(s).

3. Console accessory power socket relay check

   - 1. Remove the console accessory power socket relay from the passenger's under-dash fuse/relay box, and test it.

   Is the relay OK?

   YES

   Go to step 4.

   NO

   Replace the console accessory power socket relay, then recheck.

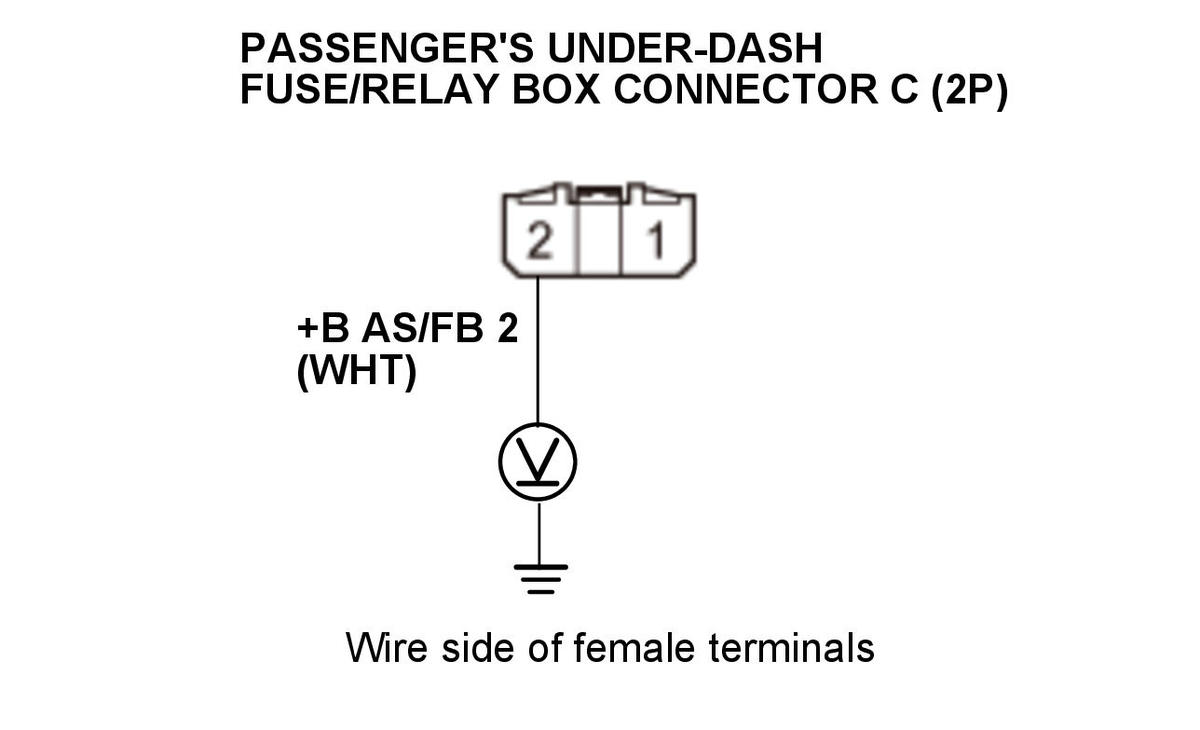

4. Open wire check (+B AS/FB 2 line)

   - 1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode. Console accessory power socket relay: disconnected
   Test circuit	+B AS/FB 2
   Test point 1	Passenger's under-dash fuse/relay box connector C (2P) No. 2 (WHT)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Go to step 5.

   NO

   Repair an open or high resistance in the wire.

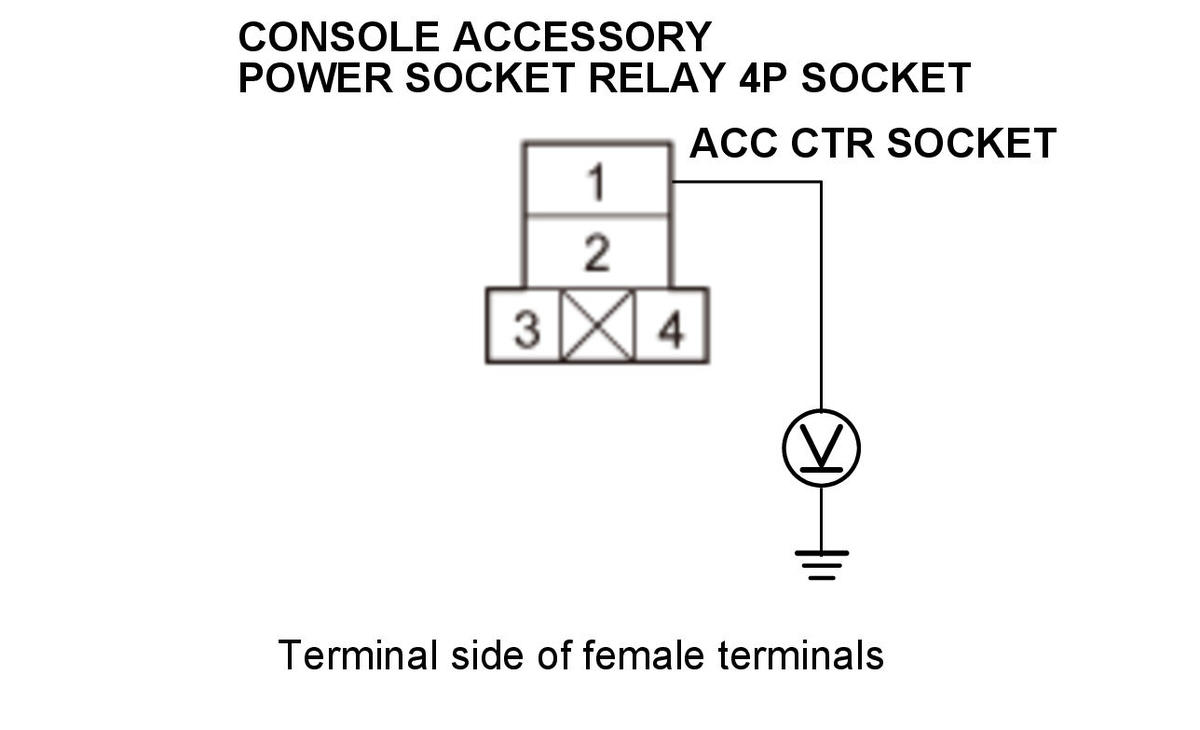

5. Open wire check (ACC CTR SOCKET line)

   - 1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode. Console accessory power socket relay: disconnected
   Test circuit	ACC CTR SOCKET
   Test point 1	Console accessory power socket relay 4P socket No. 1
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Go to step 6.

   NO

   Replace the passenger's under-dash fuse/relay box - Refer to: Passenger's Under-Dash Fuse/Relay Box Removal and Installation .

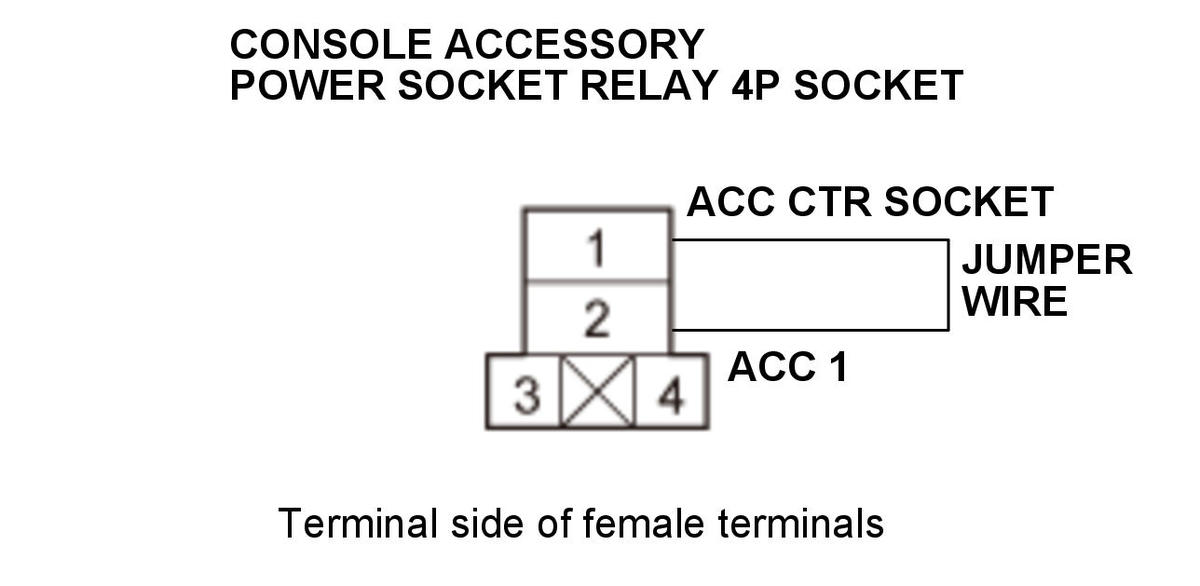

6. Determine possible failure area (console accessory power socket relay switch side circuit, console accessory power socket relay coil side circuit)

   - 1. Connect terminals A and B with a jumper wire.

   Terminal A	Console accessory power socket relay 4P socket No. 1
   Terminal B	Console accessory power socket relay 4P socket No. 2

   Courtesy of HONDA, U.S.A., INC.

   Does the console accessory power socket workΩ

   YES

   Go to step 7.

   NO

   Go to step 9.

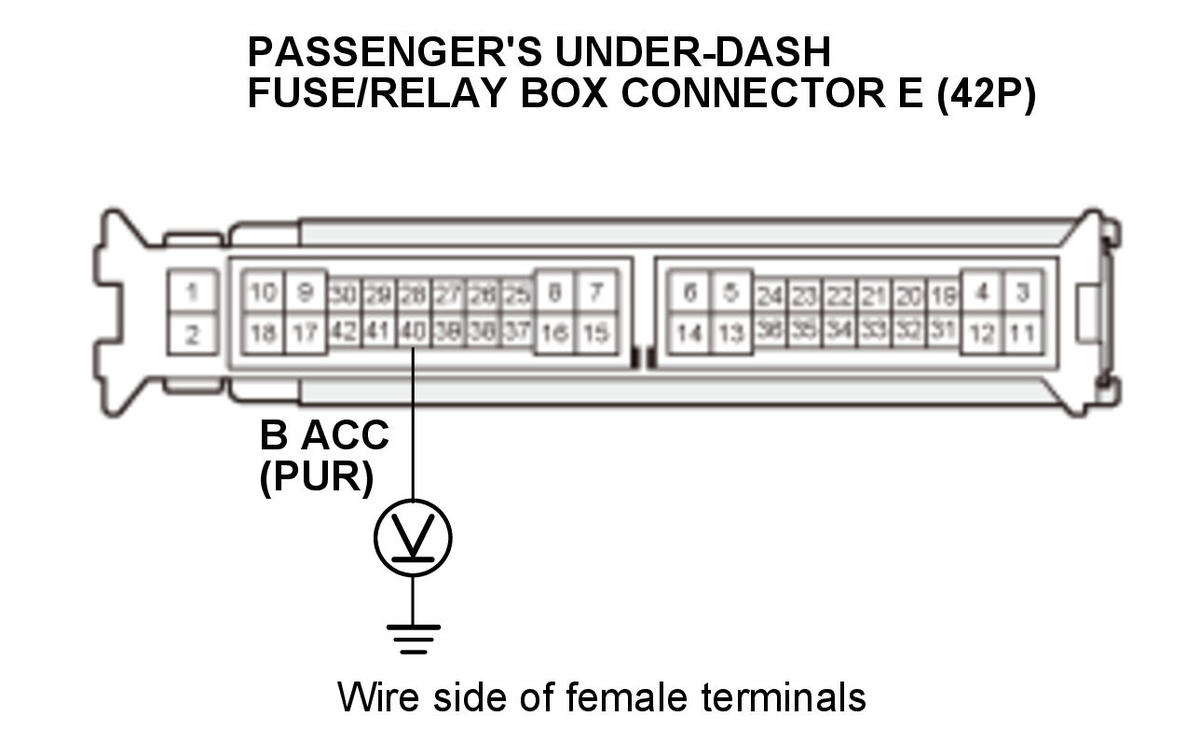

7. Open wire check (B ACC line)

   - 1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode. Console accessory power socket relay: disconnected. Console accessory power socket relay 4P socket No. 1 and No. 2: jumped
   Test circuit	B ACC
   Test point 1	Passenger's under-dash fuse/relay box connector E (42P) No. 40 (PUR)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Go to step 8.

   NO

   Repair an open or high resistance in the wire.

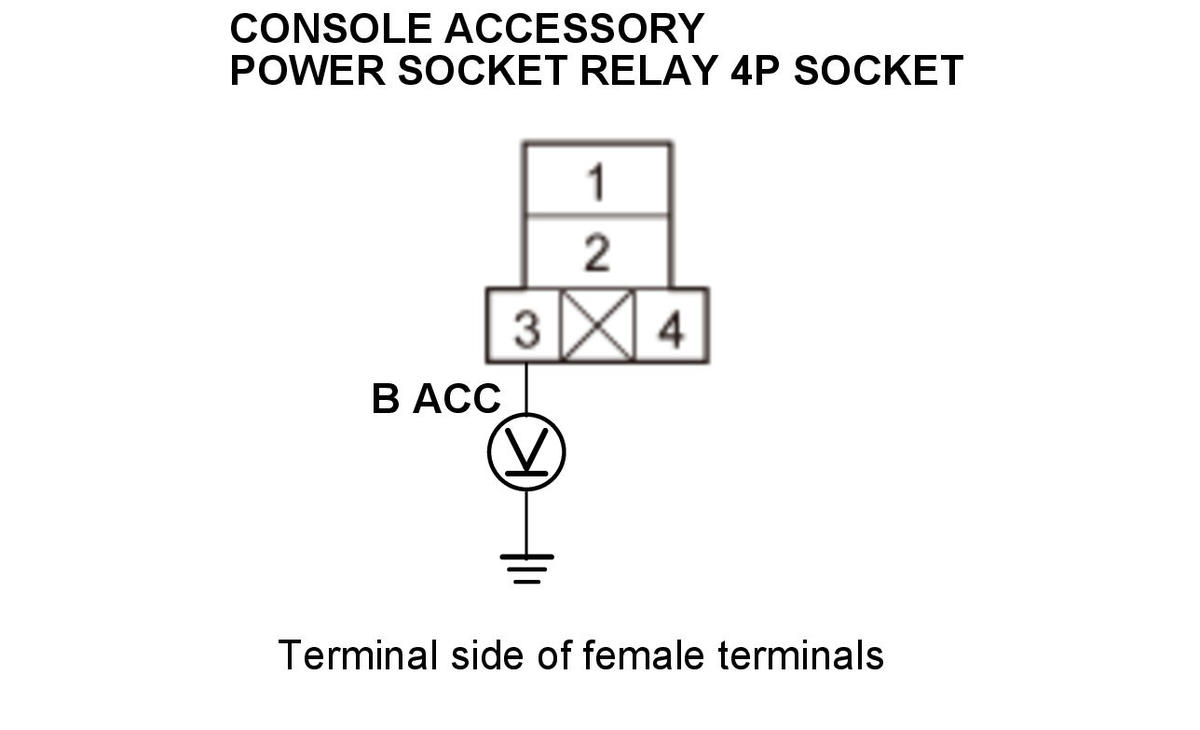

8. Open wire check (B ACC line)

   - 1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode. Console accessory power socket relay: disconnected
   Test circuit	B ACC
   Test point 1	Console accessory power socket relay 4P socket No. 3
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Repair an open or high resistance in the ground wire or poor ground (G507).

   NO

   Replace the passenger's under-dash fuse/relay box - Refer to: Passenger's Under-Dash Fuse/Relay Box Removal and Installation .

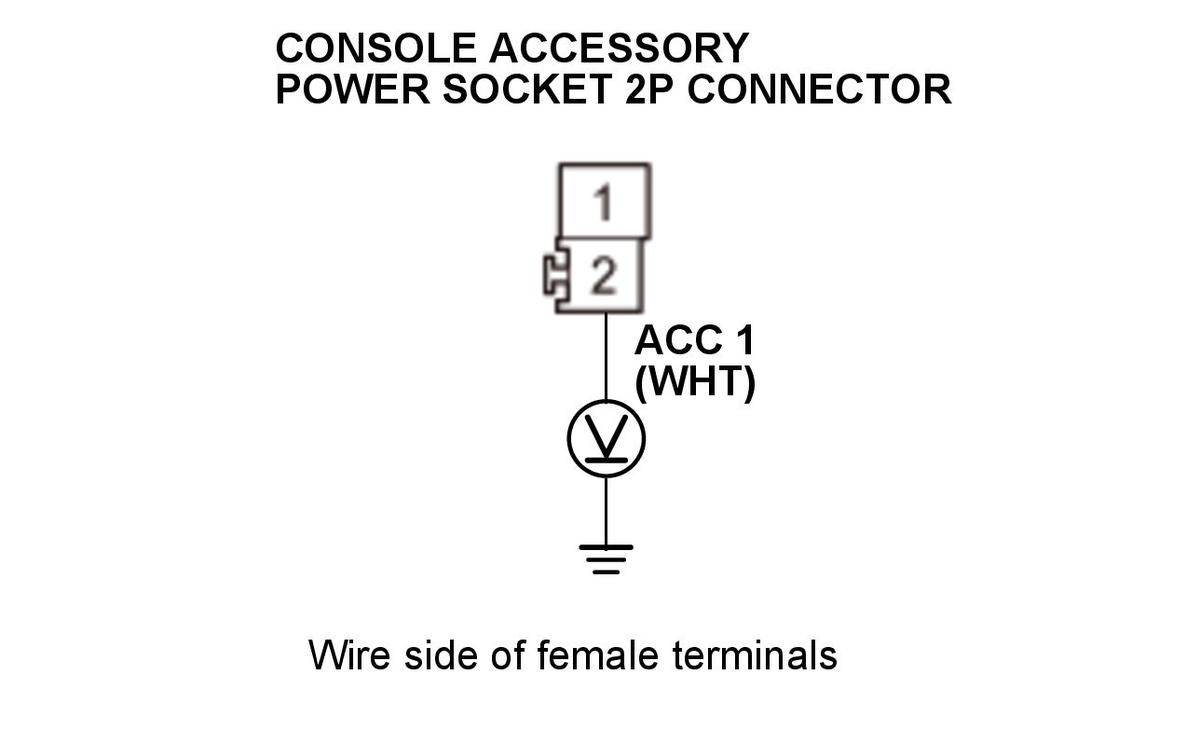

9. Open wire check (ACC 1 line)

   - 1. Remove the console accessory power socket.

   - 2. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode. Console accessory power socket relay: disconnected. Console accessory power socket 2P connector: disconnected. Console accessory power socket relay 4P socket No. 1 and No. 2: jumped
   Test circuit	ACC 1
   Test point 1	Console accessory power socket 2P connector No. 2 (WHT)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Go to step 10.

   NO

   Repair an open or high resistance in the wire.

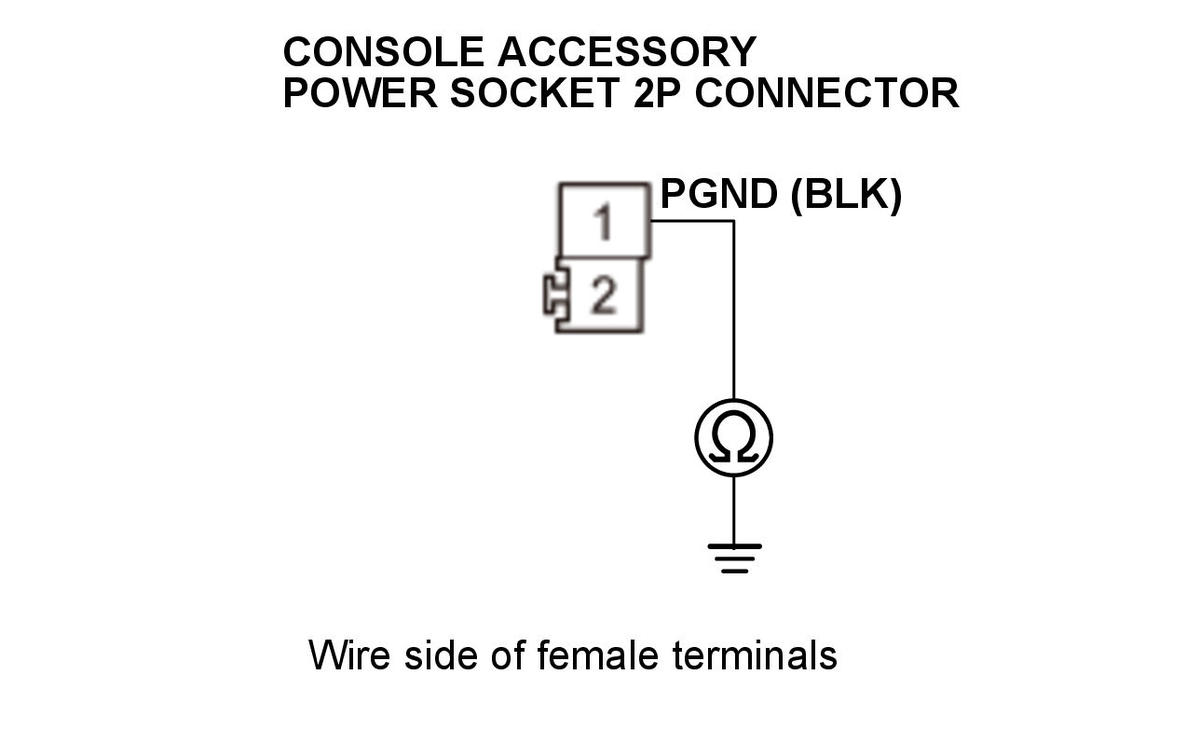

10. Open wire check (PGND line)

    - 1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode. Console accessory power socket relay: disconnected. Console accessory power socket 2P connector: disconnected. Console accessory power socket relay 4P socket No. 1 and No. 2: jumped
    Test circuit	PGND
    Test point 1	Console accessory power socket 2P connector No. 1 (BLK)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Replace the console accessory power socket - Refer to: Console Accessory Power Socket Removal and Installation .

    NO

    Repair an open or high resistance in the ground wire or poor ground (G506).
