Relay Box Locations And Control Unit Locations
>>
Relay Box Locations And Control Unit Locations (2014 2015)
>>
Engine Compartment
Engine Compartment

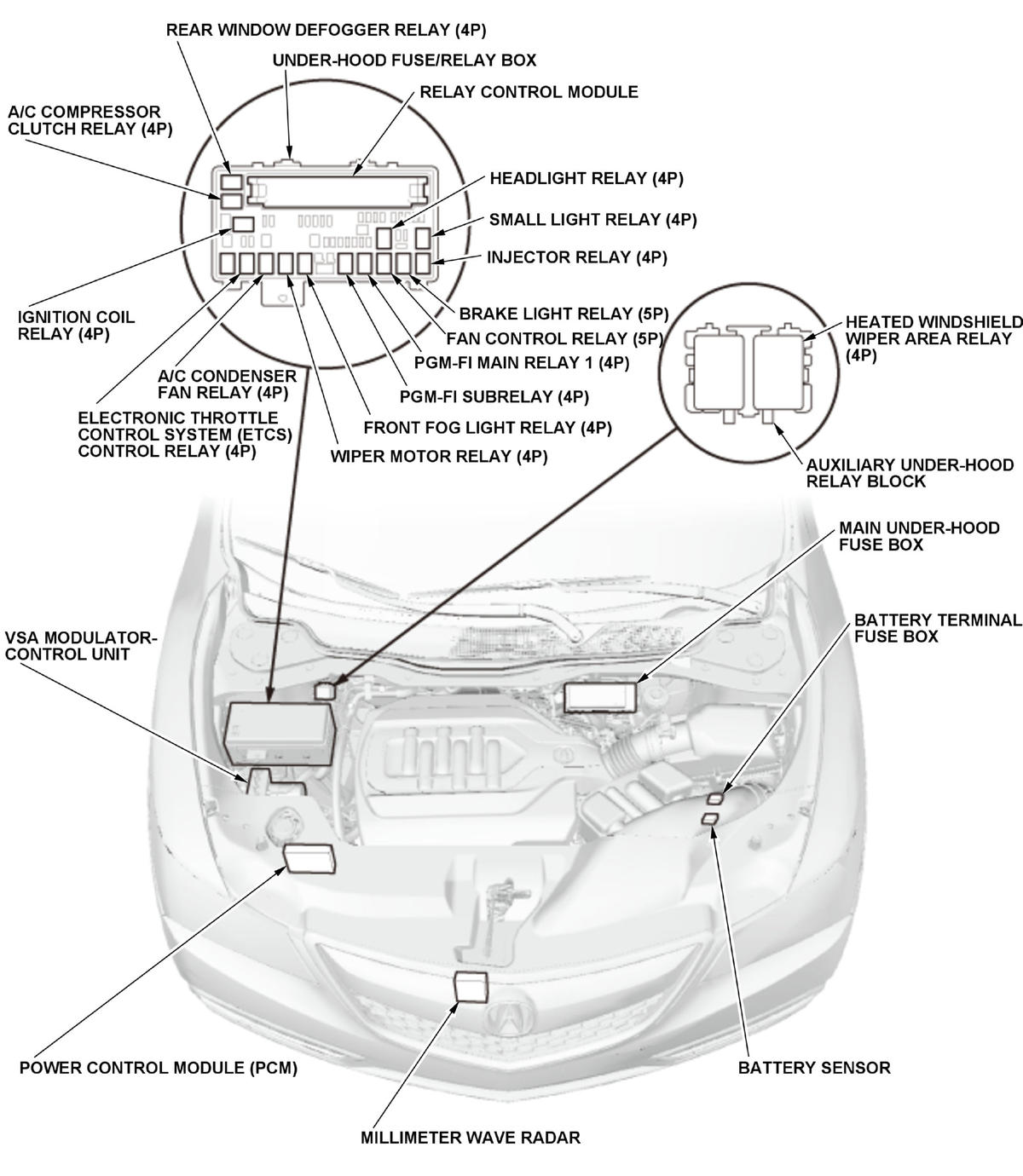

Fig 1: Engine Compartment Components Location
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
