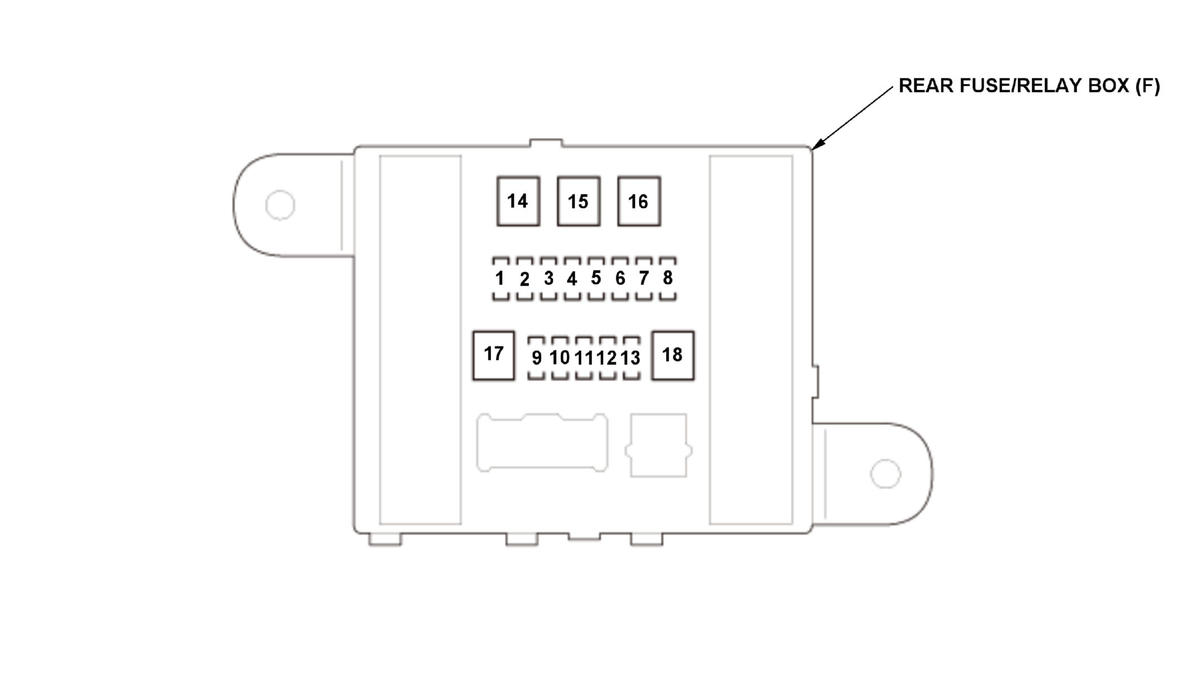

Rear Fuse/Relay Box (F)
Rear Fuse/Relay Box (F) Legend
| Fuse Number | Amps | Component(s) or Circuit(s) Protected |
|---|---|---|
| F1 | 20 A | Power tailgate control unit |
| F2 | - - - | Not used |
| F3 | - - - | Not used |
| F4 | 7. 5 A | Fuel fill door opener relay circuit (built into the rear fuse/relay box), Fuel fill door opener solenoid (via fuel fill door opener relay circuit (built into the rear fuse/relay box)) |
| F5 | 20 A | Left one-touch access actuator (via second row with one-touch access relay circuit (built into the rear fuse/relay box)), Right one-touch access actuator (via second row with one-touch access relay circuit (built into the rear fuse/relay box)), Second row with one-touch access relay circuit (built into the rear fuse/relay box) |
| F6 | - - - | Not used |
| F7 | 20 A | Second row seat heater control unit (via second row seat heater relay (built into the auxiliary rear relay block B)) (with second row seat heater) |
| F8 | - - - | Not used |
| F9 | - - - | Not used |
| F10 | - - - | Not used |
| F11 | - - - | Not used |
| F12 | 10 A | Rear window wiper motor (via rear window wiper motor relay circuit (built into the rear fuse/relay box)), Rear window wiper motor relay circuit (built into the rear fuse/relay box) |
| F13 | 7. 5 A | BSI radar units (with BSI), Power tailgate control unit, Rear MICU |
| F14 | 20 A | SH-AWD control unit (with SH-AWD), SH-AWD relay (with SH-AWD), SH-AWD control unit (via SH-AWD relay) (with SH-AWD), Rear differential pump motor (with SH-AWD) |
| F15 | - - - | Not used |
| F16 | - - - | Not used |
| F17 | - - - | Not used |
| F18 | 40 A | Power tailgate control unit |
