Under-Hood Fuse/Relay Box (C)

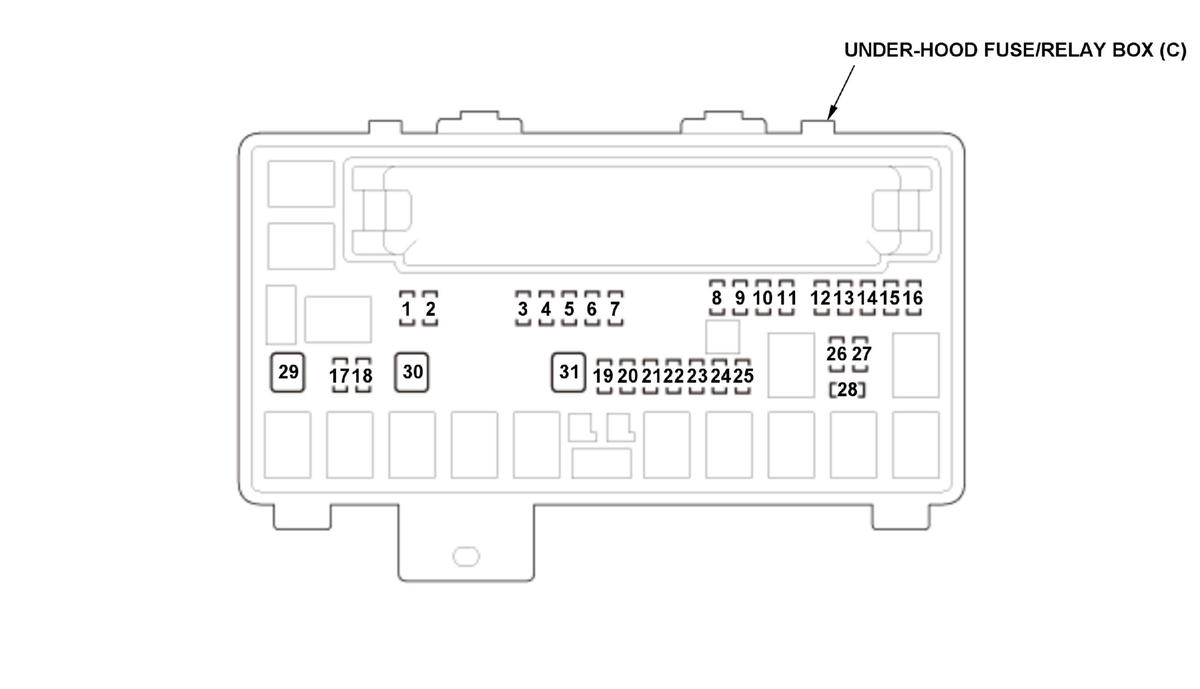

Under-Hood Fuse/Relay Box (C)
Under-Hood Fuse/Relay Box (C) Legend
| Fuse Number | Amps | Component(s) or Circuit(s) Protected |
|---|---|---|
| C1 | 7. 5 A | PCM |
| C2 | - - - | Not used |
| C3 | 15 A | EVAP canister purge valve, PCM, TCM |
| C4 | 15 A | Relay control module, Wiper motor relay |
| C5 | - - - | Not used |
| C6 | 7. 5 A | Relay control module |
| C7 | 7. 5 A | Starter cut relay 1, Starter cut relay 2 |
| C8 | 15 A | EVAP canister vent shut valve (via PGM-FI subrelay), Front A/F sensor (Bank 2, Sensor 1) (via PGM-FI subrelay), Front secondary HO2S (Bank 2, Sensor 2) (via PGM-FI subrelay), PGM-FI subrelay, Rear A/F sensor (Bank 1, Sensor 1) (via PGM-FI subrelay), Rear secondary HO2S (Bank1, Sensor 2) (via PGM-FI subrelay) |
| C9 | 15 A | PCM (via electronic throttle control system (ETCS) control relay) |
| C10 | 15 A | CKP sensor (via PGM-FI main relay 1), CMP sensor (via PGM-FI main relay 1), Electronic throttle control system (ETCS) control relay (via PGM-FI main relay 1), Injector relay (via PGM-FI main relay 1), MAF sensor (via PGM-FI main relay 1), No. C28 fuse in the under-hood fuse/relay box (via PGM-FI main relay 1), PCM (via PGM-FI main relay 1), PGM-FI main relay 1, PGM-FI main relay 2 (via PGM-FI main relay 1) |
| C11 | 15 A | Ignition coil relay, Ignition coils (via ignition coil relay) |
| C12 | 10 A | Relay control module |
| C13 | 10 A | Relay control module |
| C14 | 20 A | Injector control module (via injector relay) |
| C15 | - - - | Not used |
| C16 | 10 A | Data link connector (DLC), Driver's MICU (via driver's under-dash fuse/relay box at internal connection), Gauge control module, HOMELINK ® unit, Keyless access/TPMS control unit, Multipurpose camera unit, Power mirror control unit, Power seat control unit (via driver's under-dash fuse/relay box), Power tailgate control unit (via driver's under-dash fuse/relay box), Power tilt/telescopic steering control unit, Power window master switch, Rear controller and screen (with RES), Rear MICU (via driver's under-dash fuse/relay box and rear fuse/relay box at internal connection), Relay control module |
| C17 | 7. 5 A | A/C compressor clutch (via A/C compressor clutch relay) |
| C18 | 7. 5 A | Front fog light relay, Front fog lights (via front fog light relay) |
| C19 | - - - | Not used |
| C20 | 7. 5 A | Relay control module |
| C21 | - - - | Not used |
| C22 | - - - | Not used |
| C23 | - - - | Not used |
| C24 | 7. 5 A | Relay control module |
| C25 | 15 A | SBW shifter control module, TCM |
| C26 | 10 A | Right headlight (low beam) |
| C27 | 10 A | Left headlight (low beam) |
| C28 | 7. 5 A | Radiator fan relay (via A/C diode B) |
| C29 | 30 A | Radiator fan motor (via radiator fan relay) |
| C30 | 30 A | A/C condenser fan motor (via A/C condenser fan relay) |
| C31 | 30 A | Relay control module (via wiper motor relay) |
