Battery Terminal Fuse Box (A)

Battery Terminal Fuse Box (A)

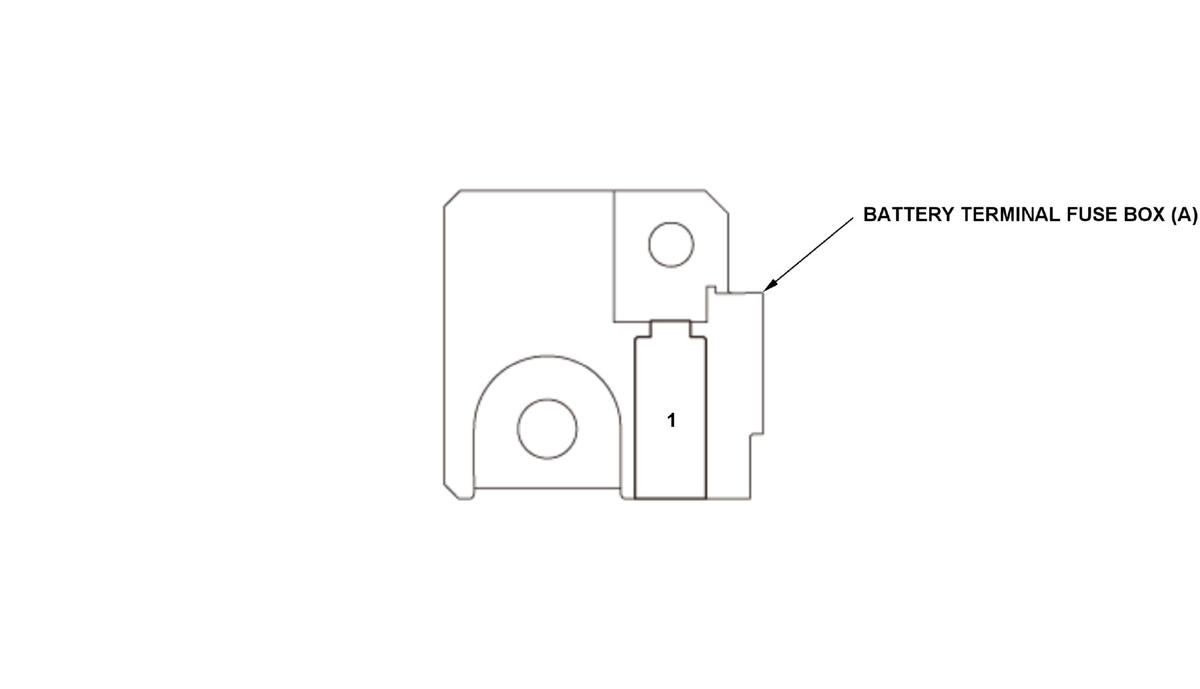

Fig 1: Battery Terminal Fuse Box (A) Components Location
GHH317828Courtesy of HONDA, U.S.A., INC.
Battery Terminal Fuse Box (A) Legend

Fuse Number Amps Component(s) or Circuit(s) Protected
A1 60 A No. C17, No. C18, No. C29, and No. C30 fuses in the under-hood fuse/relay box
