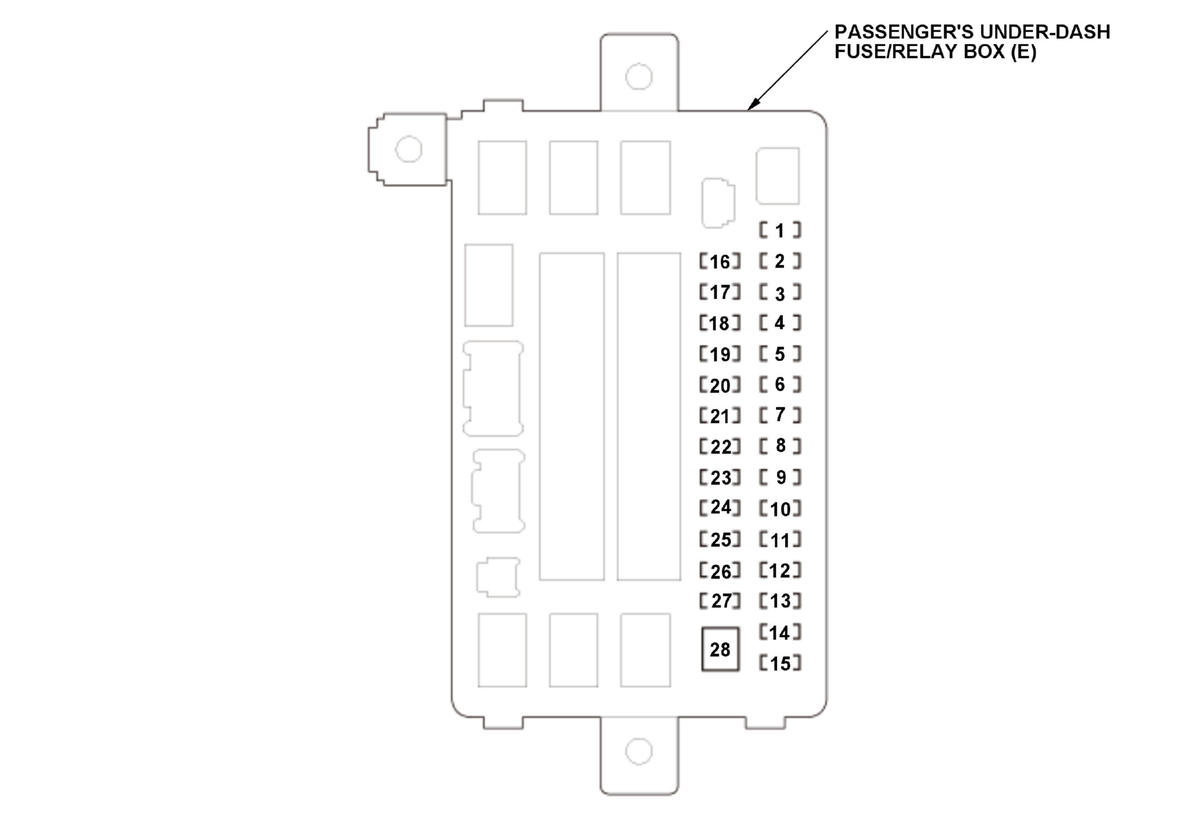

Passenger's Under-Dash Fuse/Relay Box (E)
Passenger's Under-Dash Fuse/Relay Box (E) Legend
| Fuse Number | Amps | Component(s) or Circuit(s) Protected |
|---|---|---|
| E1 | 30 A | Front passenger's E-pretensioner unit (with E-pretensioner) |
| E2 | 20 A | Right rear power window switch |
| E3 | 20 A | Engine mount control unit (via active control engine mount (ACM) control relay) |
| E4 | 15 A | Heated windshield wiper area (via heated windshield wiper area relay) (with heated windshield wiper area), Heated windshield wiper area switch (via heated windshield wiper area relay) (with heated windshield wiper area, and without LKAS or LDW), Heated windshield wiper area switch/LDW off switch (via heated windshield wiper area relay) (with heated windshield wiper area, and with LKAS or LDW) |
| E5 | 20 A | Front seat heater control unit (via front seat heater relay) (without ventilated seat), Seat back blower motors (via front seat heater relay) (with ventilated seat), Seat cushion blower motors (via front seat heater relay) (with ventilated seat), Ventilated seat control unit (via front seat heater relay) (with ventilated seat) |
| E6 | 20 A | Front passenger's power window switch |
| E7 | 20 A | Front passenger's power seat adjustment switch |
| E8 | 20 A | Front passenger's power seat adjustment switch |
| E9 | 7. 5 A | Front passenger's power lumber support switch |
| E10 | - - - | Not used |
| E11 | 10 A | Heated steering wheel control unit (via heated steering wheel relay) (with heated steering wheel) |
| E12 | - - - | Not used |
| E13 | - - - | Not used |
| E14 | 20 A | Cargo area accessory power socket (via cargo area accessory power socket relay) |
| E15 | 20 A | Front accessory power socket (via front accessory power socket relay) |
| E16 | - - - | Not used |
| E17 | - - - | Not used |
| E18 | 30 A | Stereo amplifier |
| E19 | 10 A | SRS unit |
| E20 | 7. 5 A | Active control engine mount (ACM) control relay, E-pretensioner units (with E-pretensioner) |
| E21 | 7. 5 A | Battery fan, Headlight leveling control unit (with headlight leveling), SH-AWD control unit (with SH-AWD) |
| E22 | - - - | Not used |
| E23 | - - - | Not used |
| E24 | 7. 5 A | Front passenger's airbag cutoff indicator, Front passenger's weight sensor unit, SRS unit |
| E25 | 5 A | Ambient lights, Center display unit, Center switch panel/interface dial, Climate control switch, CMBS off switch/VSA off switch (with CMBS), Console box light, Dashlights brightness control switch, DVD player unit (with RES), Front passenger's airbag cutoff indicator, Glove box light, Hazard warning switch, Heated windshield wiper area switch/LDW off switch (with heated windshield wiper area), Idle stop OFF switch, Individual map lights, Integrated dynamics system switch, LDW off switch, Moonroof switch, Parking and back-up sensor switch (without headlight washer), Parking and back-up sensor switch/Headlight washer switch (with headlight washer), Rear controller and screen (with RES), Roof console module, VSA off switch (without CMBS), SBW shifter control module |
| E26 | 30 A | Driver's side E-pretensioner unit |
| E27 | 20 A | Console accessory power socket (via console accessory power socket relay) |
| E28 | 30 A | AC inverter unit (with AC inverter) |
