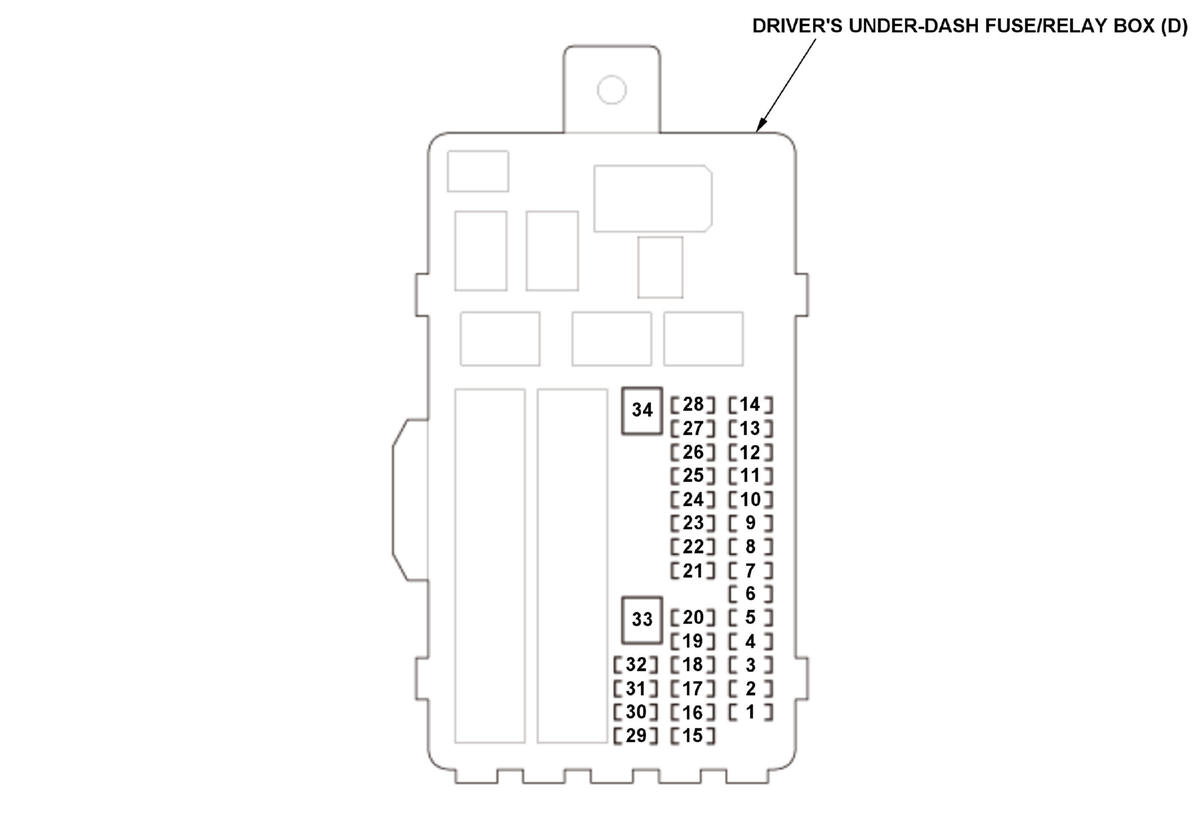

Driver's Under-Dash Fuse/Relay Box (D)
Driver's Under-Dash Fuse/Relay Box (D) Legend
| Fuse Number | Amps | Component(s) or Circuit(s) Protected |
|---|---|---|
| D1 | 10 A | Front passenger's door lock actuator, Right rear door lock actuator |
| D2 | 7. 5 A | Left rear door lock actuator |
| D3 | 7. 5 A | Driver's door lock actuator |
| D4 | 10 A | Front passenger's door lock actuator, Right rear door lock actuator |
| D5 | 7. 5 A | Left rear door lock actuator |
| D6 | 7. 5 A | Driver's door lock actuator (via power door lock relay (DR UNLOCK) circuit (built into the driver's under-dash fuse/relay box)), Power door lock relay (DR UNLOCK) circuit (built into the driver's under-dash fuse/relay box) |
| D7 | 20 A | No. D1, No. D2, and No. D3 fuses in the driver's under-dash fuse/relay box (via power door lock relay (LOCK) circuit (built into the driver's under-dash fuse/relay box)), No. D4 and No. D5 fuses in the driver's under-dash fuse/relay box (via power door lock relay (UNLOCK) circuit (built into the driver's under-dash fuse/relay box)), Power door lock relay (LOCK) circuit (built into the driver's under-dash fuse/relay box), Power door lock relay (UNLOCK) circuit (built into the driver's under-dash fuse/relay box) |
| D8 | - - - | Not used |
| D9 | 20 A | Power tilt/telescopic steering control unit |
| D10 | 15 A | No. F12 and No. F13 fuses in the rear fuse/relay box |
| D11 | 7. 5 A | A/T gear position indicator, ANC/active sound control unit, Audio-navigation unit (with navigation) (via reverse relay circuit (built into the driver's under-dash fuse/relay box)), Audio unit (without navigation) (via reverse relay circuit (built into the driver's under-dash fuse/relay box)), Automatic dimming inside mirror (via reverse relay circuit (built into the driver's under-dash fuse/relay box)), Back-up lights (via reverse relay circuit (built into the driver's under-dash fuse/relay box)), Brake light relay (with SH-AWD or ACC), Driver's MICU, Driver's MICU (via reverse relay circuit (built into the driver's under-dash fuse/relay box) at internal connection), Electrical compass unit (with electrical compass), FCW/LDW camera unit (with FCW/LDW), Gauge control module, Heads-up warning unit (with CMBS), Heated windshield wiper area switch/LDW off switch (with FCW/LDW, LKAS, and heated windshield wiper area), LDW off switch (with FCW/LDW, and without LKAS and heated windshield wiper area), LKAS camera/control unit (with LKAS), Multi view camera unit (with MVCS), Optional connector, Parking and back-up sensor control unit (with parking and back-up sensor system), Parking and back-up sensor switch (with parking and back-up sensor system, and without headlight washer), Parking and back-up sensor switch/headlight washer switch (with parking and back-up sensor system and headlight washer), Power mirror control unit, Power seat control unit, Power tilt/telescopic steering control unit, Shift lock solenoid, Reverse relay circuit (built into the driver's under-dash fuse/relay box), Telematics control unit (with telematics control system) |
| D12 | 20 A | No. C3, No. C4, No. C5, and No. C6 fuses in the under-hood fuse/relay box, No. E24 fuse in the passenger's under-dash fuse/relay box |
| D13 | 7. 5 A | A/T gear position indicator, Audio-navigation unit (with navigation), Audio unit (without navigation), Cargo area accessory power socket relay, Center display unit, Center switch panel/interface dial, Console accessory power socket relay, Front accessory power socket relay, Rear ANC/active sound control microphone, Telematics control unit (with telematics control system) |
| D14 | - - - | Not used |
| D15 | 20 A | Power seat control unit |
| D16 | 20 A | Moonroof control unit/motor |
| D17 | 20 A | Left rear power window switch |
| D18 | 10 A | Engine start/stop switch, Electric steering lock, Keyless access/TPMS control unit |
| D19 | 20 A | Power window master switch |
| D20 | - - - | Not used |
| D21 | 20 A | Fuel pump control module (via PGM-FI main relay 2), PCM |
| D22 | 15 A | No. E19, No. E20, and No. E21 fuses in the passenger's under-dash fuse/relay box |
| D23 | 7. 5 A | Electric steering lock, EPS control unit, Keyless access/TPMS control unit, Steering angle sensor, VSA modulator-control unit |
| D24 | 7. 5 A | Brake pedal position switch, Starter cut relay 1, Starter cut relay 2 |
| D25 | 7. 5 A | PCM |
| D26 | 7. 5 A | AC inverter unit (with AC inverter), A/C compressor clutch relay, A/C condenser fan relay, Automatic dimming inside mirror, Climate control switch, Climate control unit, Fan control relay, Front blower motor relay, Front seat heater relay, Heated steering wheel relay (with heated steering wheel), Heated windshield wiper area relay (with heated windshield wiper area), Power mirror switch, Power window master switch, Rear A/C control panel, Rear blower motor relay, Rear window defogger relay, Second row seat heater relay (with second row seat heater) |
| D27 | 7. 5 A | Relay control module |
| D28 | 7. 5 A | Driver's MICU |
| D29 | 7. 5 A | Driver's power lumbar support switch |
| D30 | 7. 5 A | Automatic lighting/rain sensor (with automatic wiper), Door puddle lights (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)) (with puddle light), Driver's door courtesy light (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), Footwell lights (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), Front passenger's door courtesy light (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), Interior light cut relay circuit (built into the driver's under-dash fuse/relay box), Power tailgate inside switch (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), Rear door courtesy lights (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), Rear individual map lights (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), Roof console module (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), One-touch access switches (seat-back side) (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), One-touch access switches (seat cushion side) (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), Tailgate lights (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)), Vanity mirror lights (via interior light cut relay circuit (built into the driver's under-dash fuse/relay box)) |
| D31 | 20 A | Power tilt/telescopic steering control unit |
| D32 | 20 A | Power seat control unit |
| D33 | - - - | Not used |
| D34 | - - - | Not used |
