Passenger's Under-Dash Fuse/Relay Box

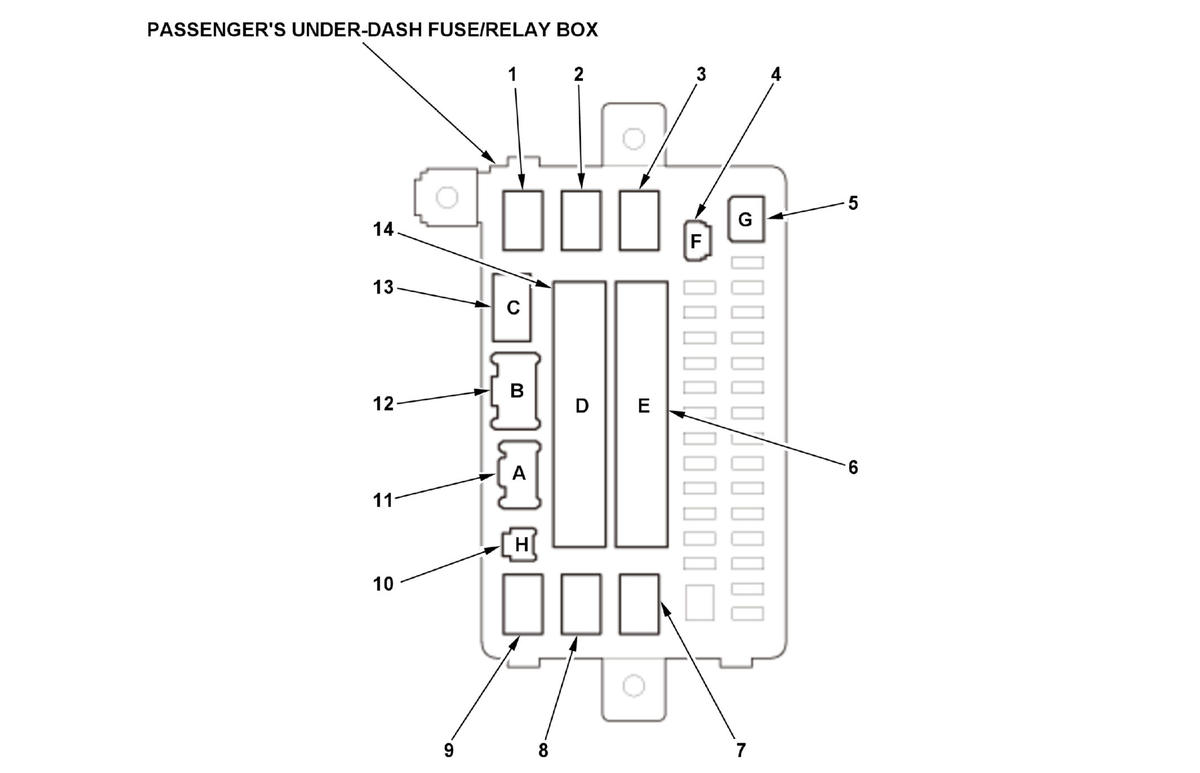

Passenger's Under-Dash Fuse/Relay Box Legend
| Socket | Ref | Terminals | Connects to | Notes |
|---|---|---|---|---|
| A | 11 | 13 | Right engine compartment wire harness | |
| Active control engine mount (ACM) control relay | 2 | 4 | ||
| B | 12 | 8 | Right engine compartment wire harness | |
| C | 13 | 2 | Right engine compartment wire harness | |
| Cargo area accessory power socket relay | 9 | 4 | ||
| Console accessory power socket relay | 7 | 4 | ||
| D | 14 | 42 | Floor wire harness | |
| E | 6 | 42 | Dashboard wire harness | |
| F | 4 | 4 | Dashboard wire harness | |
| Front accessory power socket relay | 8 | 4 | ||
| Front seat heater relay | 1 | 4 | ||
| G | 5 | 2 | Right engine compartment wire harness | |
| H | 10 | - - - | - - - | Not used |
| Heated steering wheel relay | 3 | 4 | With heated steering wheel |
