Main Under-Hood Fuse Box

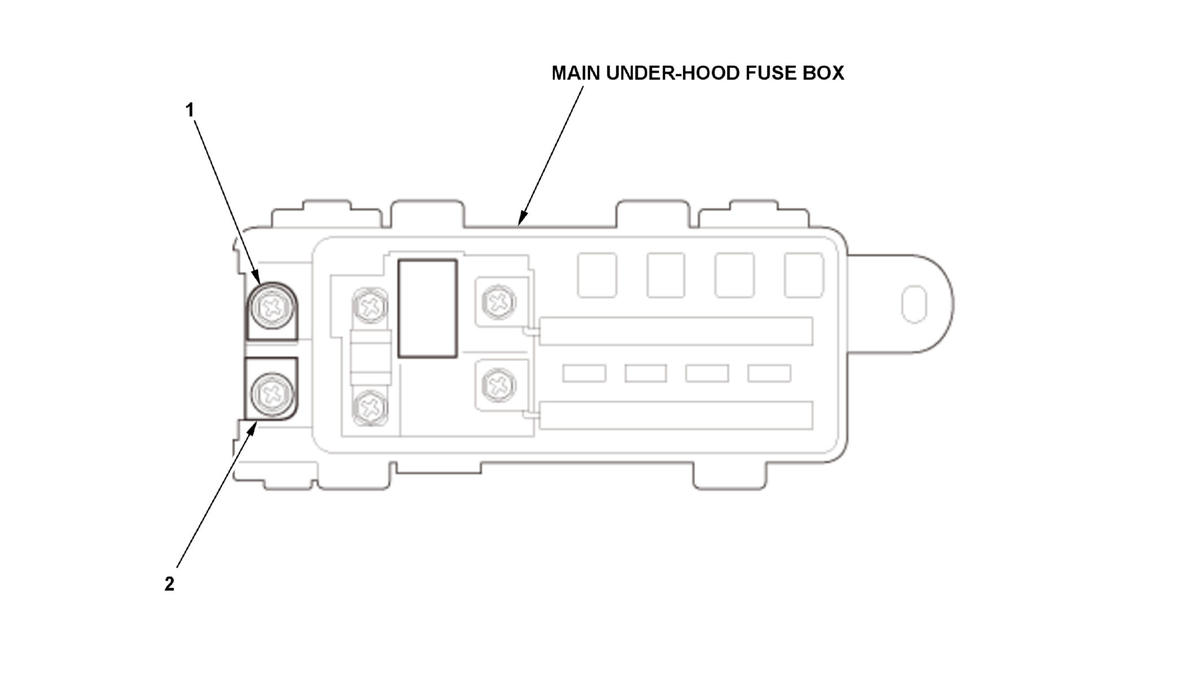

Fig 1: Main Under-Hood Fuse Box Components Location
GHH317788Courtesy of HONDA, U.S.A., INC.
Main Under-Hood Fuse Box Legend

Socket Ref Terminals Connects to Notes
T1 2 - - - Starter cable
T101 1 - - - Engine wire harness
