Auxiliary Under-Hood Relay Block

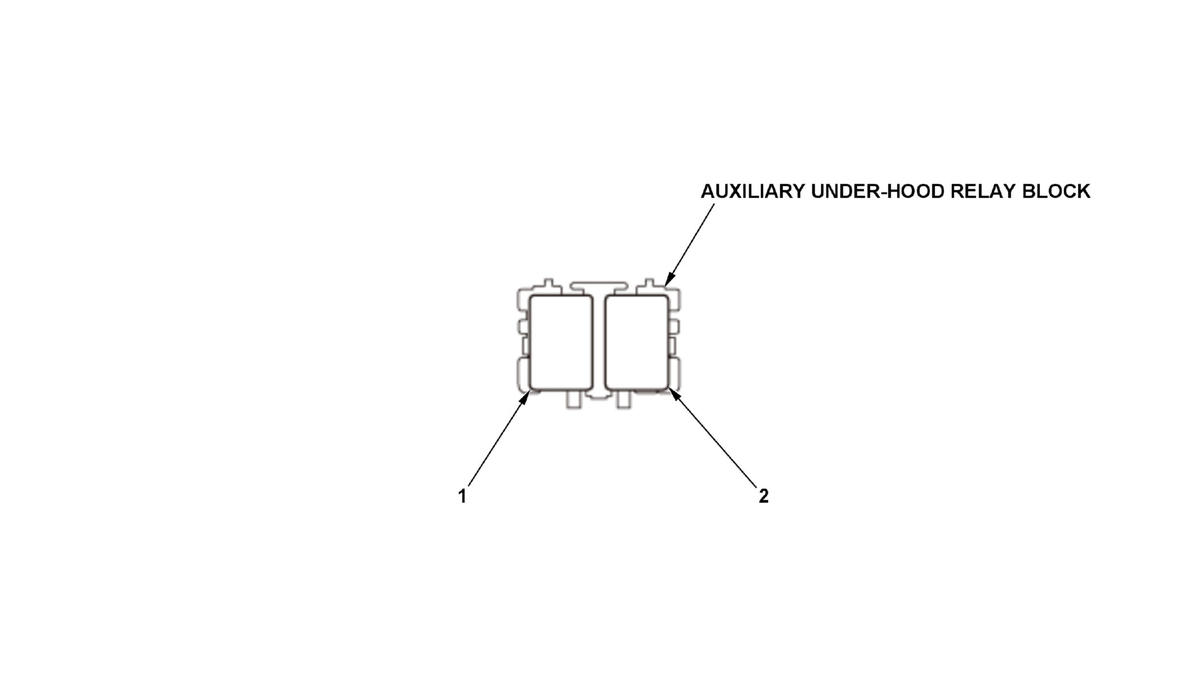

Fig 1: Auxiliary Under-Hood Relay Block Components Location
GHH317792Courtesy of HONDA, U.S.A., INC.
Auxiliary Under-Hood Relay Block Legend

Socket Ref Terminals Connects to Notes
Starter cut relay 1 1 4   With auto idle stop system
Starter cut relay 2 2 4   With auto idle stop system
