Auxiliary Under-Dash Fuse/Relay Box

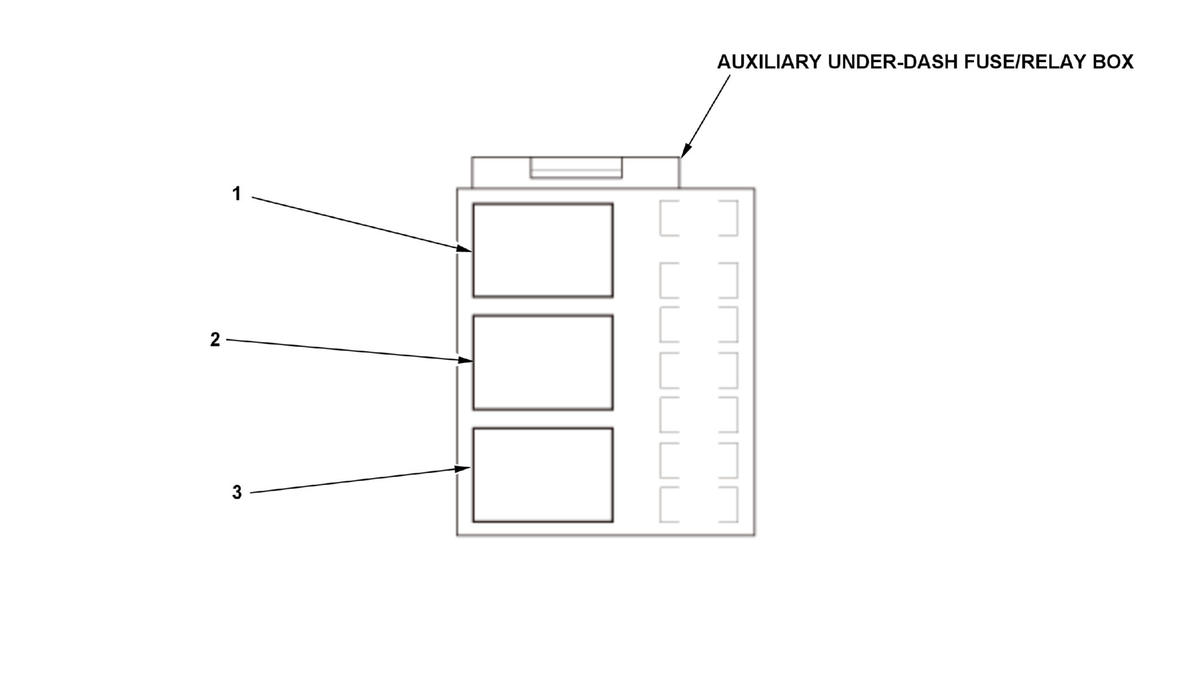

Fig 1: Auxiliary Under-Dash Fuse/Relay Box Components Location
GHH317794Courtesy of HONDA, U.S.A., INC.
Auxiliary Under-Dash Fuse/Relay Box Legend

Socket Ref Terminals Connects to Notes
DC-DC converter IG1 relay 2 1 4   With auto idle stop system
DC-DC converter IG1 relay 1 2 4   With auto idle stop system
DC-DC converter ACC relay 3 4   With auto idle stop system
