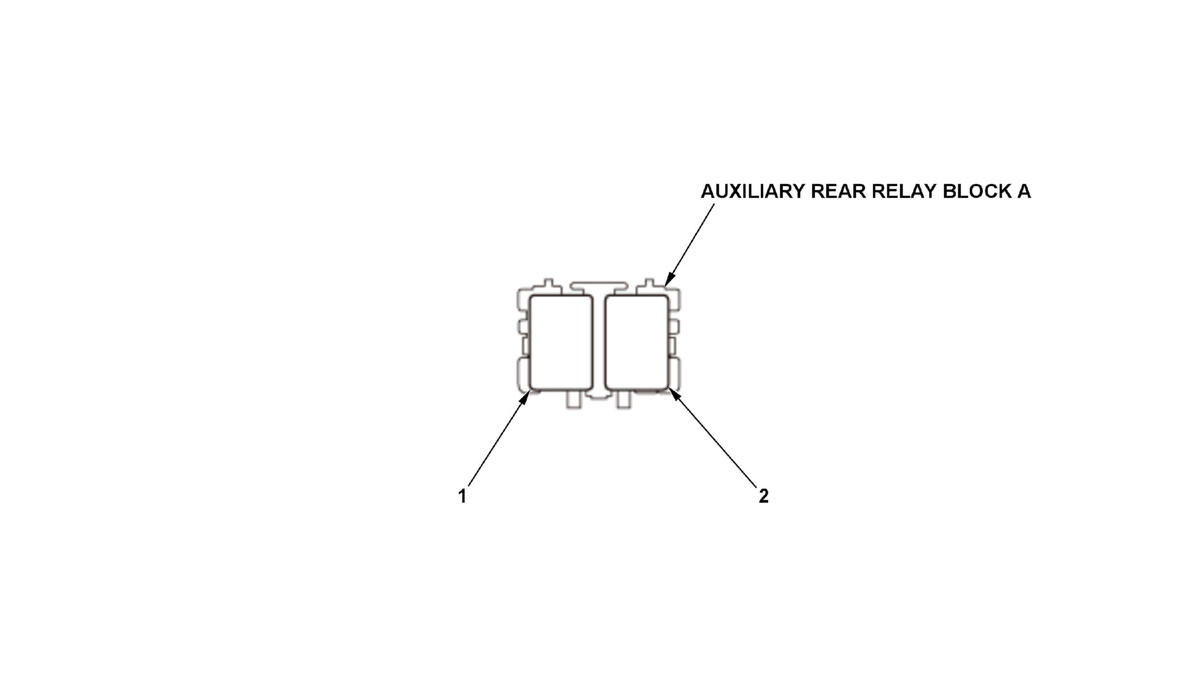

Auxiliary Rear Relay Block A
Courtesy of HONDA, U.S.A., INC. Auxiliary Rear Relay Block A Legend
| Socket |
Ref |
Terminals |
Connects to |
Notes |
| SH-AWD relay |
1 |
4 |
|
With SH-AWD |
| Second row seat heater relay |
1 |
4 |
|
2WD with second row seat heater |
| Power tailgate relay |
2 |
4 |
|
|
