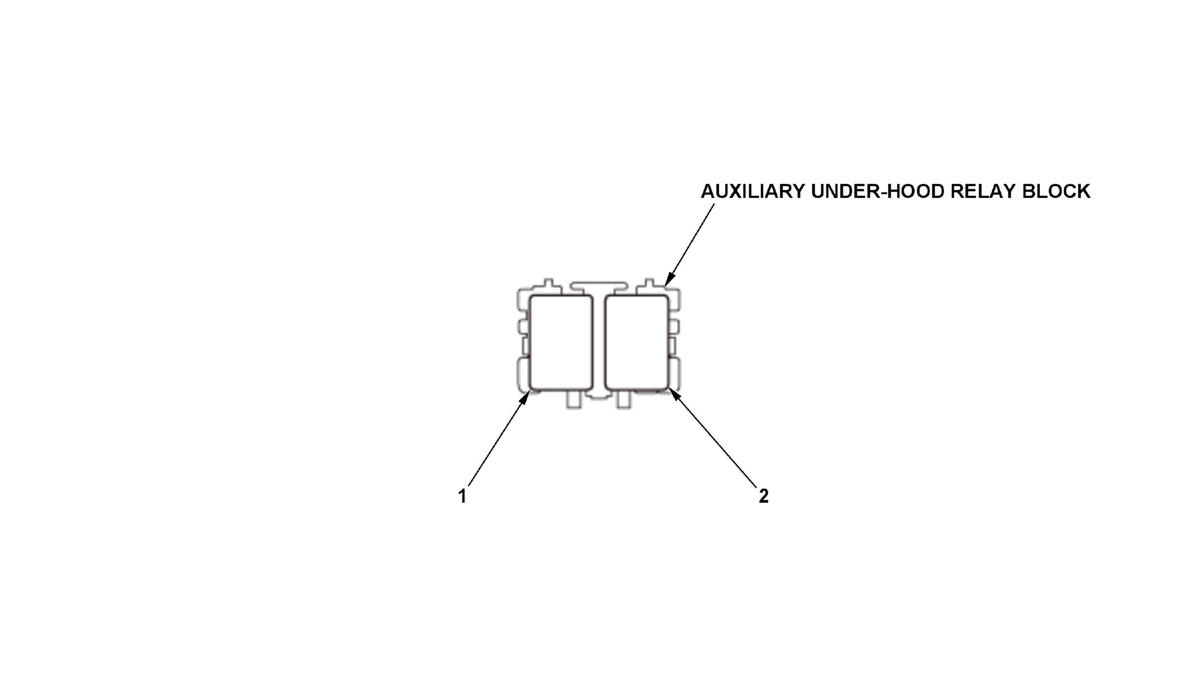

Auxiliary Under-Hood Relay Block (Without auto idle stop system)
Courtesy of HONDA, U.S.A., INC. Auxiliary Under-Hood Relay Block (Without auto idle stop system) Legend
| Socket |
Ref |
Terminals |
Connects to |
Notes |
| - - - |
1 |
- - - |
|
Not used |
| Heated windshield wiper area relay |
2 |
4 |
|
With heated windshield wiper area |
