Auxiliary Under-Dash Relay Block C

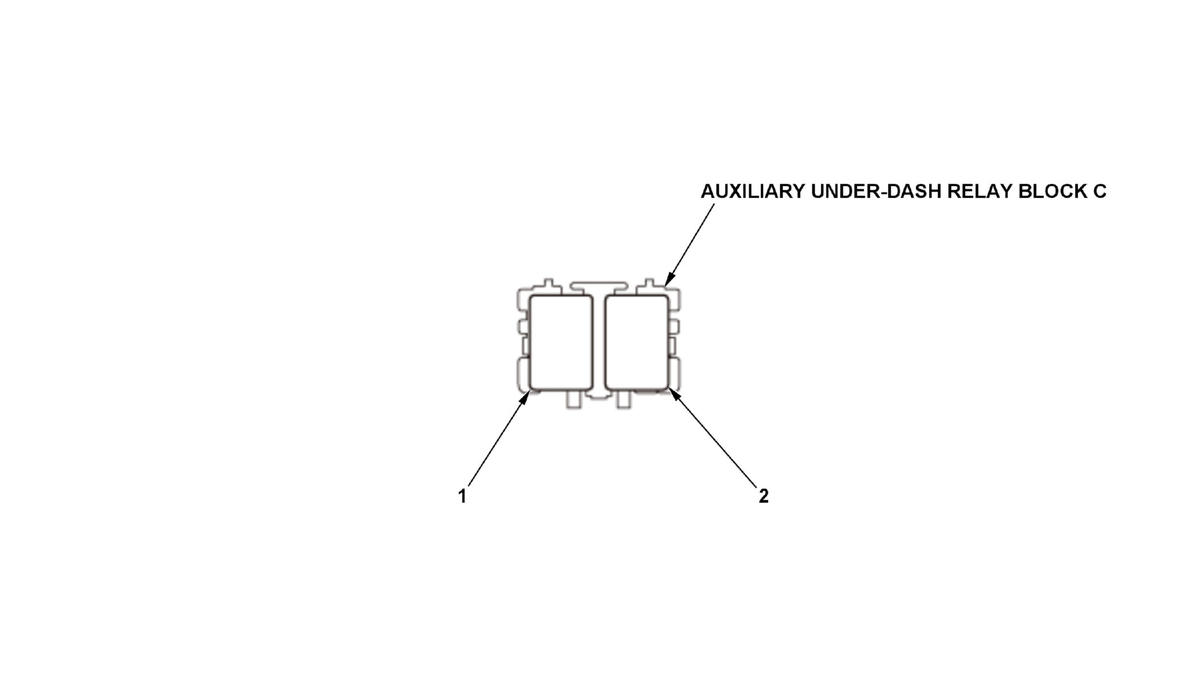

Fig 1: Auxiliary Under-Dash Relay Block C Components Location
GHH317784Courtesy of HONDA, U.S.A., INC.
Auxiliary Under-Dash Relay Block C Legend

Socket Ref Terminals Connects to Notes
- - - 1 - - -   Not used
Heated windshield wiper area relay 2 4   With auto idle stop system and with heated windshield wiper area
