Auxiliary Rear Relay Block B

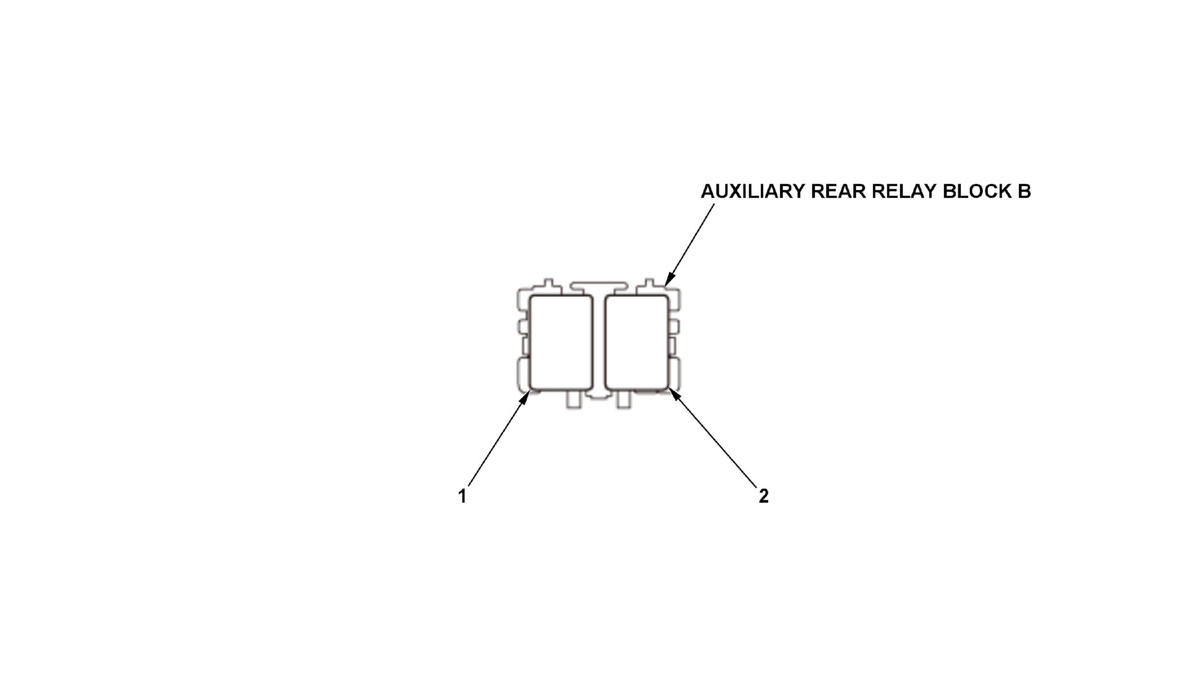

Fig 1: Auxiliary Rear Relay Block B Components Location
GHH317787Courtesy of HONDA, U.S.A., INC.
Auxiliary Rear Relay Block B Legend

Socket Ref Terminals Connects to Notes
- - - 1 - - -   Not used
Second row seat heater relay 2 4   With second row seat heater
