Auxiliary Rear Relay Block A

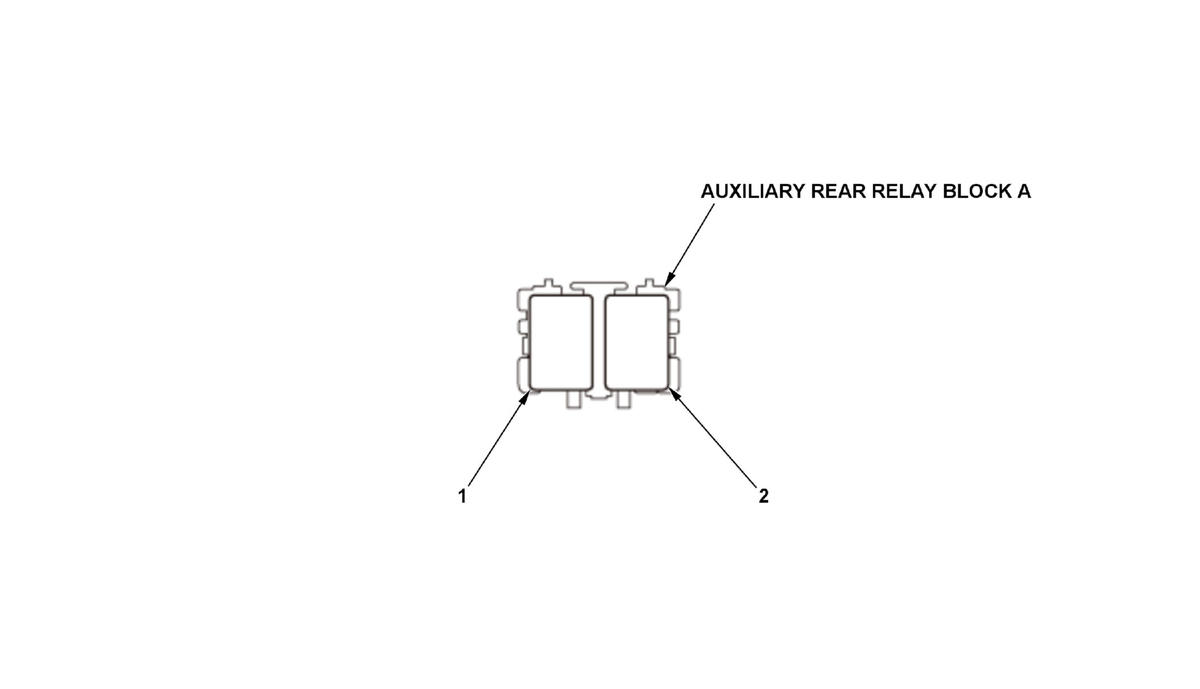

Fig 1: Auxiliary Rear Relay Block A Components Location
GHH317786Courtesy of HONDA, U.S.A., INC.
Auxiliary Rear Relay Block A Legend

Socket Ref Terminals Connects to Notes
Power tailgate relay 2 4
SH-AWD relay 1 4   With SH-AWD
