Under-Hood Fuse/Relay Box

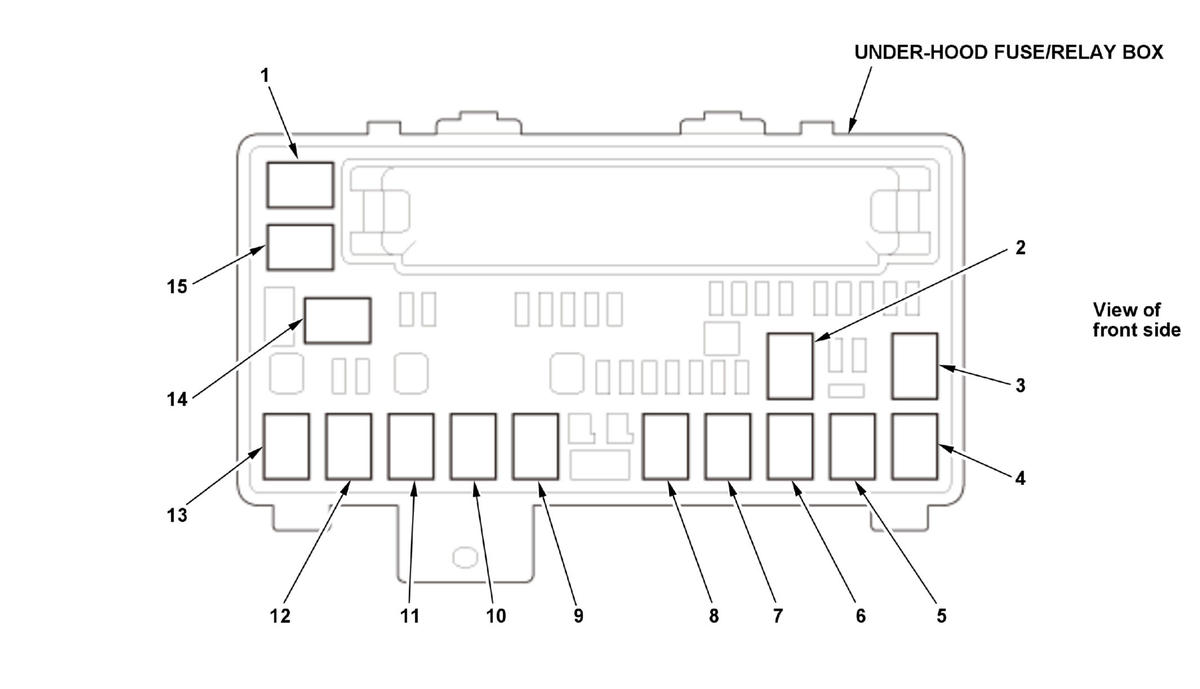

Under-Hood Fuse/Relay Box Legend
| Socket | Ref | Terminals | Connects to | Notes |
|---|---|---|---|---|
| A/C compressor clutch relay | 15 | 4 | ||
| A/C condenser fan relay | 11 | 4 | ||
| Electronic throttle control system (ETCS) control relay | 12 | 4 | ||
| Fan control relay | 6 | 5 | ||
| Front fog light relay | 9 | 4 | ||
| Headlight relay | 2 | 4 | ||
| Brake light relay | 5 | 5 | ||
| Ignition coil relay | 14 | 4 | ||
| PGM-FI main relay 1 | 7 | 4 | ||
| PGM-FI subrelay | 8 | 4 | ||
| Radiator fan relay | 13 | 4 | ||
| Injector relay | 4 | 4 | ||
| Rear window defogger relay | 1 | 4 | ||
| Small light relay | 3 | 4 | ||

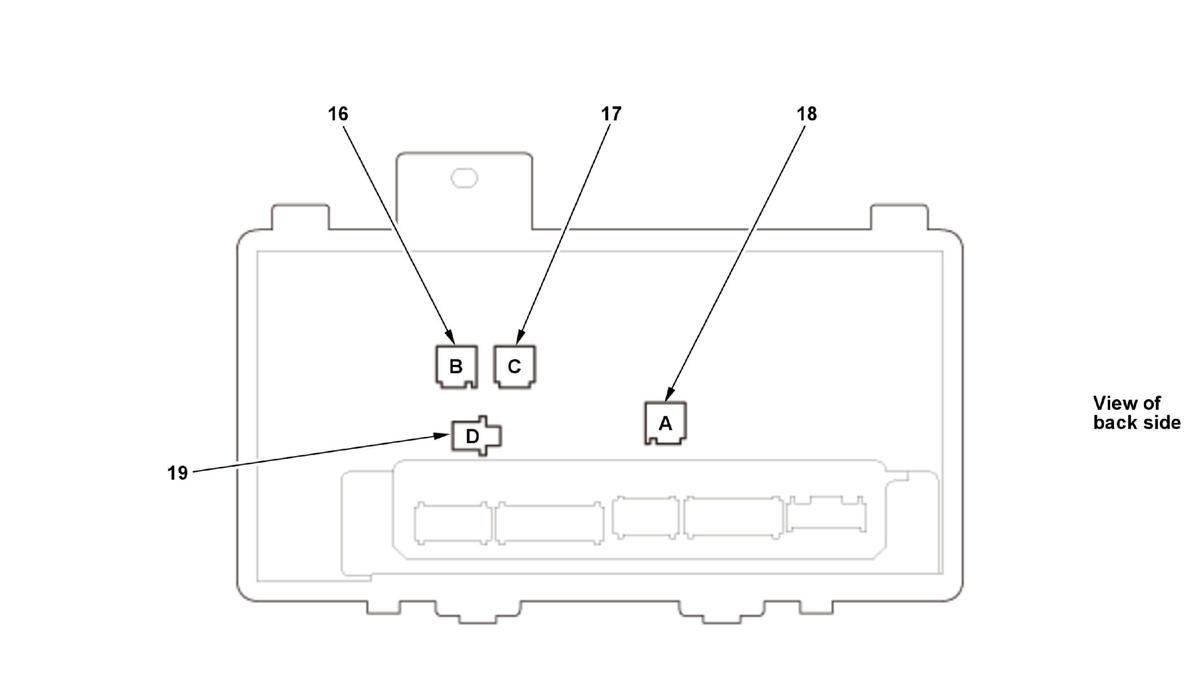

| Under-hood fuse/relay box connector A | 18 | 1 | Right engine compartment wire harness | |
| Under-hood fuse/relay box connector B | 16 | 1 | Right engine compartment wire harness | |
| Under-hood fuse/relay box connector C | 17 | 1 | Right engine compartment wire harness | |
| Under-hood fuse/relay box connector D | 19 | 2 | Right engine compartment wire harness | |
| Wiper motor relay | 10 | 4 |
