Rear Fuse/Relay Box

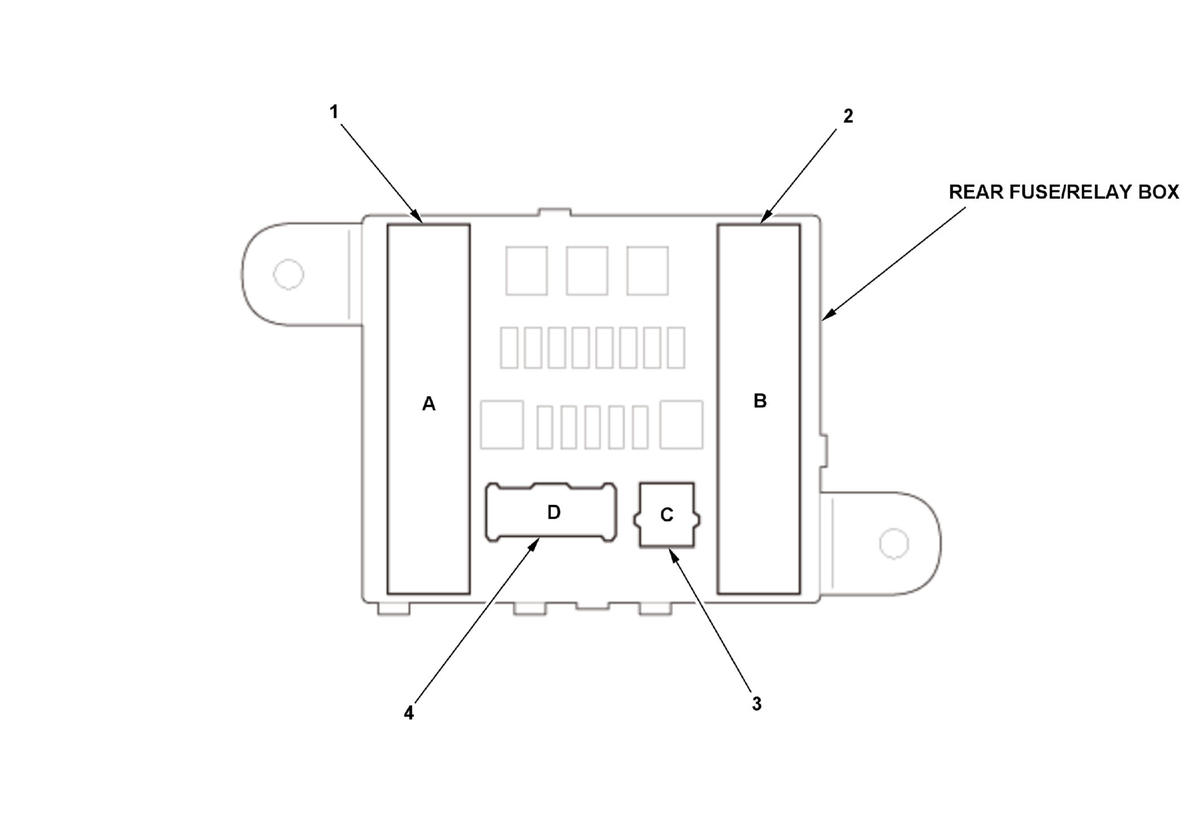

Fig 1: Rear Fuse/Relay Box Components Location
GHH317771Courtesy of HONDA, U.S.A., INC.
Rear Fuse/Relay Box Legend

Socket Ref Terminals Connects to Notes
A 1 49 Floor wire harness
B 2 36 Floor wire harness
C 3 1 Floor wire harness
D (for trailer) 4 14 Not used
