Motors, Switches, Relays
>>
Electrical System - Testing & Troubleshooting / Gen Info (Except Hybrid)
>>
Fuse Relay Box Connector Locations
>>
Fuse/Relay Box Connector Locations (2014 2015)
>>
Main Under-Hood Fuse Box
Main Under-Hood Fuse Box
Main Under-Hood Fuse Box

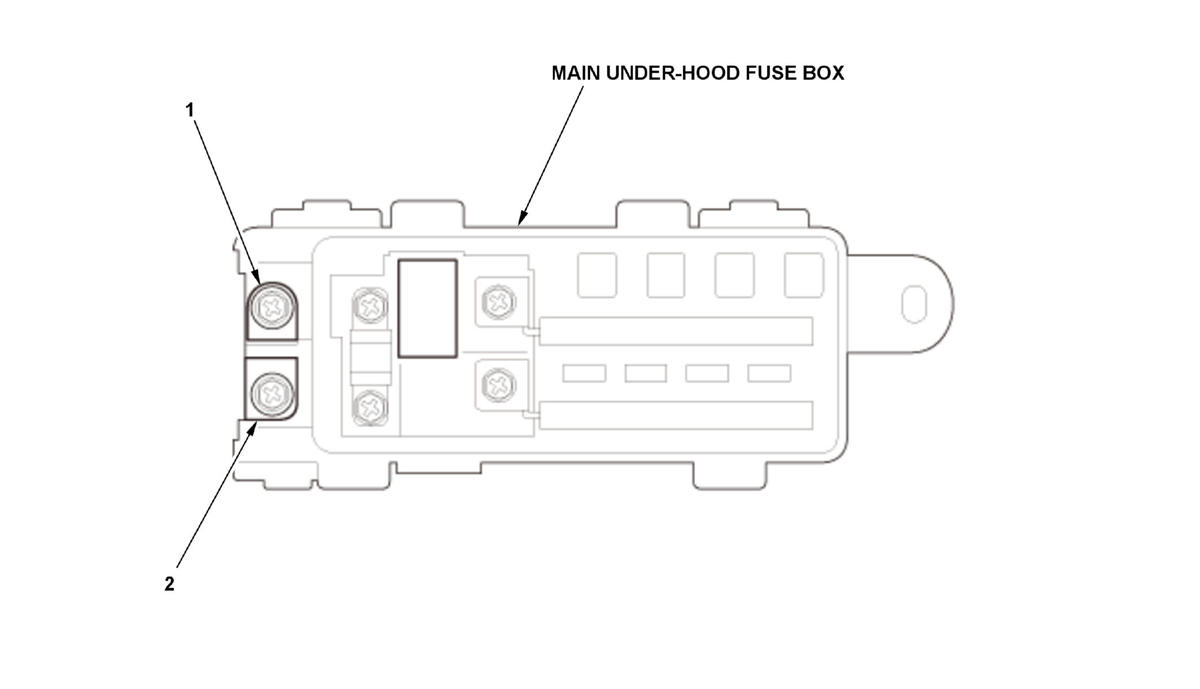

Fig 1: Main Under-Hood Fuse Box Components Location
Courtesy of HONDA, U.S.A., INC.
Main Under-Hood Fuse Box Legend
Socket
Ref
Terminals
Connects to
Notes
T1
2
- - -
Starter cable
T101
1
- - -
Engine wire harness
Courtesy of HONDA, U.S.A., INC.
