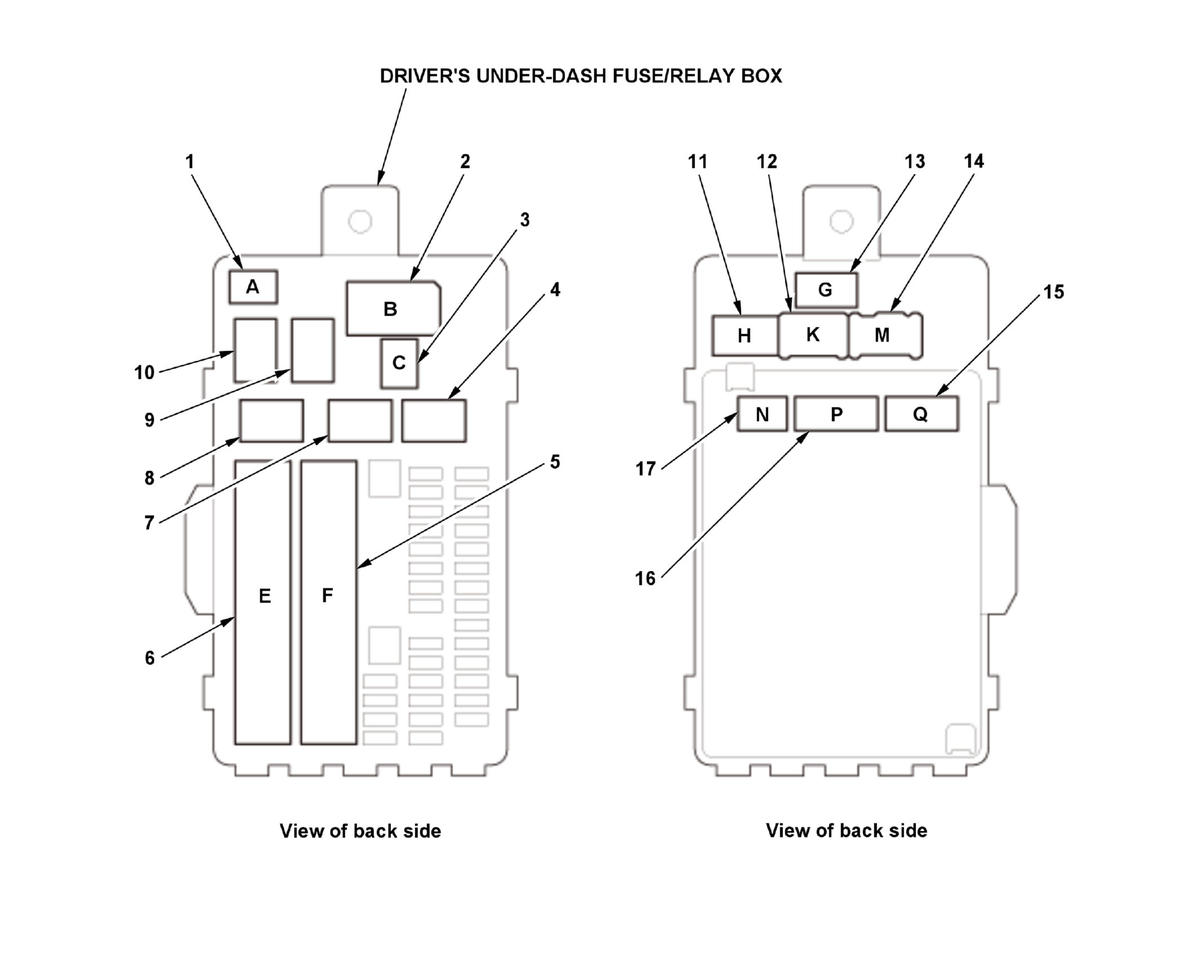

Driver's Under-Dash Fuse/Relay Box
Driver's Under-Dash Fuse/Relay Box Legend
| Socket | Ref | Terminals | Connects to | Notes |
|---|---|---|---|---|
| A (optional connector) | 1 | 12 | Not used | |
| B | 2 | 5 | Dashboard wire harness | |
| C | 3 | 2 | Dashboard wire harness | |
| E | 6 | 44 | Floor wire harness | |
| F | 5 | 32 | Left engine compartment wire harness | |
| G | 13 | 16 | Dashboard wire harness | |
| H | 11 | 13 | Dashboard wire harness | |
| K | 12 | 8 | Dashboard wire harness | |
| M | 14 | 8 | Dashboard wire harness | |
| N | 17 | 12 | Dashboard wire harness | |
| Not used | 4 | 4 | ||
| Not used | 7 | 4 | ||
| P | 16 | 24 | Dashboard wire harness | |
| PGM-FI main relay 2 | 8 | 4 | ||
| Q | 15 | 20 | Dashboard wire harness | |
| Starter cut relay 1 | 10 | 4 | ||
| Starter cut relay 2 | 9 | 4 |
