Auxiliary Under-Dash Relay Block B

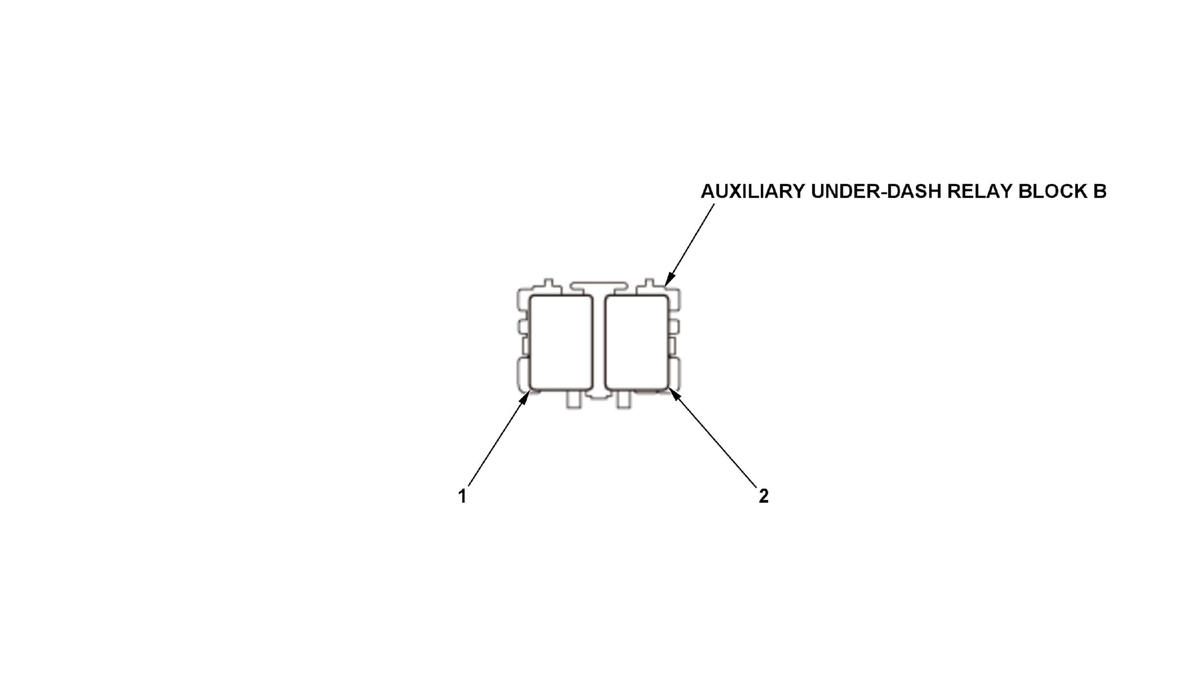

Fig 1: Auxiliary Under-Dash Relay Block B Components Location
GHH317770Courtesy of HONDA, U.S.A., INC.
Auxiliary Under-Dash Relay Block B Legend

Socket Ref Terminals Connects to Notes
Front blower motor relay 1 4
Rear blower motor relay 2 4
