Auxiliary Under-Dash Relay Block A

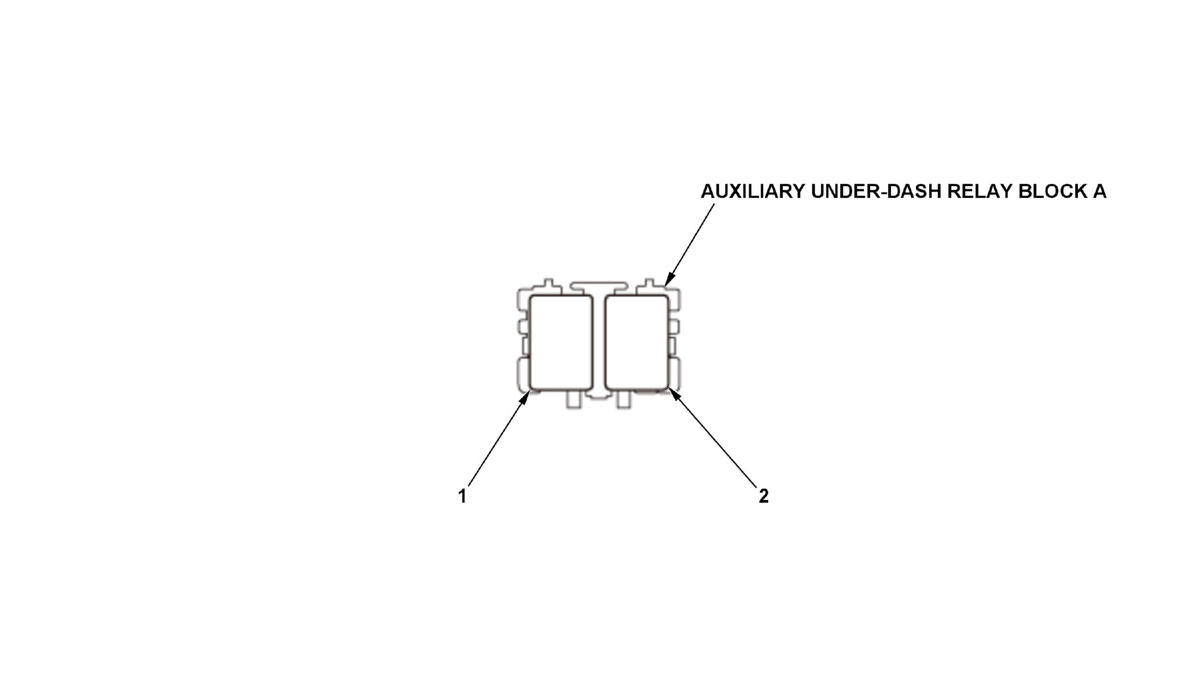

Fig 1: Auxiliary Under-Dash Relay Block A Components Location
GHH317769Courtesy of HONDA, U.S.A., INC.
Auxiliary Under-Dash Relay Block A Legend

Socket Ref Terminals Connects to Notes
Headlight washer relay 1 4
Horn relay 2 4
