Acura
>>
2014
>>
MDX SH-AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
Electrical System - Testing & Troubleshooting / Gen Info (Except Hybrid)
>>
Electrical Schematic
>>

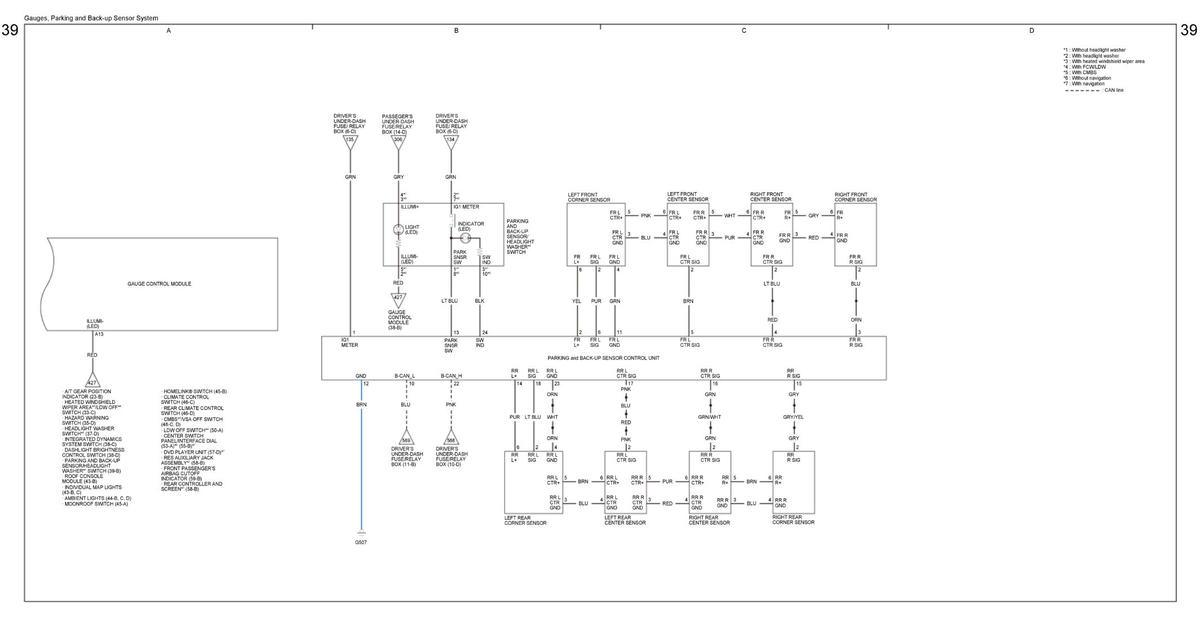

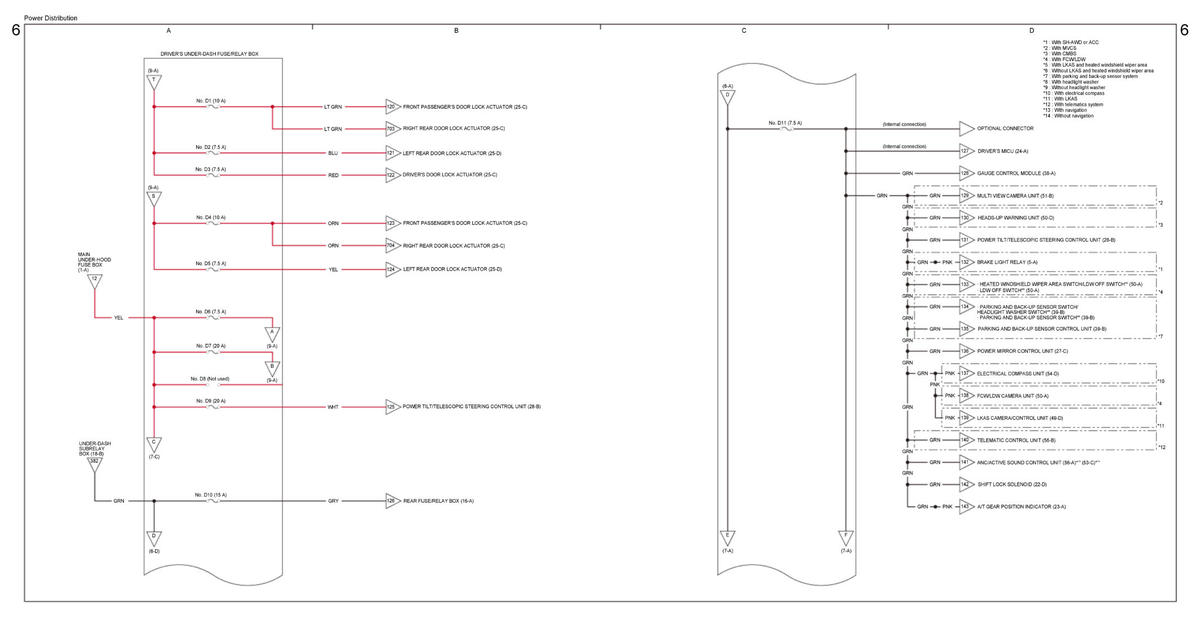

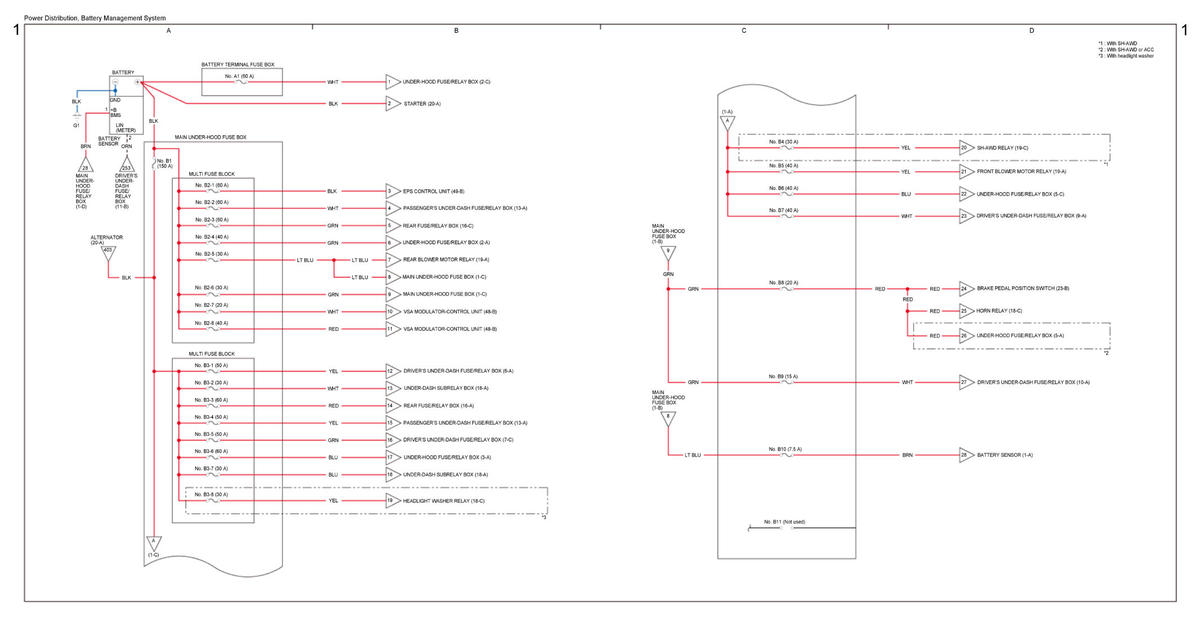

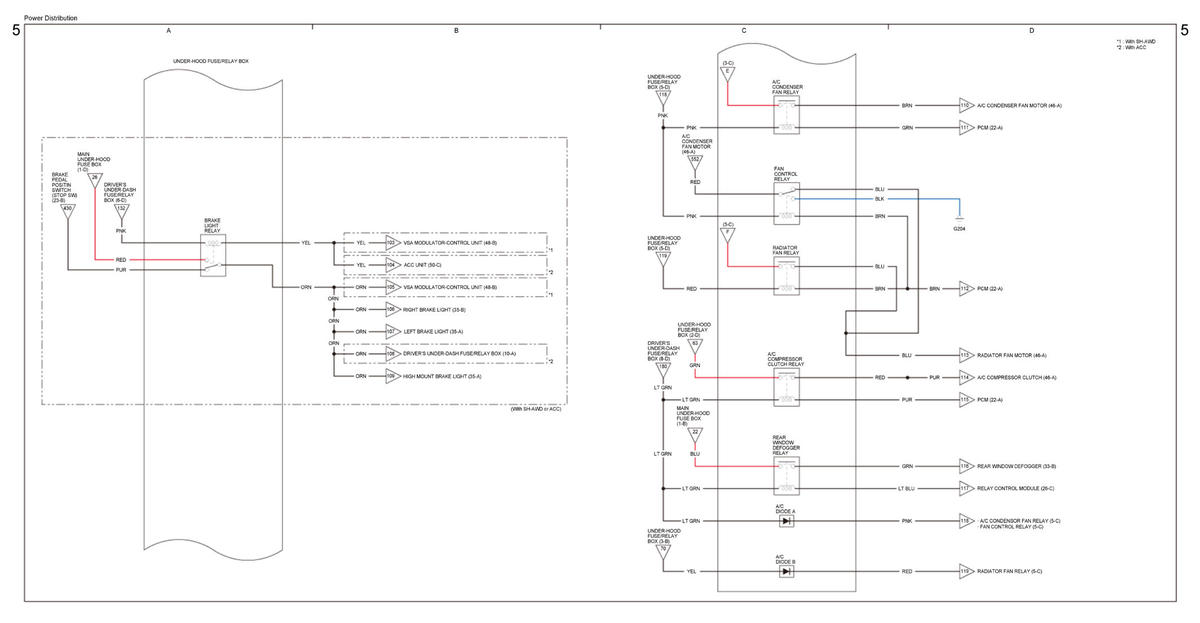

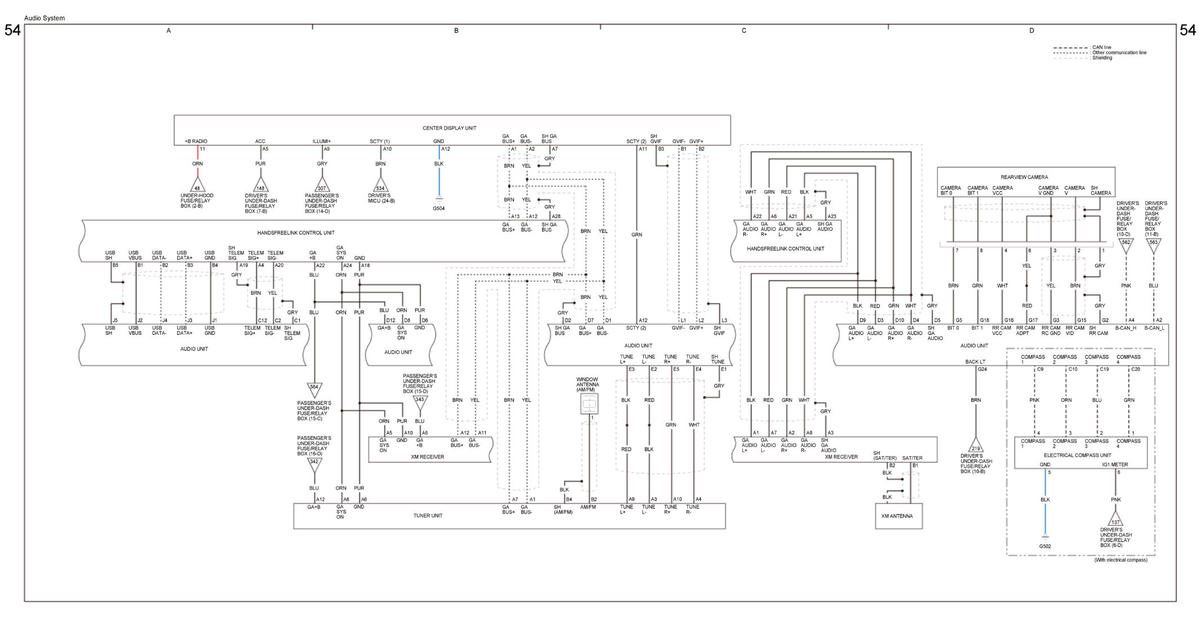

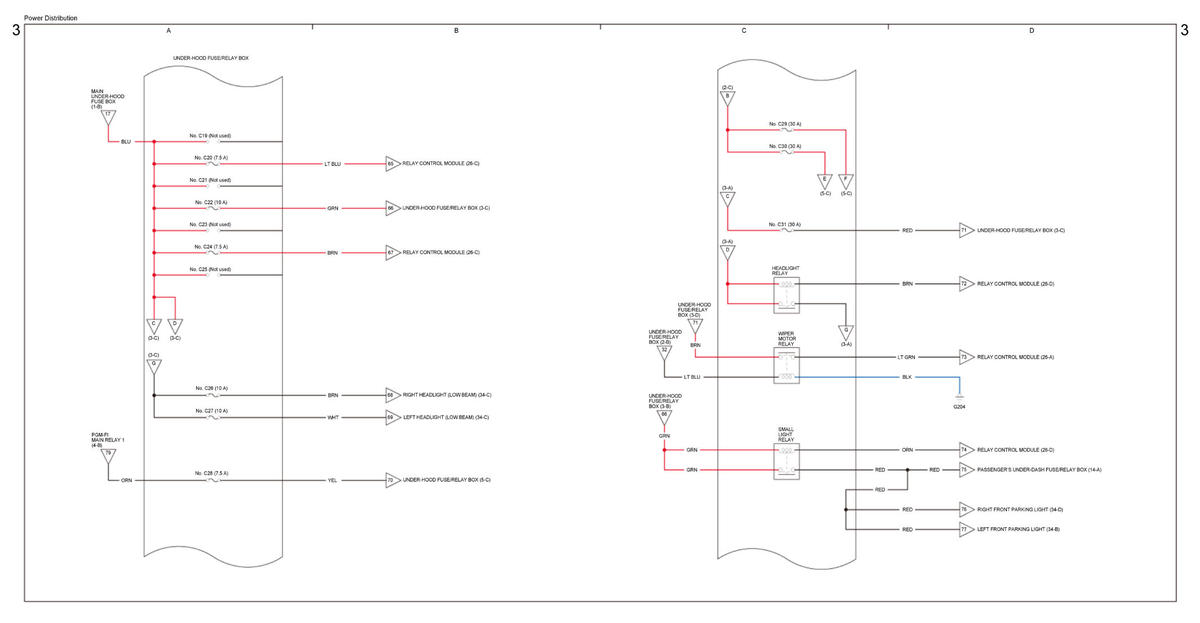

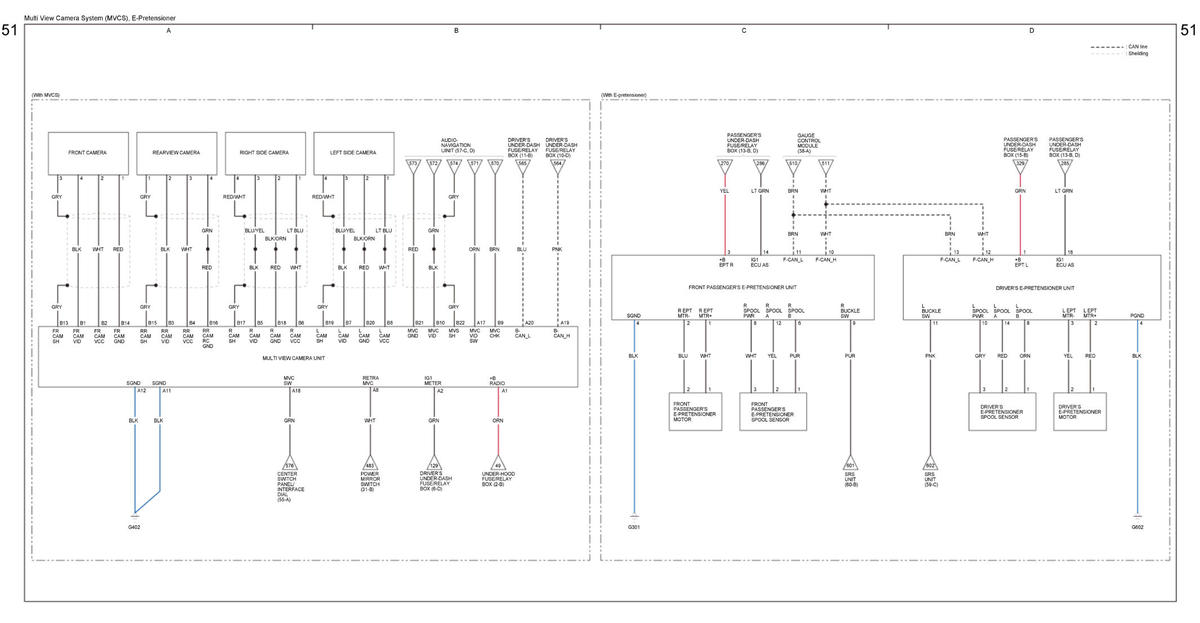

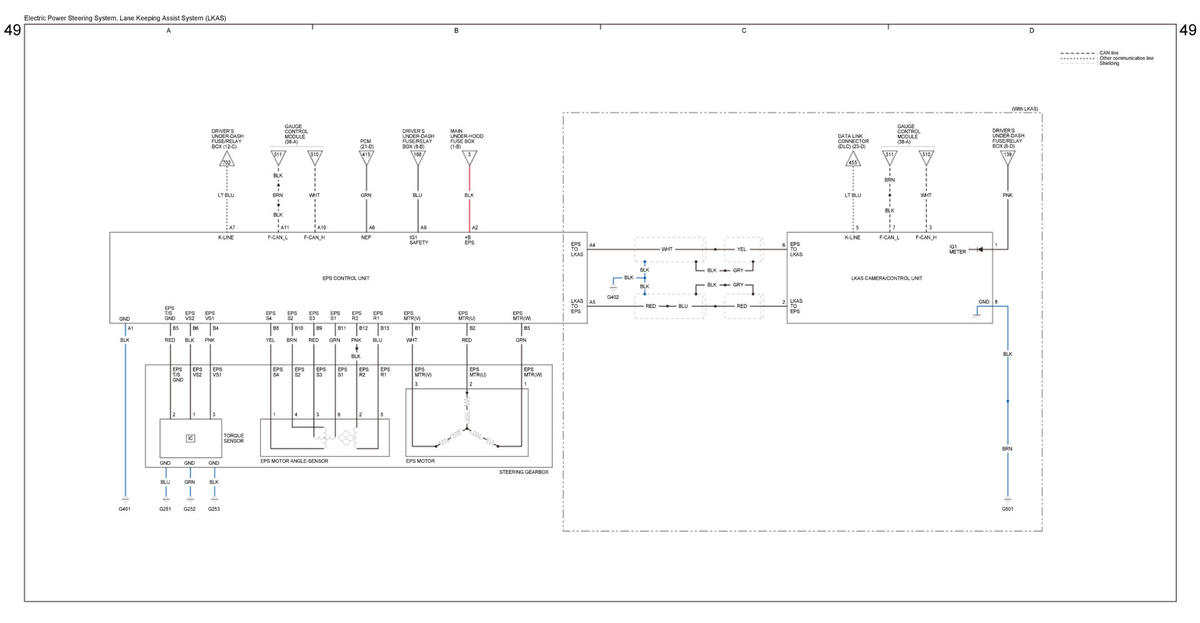

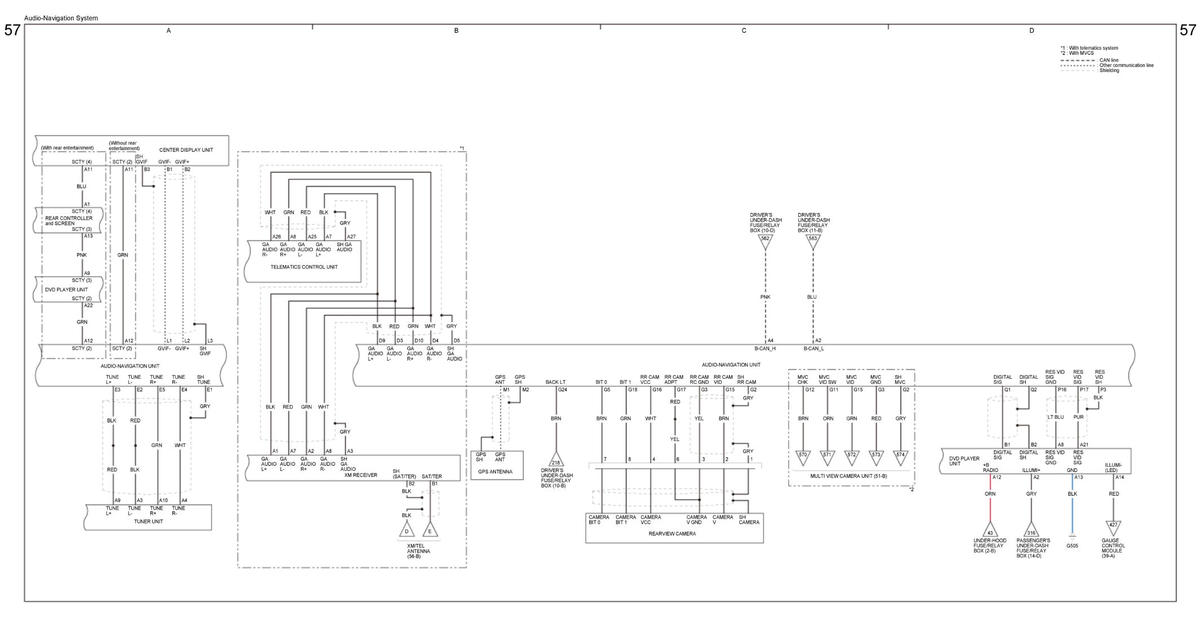

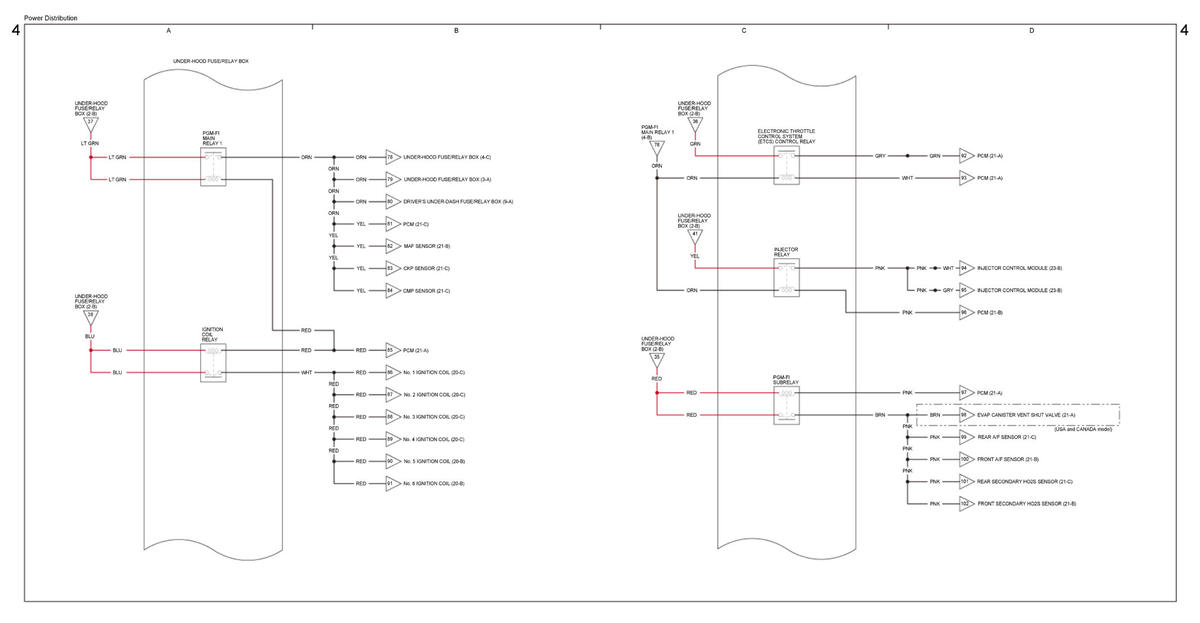

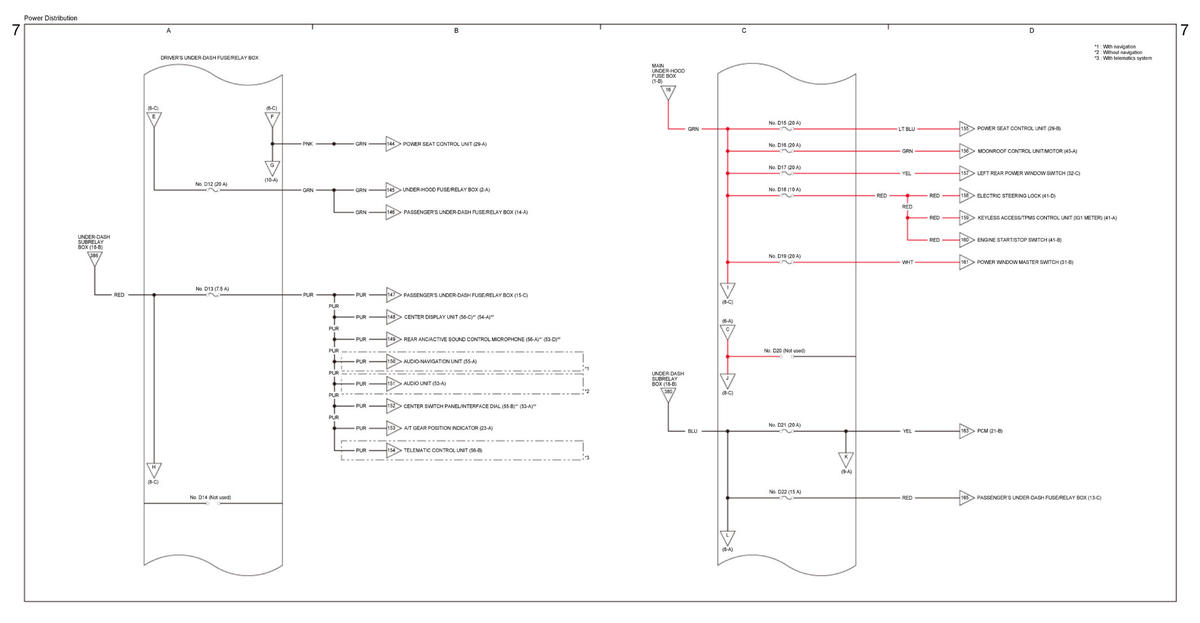

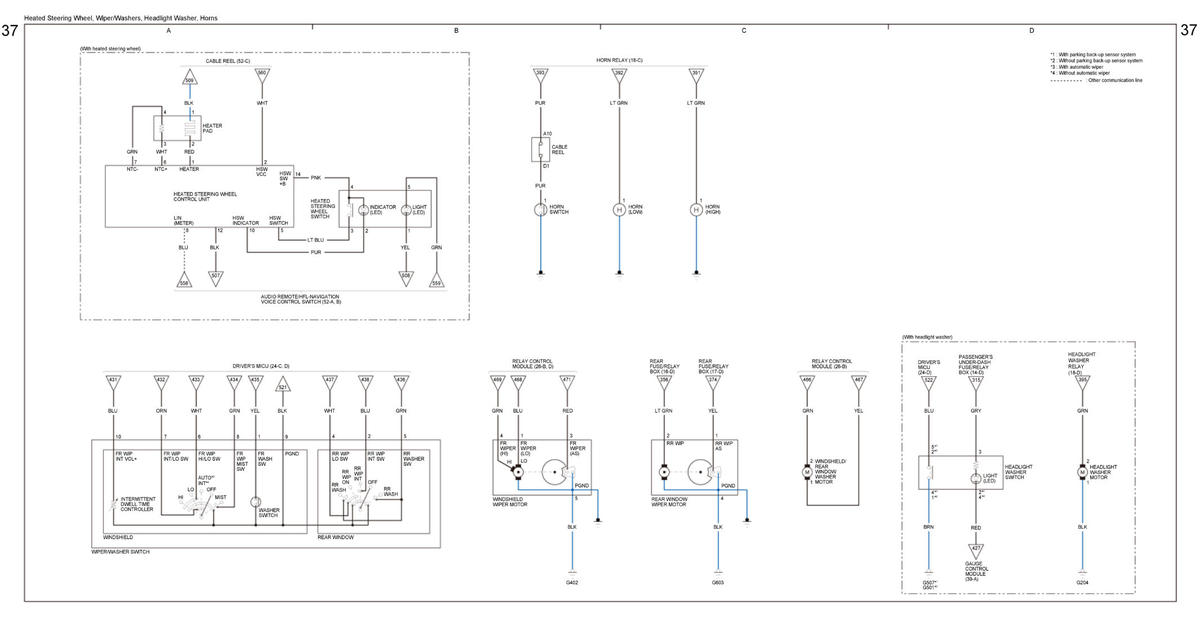

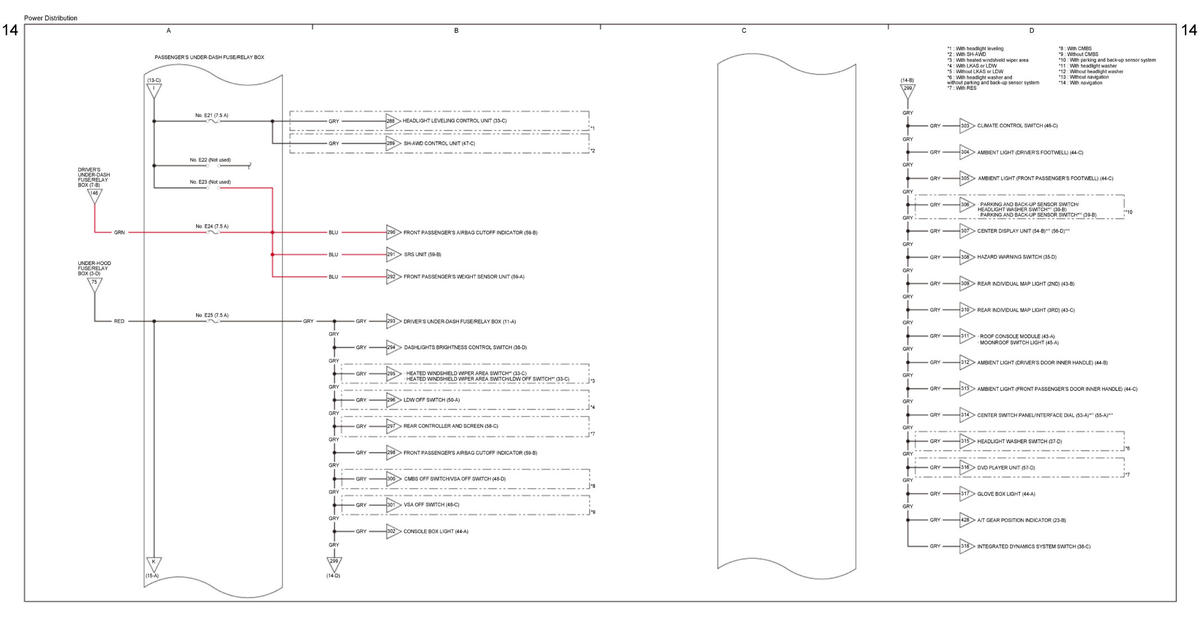

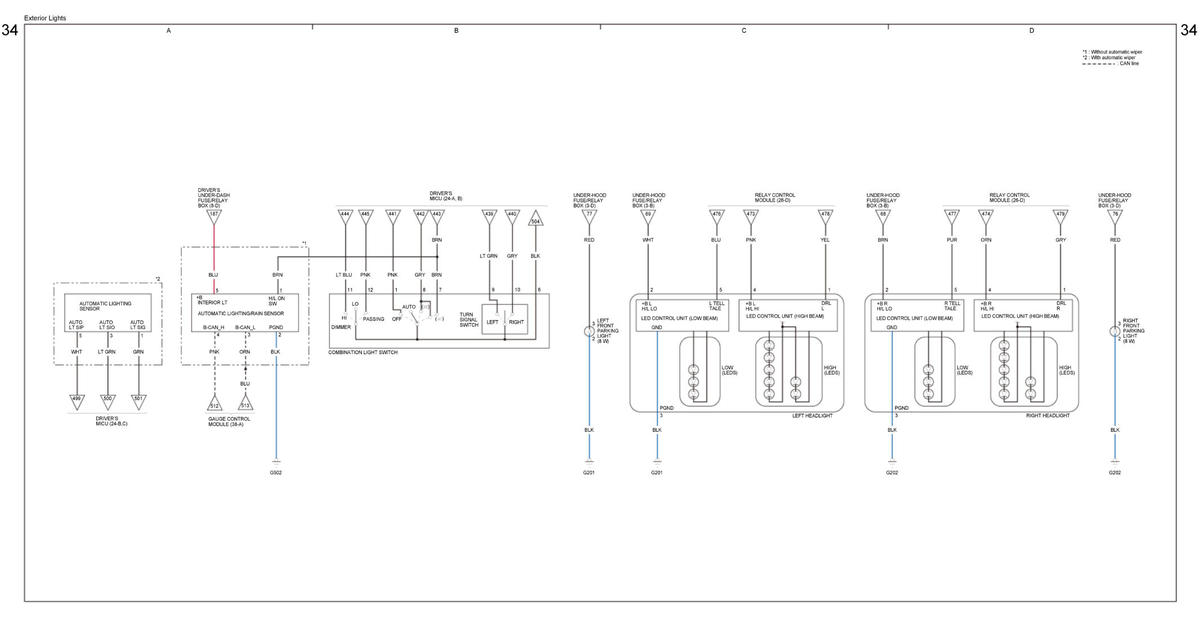

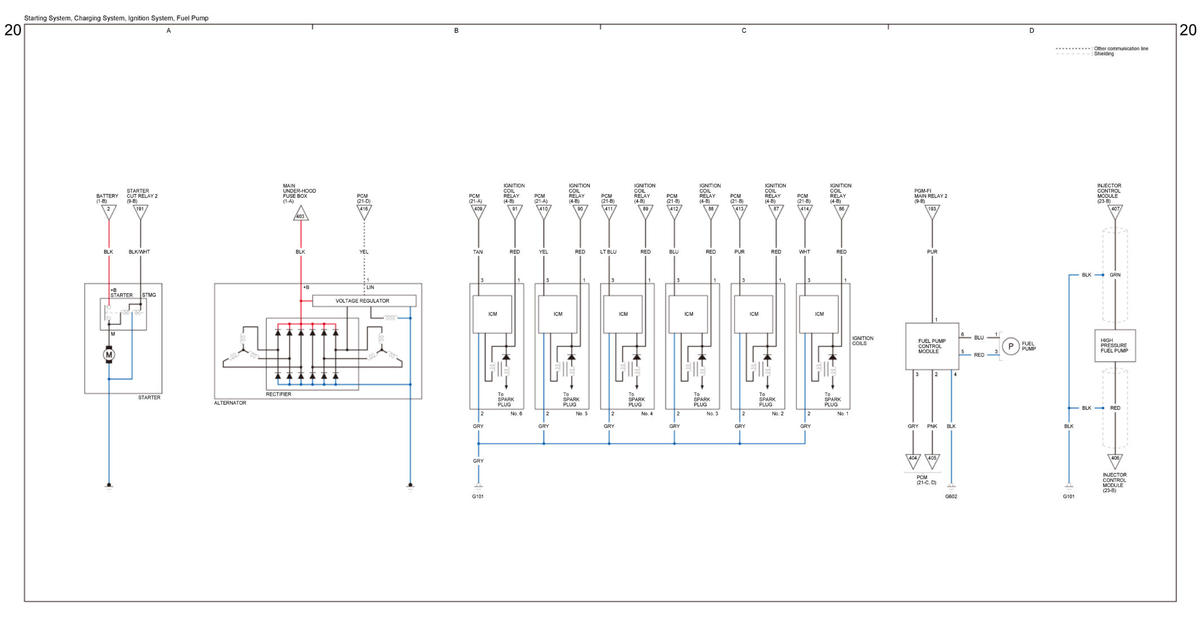

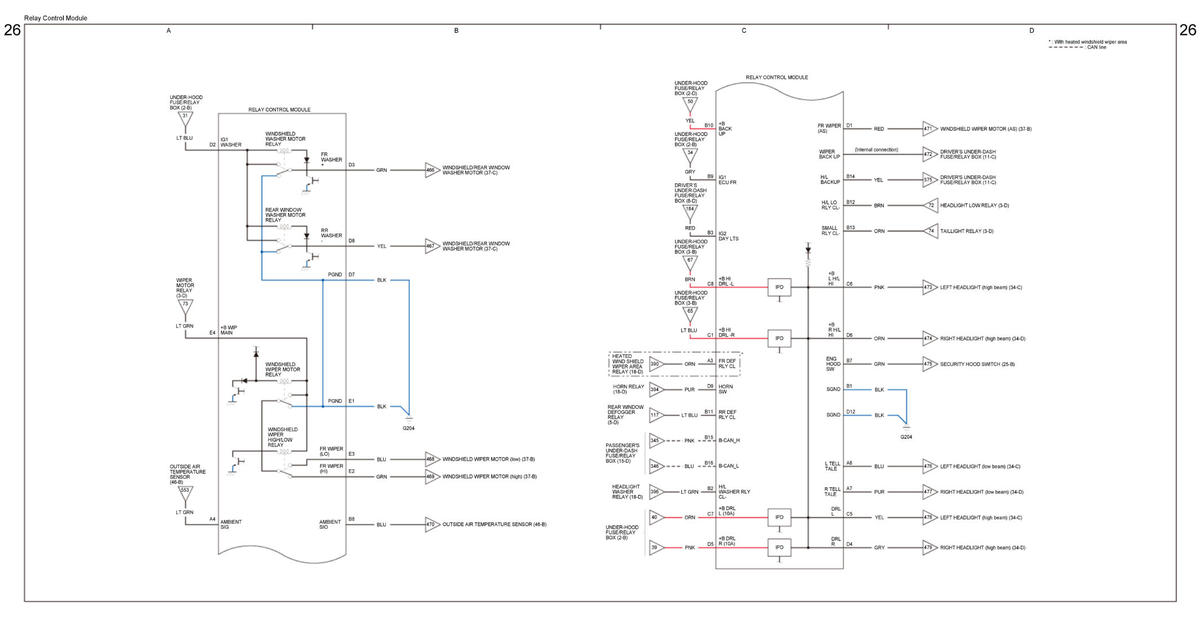

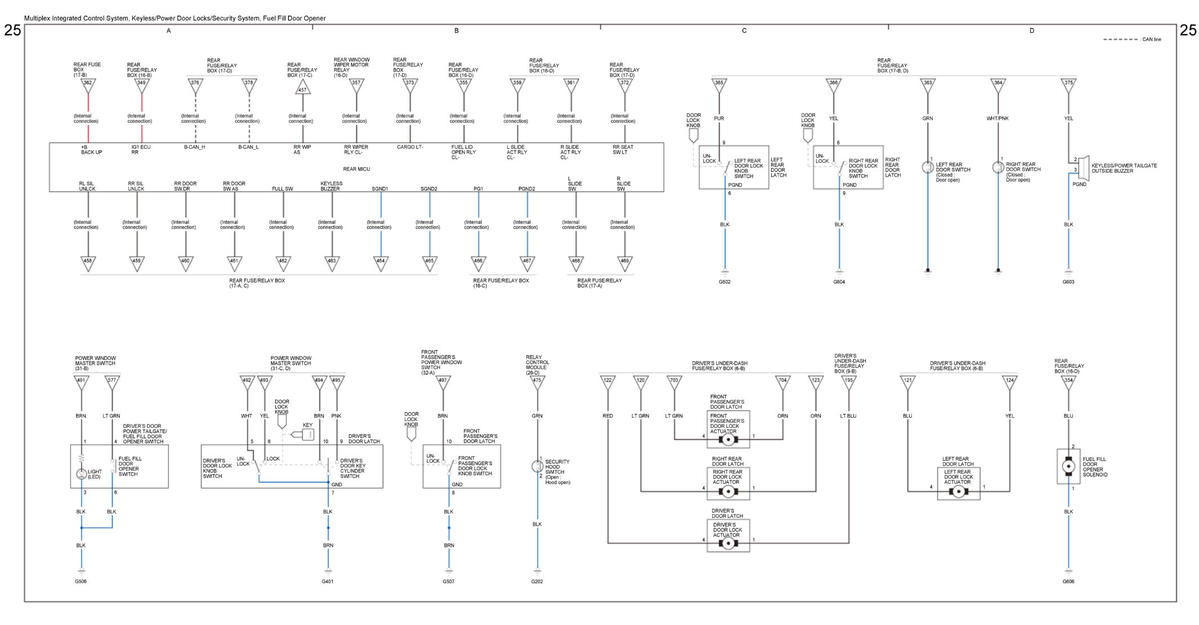

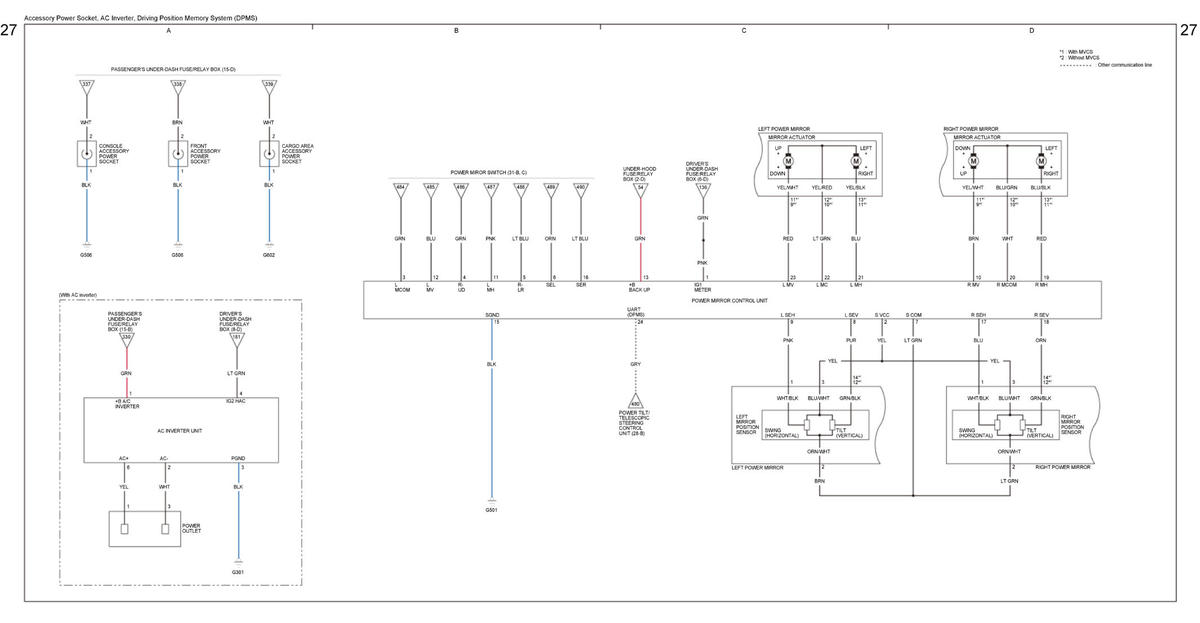

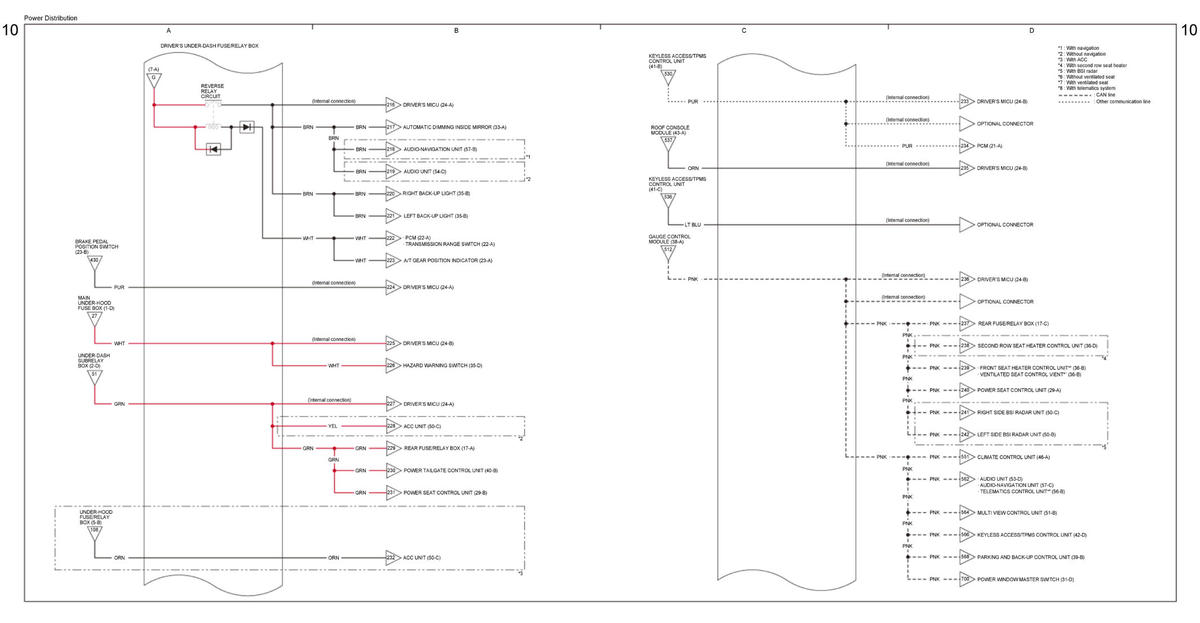

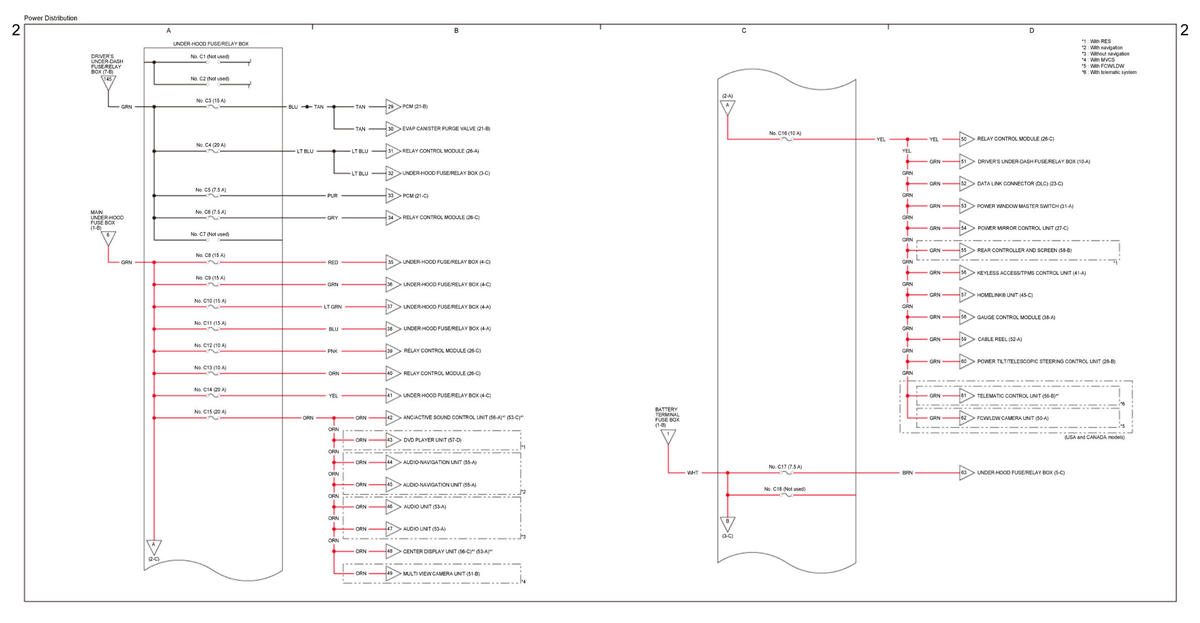

Wiring Diagram

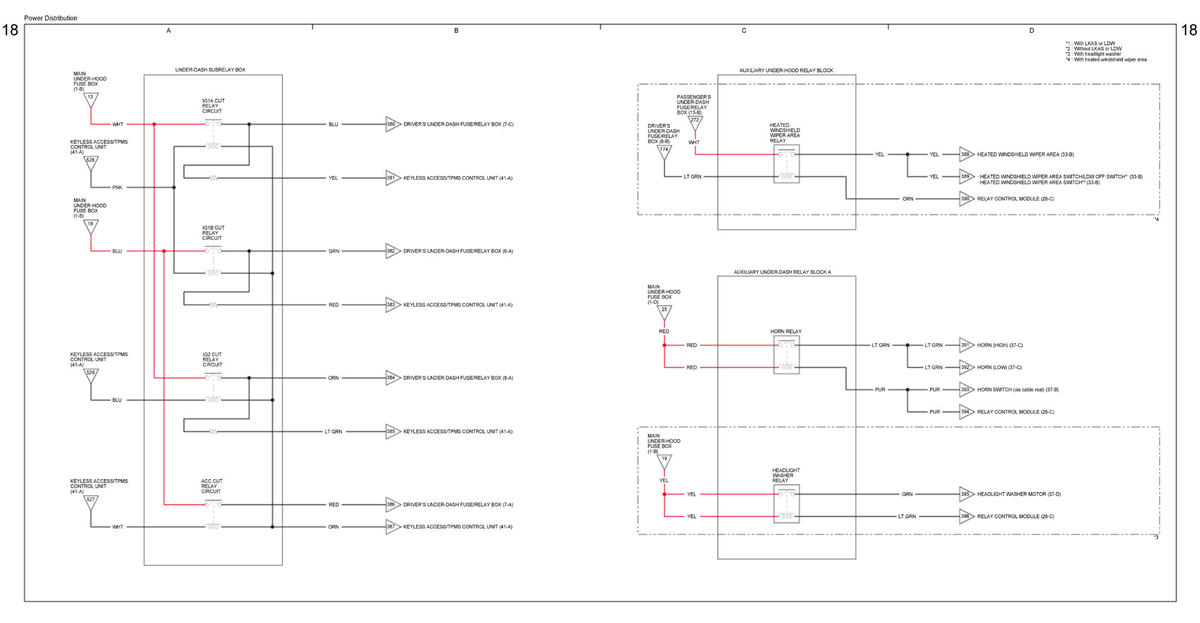

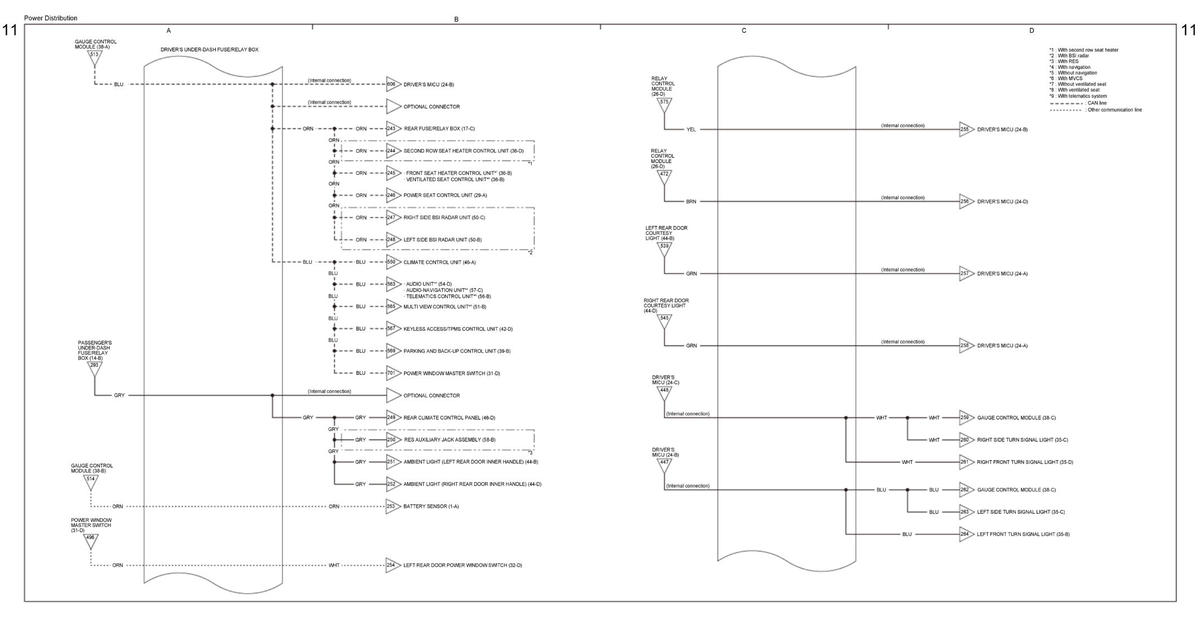

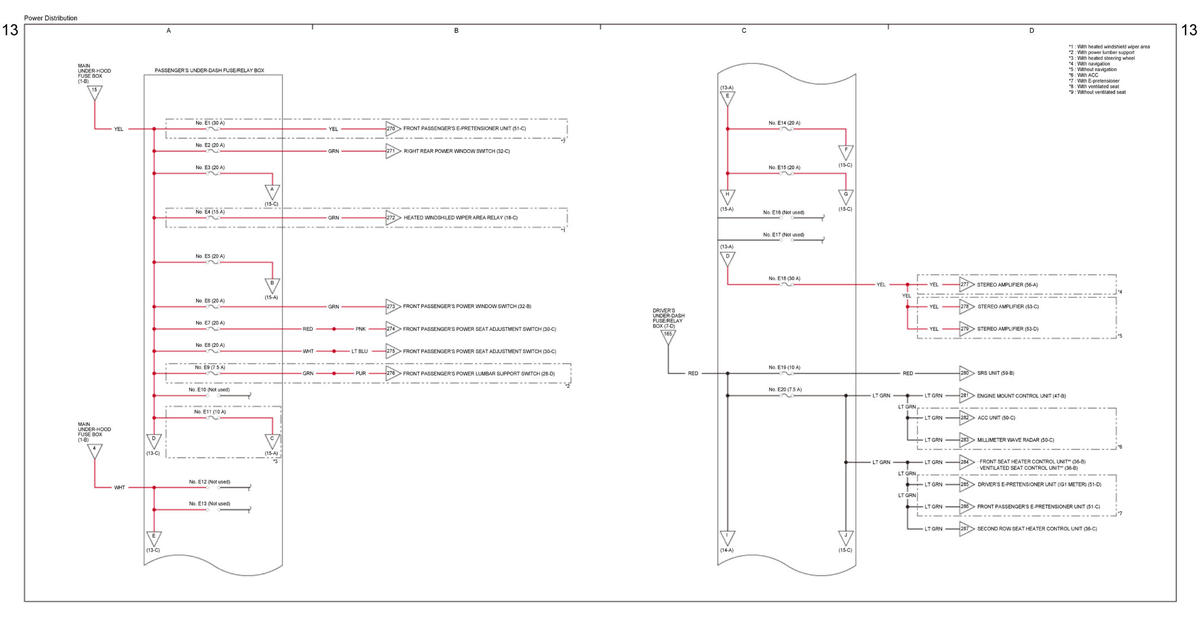

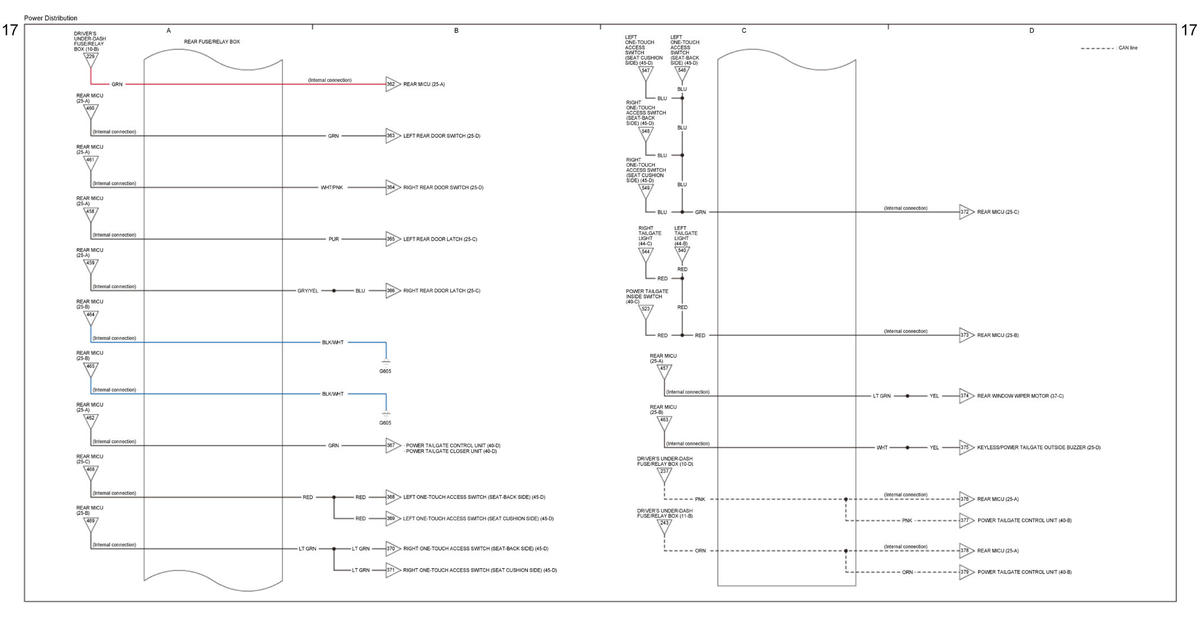

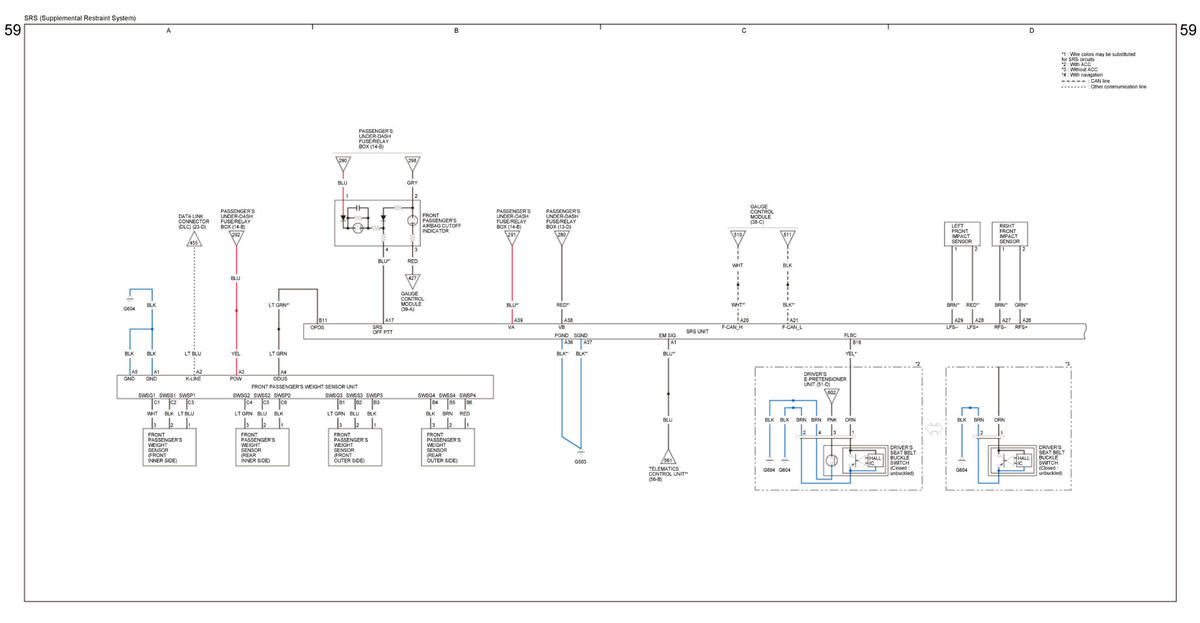

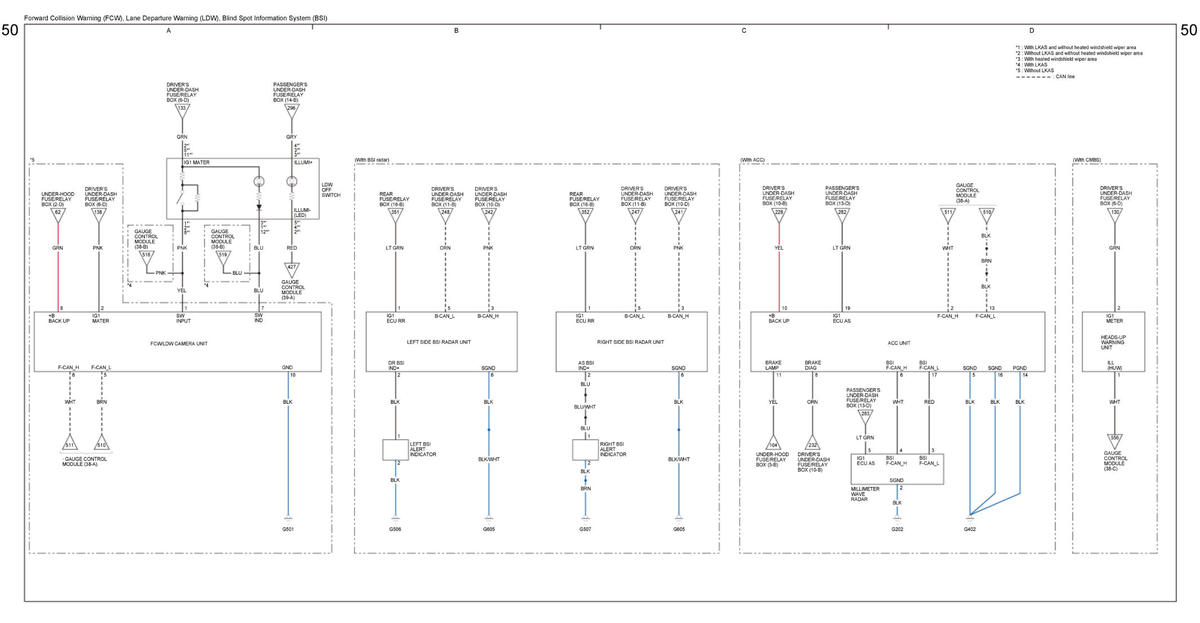

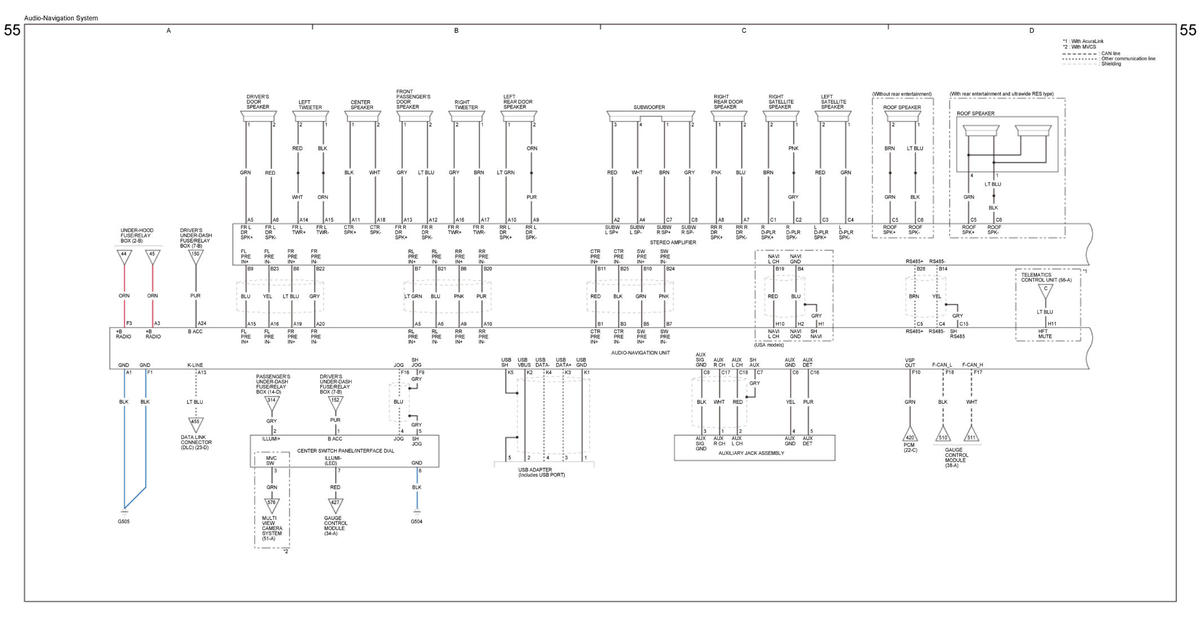

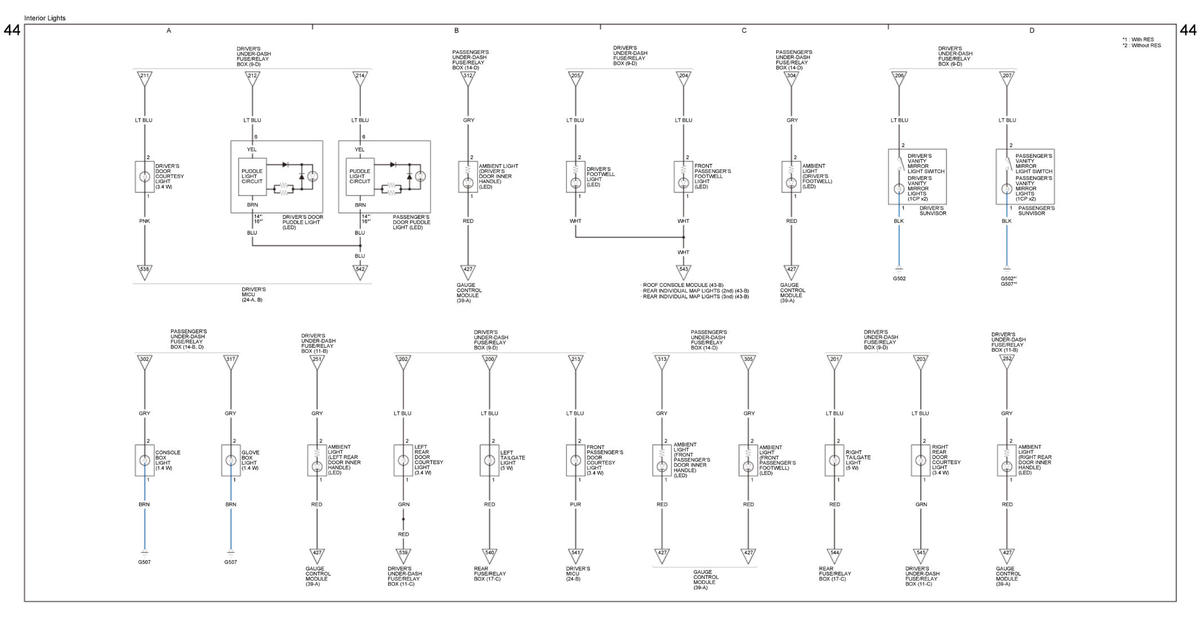

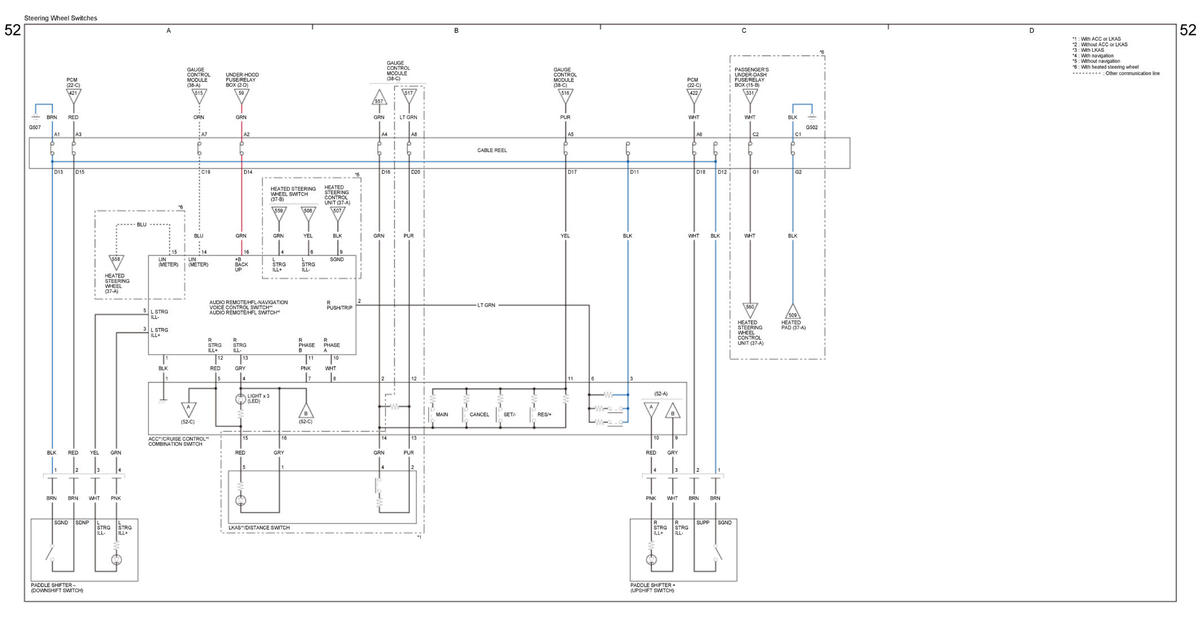

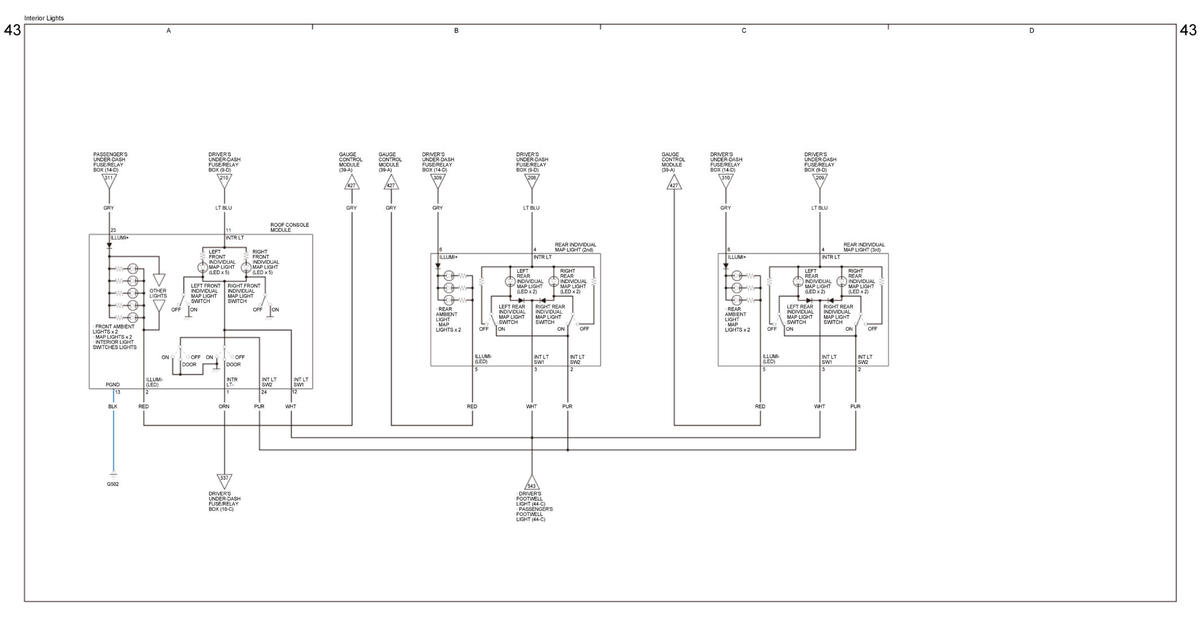

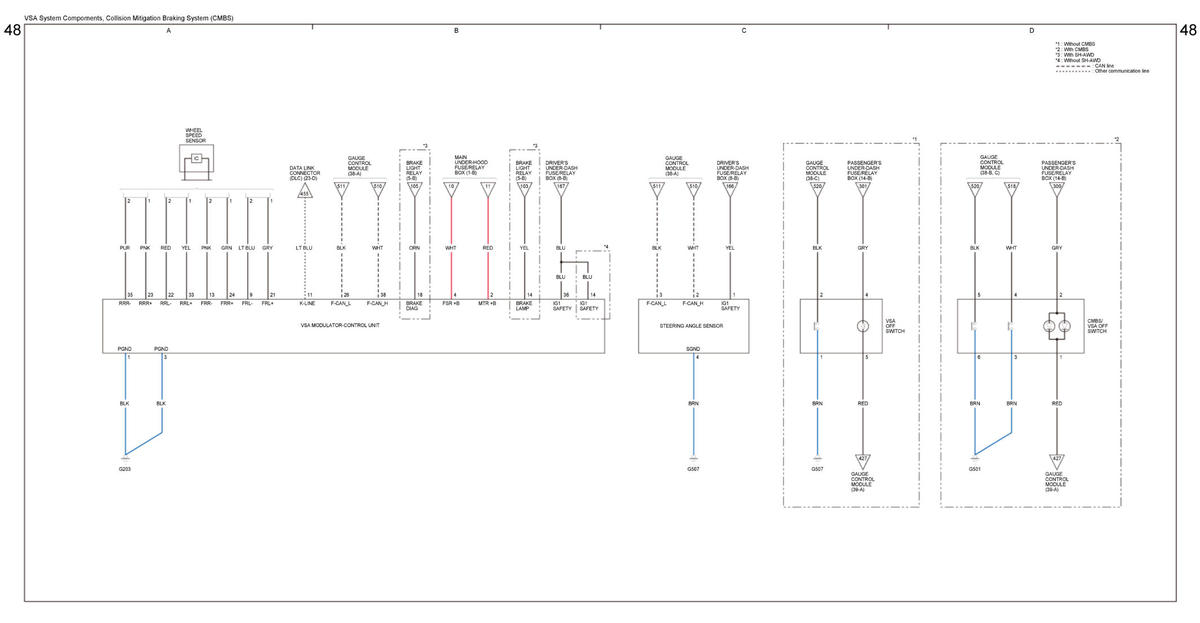

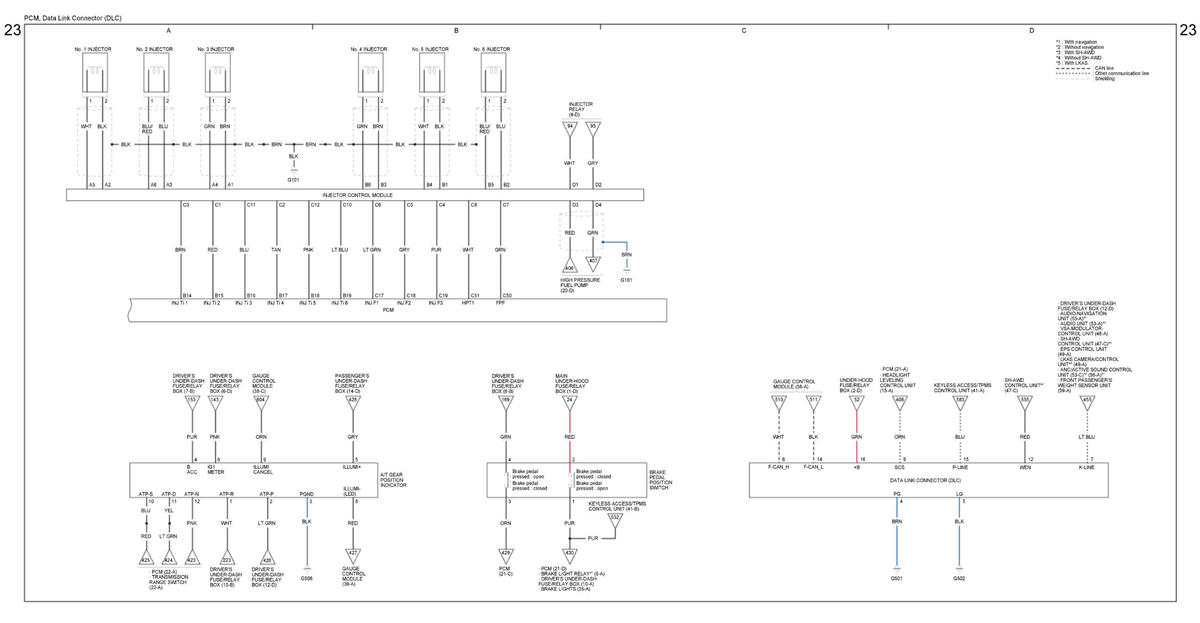

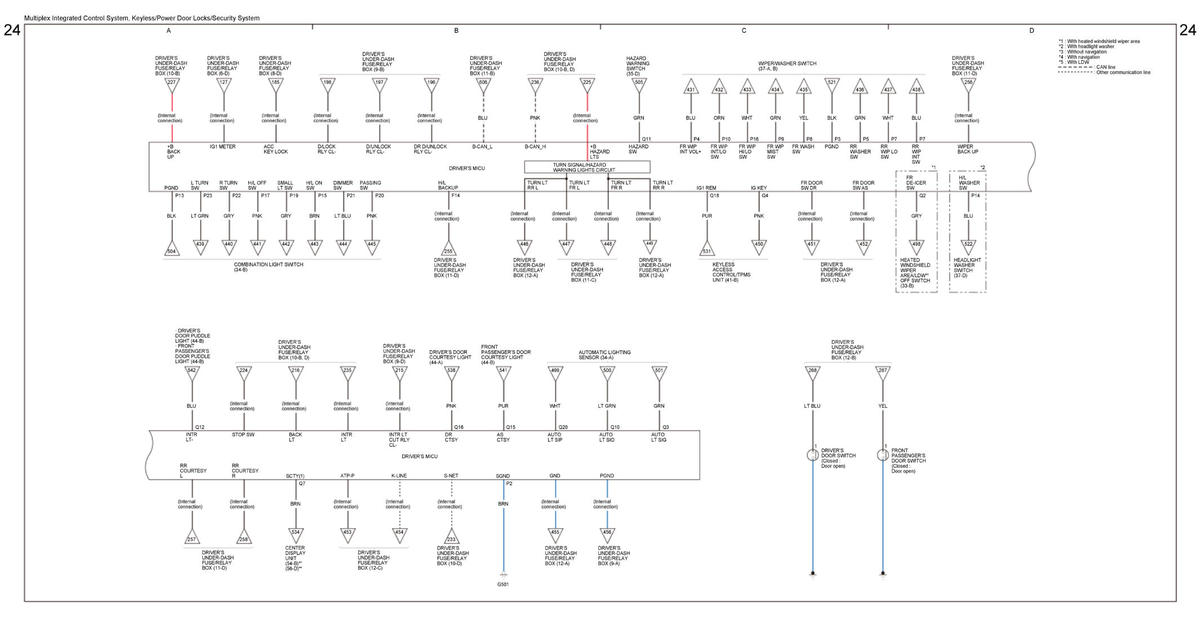

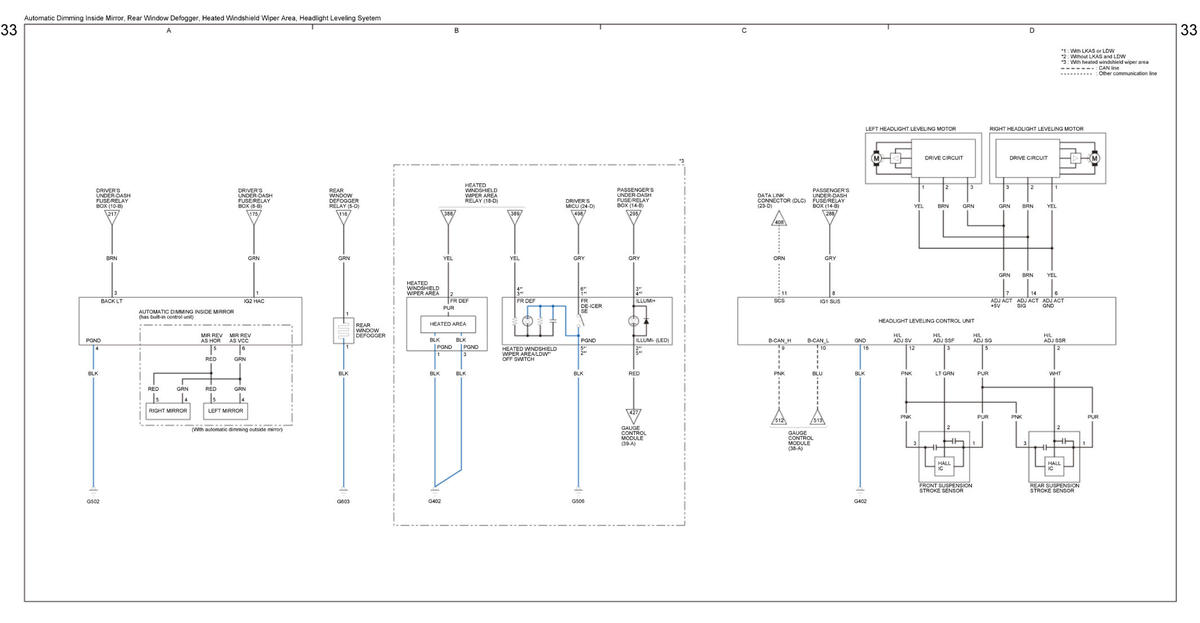

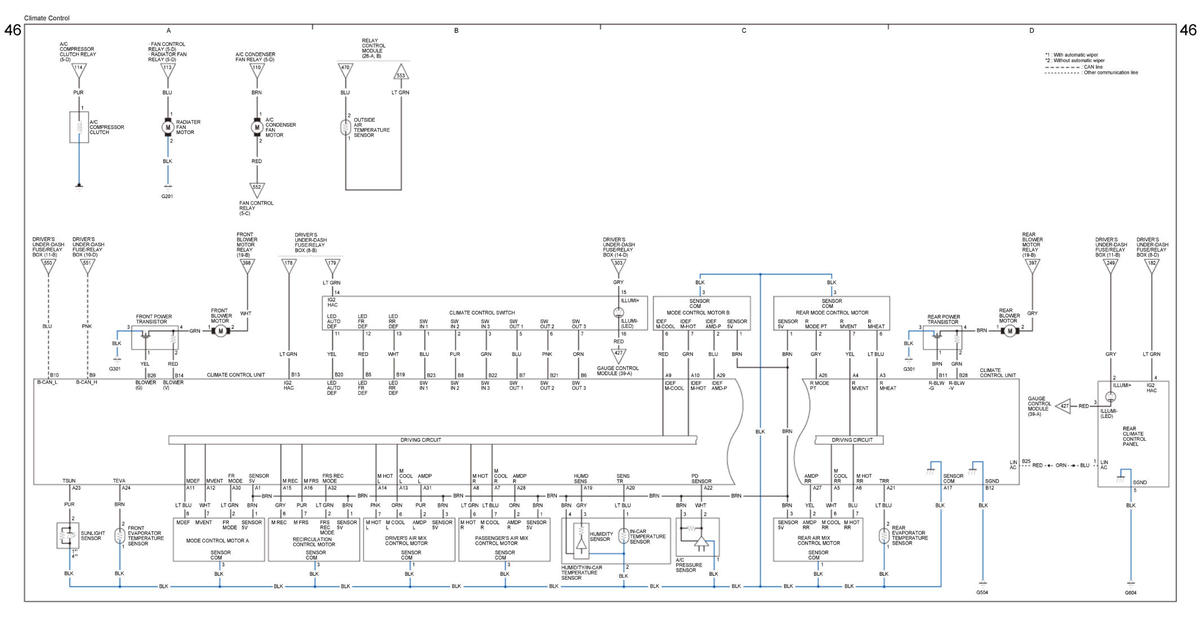

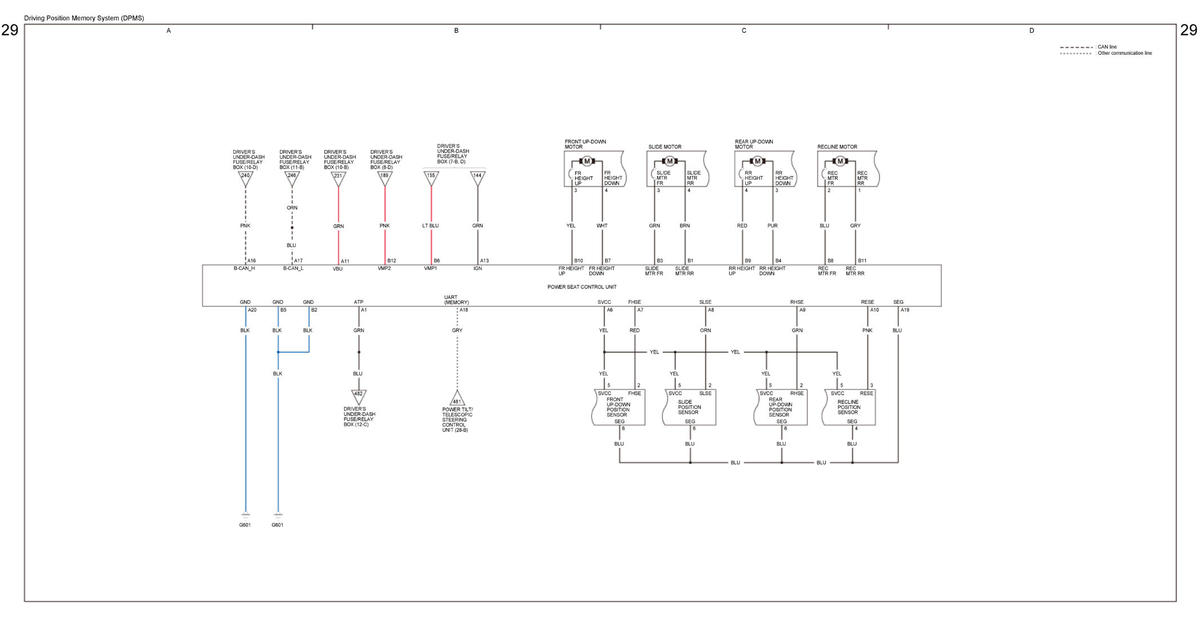

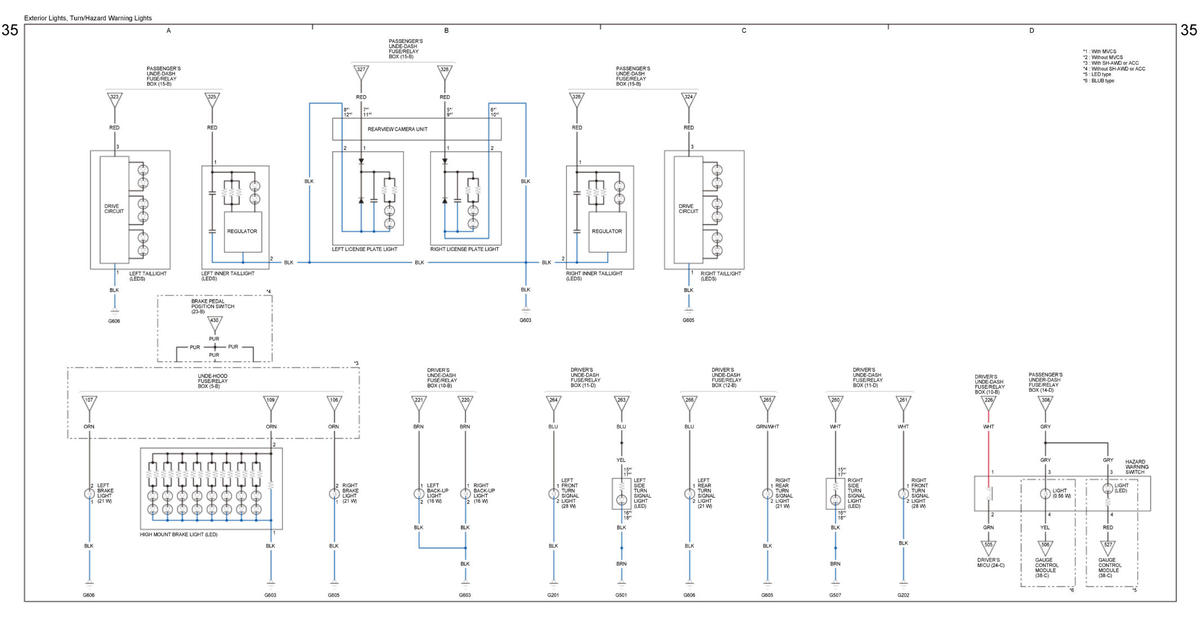

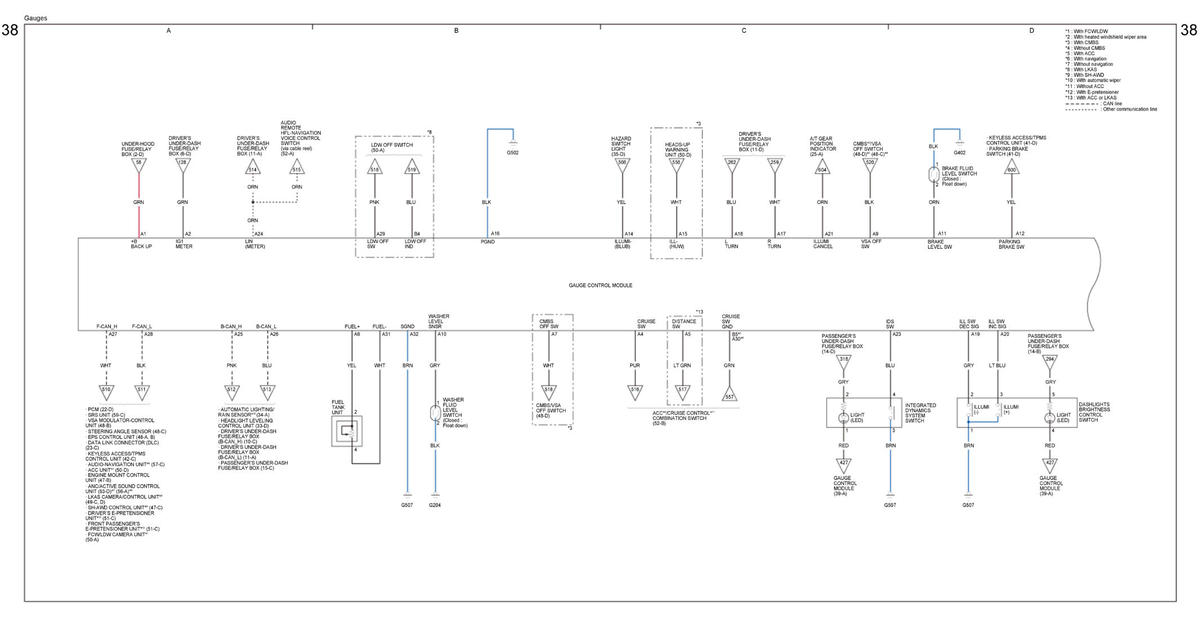

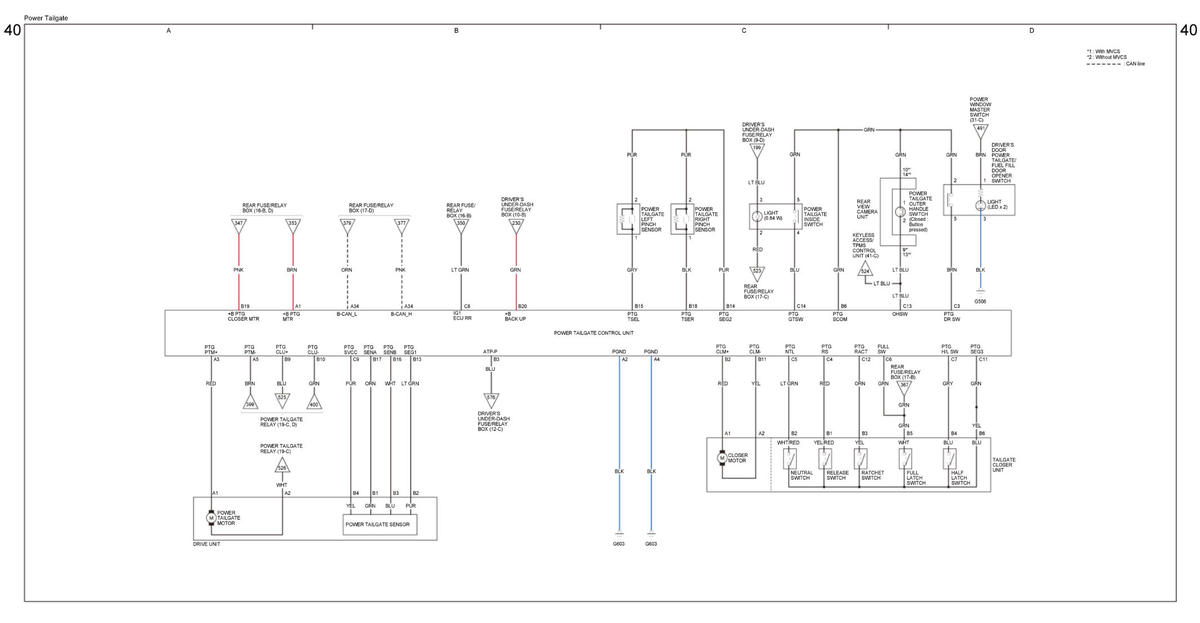

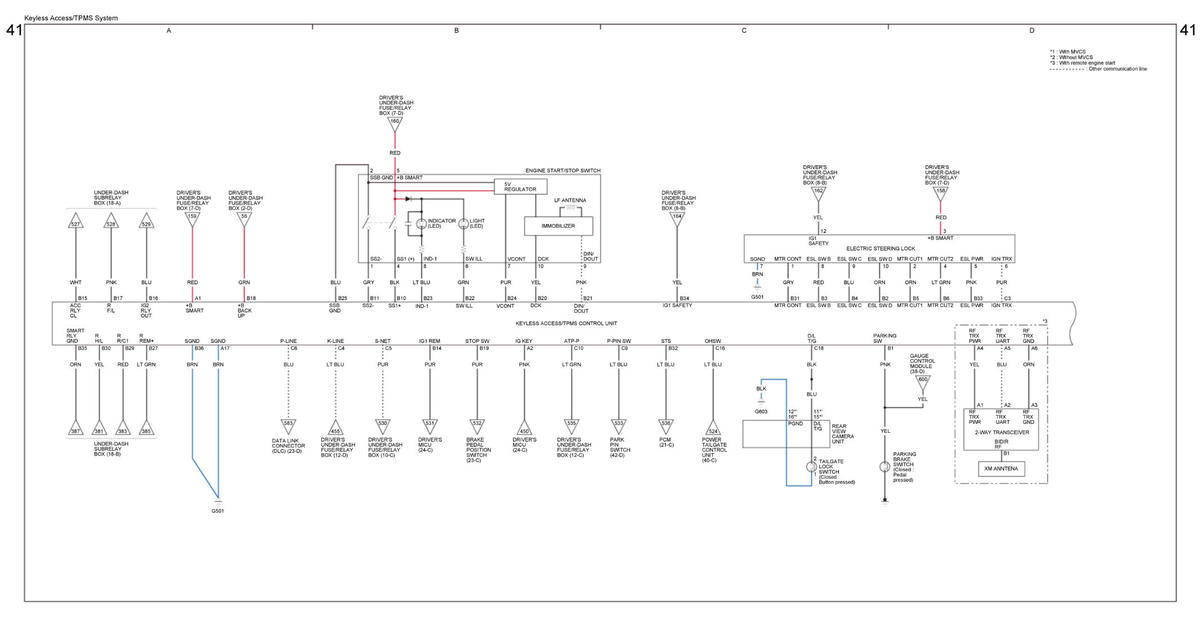

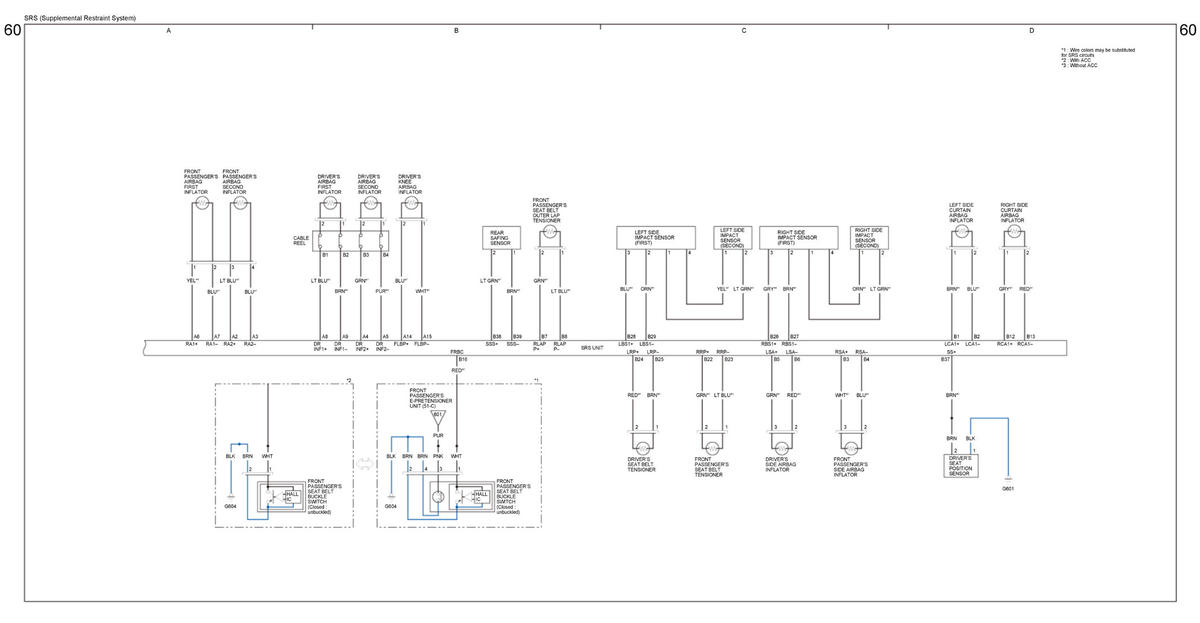

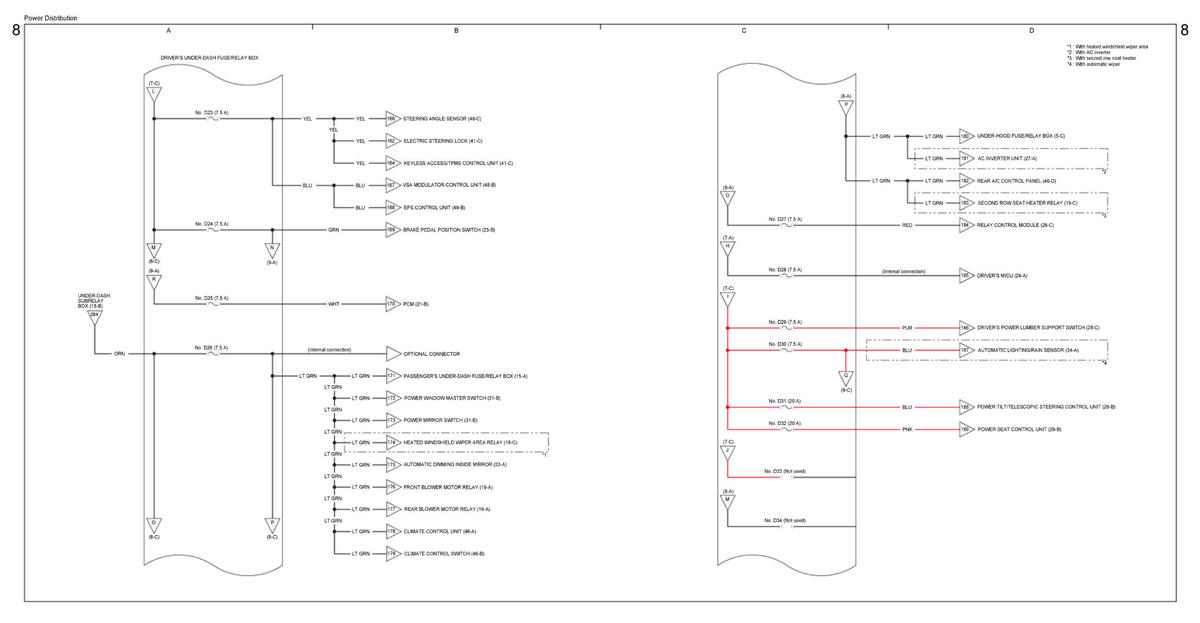

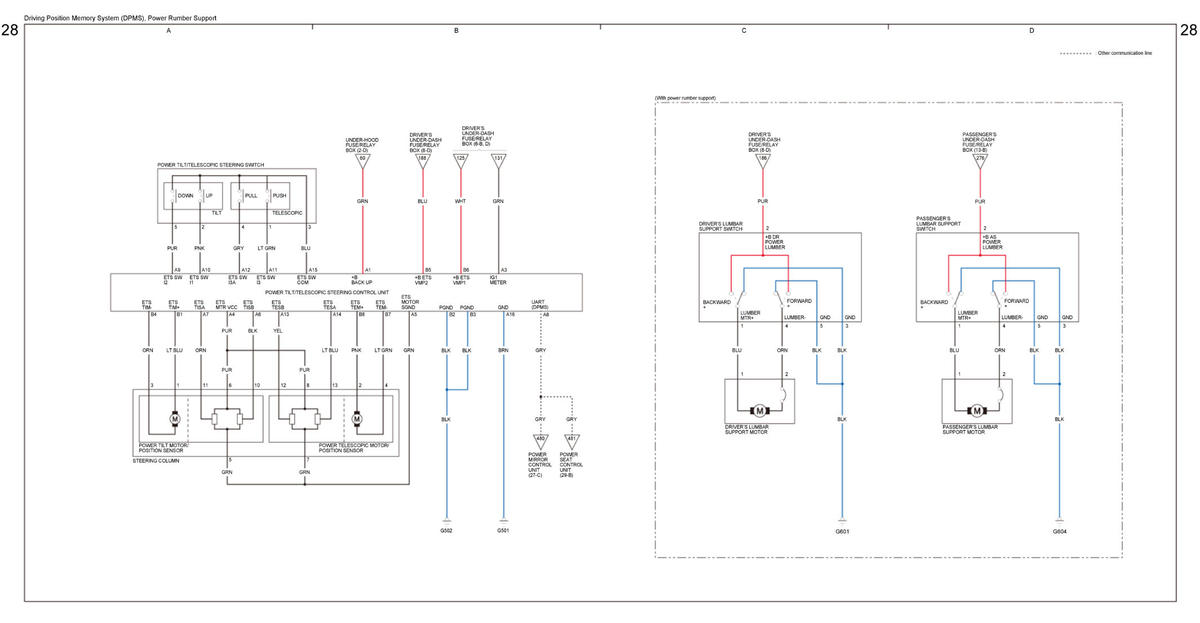

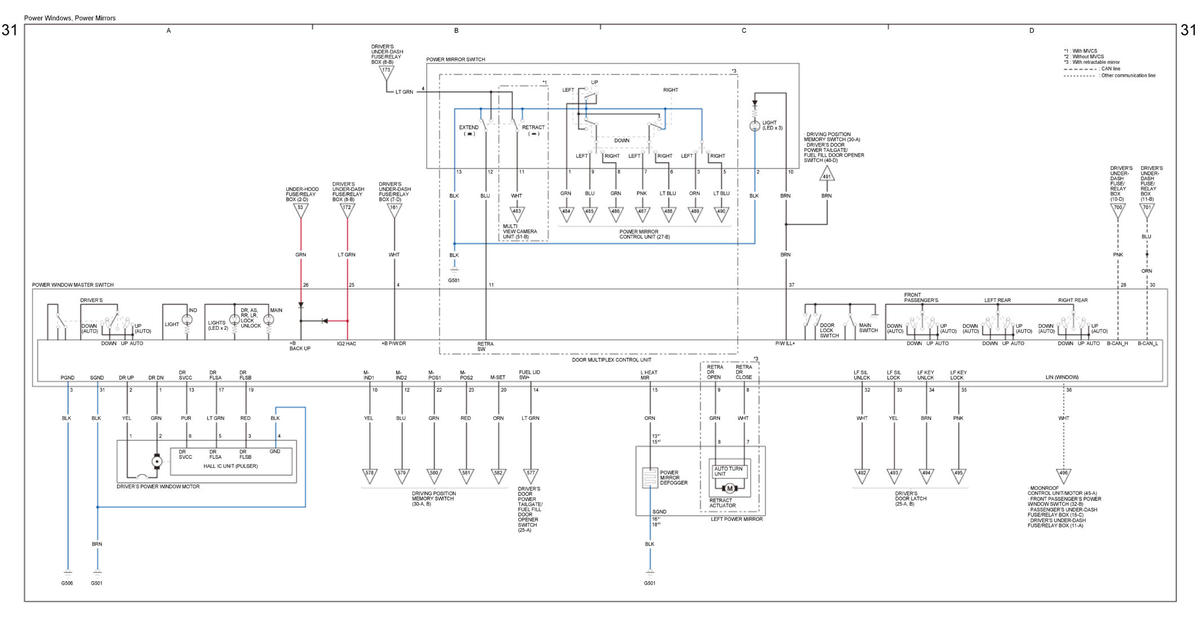

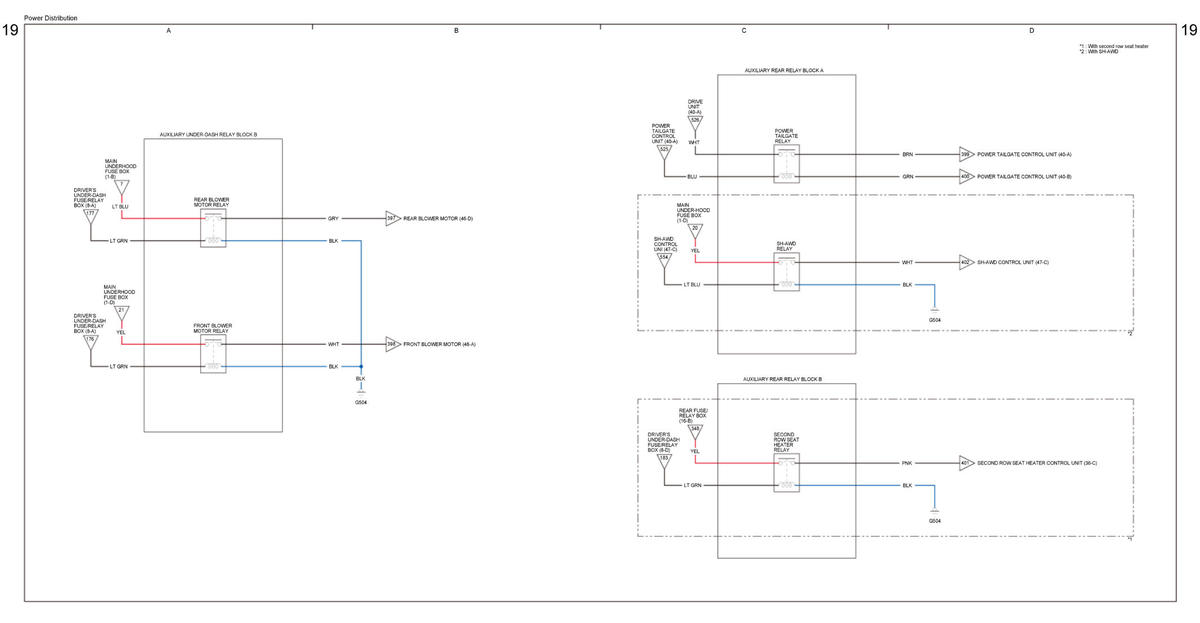

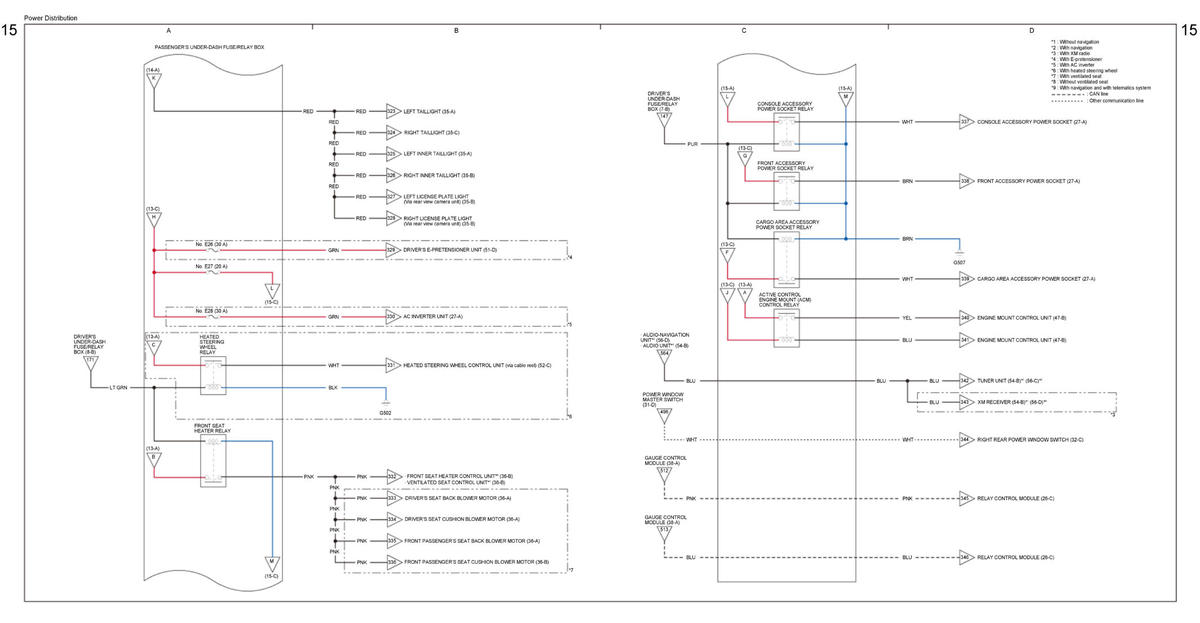

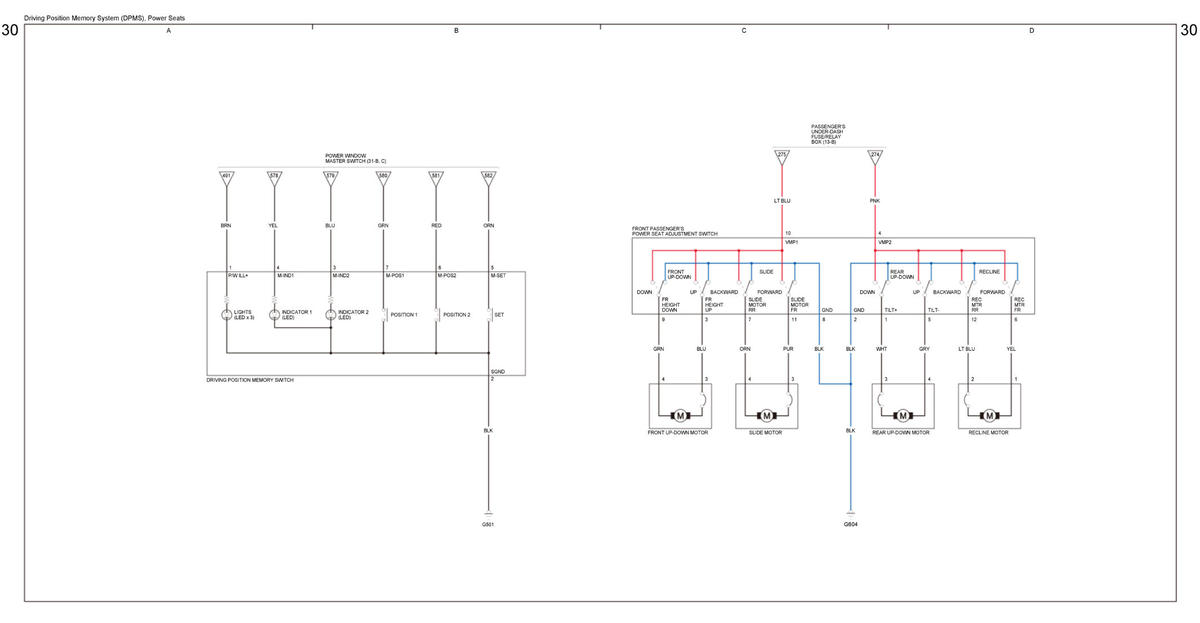

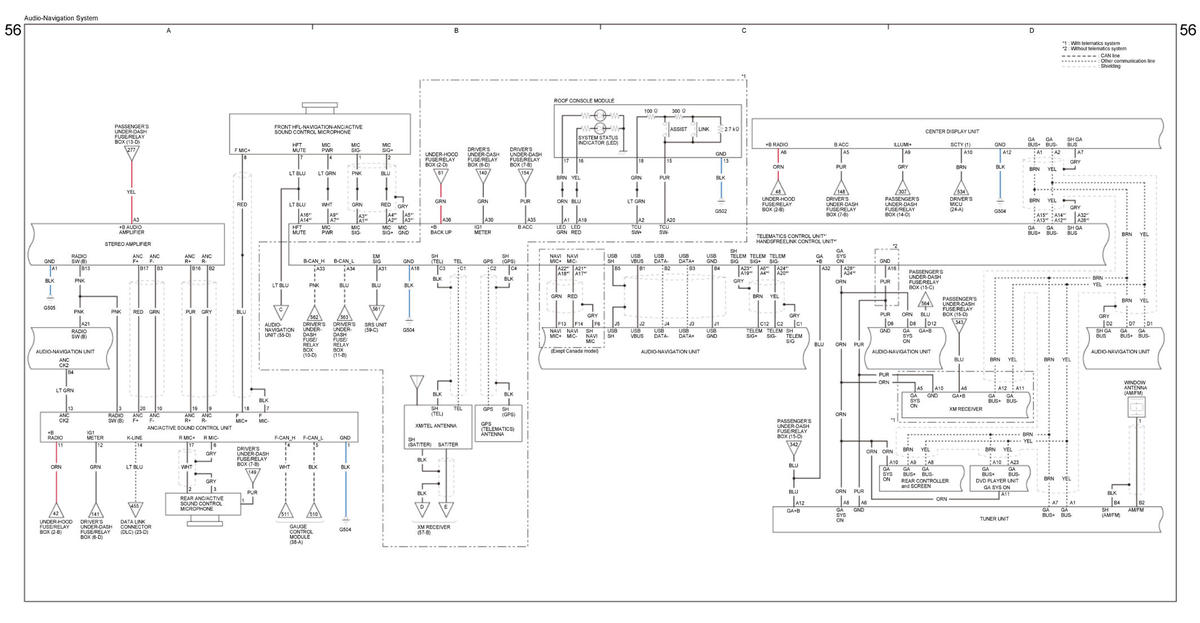

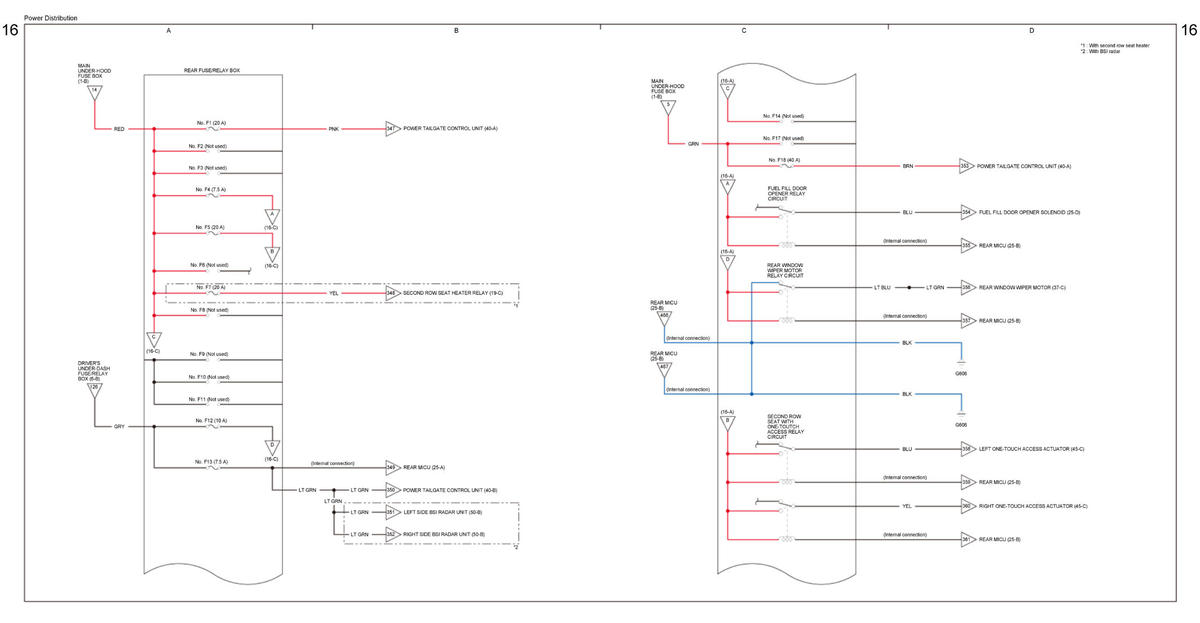

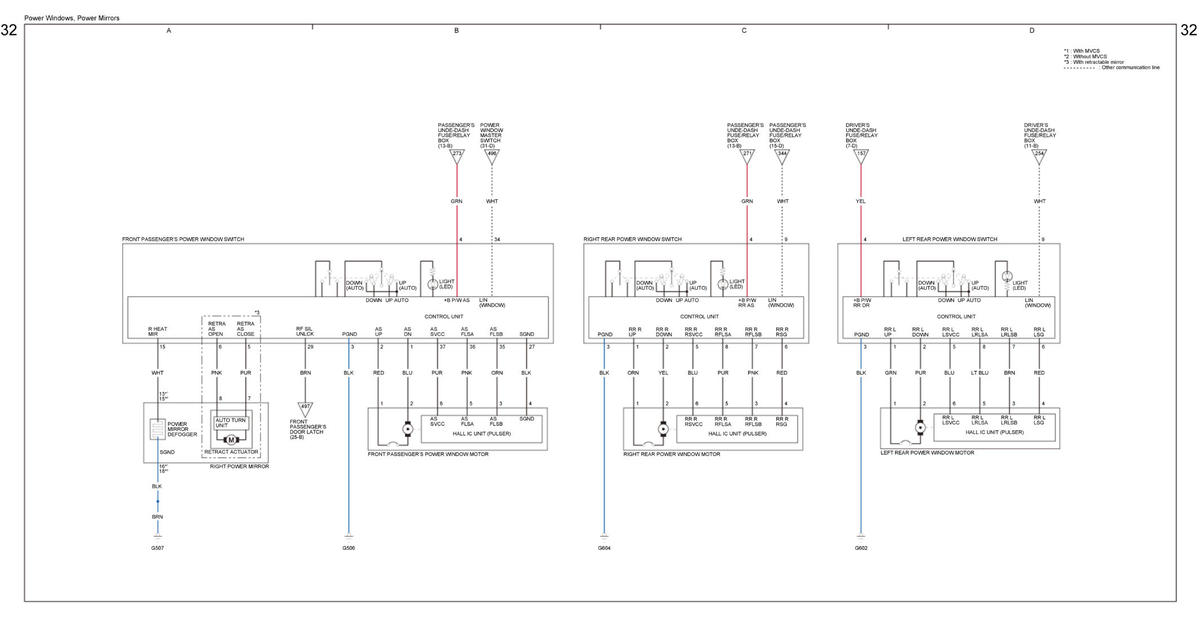

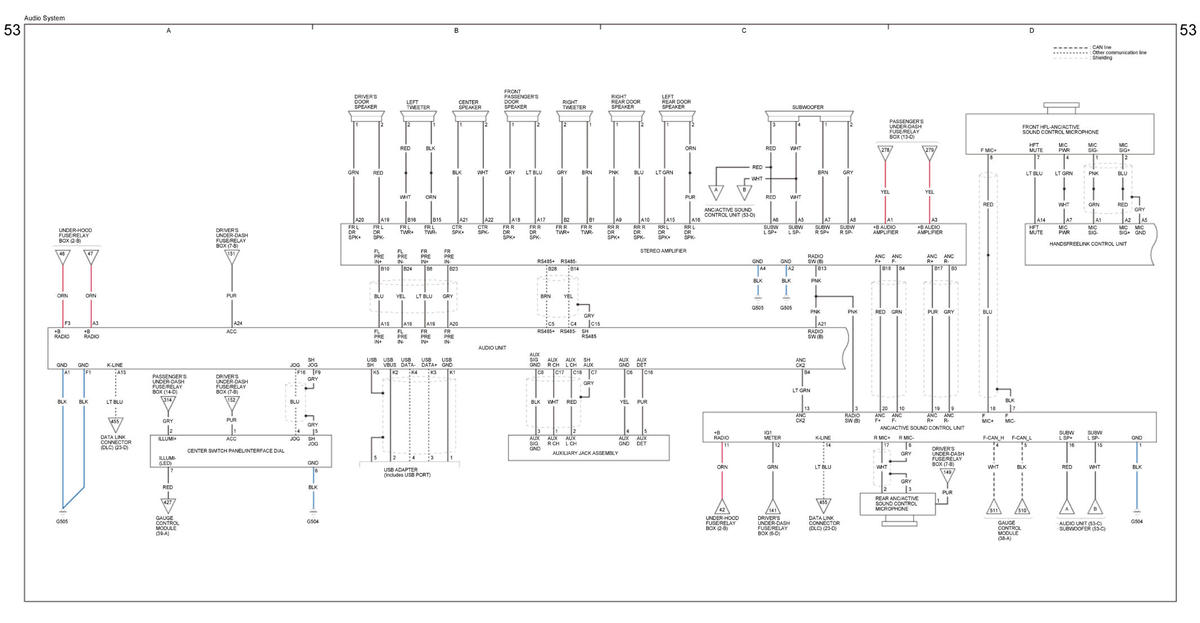

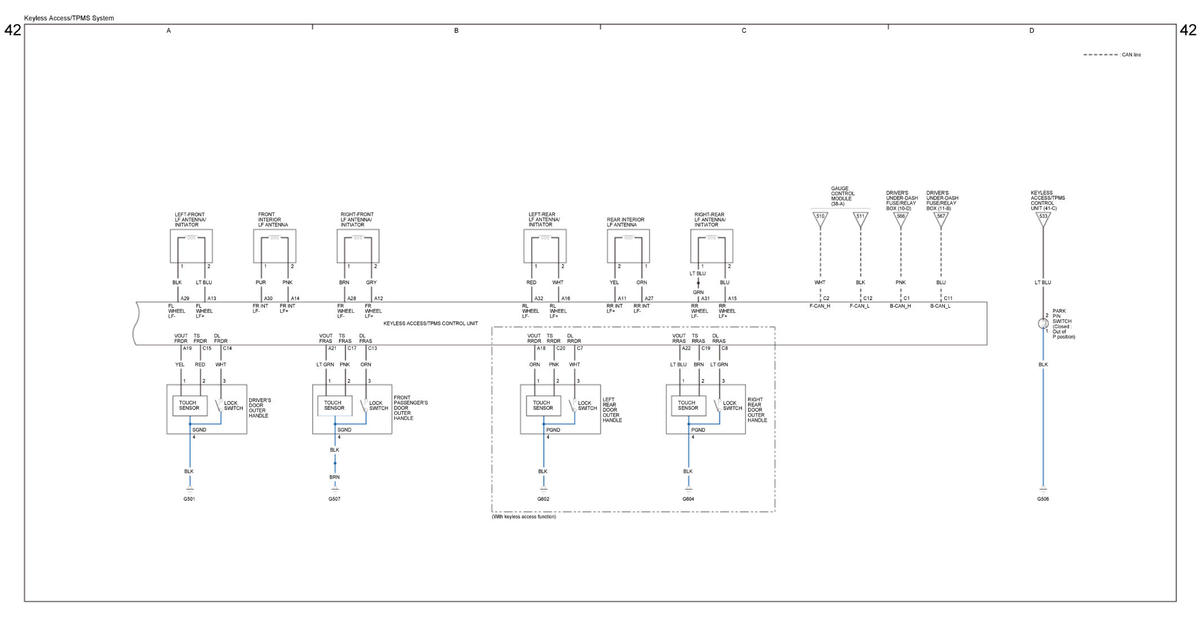

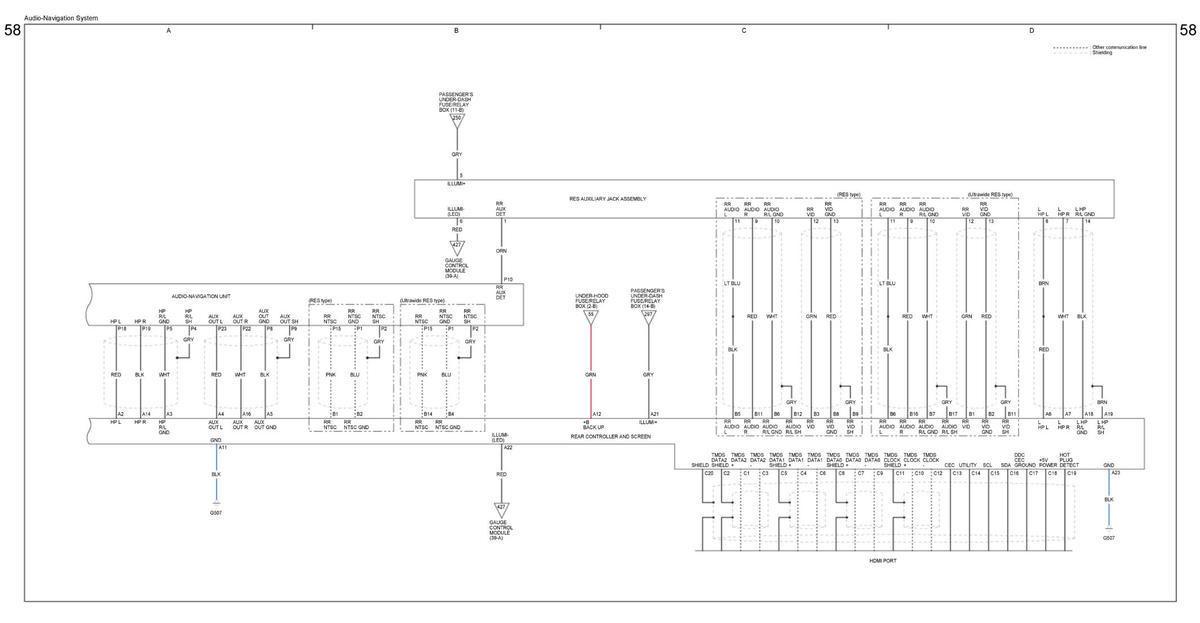

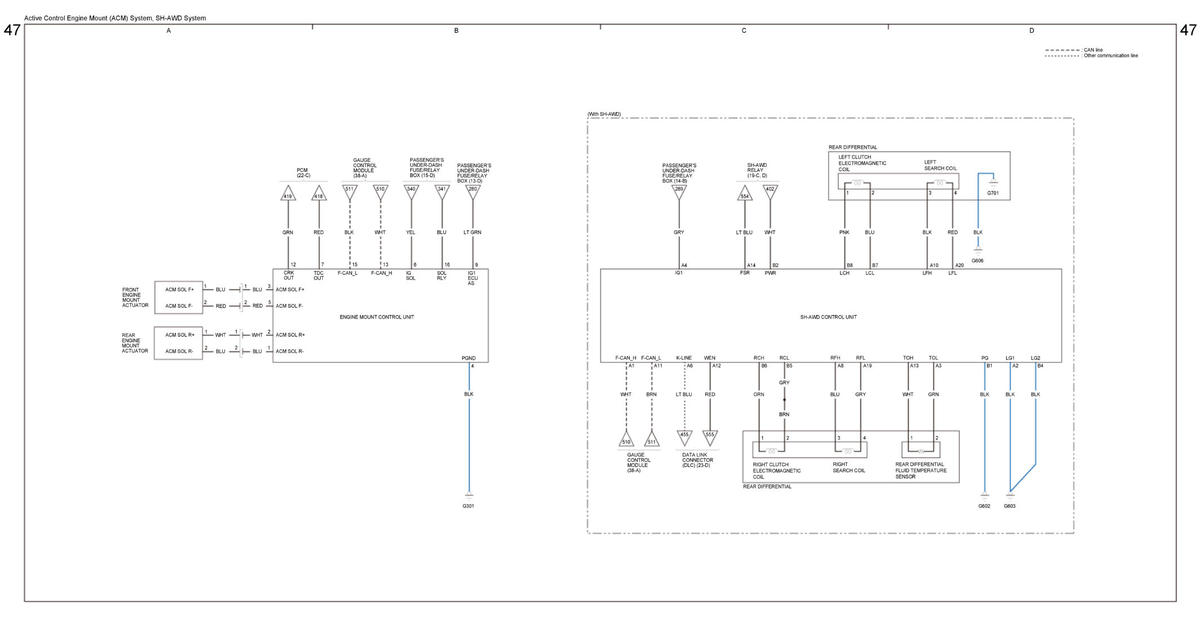

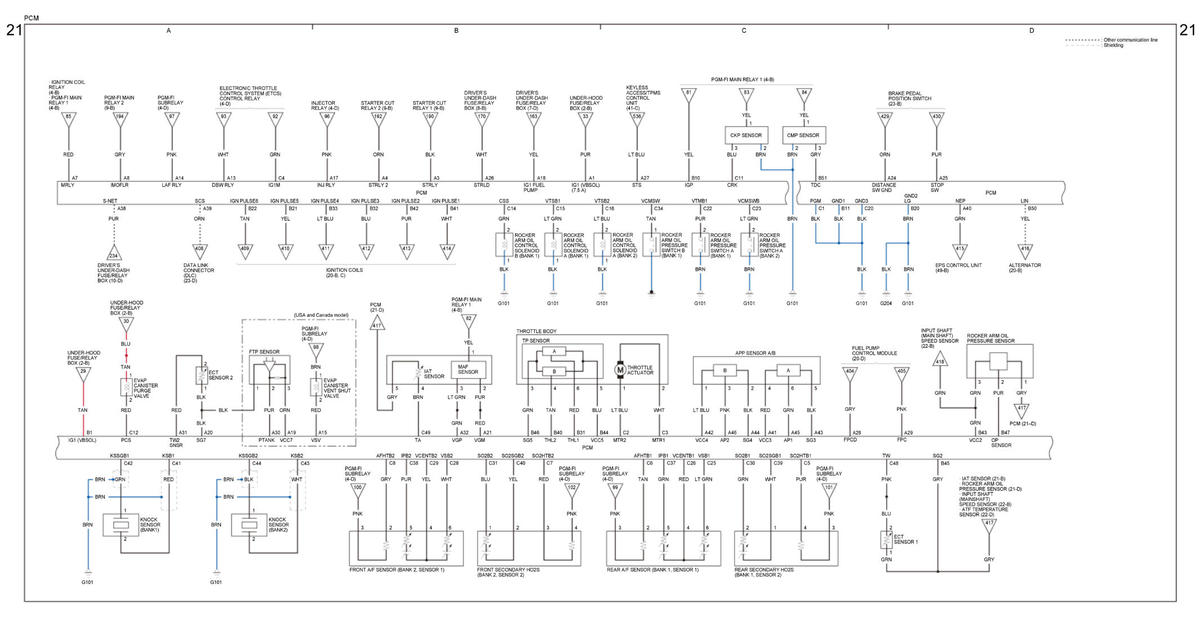

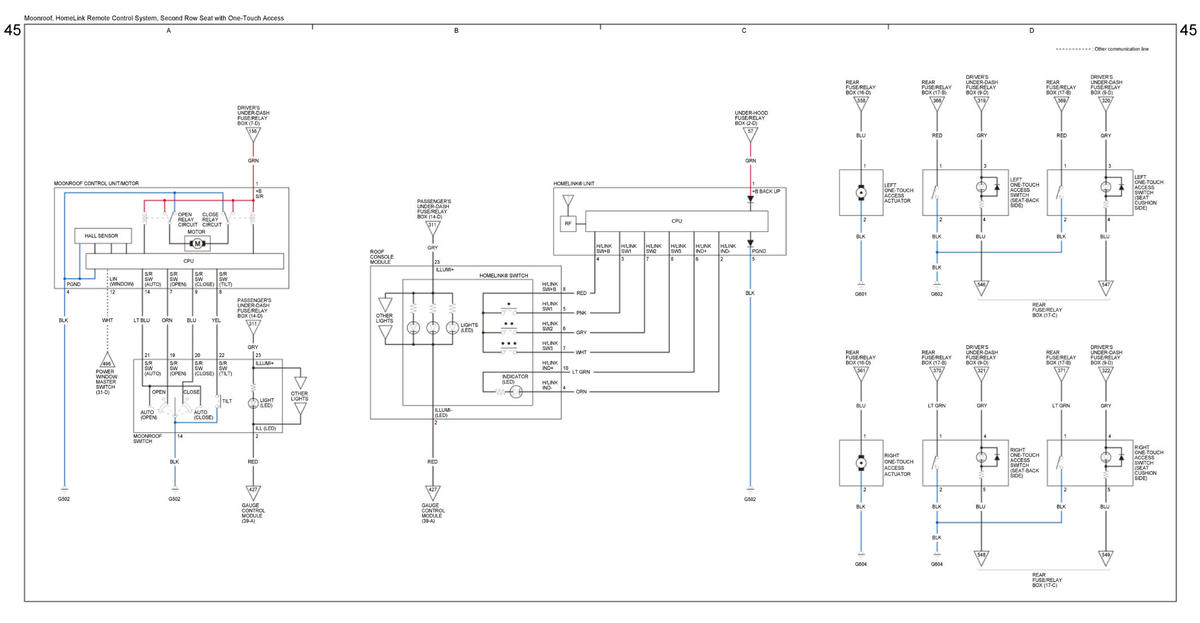

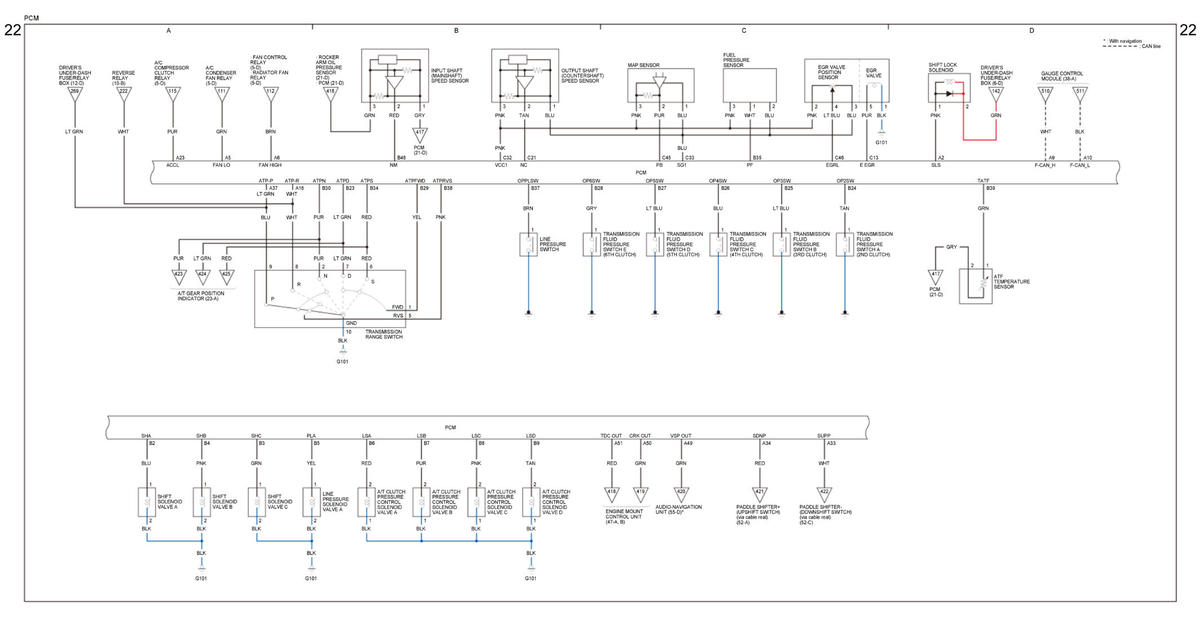

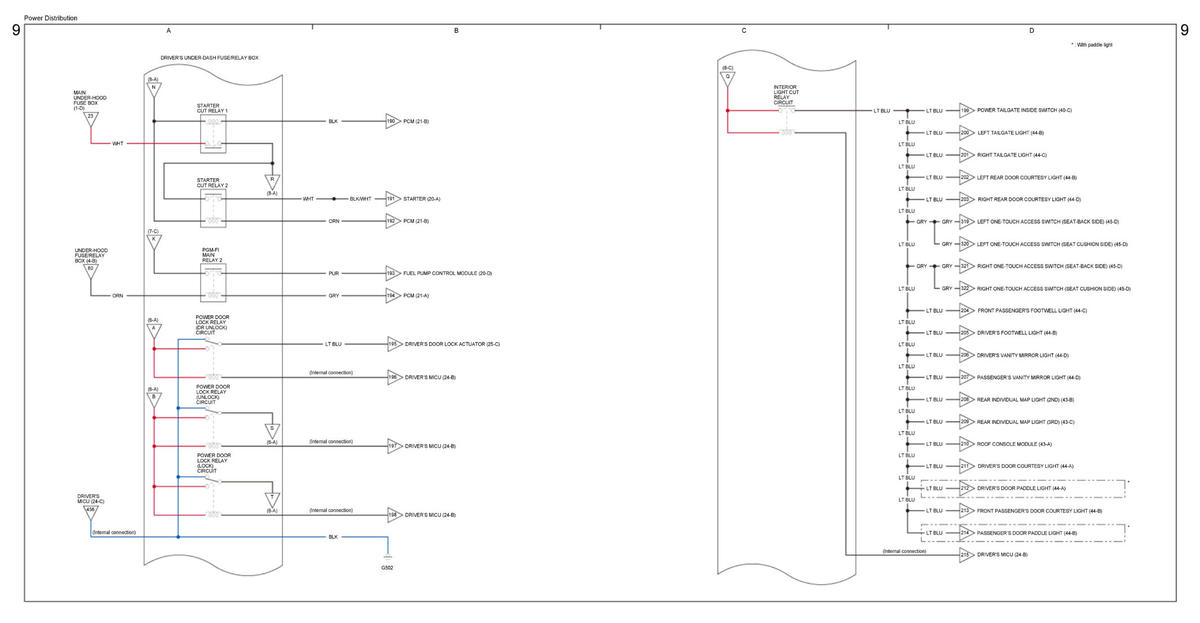

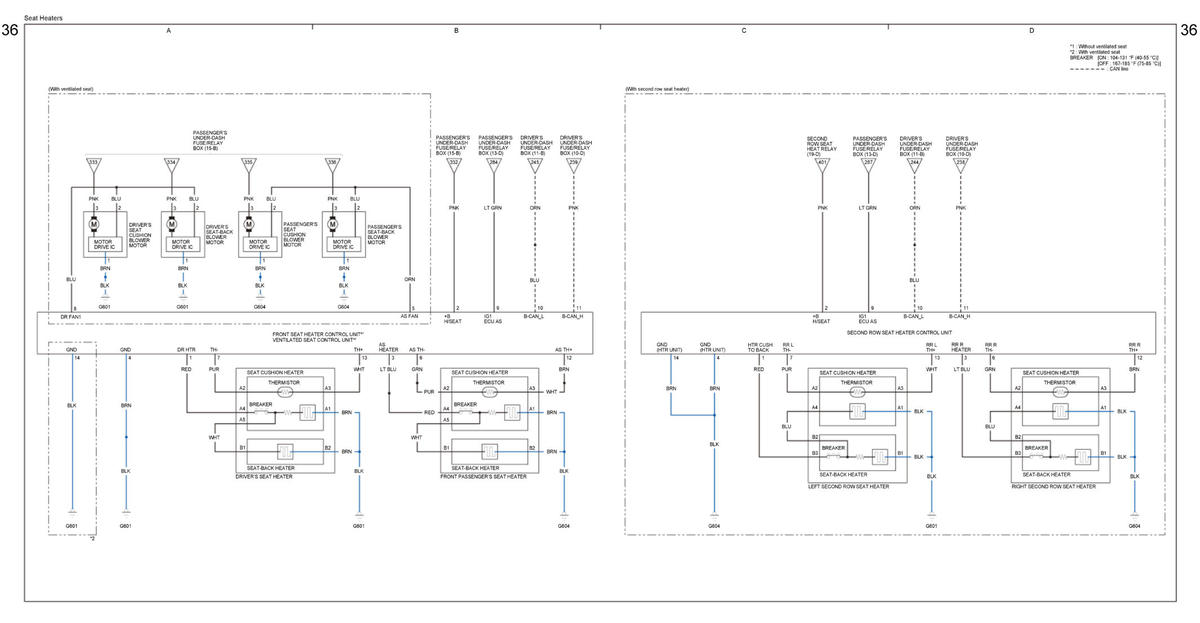

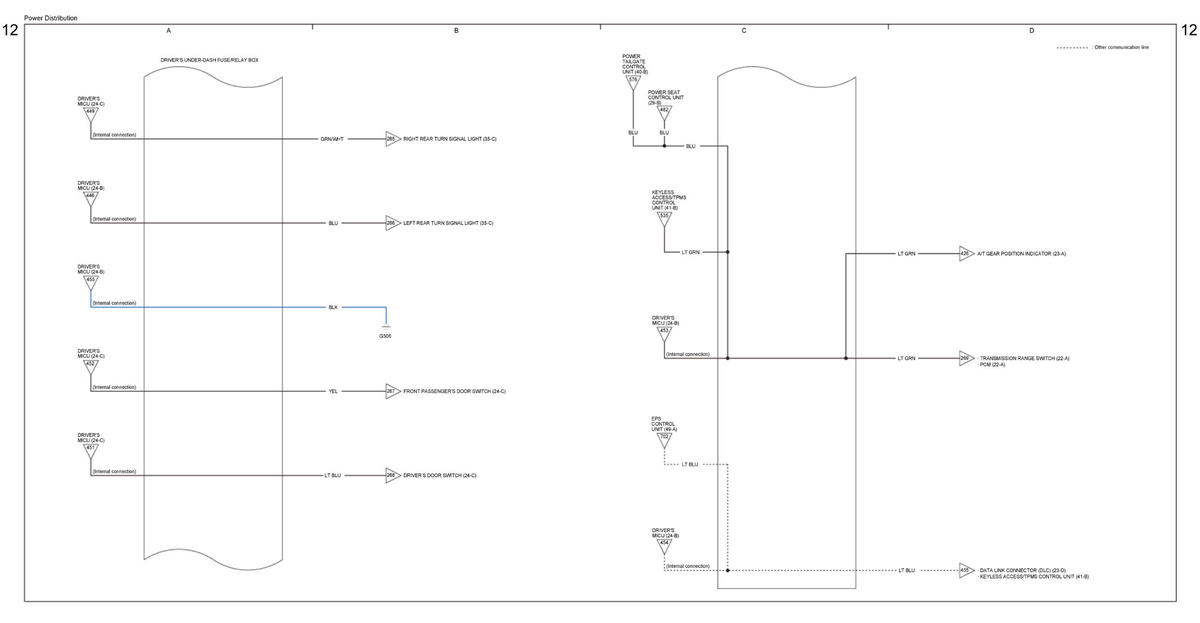

Wiring Diagram
