Wire Harness and Ground Locations (2019 2020)

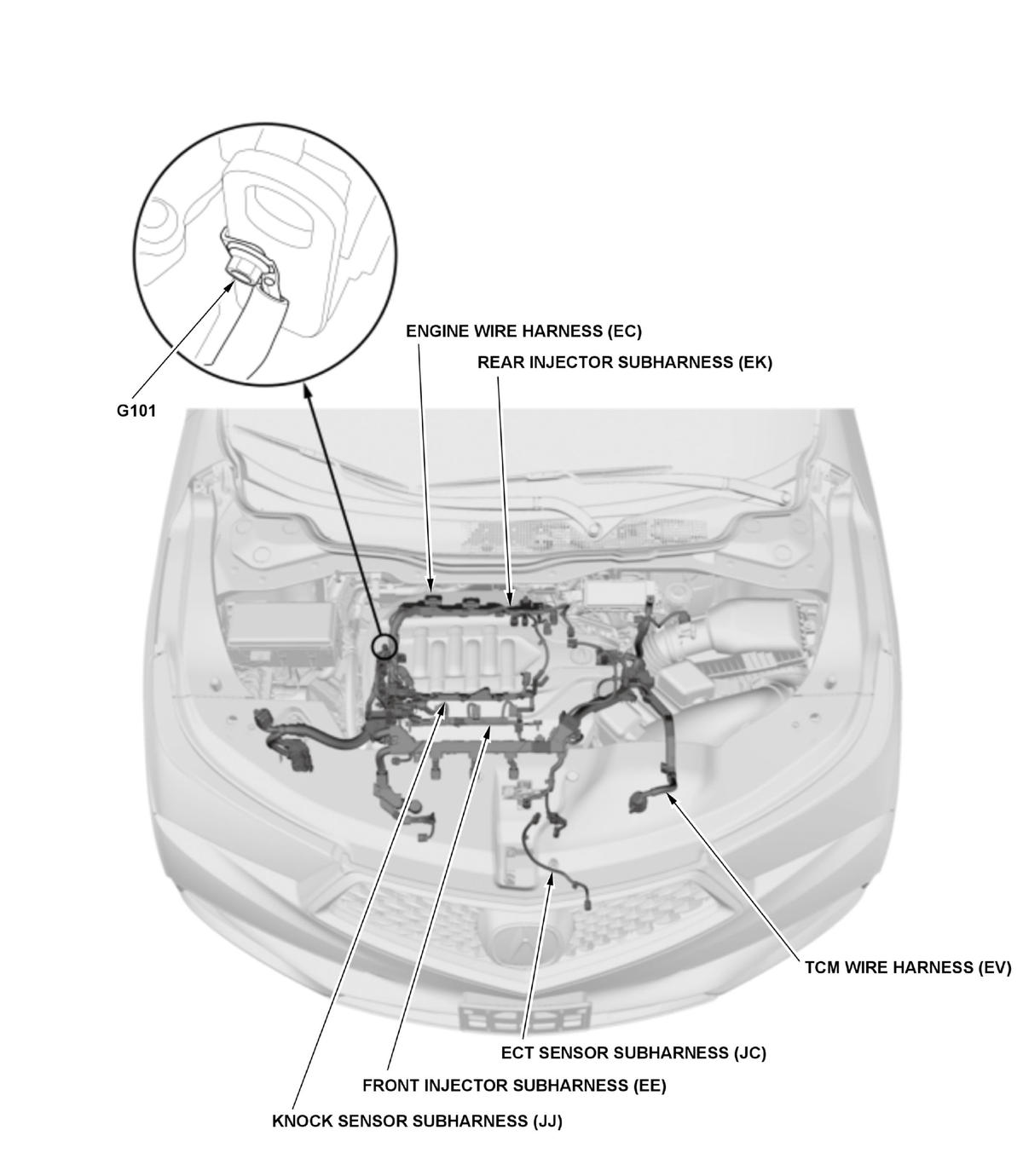

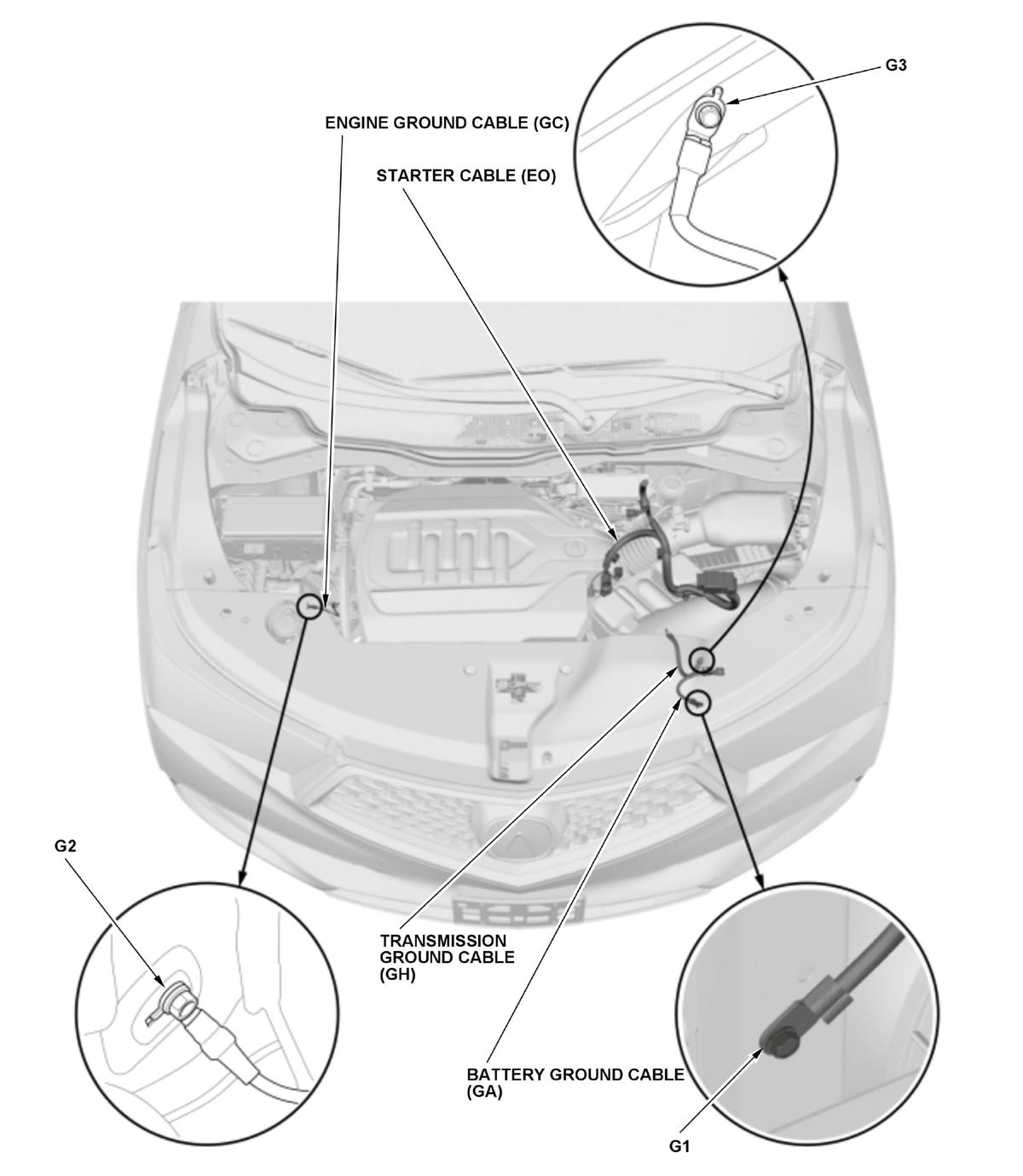

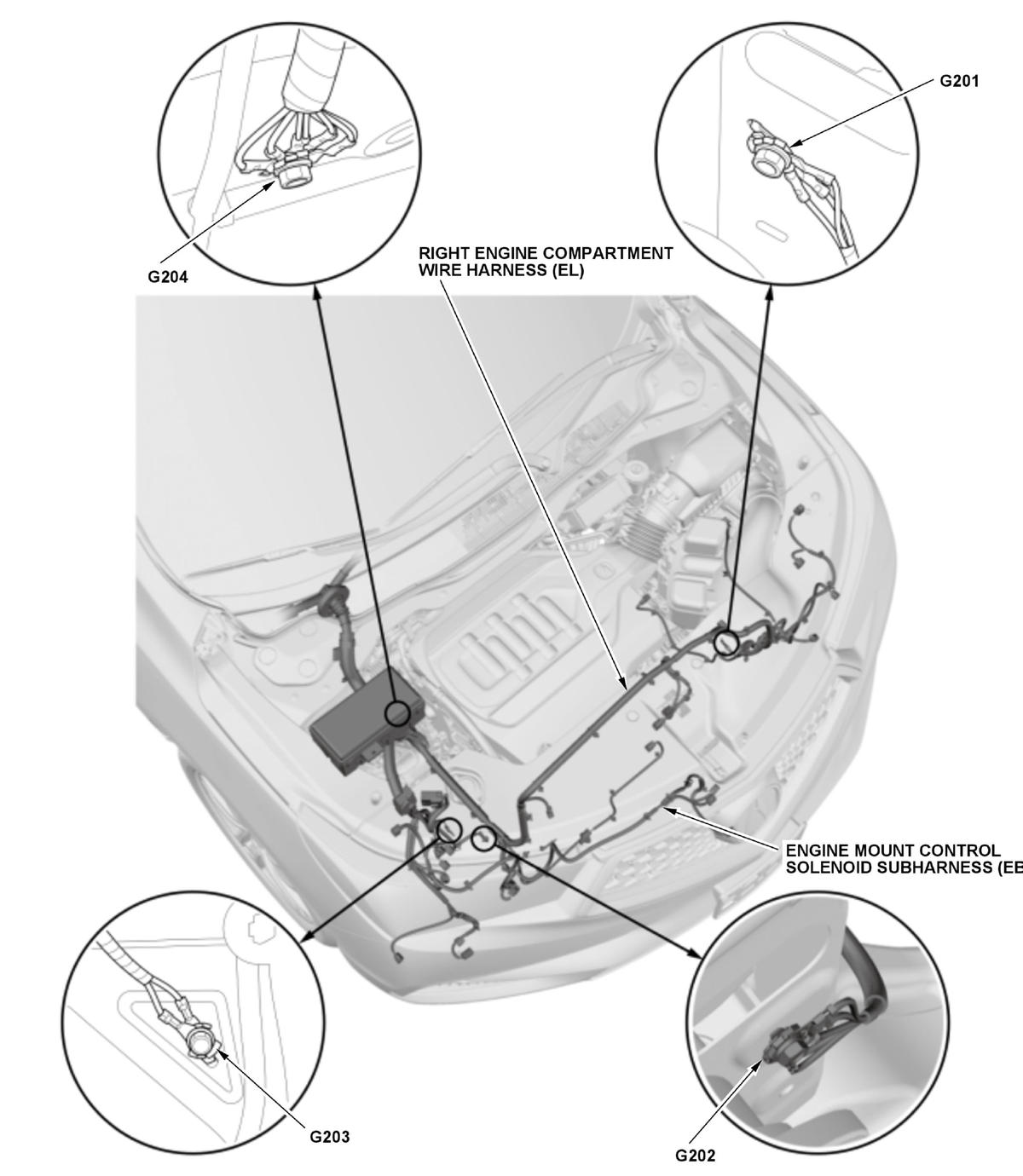

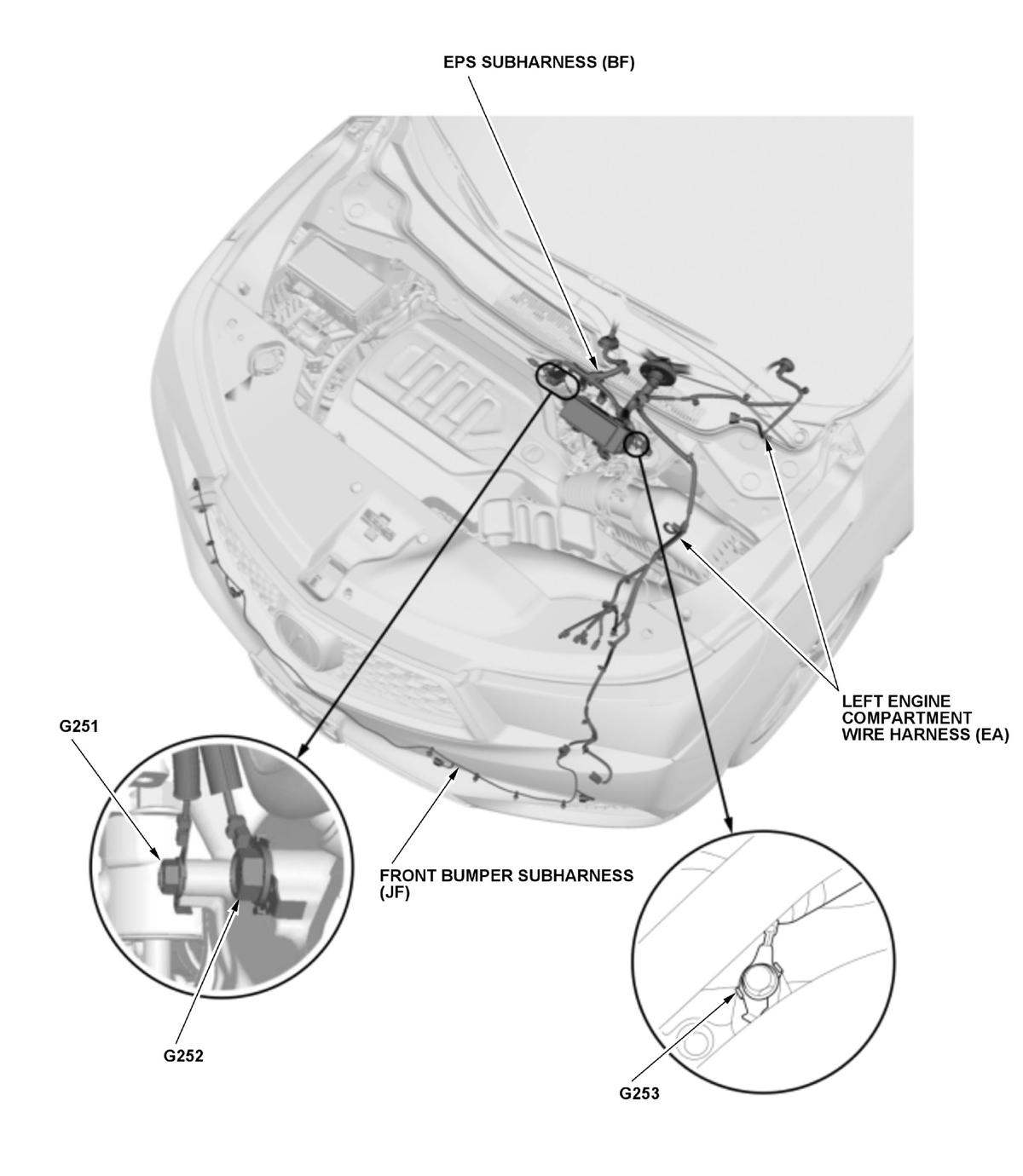

Engine Compartment (1/5)

Courtesy of HONDA, U.S.A., INC.

Engine Compartment (2/5)

Courtesy of HONDA, U.S.A., INC.

Engine Compartment (3/5)

Courtesy of HONDA, U.S.A., INC.

Engine Compartment (4/5)

Courtesy of HONDA, U.S.A., INC.

Engine Compartment (5/5)

Courtesy of HONDA, U.S.A., INC.

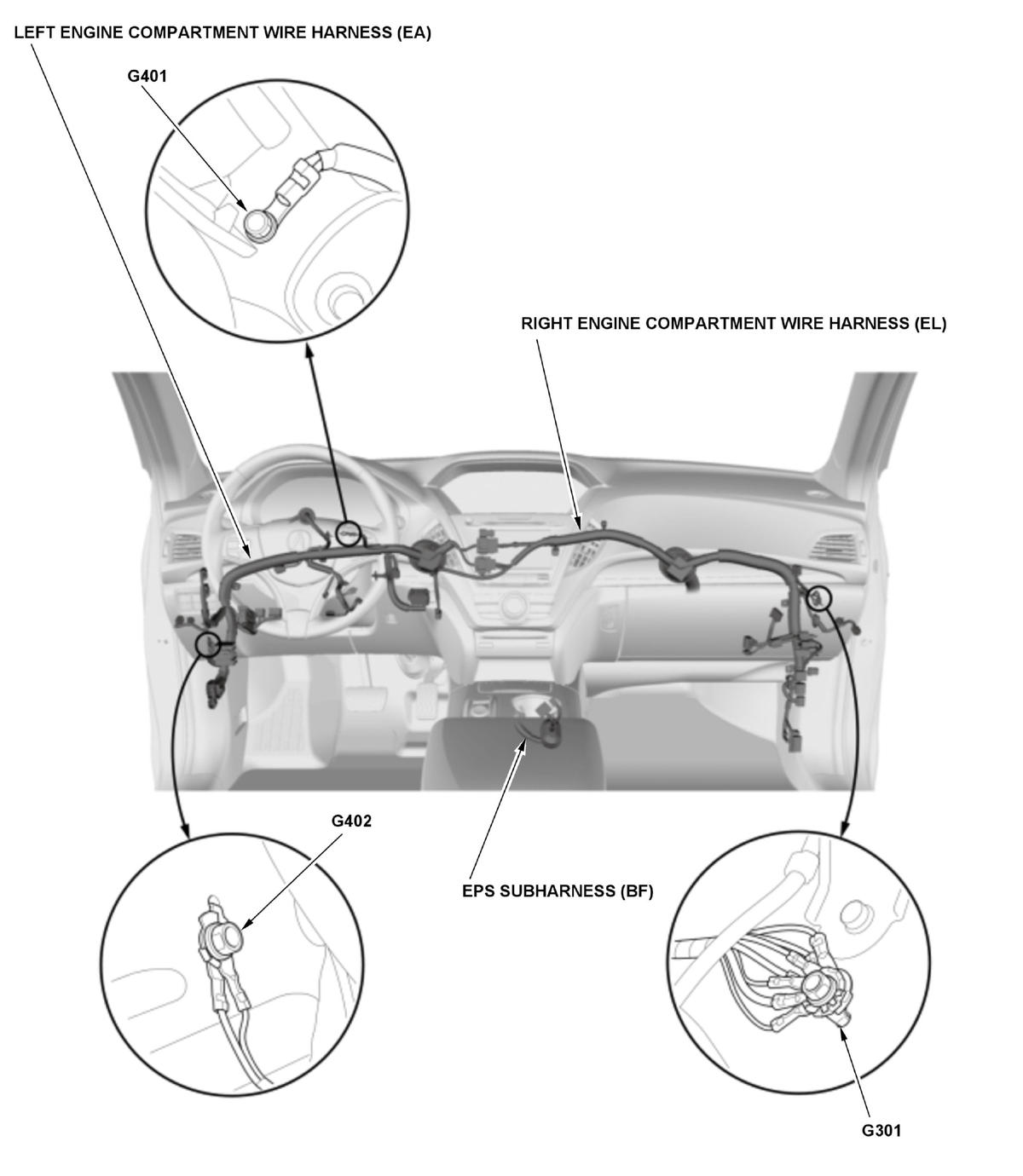

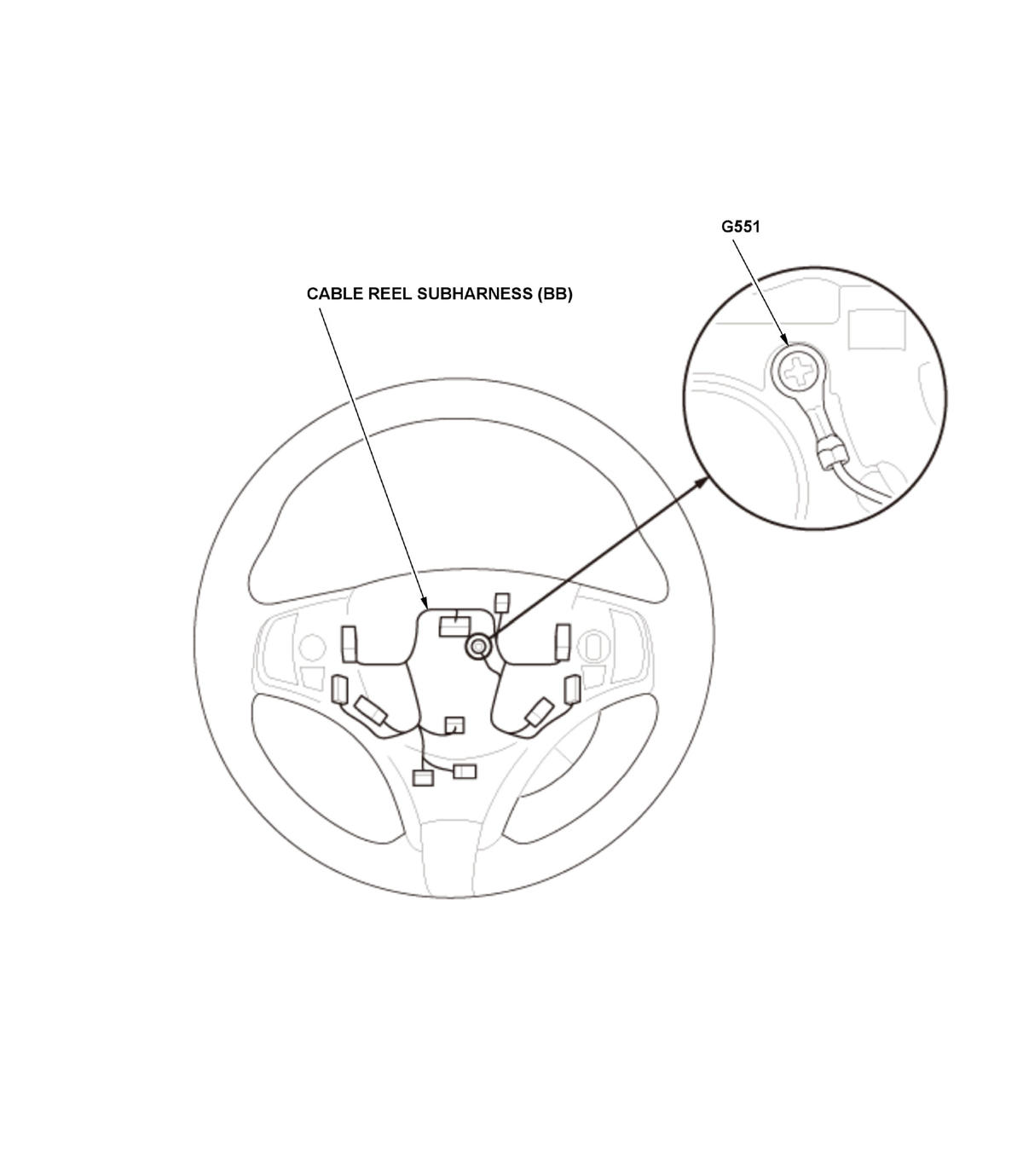

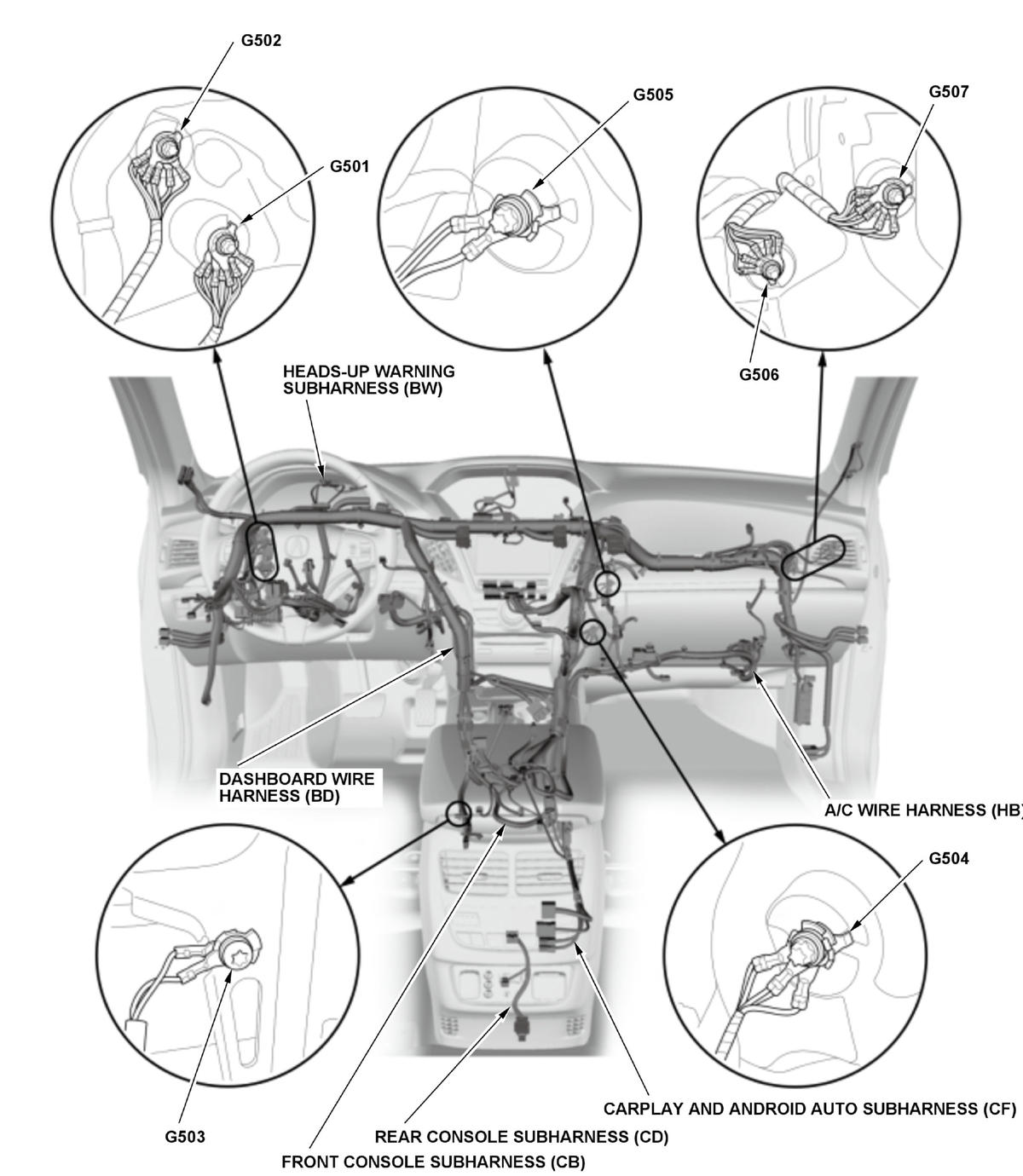

Dashboard (1/2)

Courtesy of HONDA, U.S.A., INC.

Dashboard (2/2)

Courtesy of HONDA, U.S.A., INC.

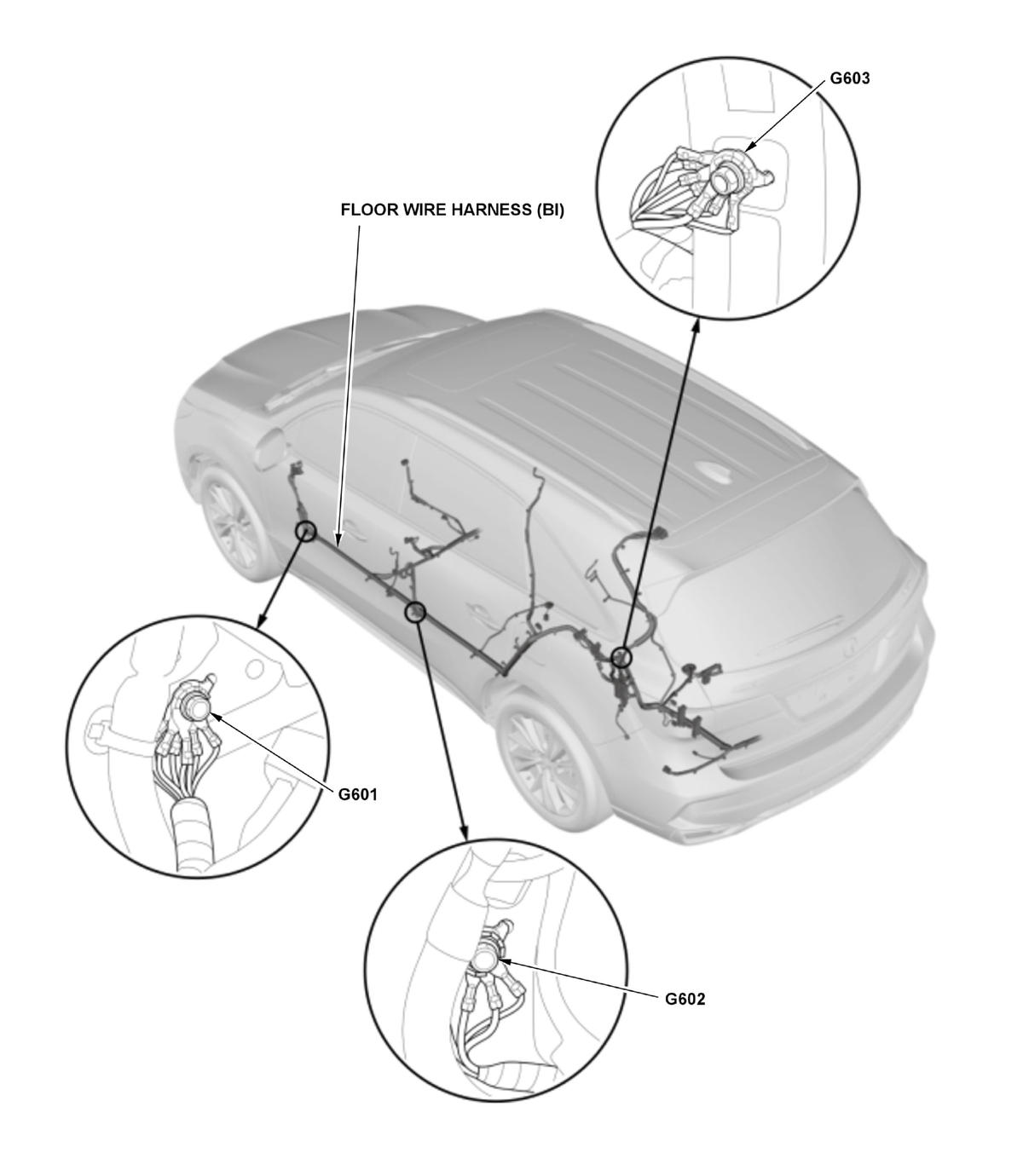

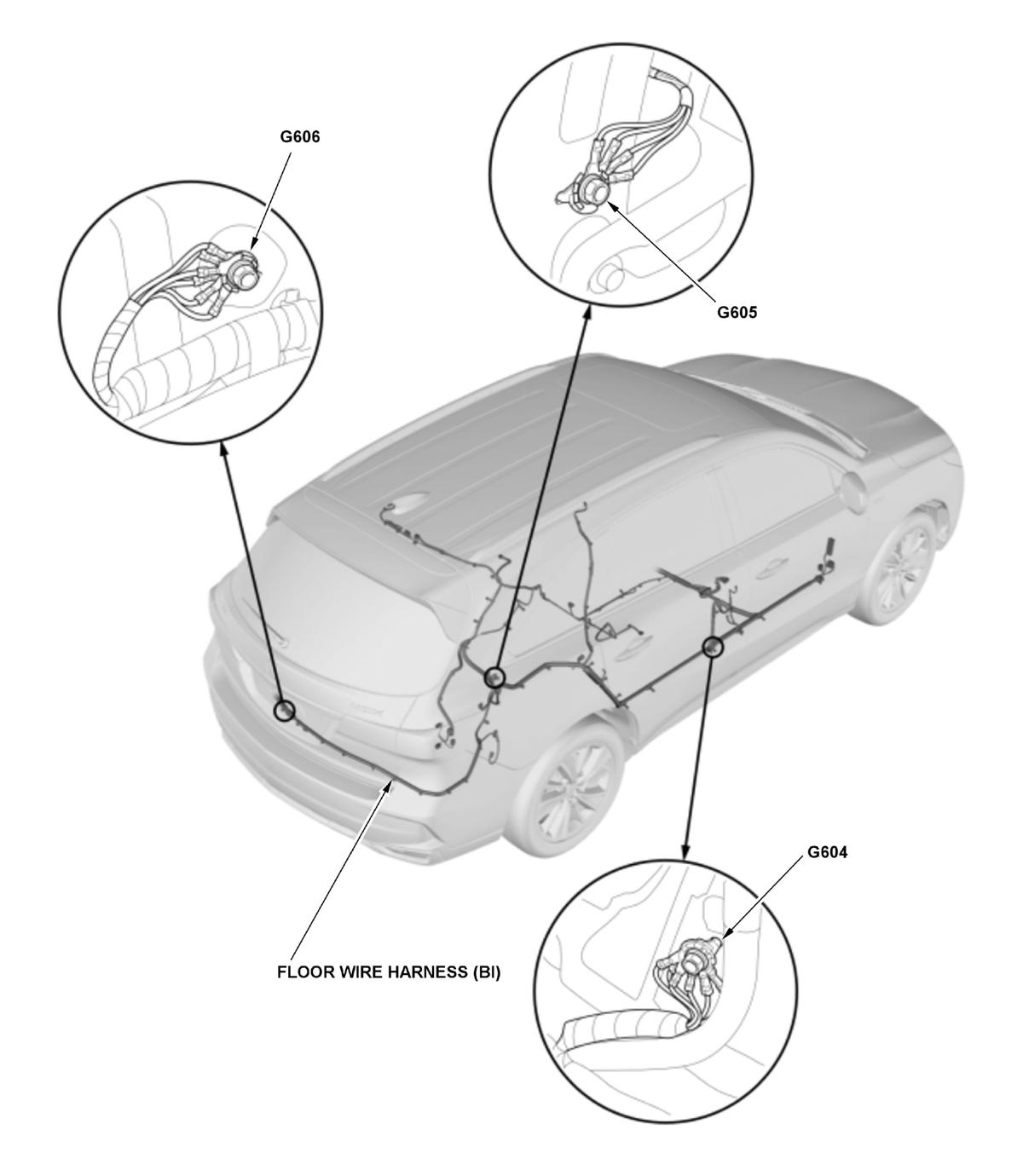

Floor (1/2)

Courtesy of HONDA, U.S.A., INC.

Floor (2/2)

Courtesy of HONDA, U.S.A., INC.

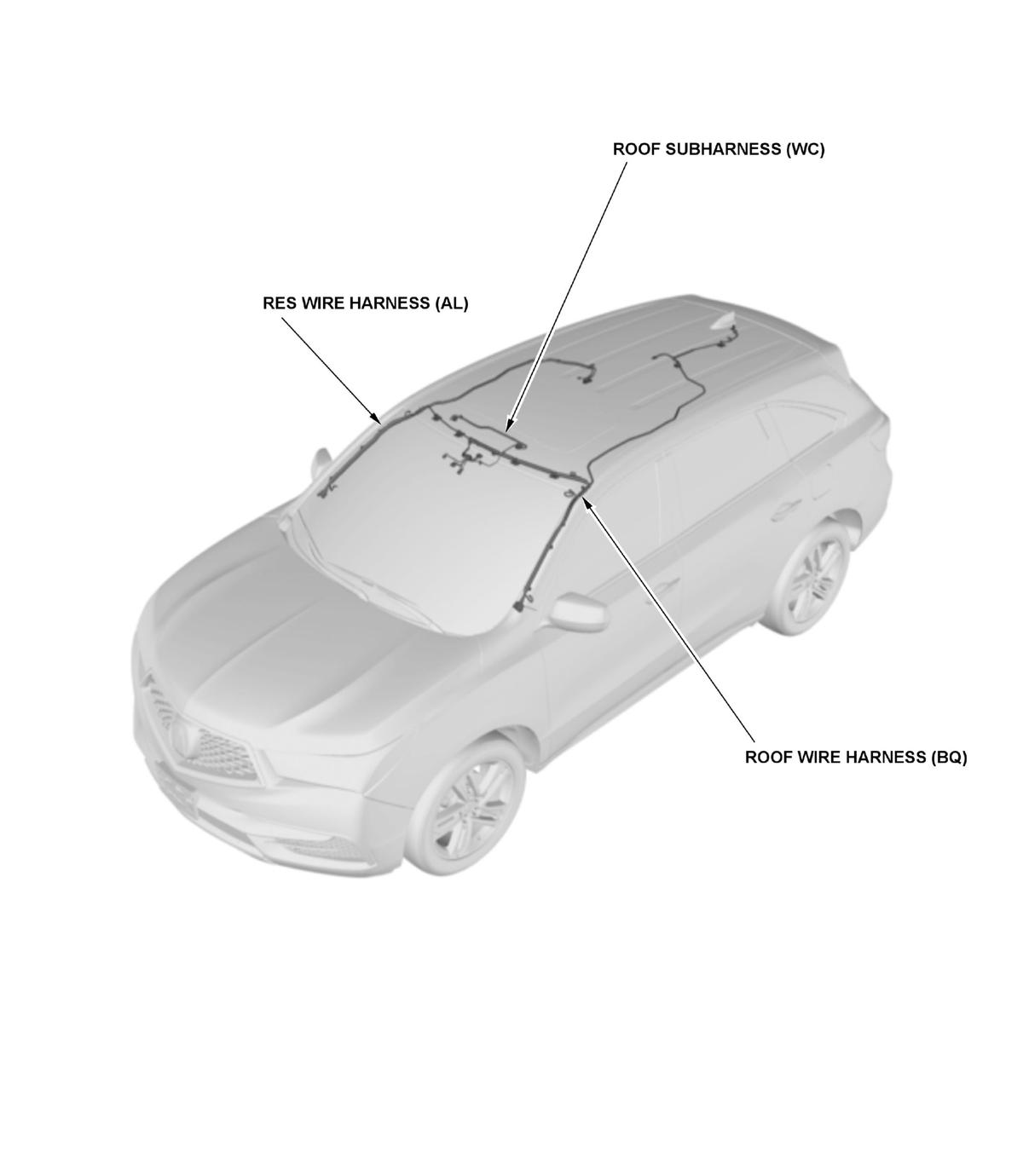

Roof

Courtesy of HONDA, U.S.A., INC.

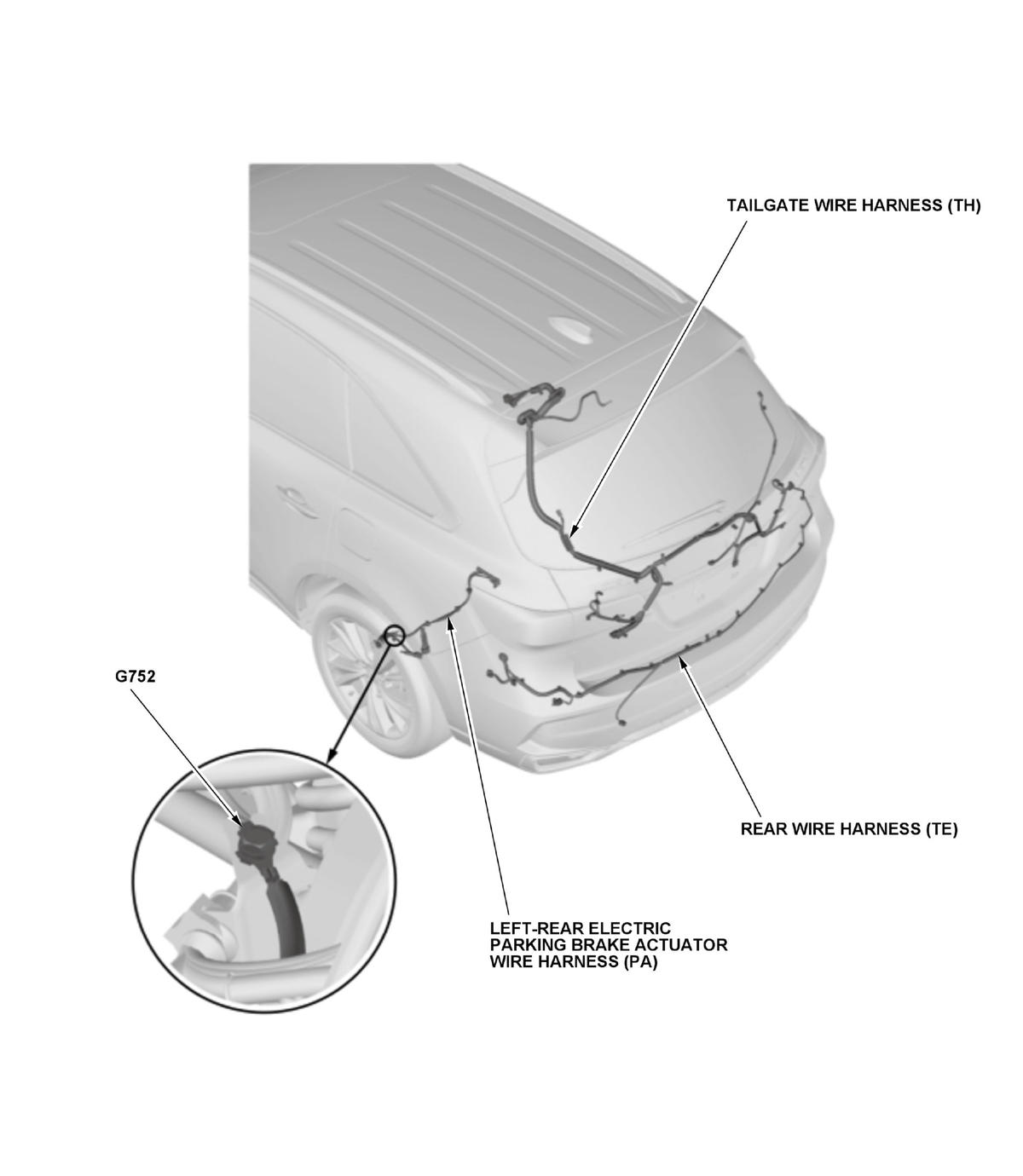

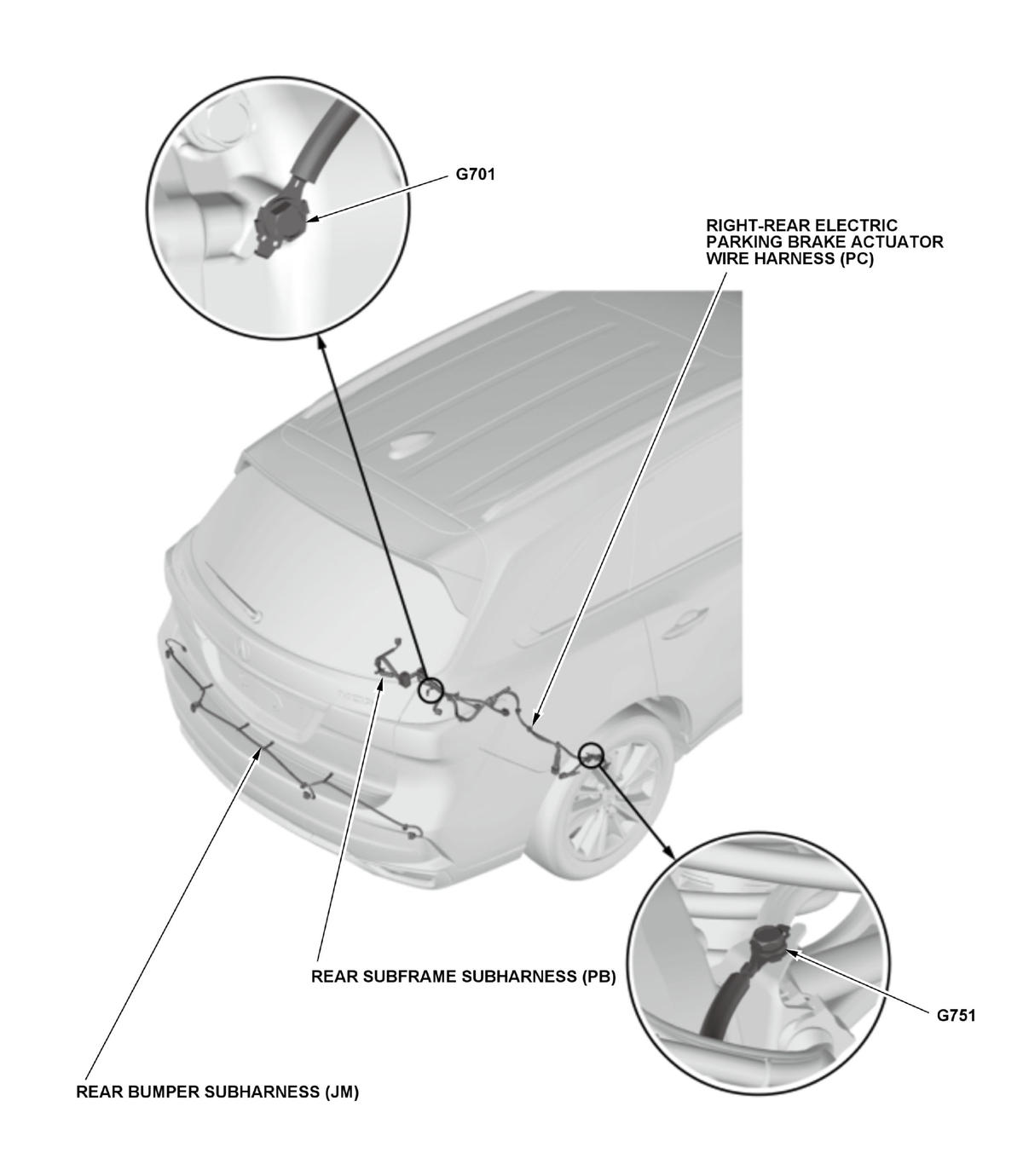

Rear (1/2)

Courtesy of HONDA, U.S.A., INC.

Rear (2/2)

Courtesy of HONDA, U.S.A., INC.

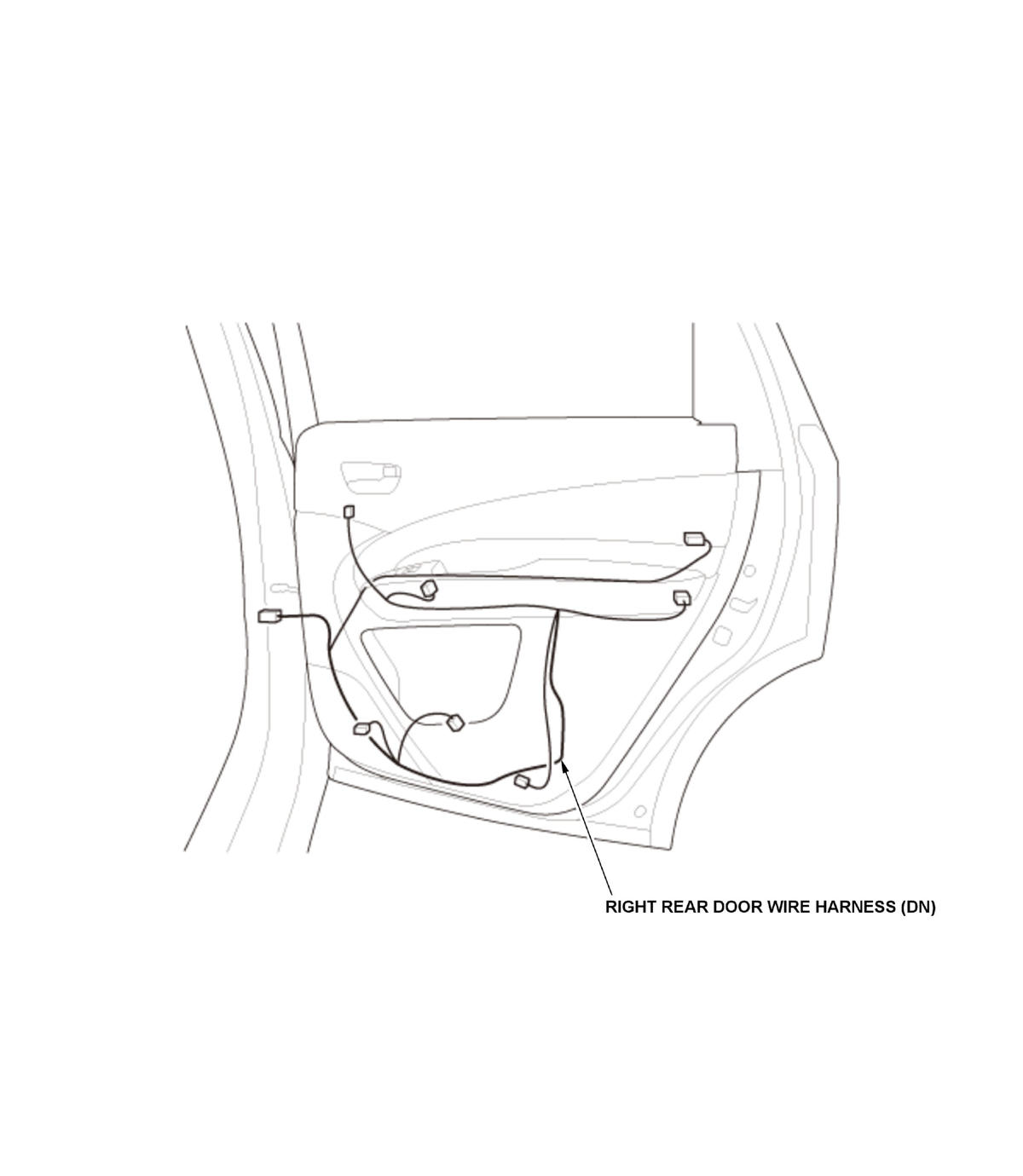

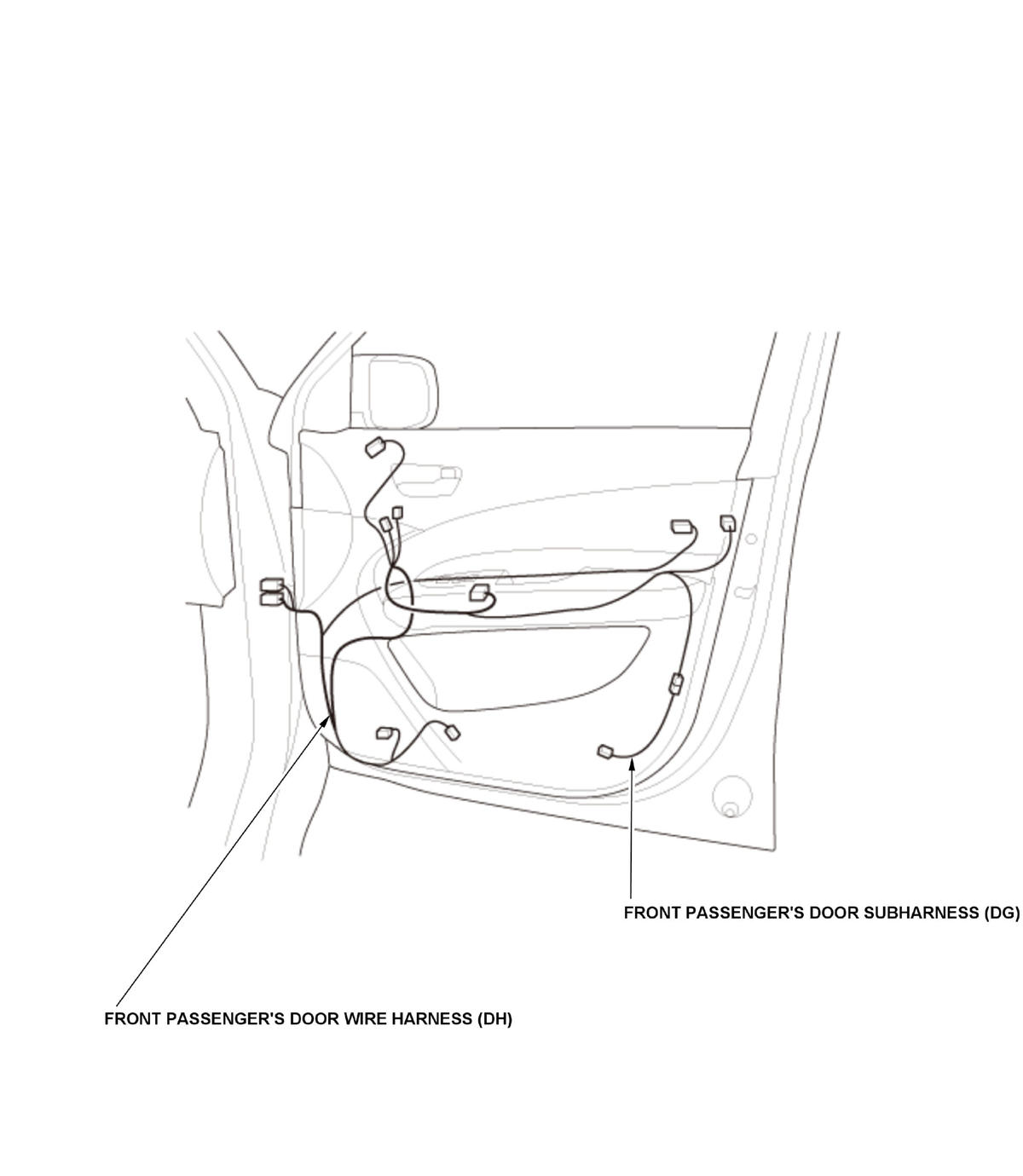

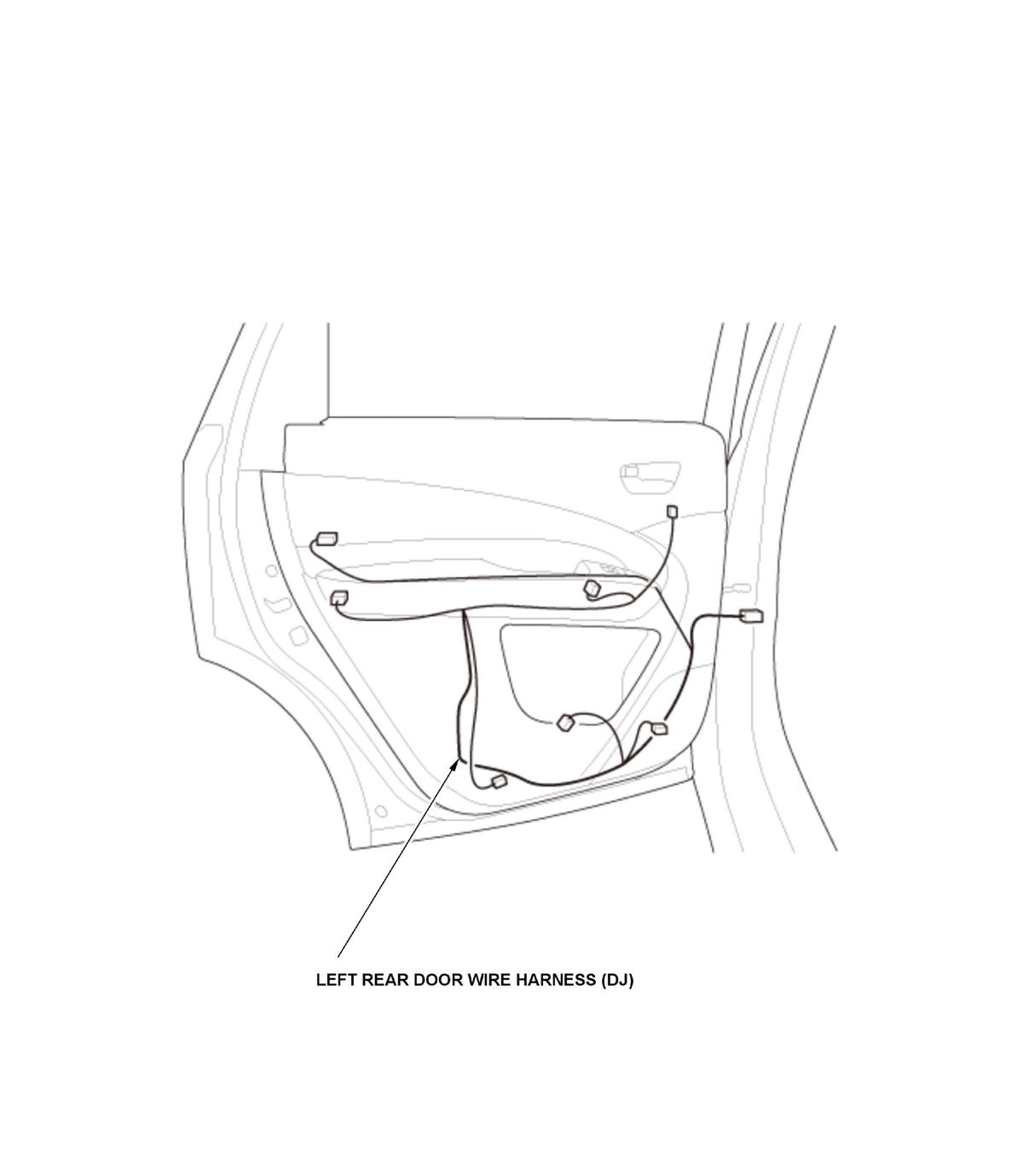

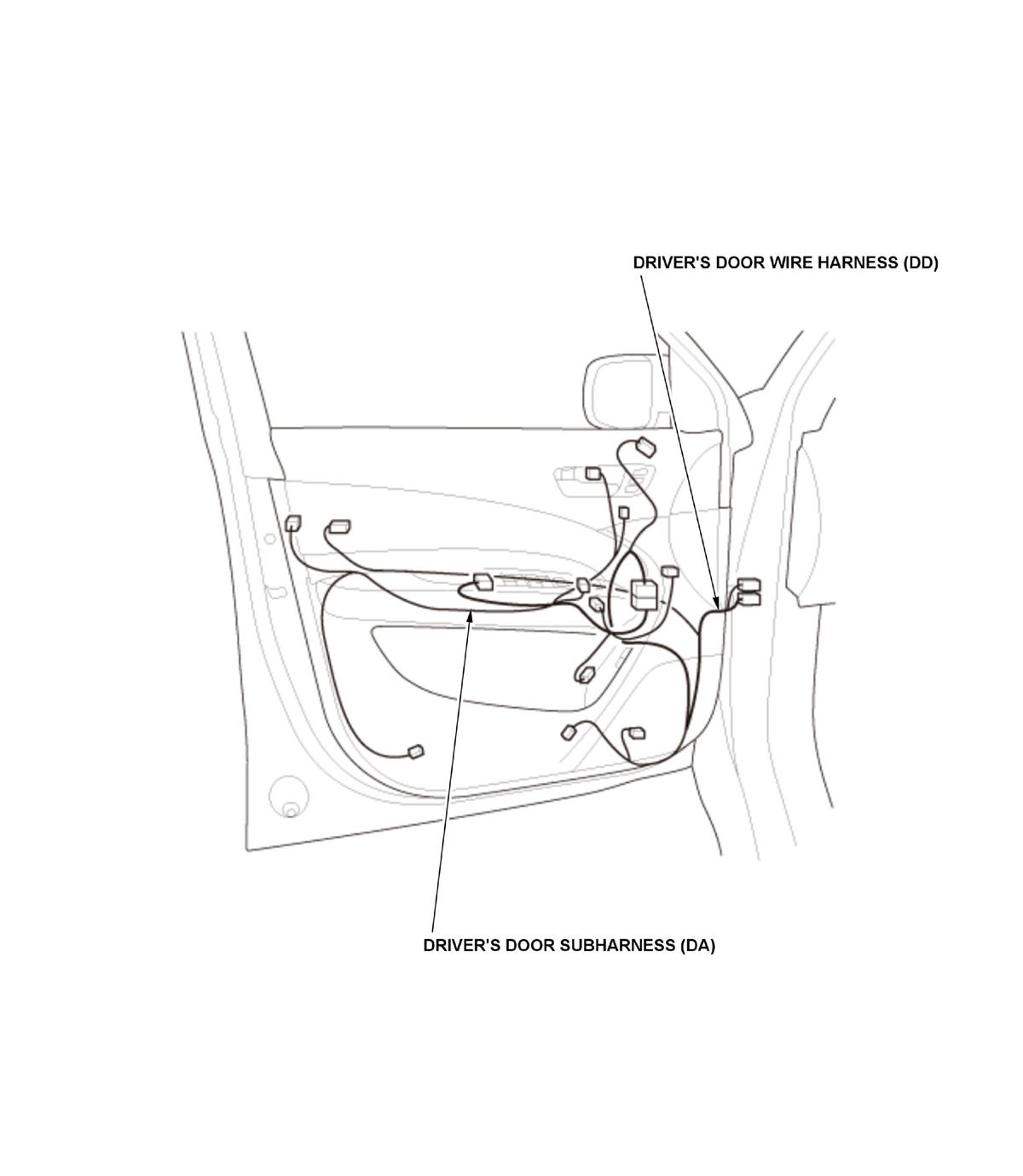

Door (1/4)

Courtesy of HONDA, U.S.A., INC.

Door (2/4)

Courtesy of HONDA, U.S.A., INC.

Door (3/4)

Courtesy of HONDA, U.S.A., INC.

Door (4/4)

Courtesy of HONDA, U.S.A., INC.

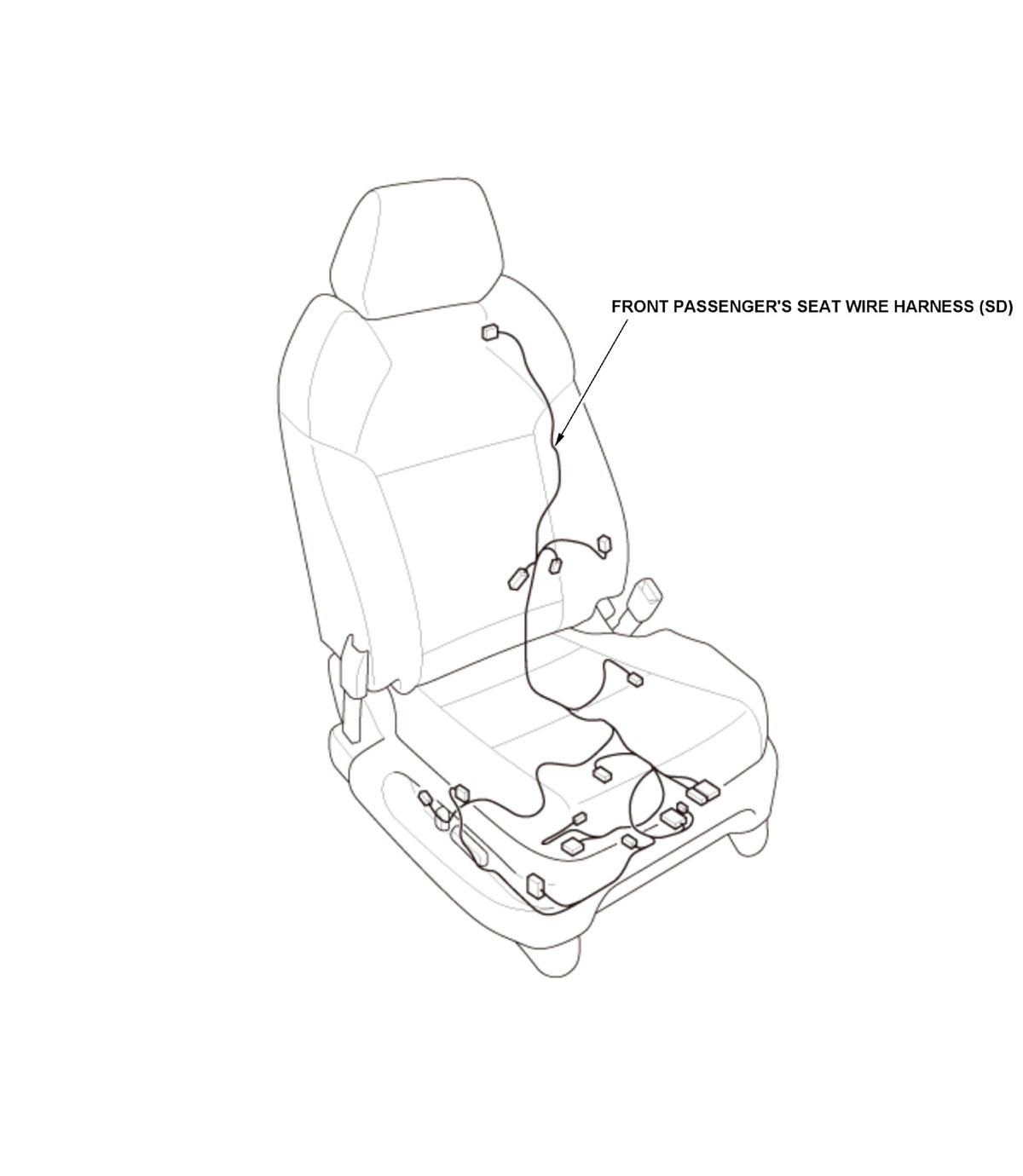

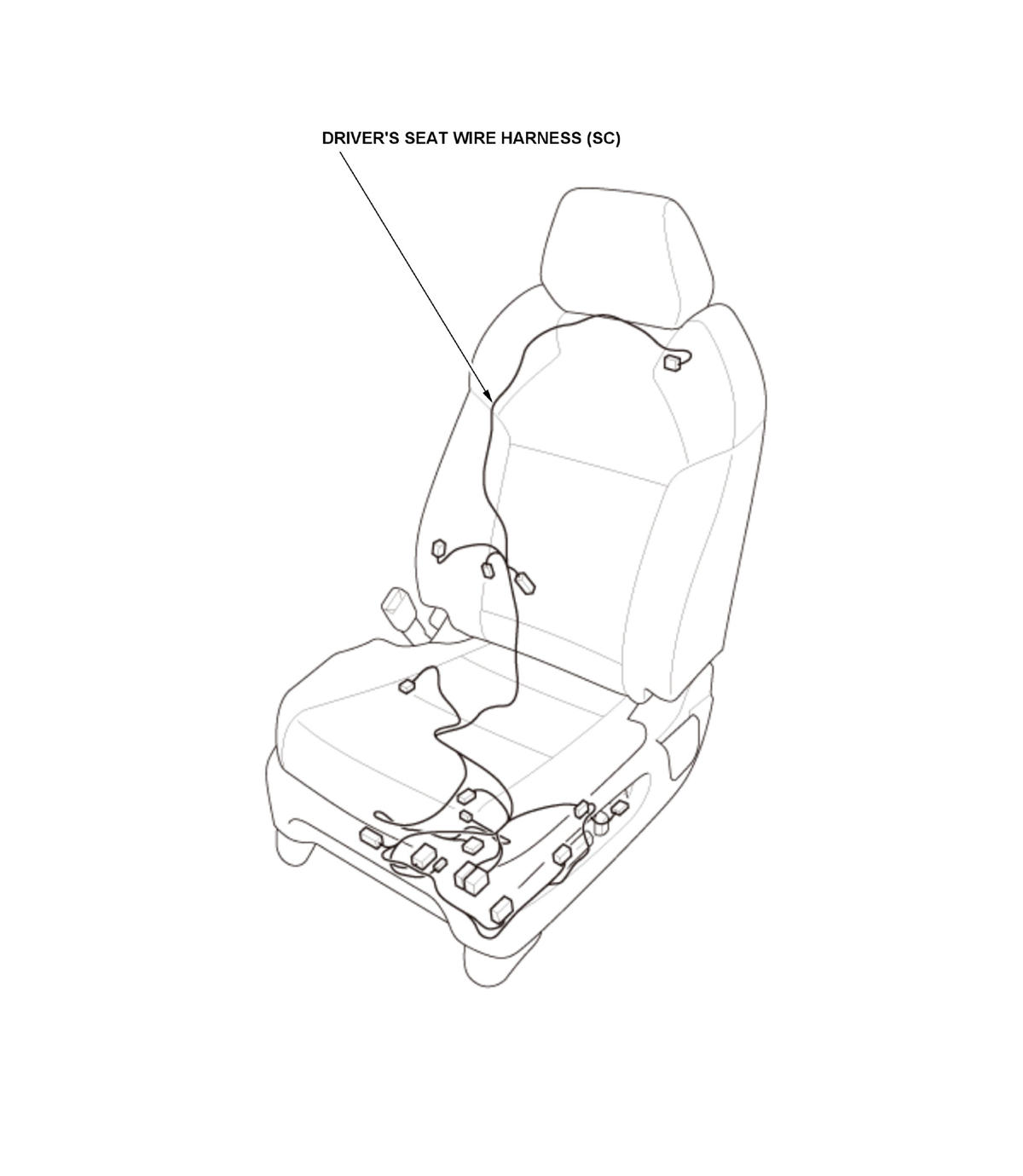

Seat (1/4)

Courtesy of HONDA, U.S.A., INC.

Seat (2/4)

Courtesy of HONDA, U.S.A., INC.

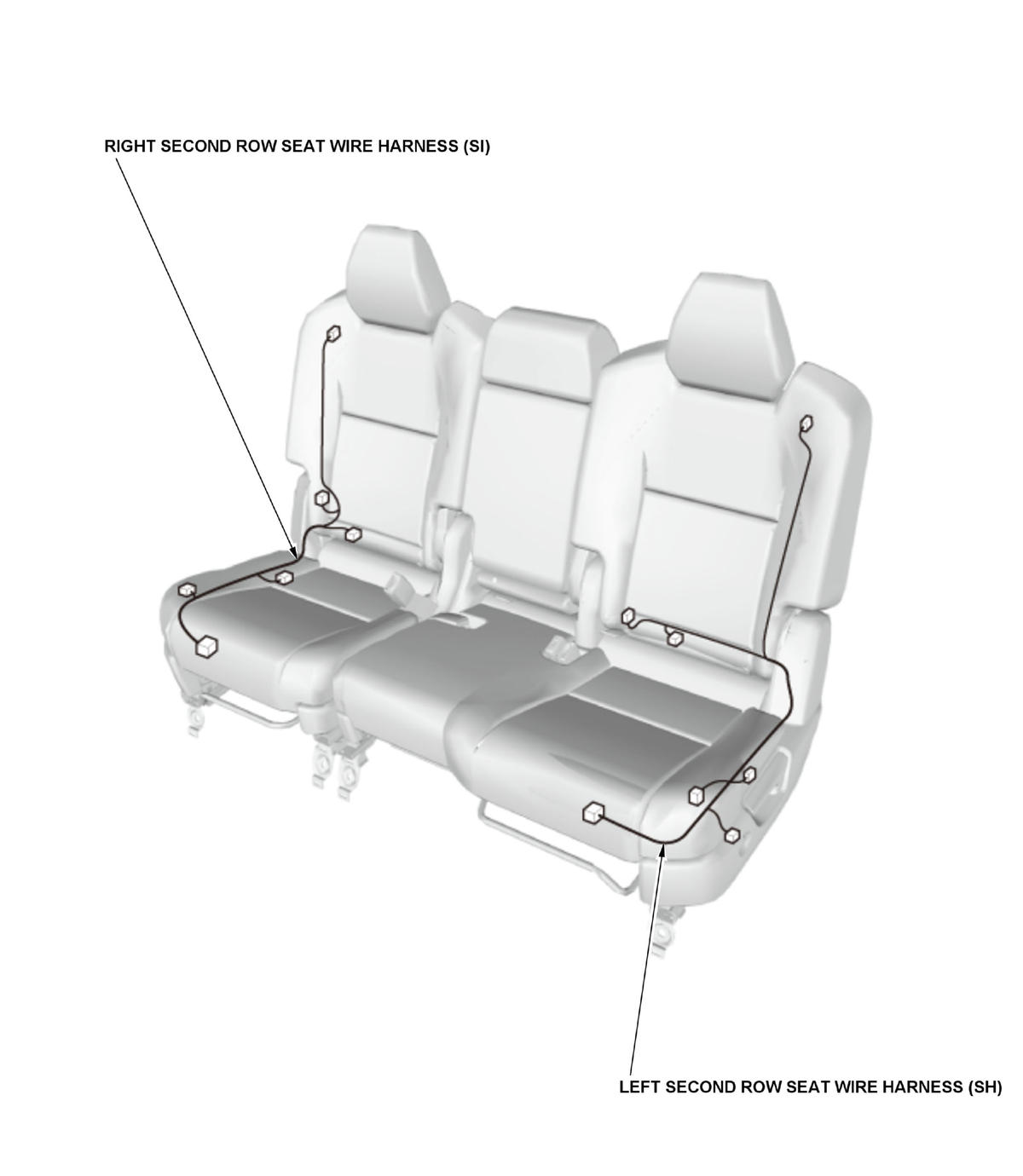

Seat (3/4) (With bench type second row seat)

Courtesy of HONDA, U.S.A., INC.

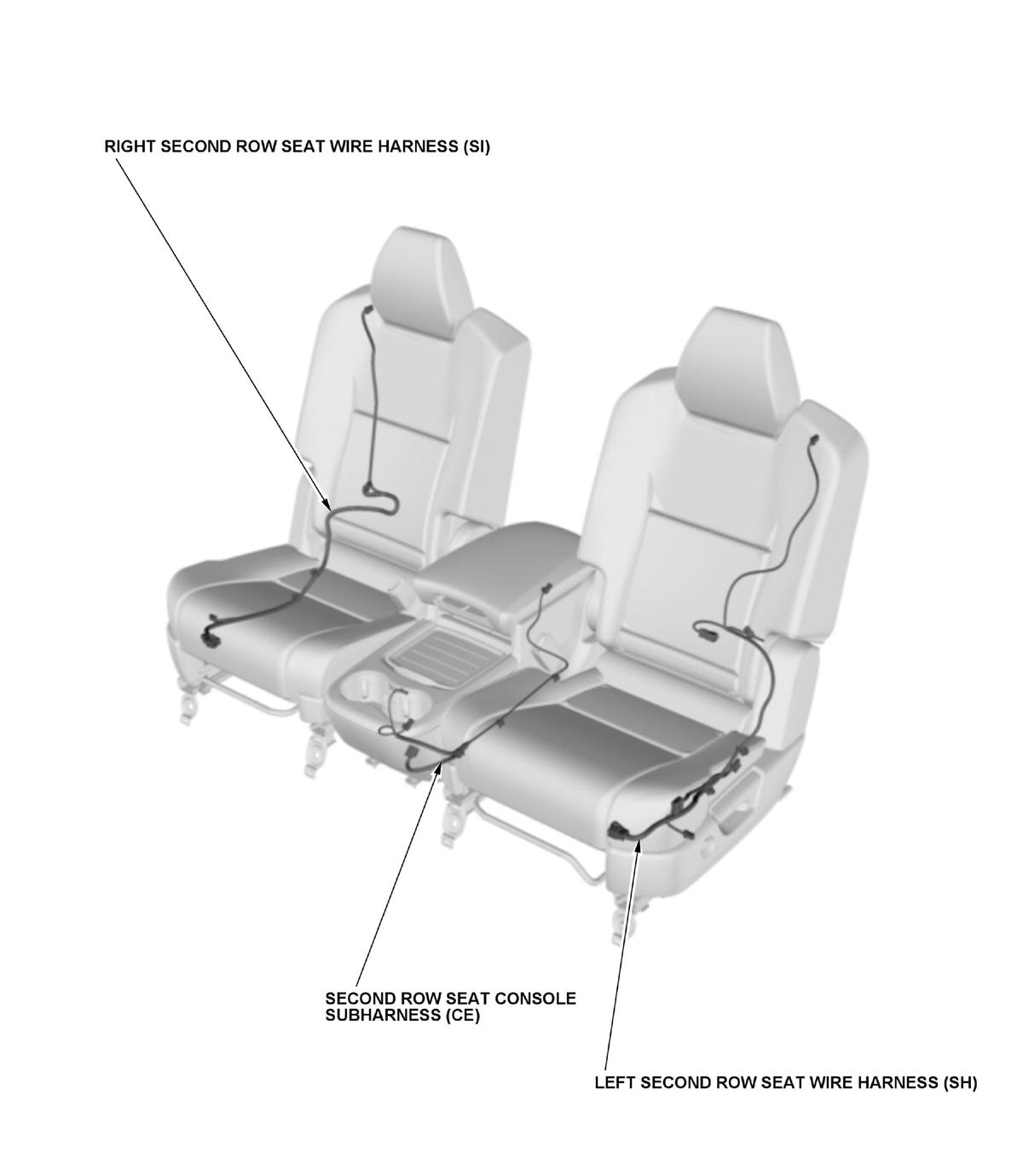

Seat (4/4) (With captain type second row seat)

Courtesy of HONDA, U.S.A., INC.
