Wire Harness and Ground Locations (2016)

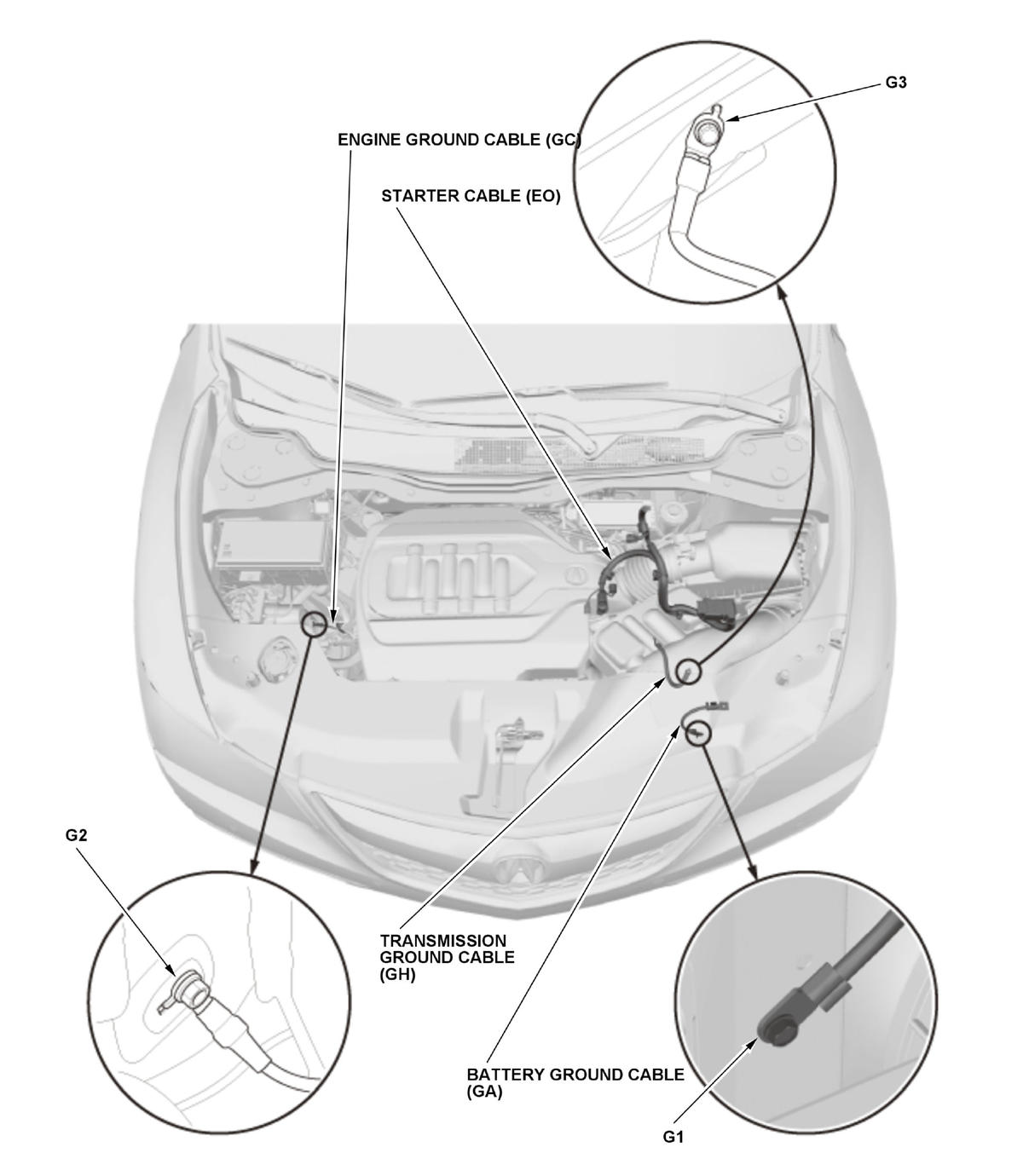

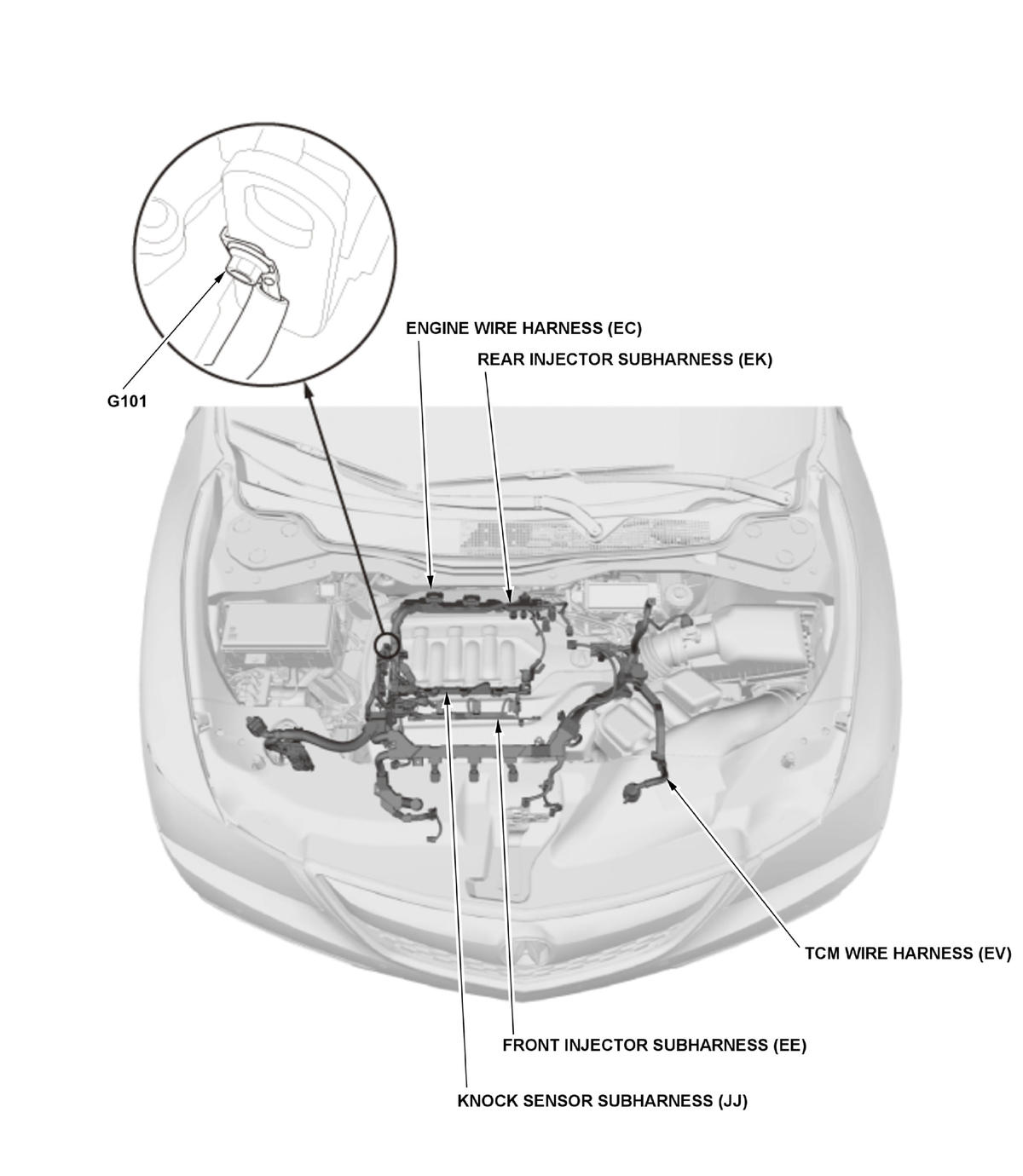

Engine Compartment (1/5)

Courtesy of HONDA, U.S.A., INC.

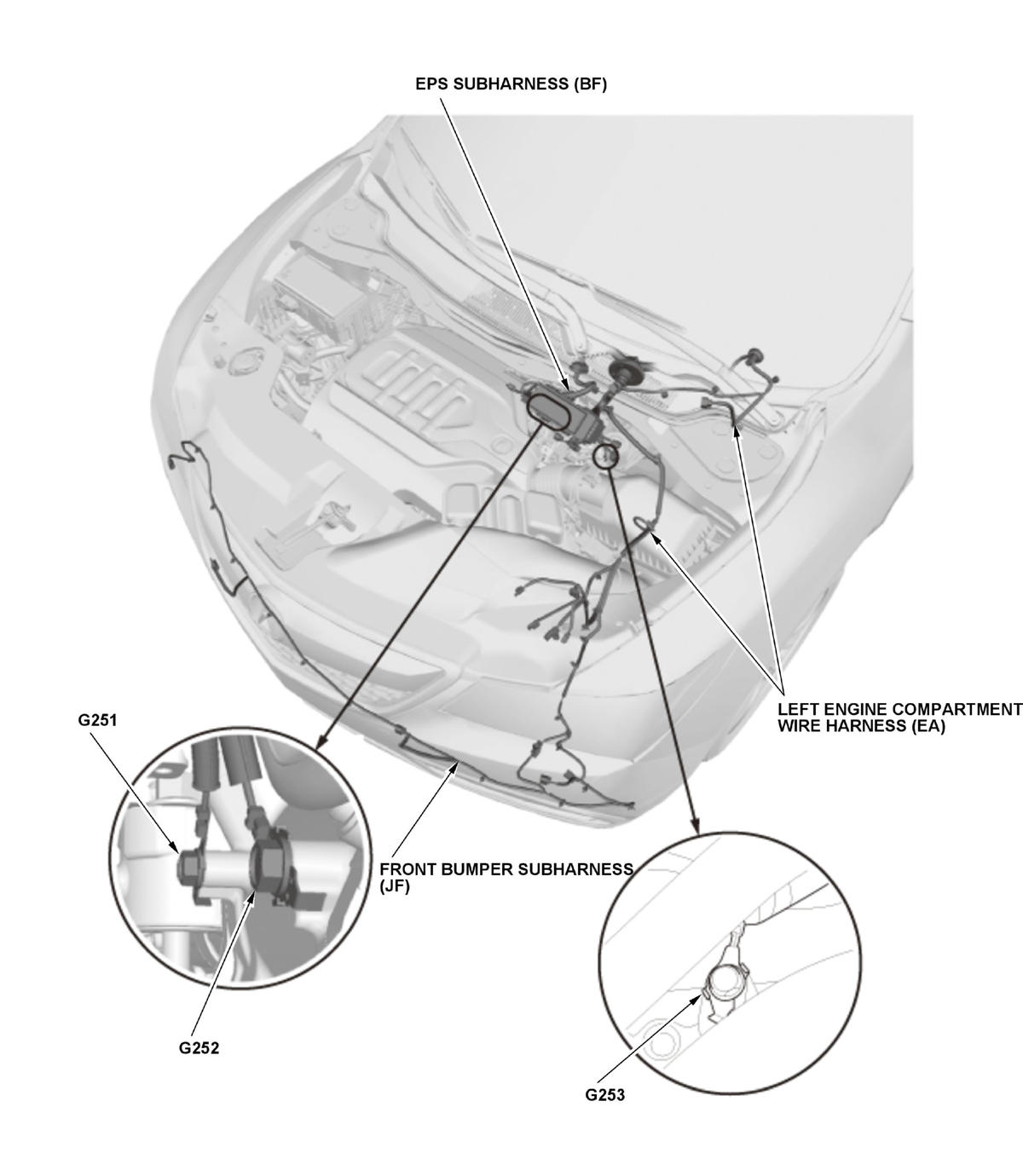

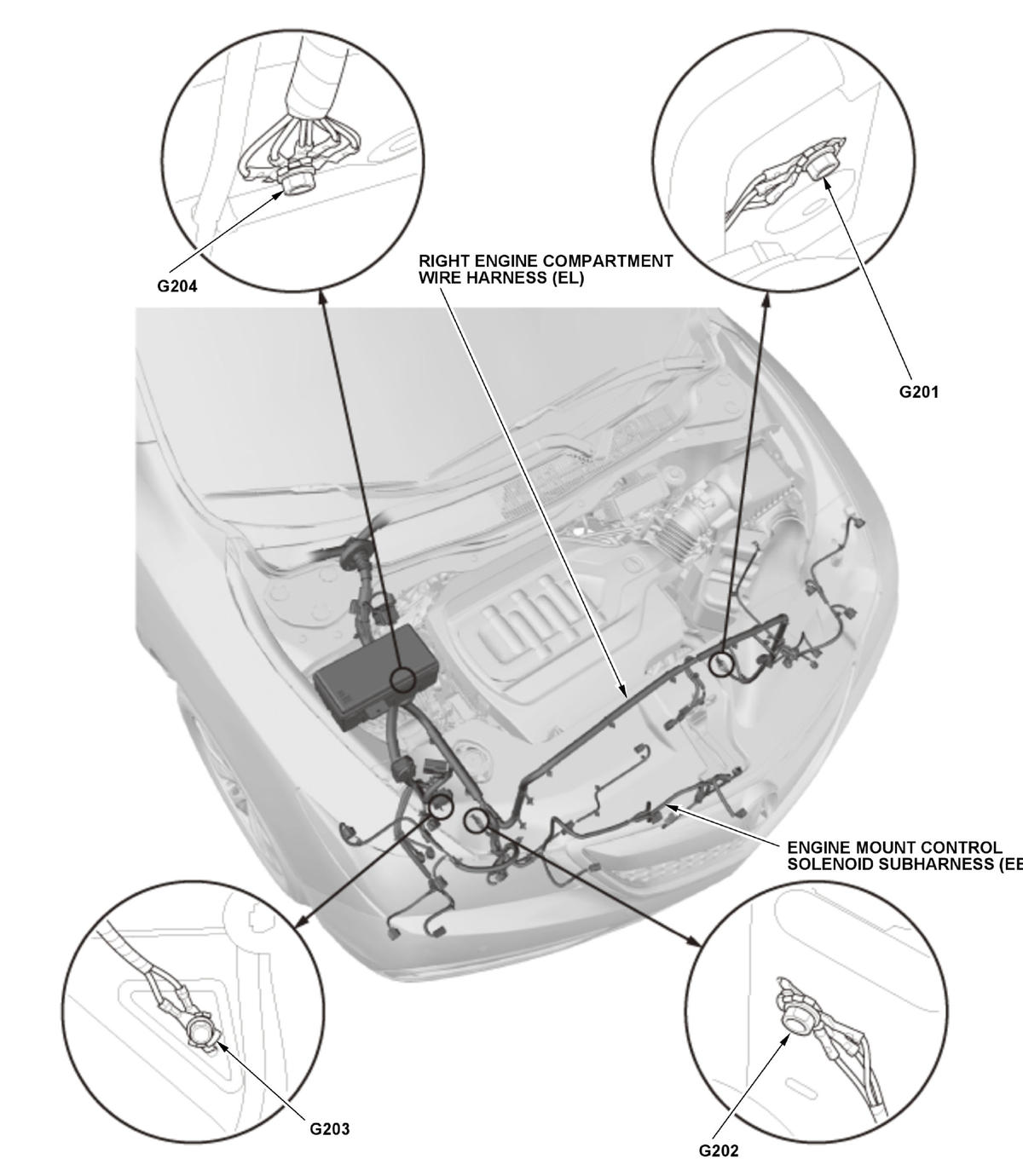

Engine Compartment (2/5)

Courtesy of HONDA, U.S.A., INC.

Engine Compartment (3/5)

Courtesy of HONDA, U.S.A., INC.

Engine Compartment (4/5)

Courtesy of HONDA, U.S.A., INC.

Engine Compartment (5/5)

Courtesy of HONDA, U.S.A., INC.

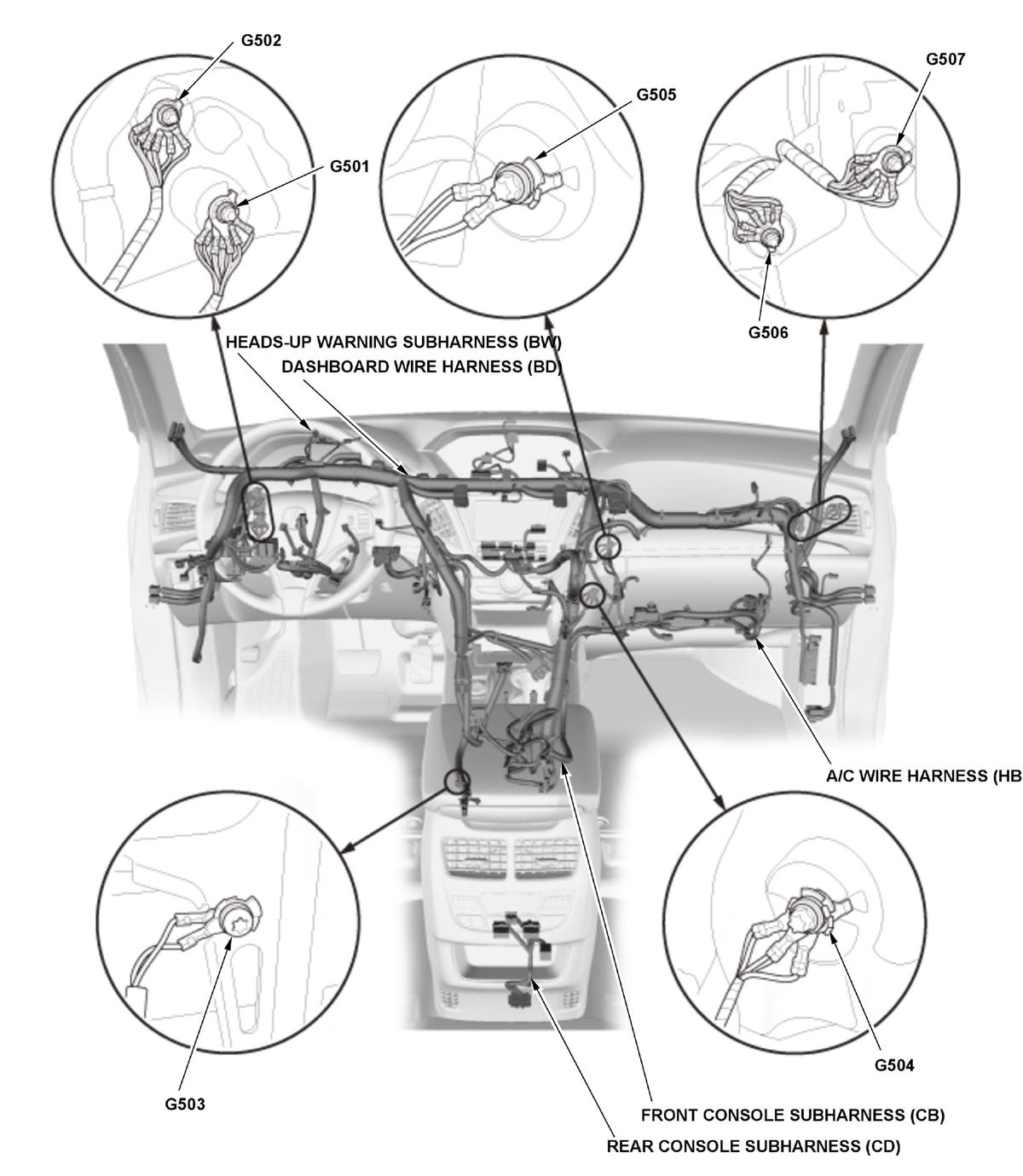

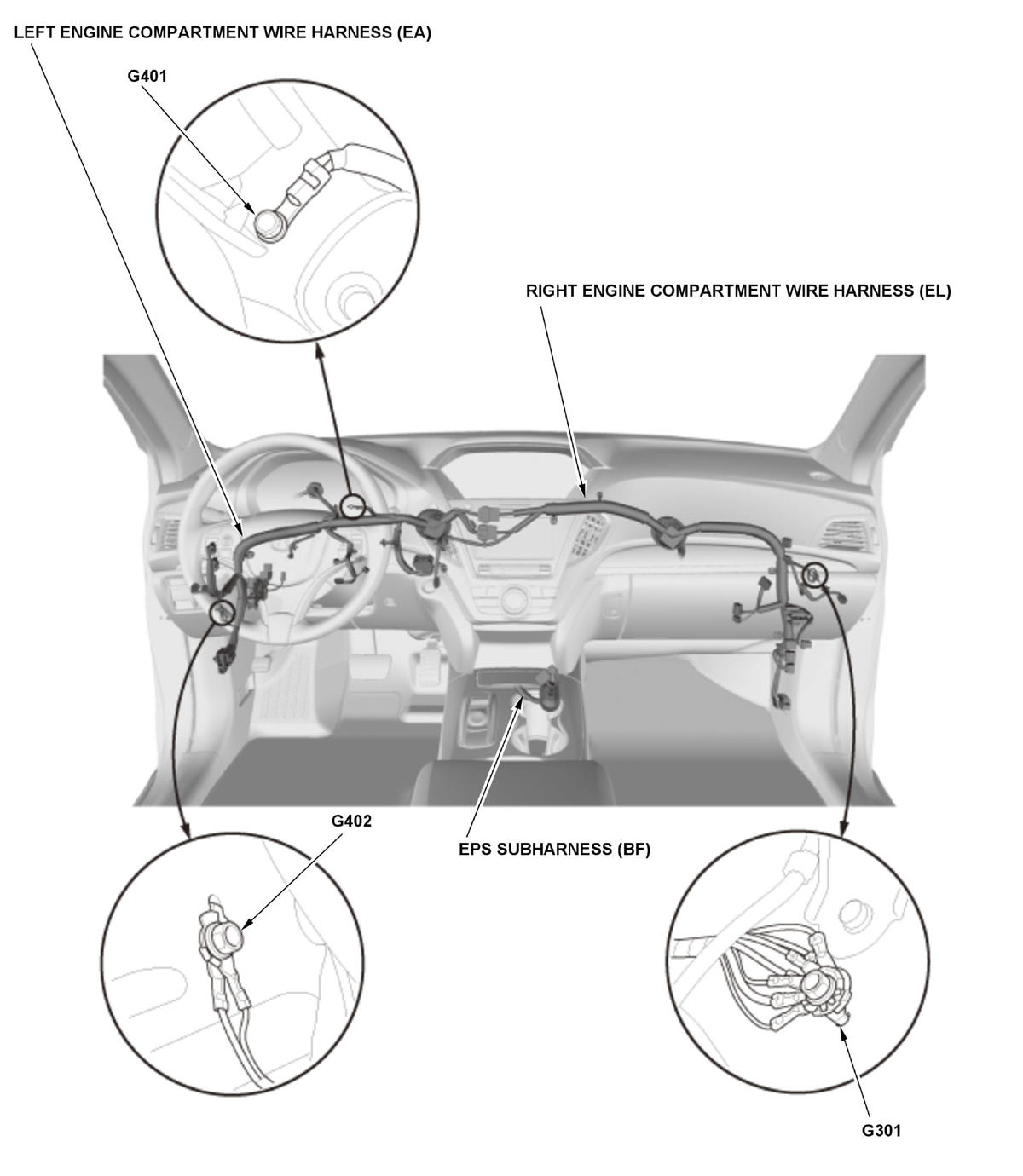

Dashboard (1/2)

Courtesy of HONDA, U.S.A., INC.

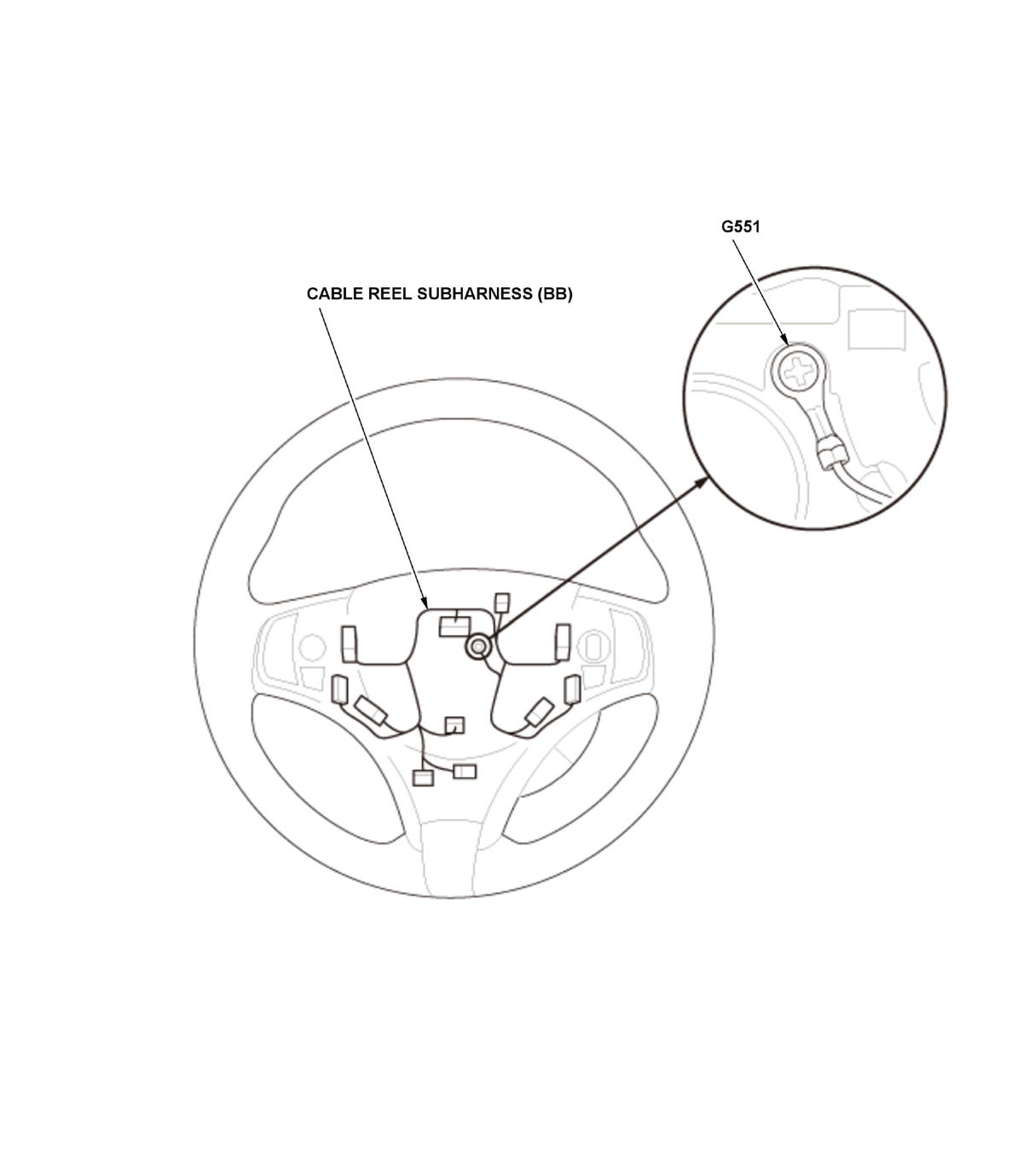

Dashboard (2/2)

Courtesy of HONDA, U.S.A., INC.

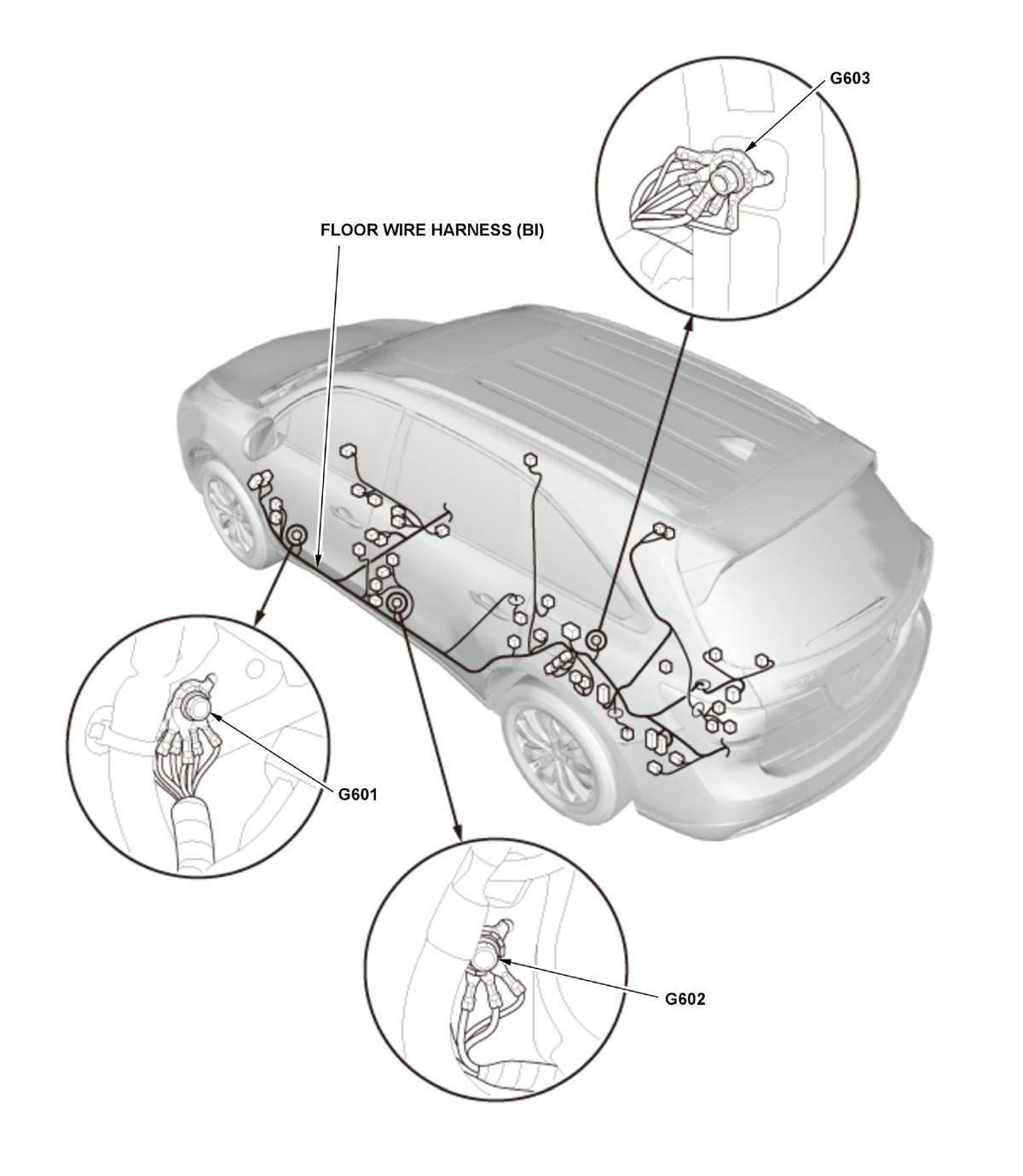

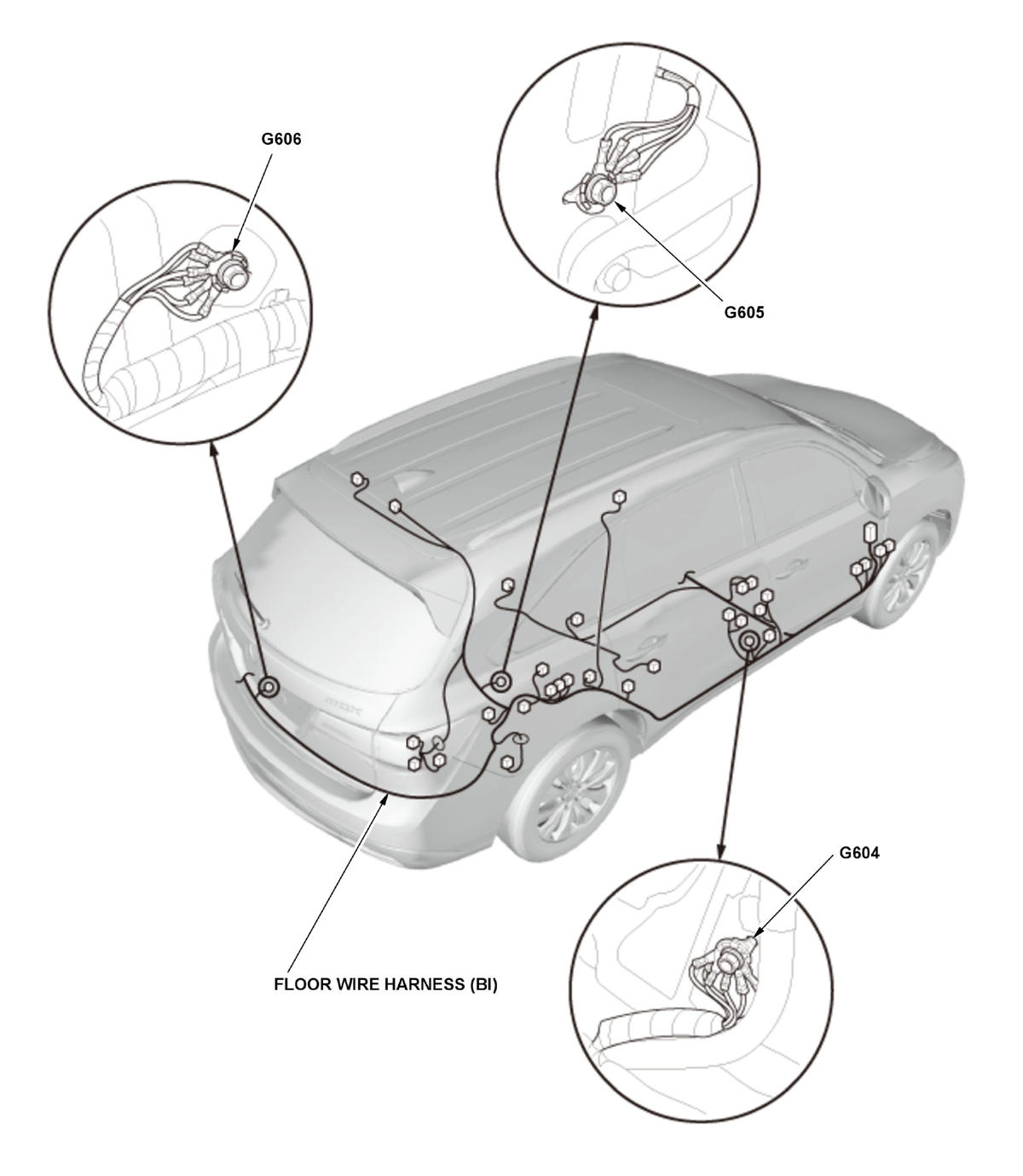

Floor (1/2)

Courtesy of HONDA, U.S.A., INC.

Floor (2/2)

Courtesy of HONDA, U.S.A., INC.

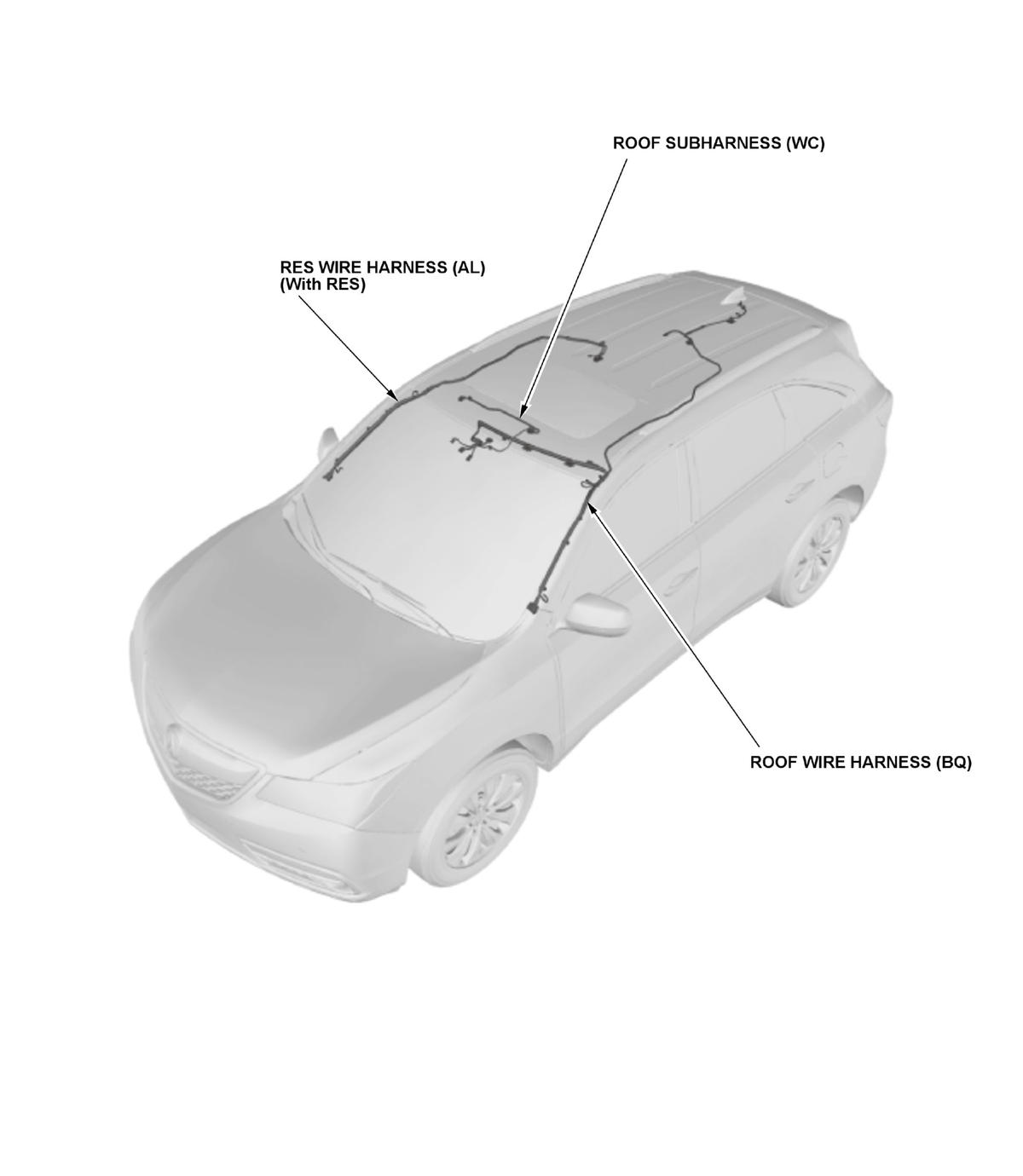

Roof

Courtesy of HONDA, U.S.A., INC.

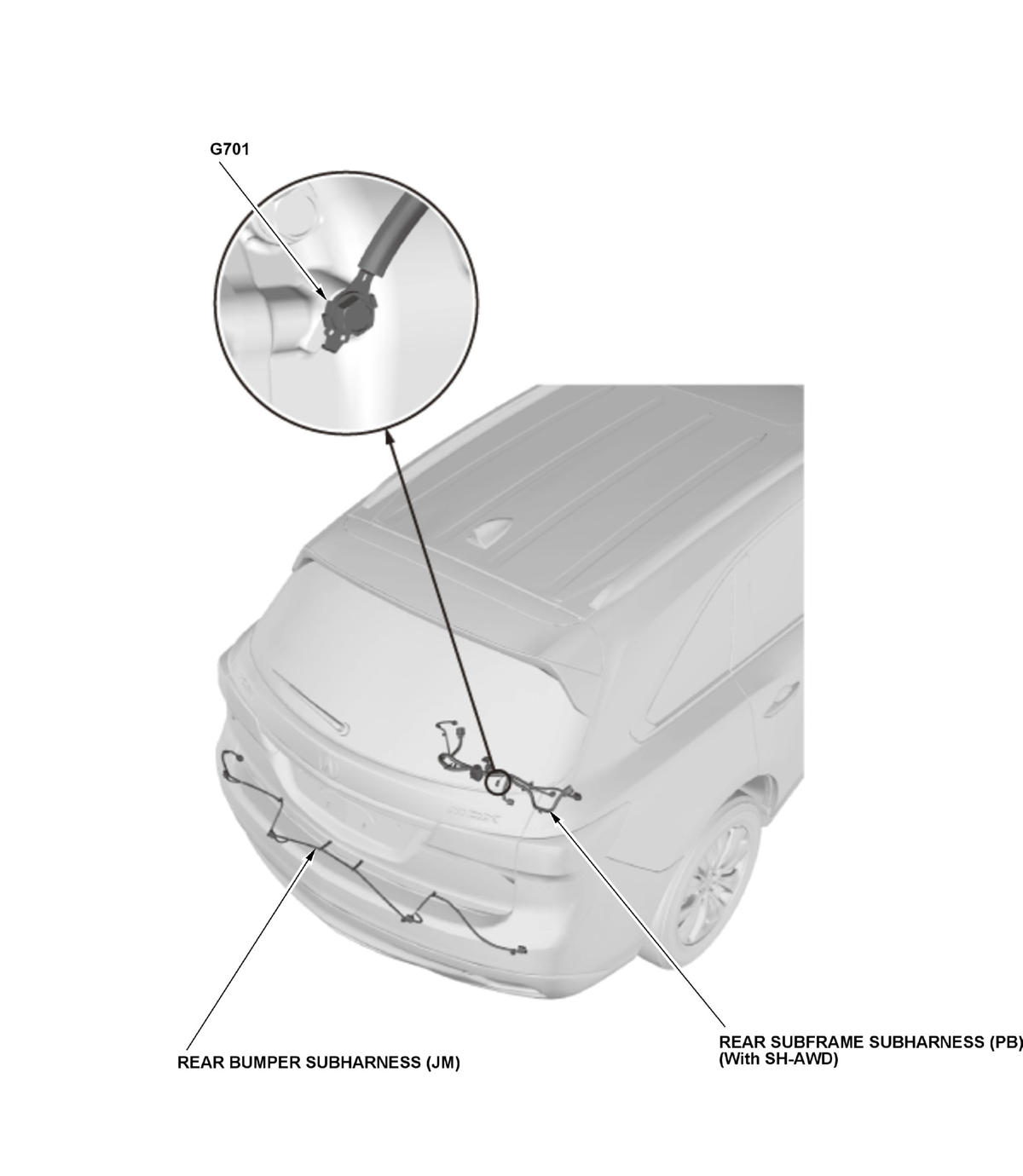

Rear (1/2)

Courtesy of HONDA, U.S.A., INC.

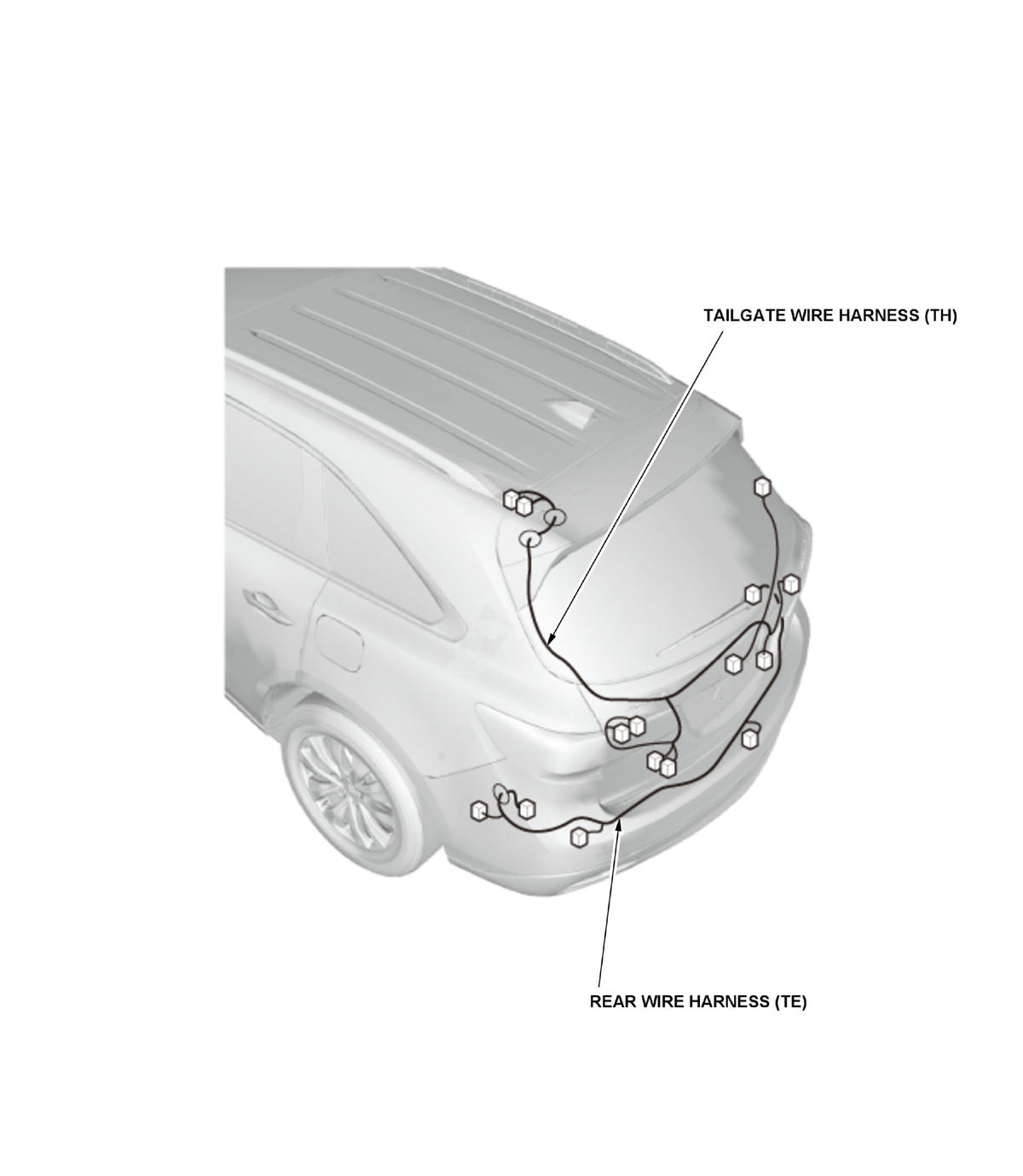

Rear (2/2)

Courtesy of HONDA, U.S.A., INC.

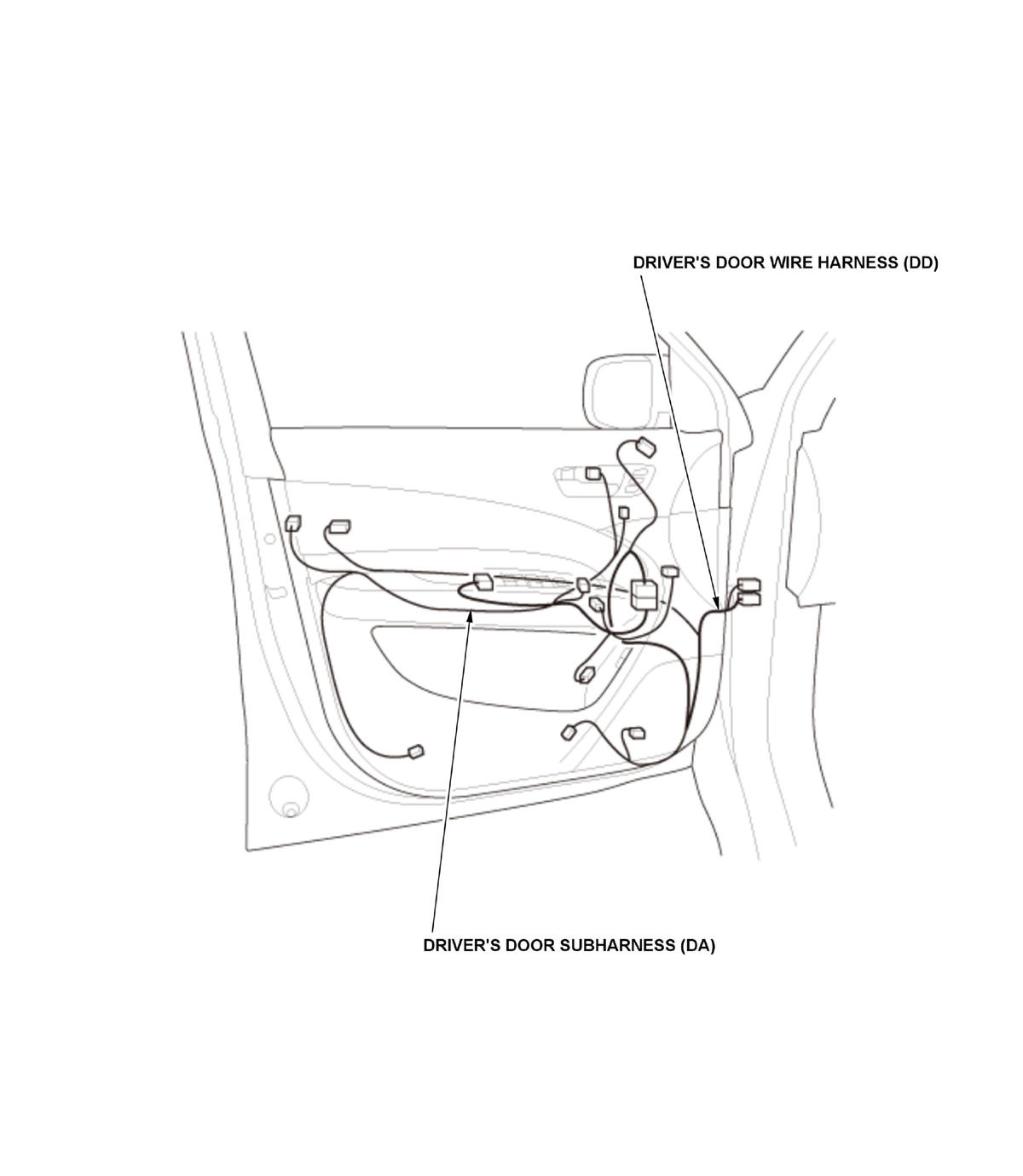

Door (1/4)

Courtesy of HONDA, U.S.A., INC.

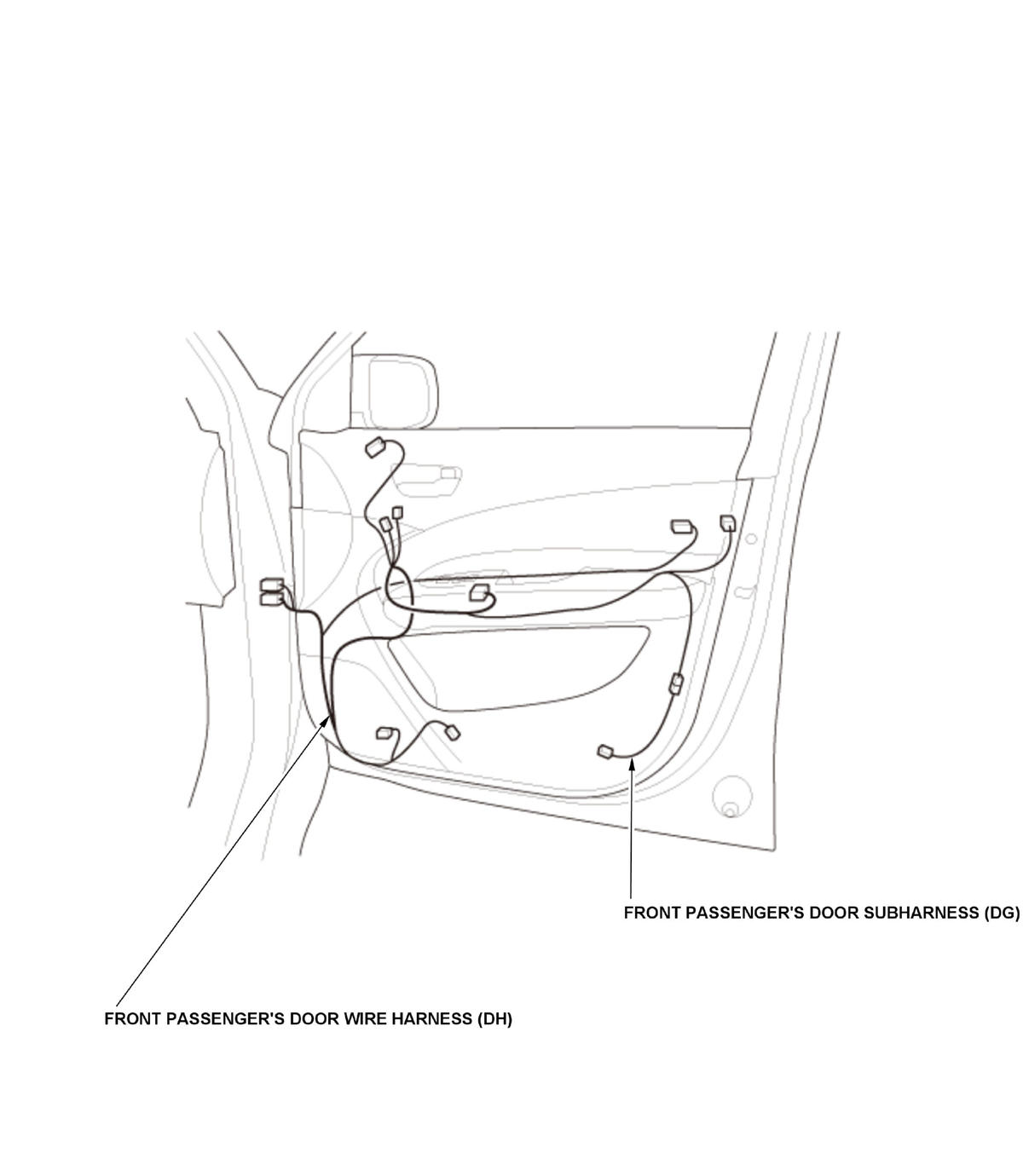

Door (2/4)

Courtesy of HONDA, U.S.A., INC.

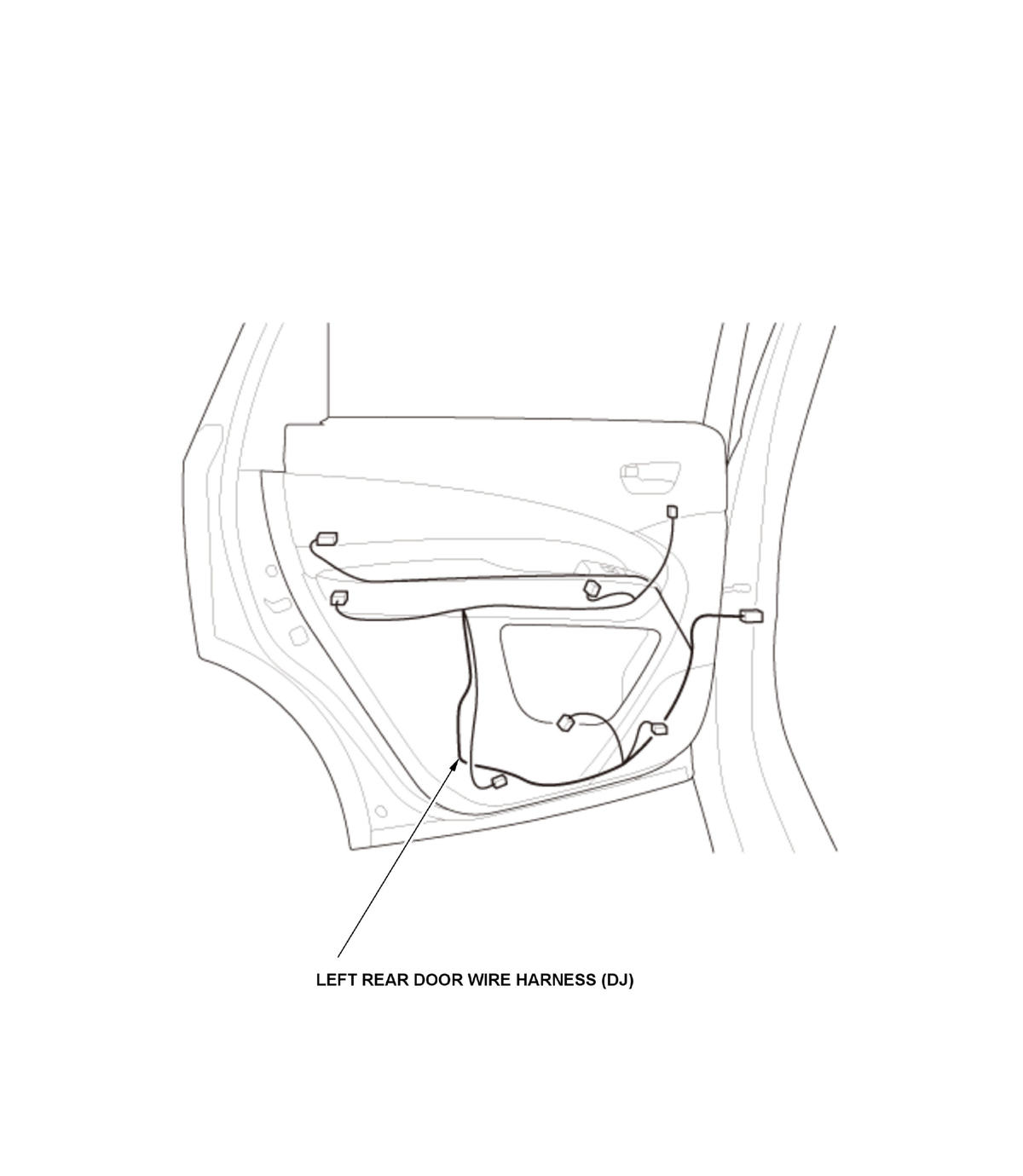

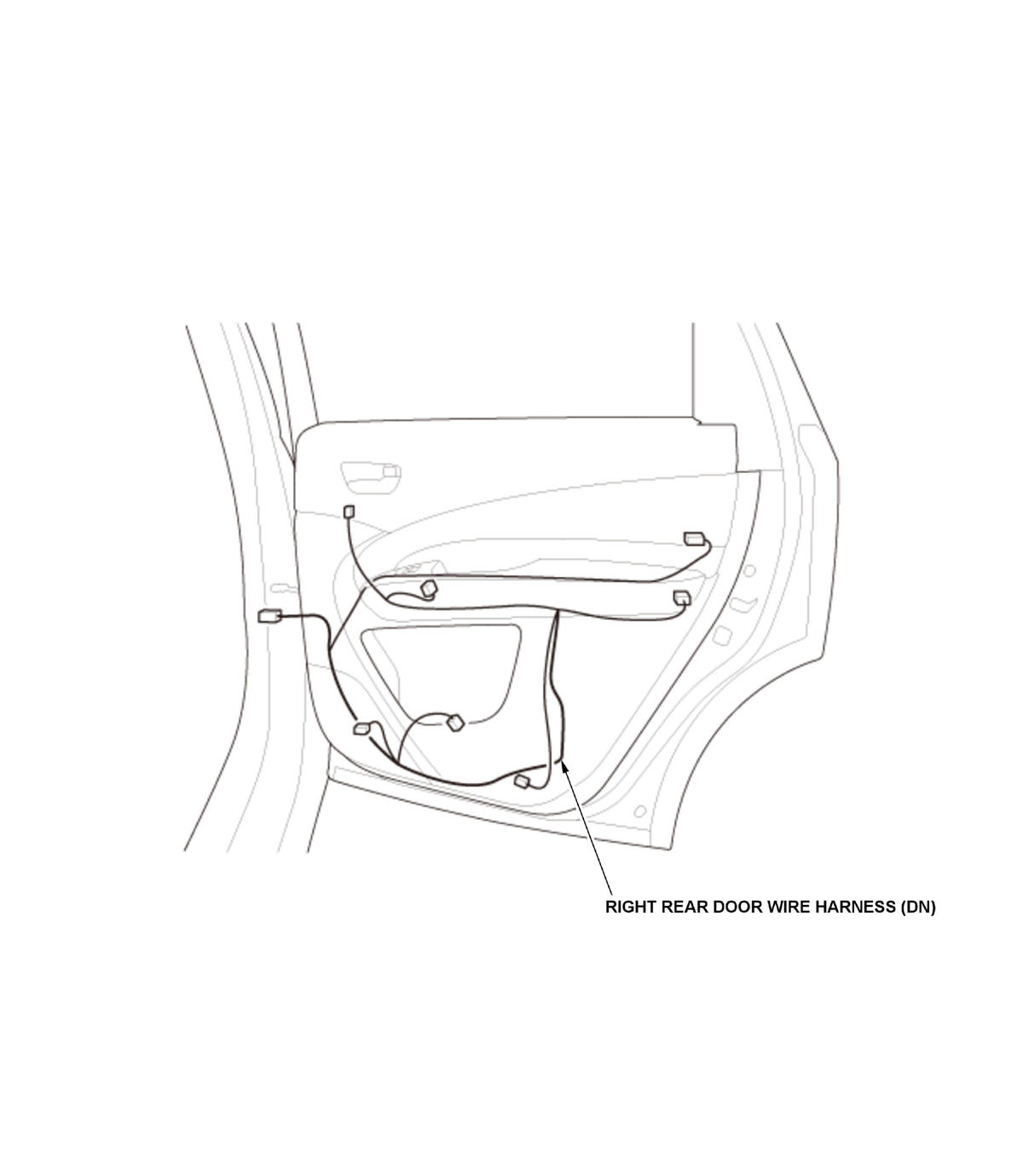

Door (3/4)

Courtesy of HONDA, U.S.A., INC.

Door (4/4)

Courtesy of HONDA, U.S.A., INC.

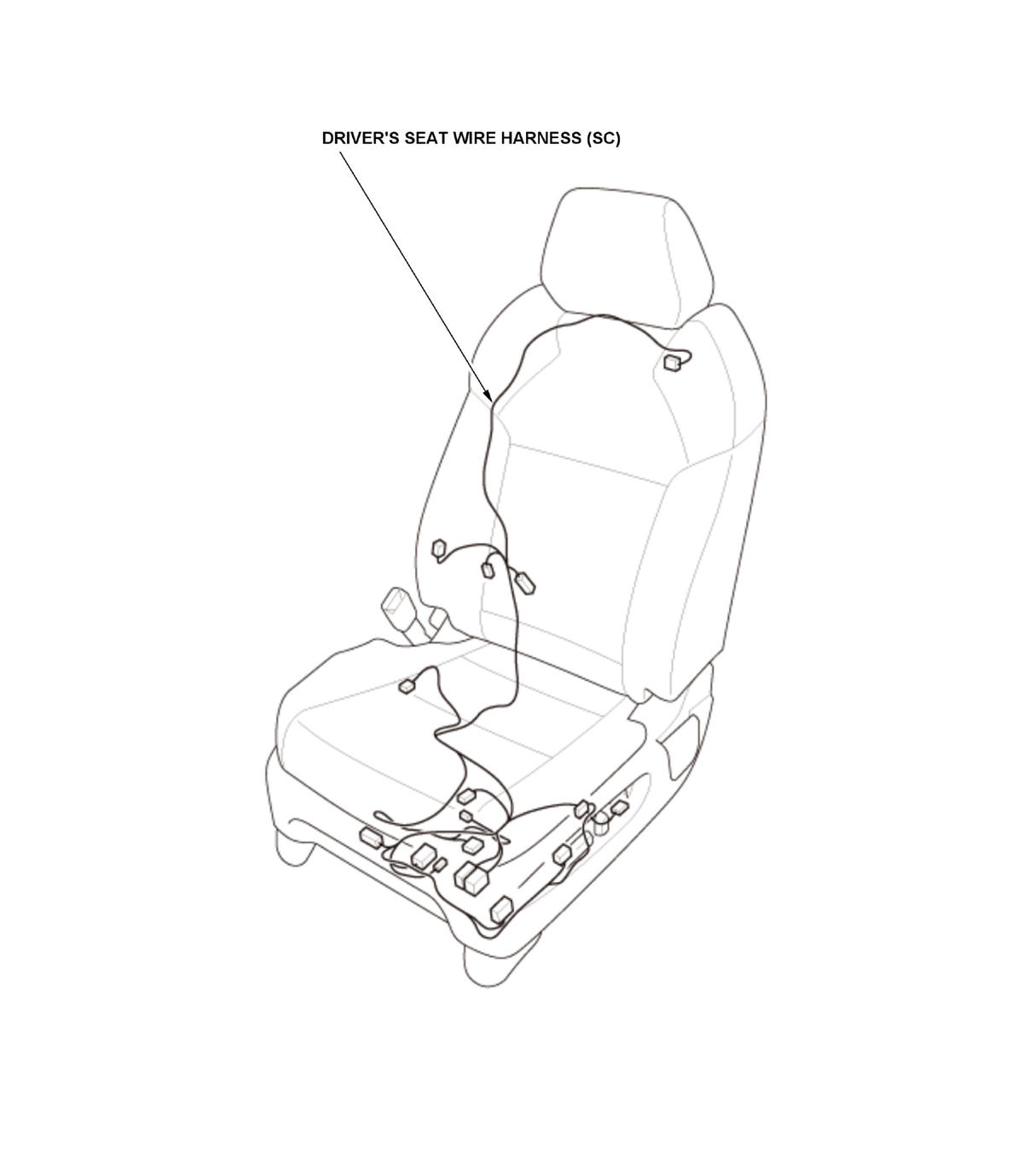

Seat (1/3)

Courtesy of HONDA, U.S.A., INC.

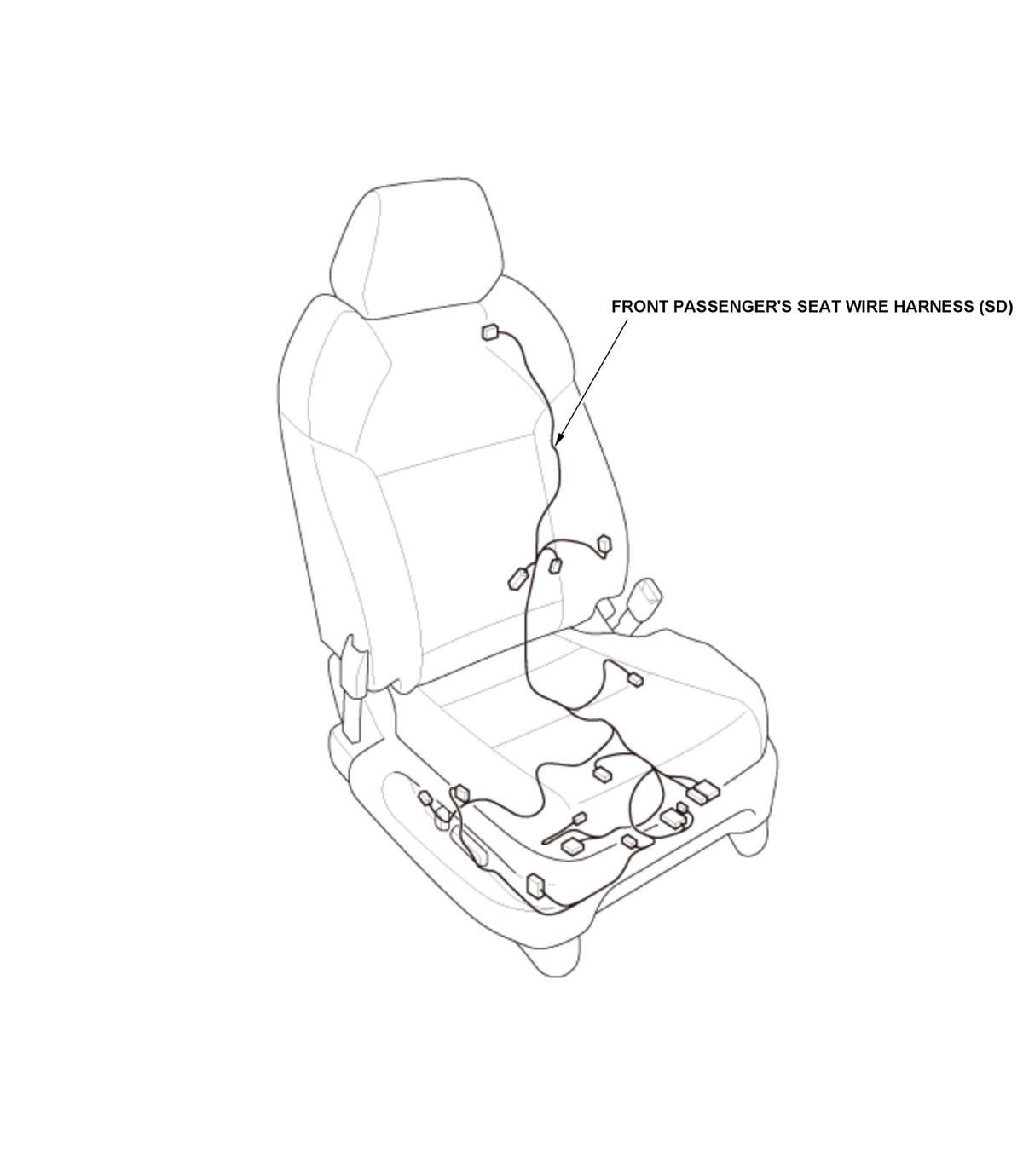

Seat (2/3)

Courtesy of HONDA, U.S.A., INC.

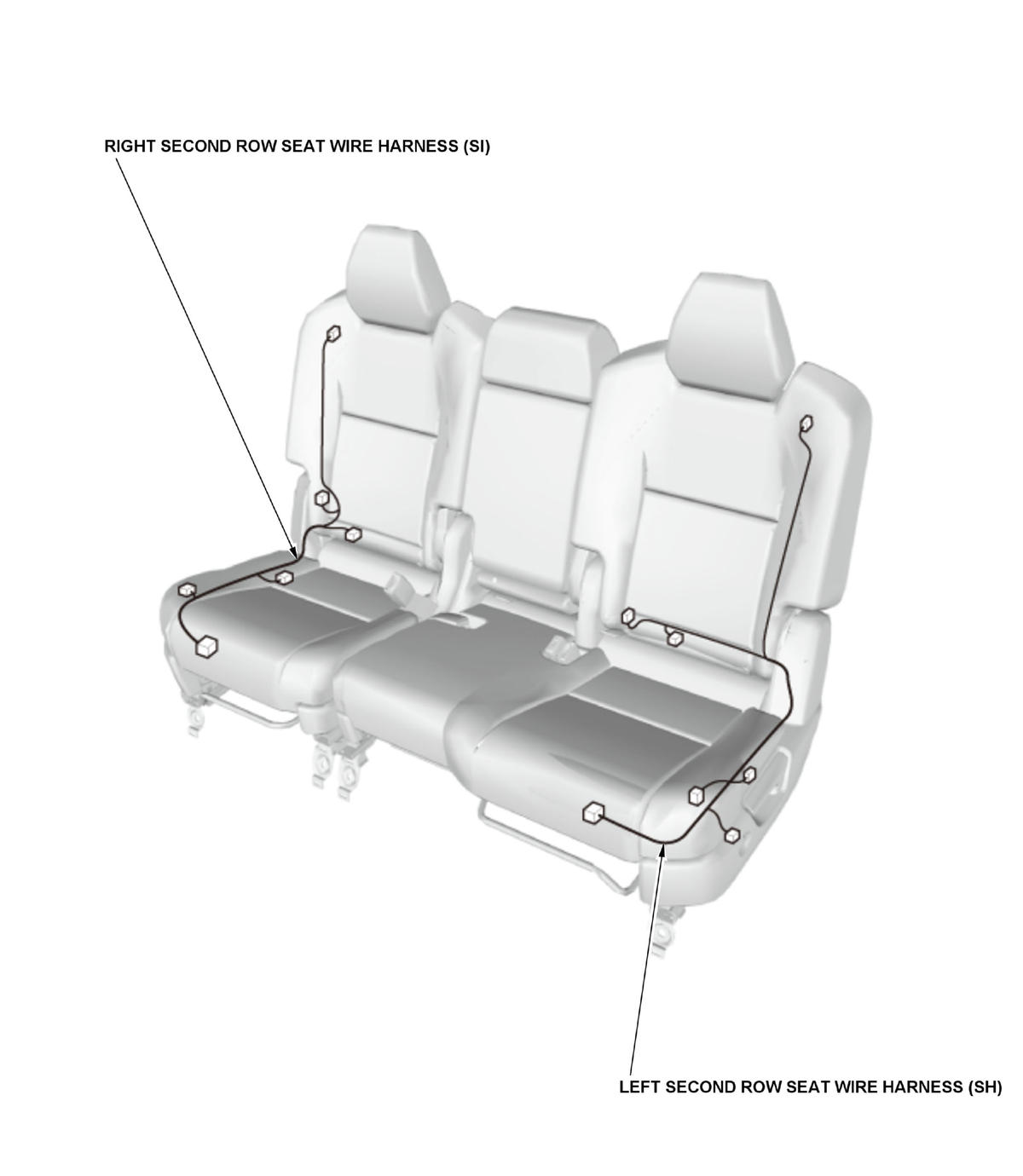

Seat (3/3)

Courtesy of HONDA, U.S.A., INC.
