Wire Harness and Ground Locations (2014 2015)

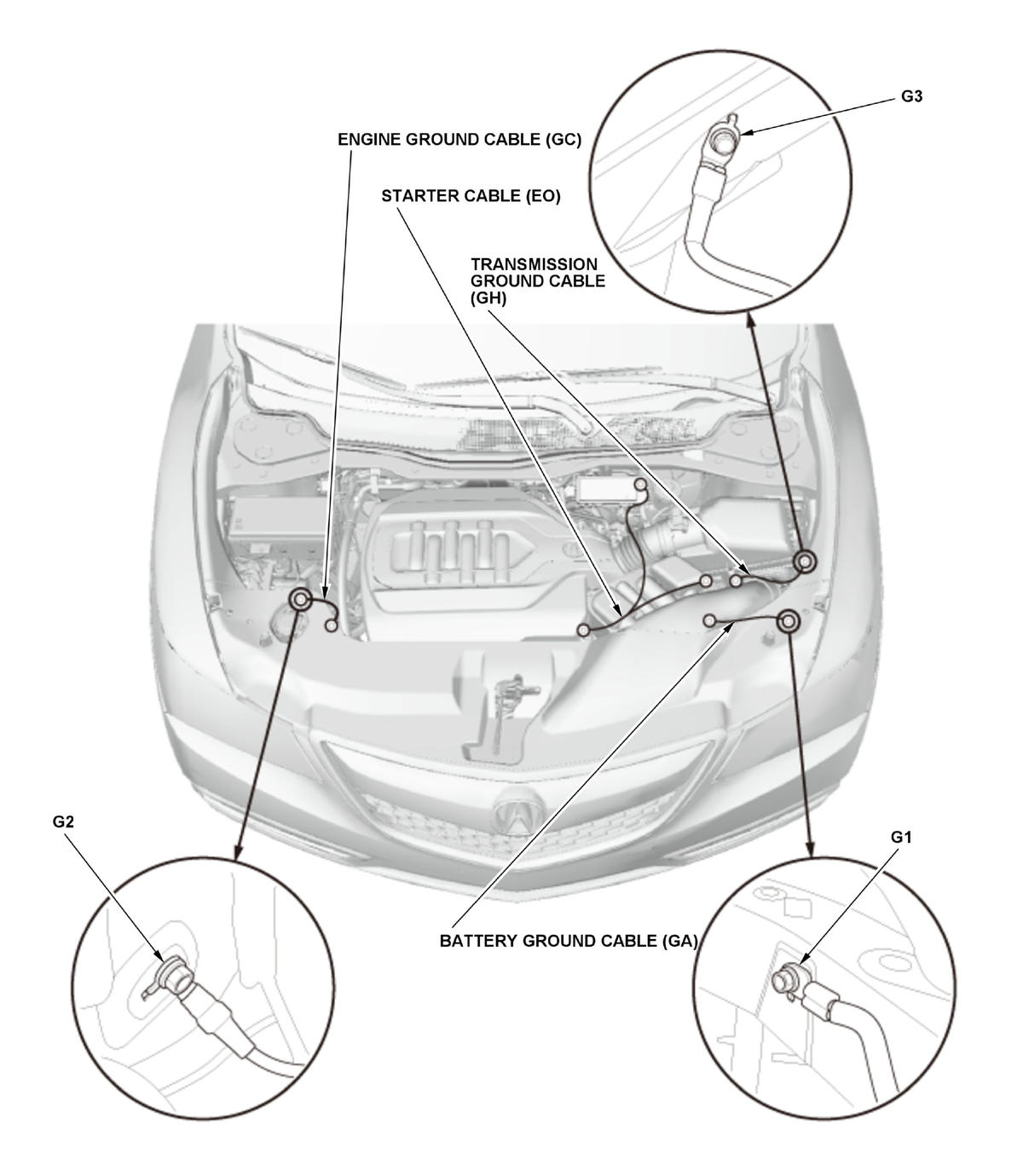

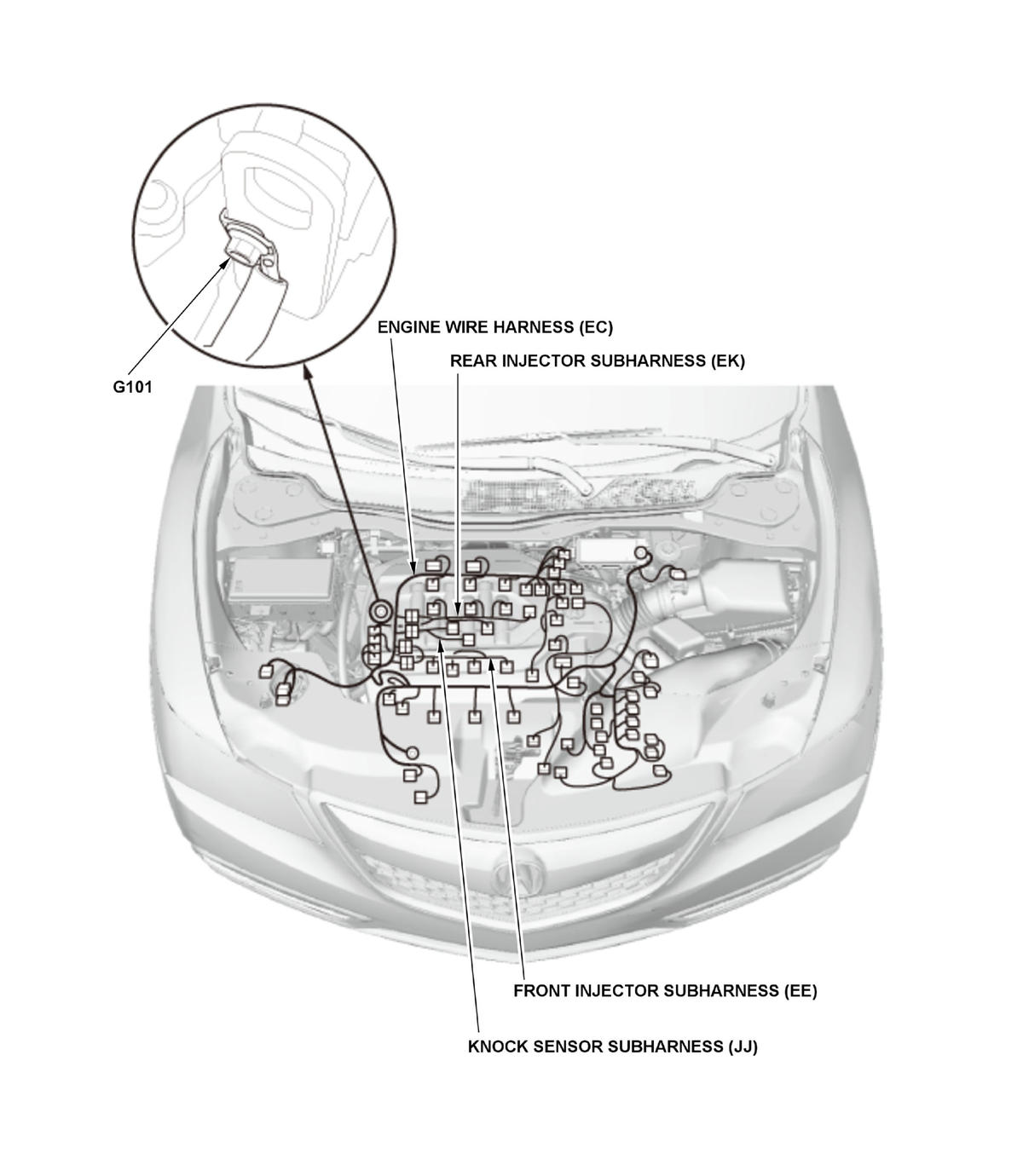

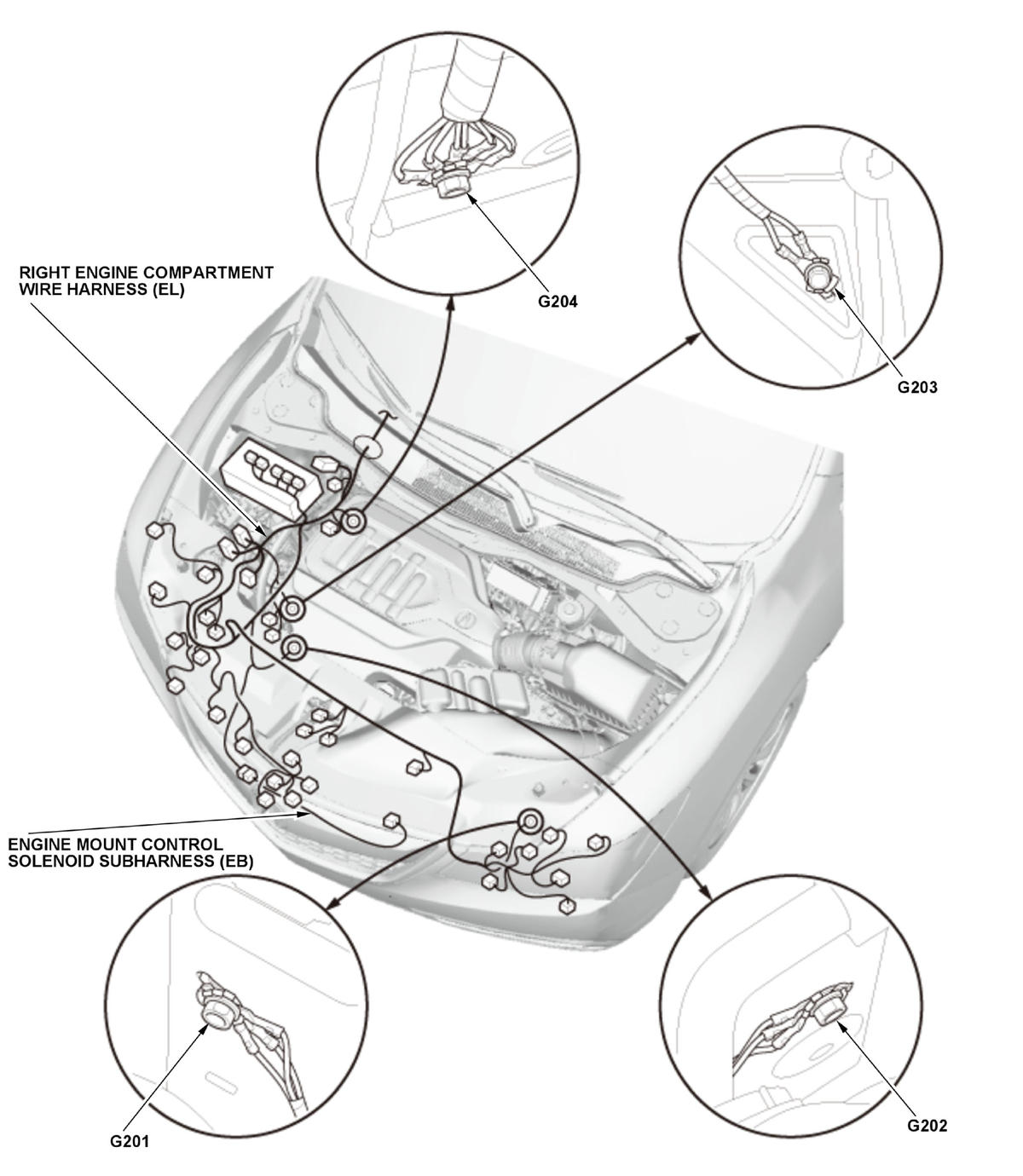

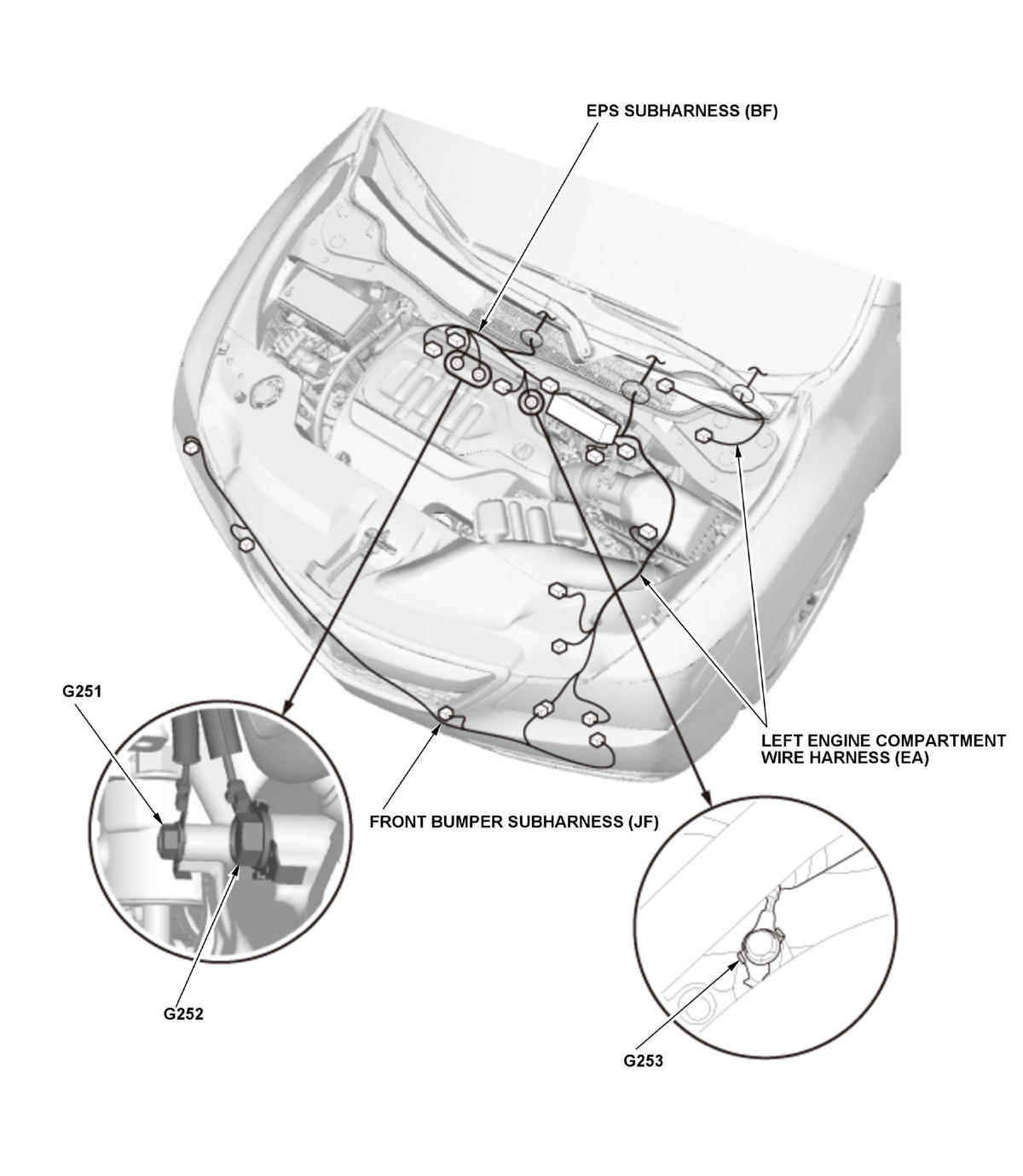

Engine Compartment (1/5)

Courtesy of HONDA, U.S.A., INC.

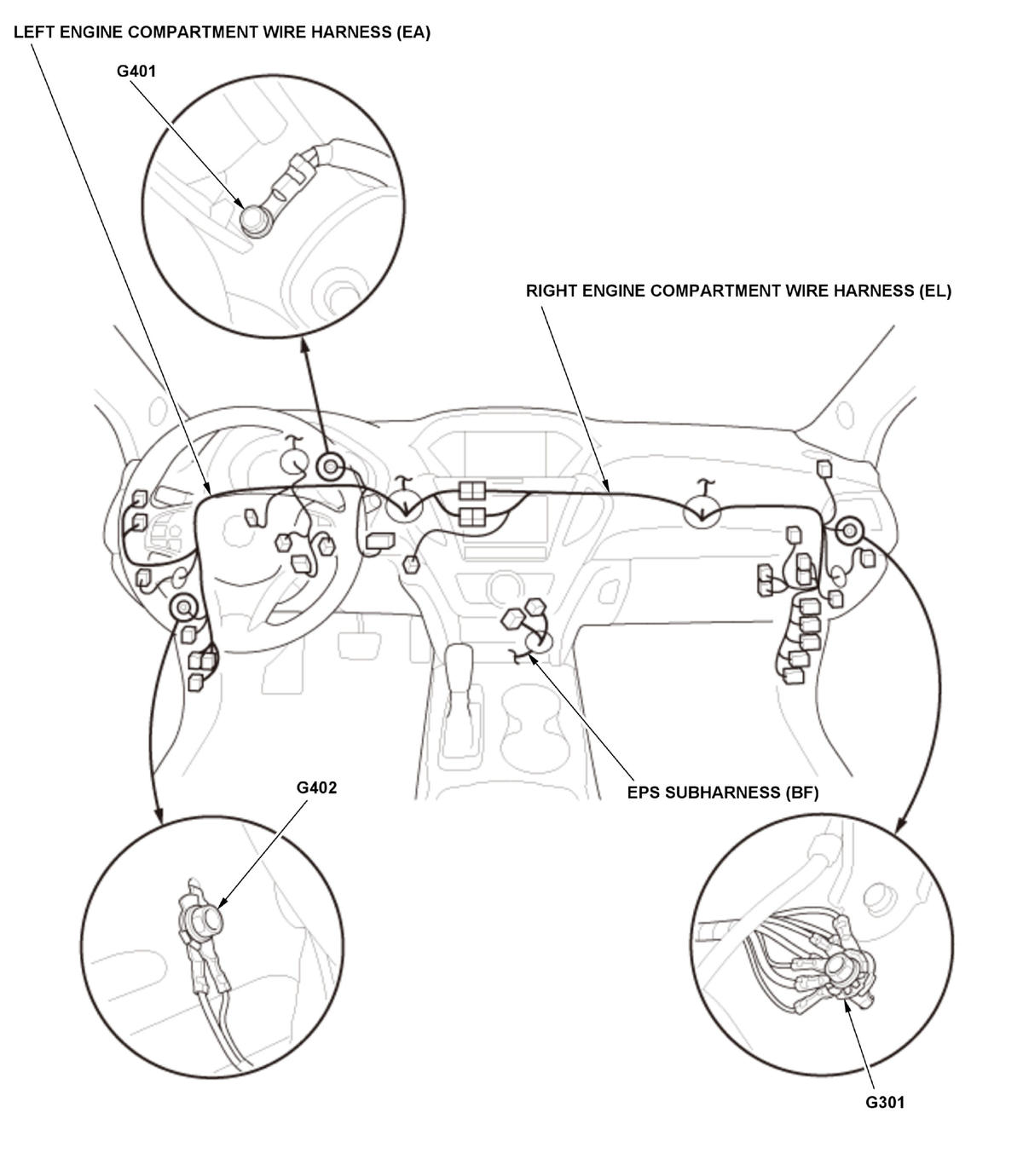

Engine Compartment (2/5)

Courtesy of HONDA, U.S.A., INC.

Engine Compartment (3/5)

Courtesy of HONDA, U.S.A., INC.

Engine Compartment (4/5)

Courtesy of HONDA, U.S.A., INC.

Engine Compartment (5/5)

Courtesy of HONDA, U.S.A., INC.

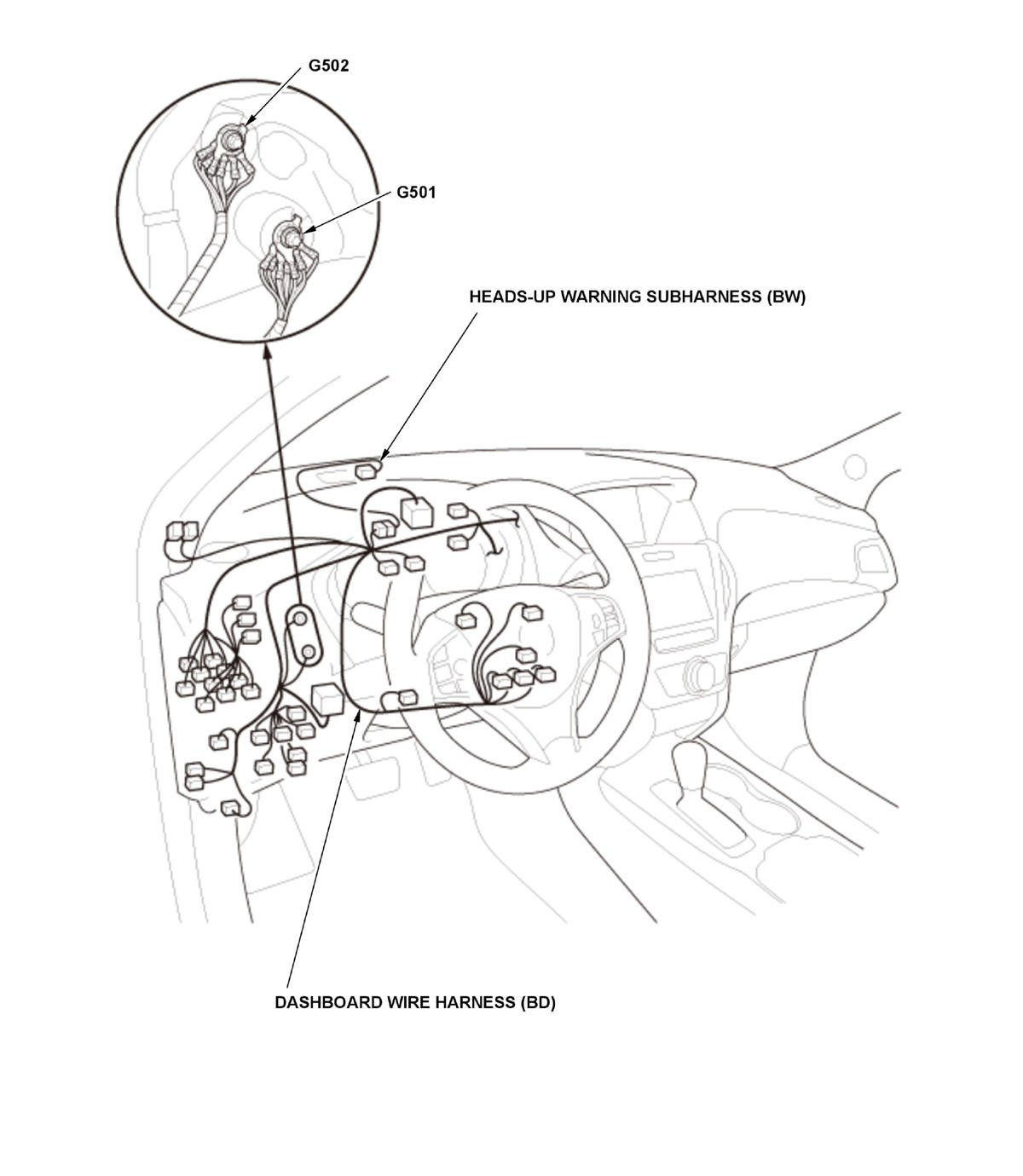

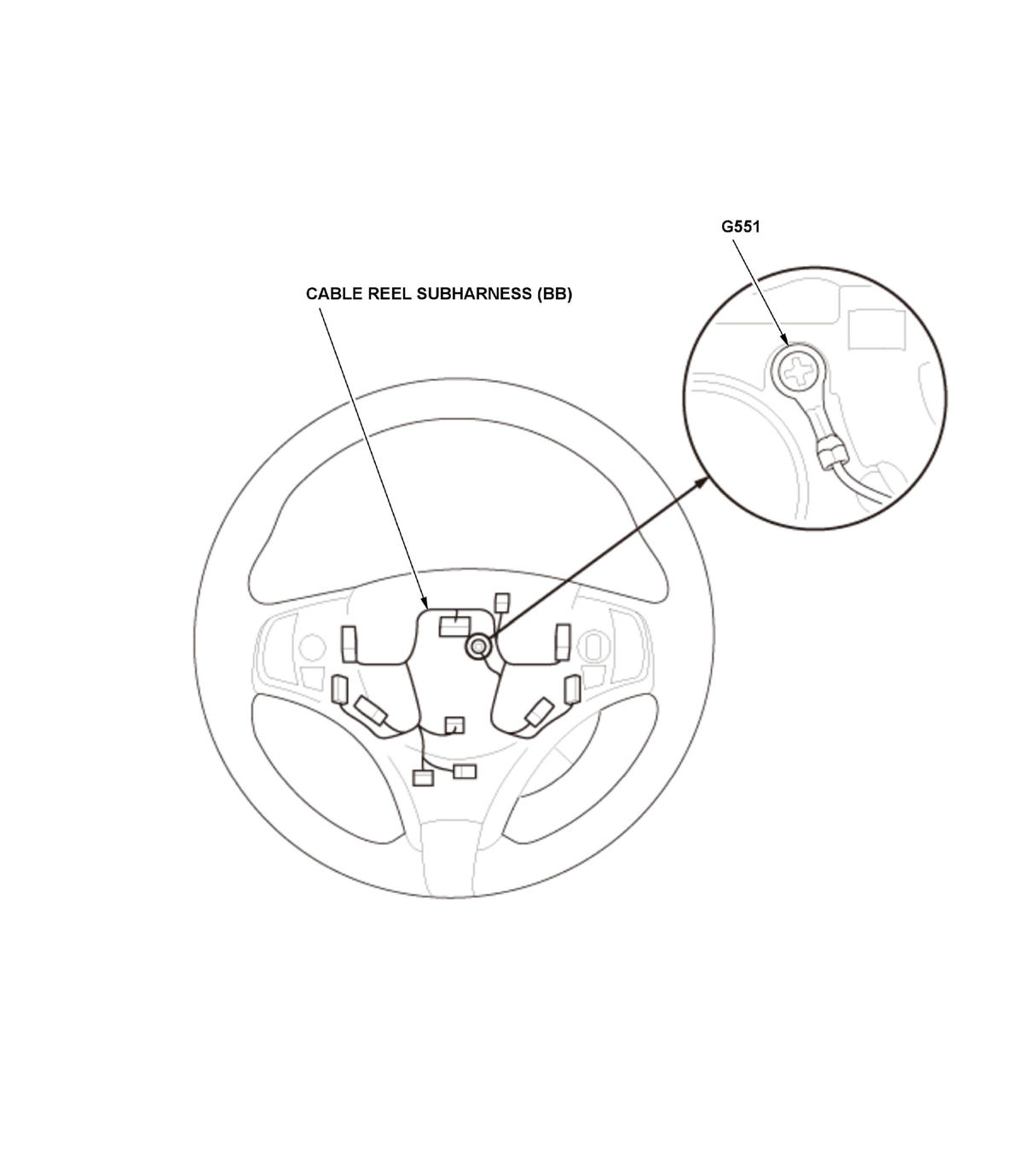

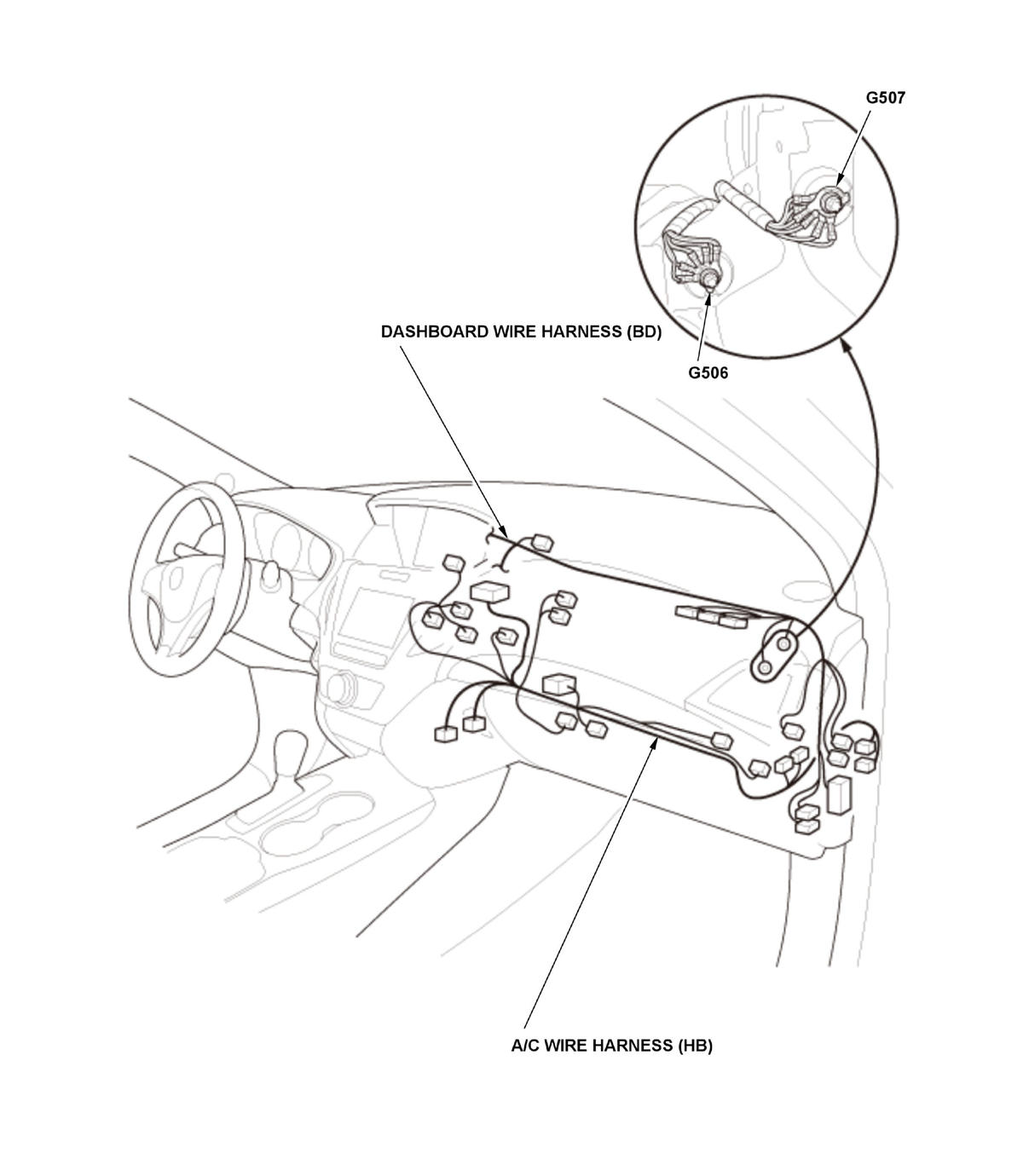

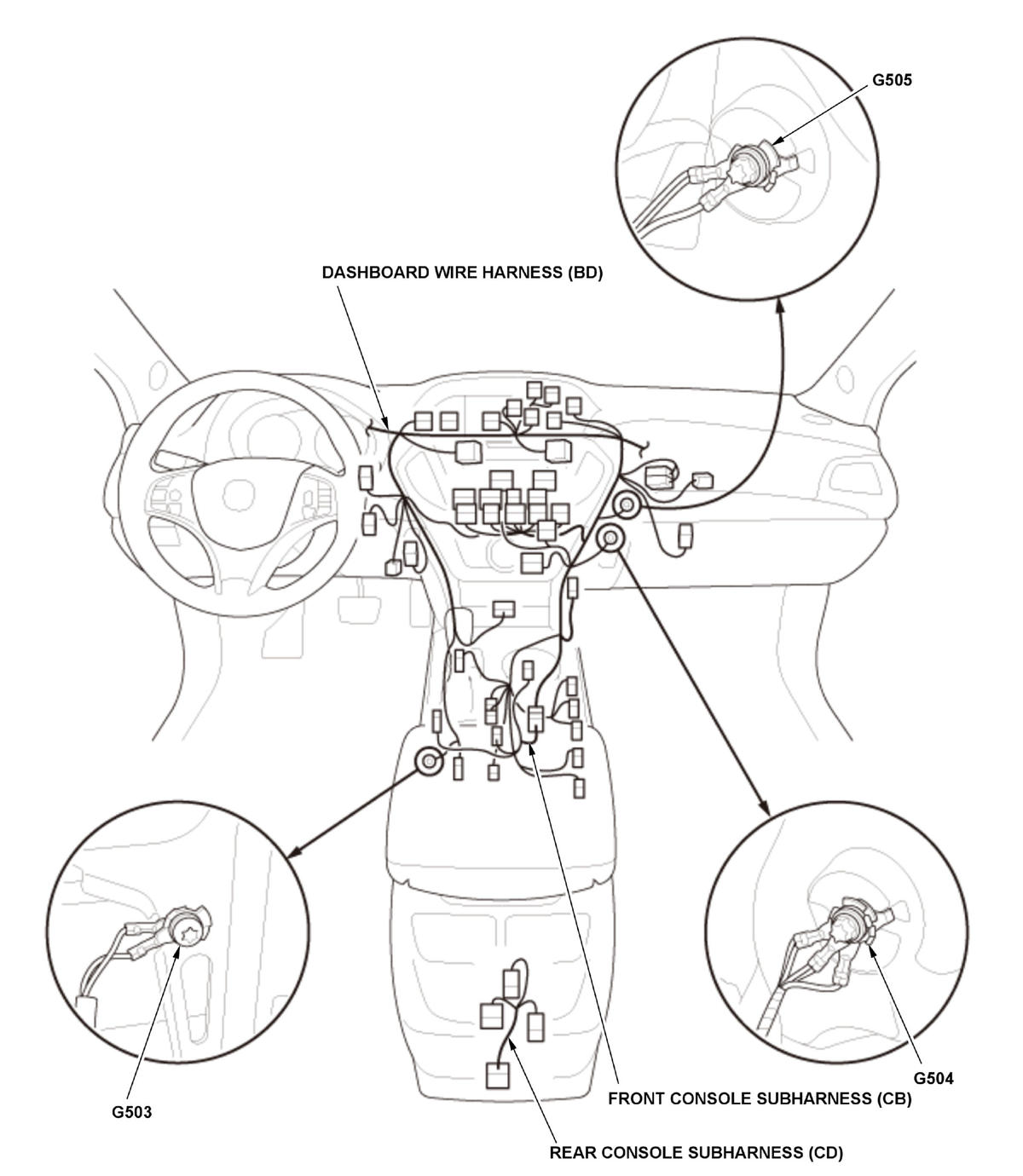

Dashboard (1/4)

Courtesy of HONDA, U.S.A., INC.

Dashboard (2/4)

Courtesy of HONDA, U.S.A., INC.

Dashboard (3/4)

Courtesy of HONDA, U.S.A., INC.

Dashboard (4/4)

Courtesy of HONDA, U.S.A., INC.

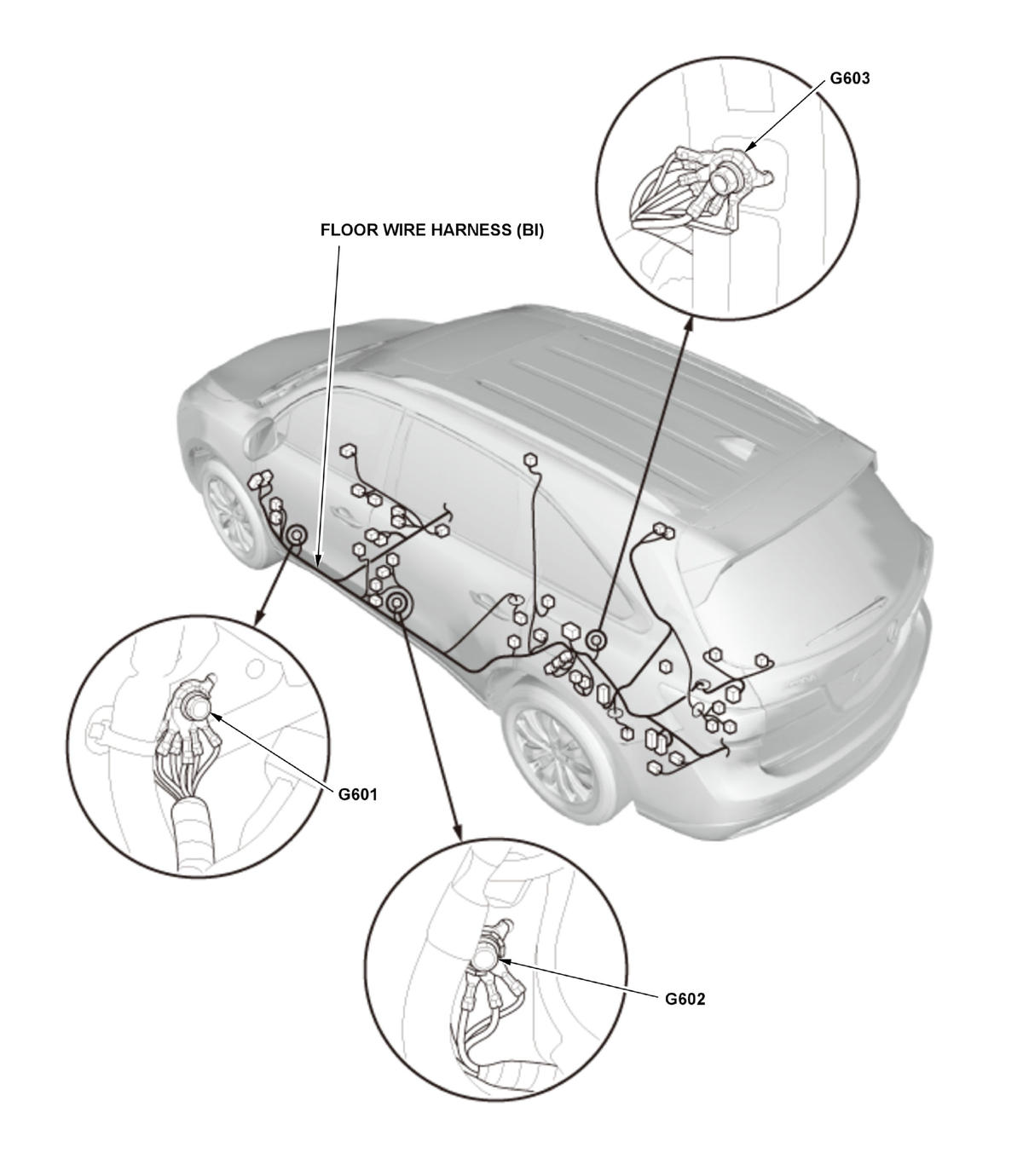

Floor (1/2)

Courtesy of HONDA, U.S.A., INC.

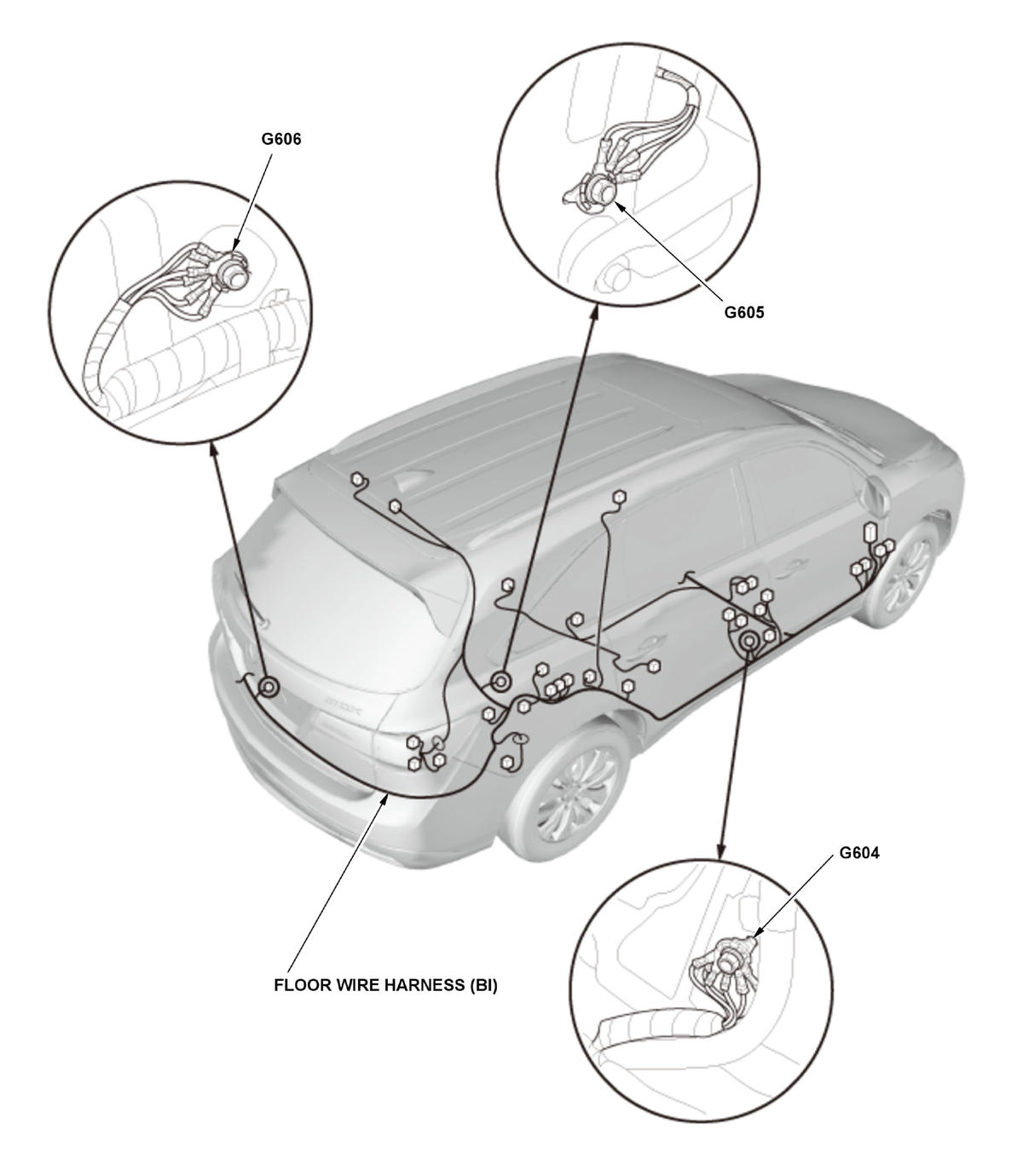

Floor (2/2)

Courtesy of HONDA, U.S.A., INC.

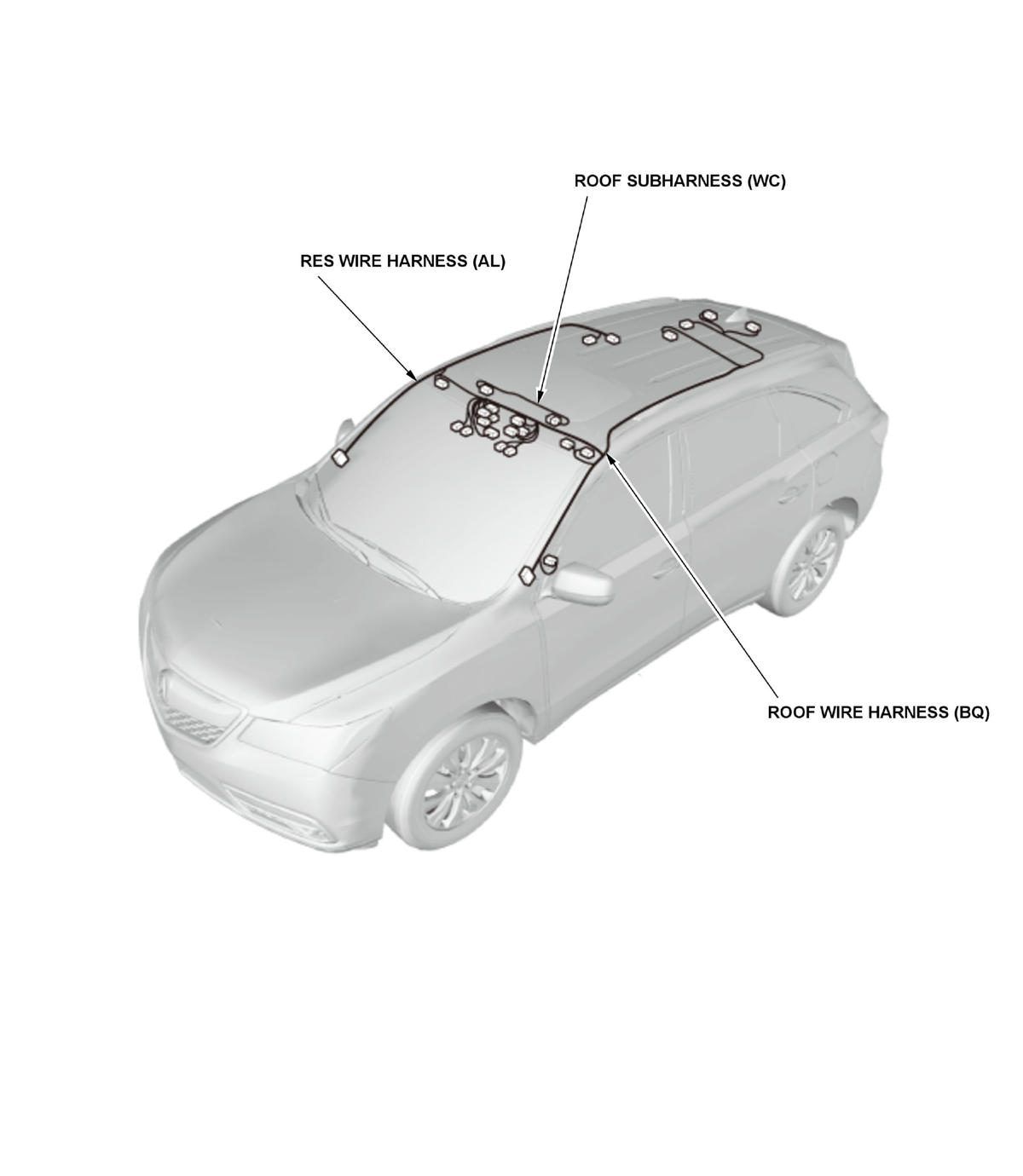

Roof

Courtesy of HONDA, U.S.A., INC.

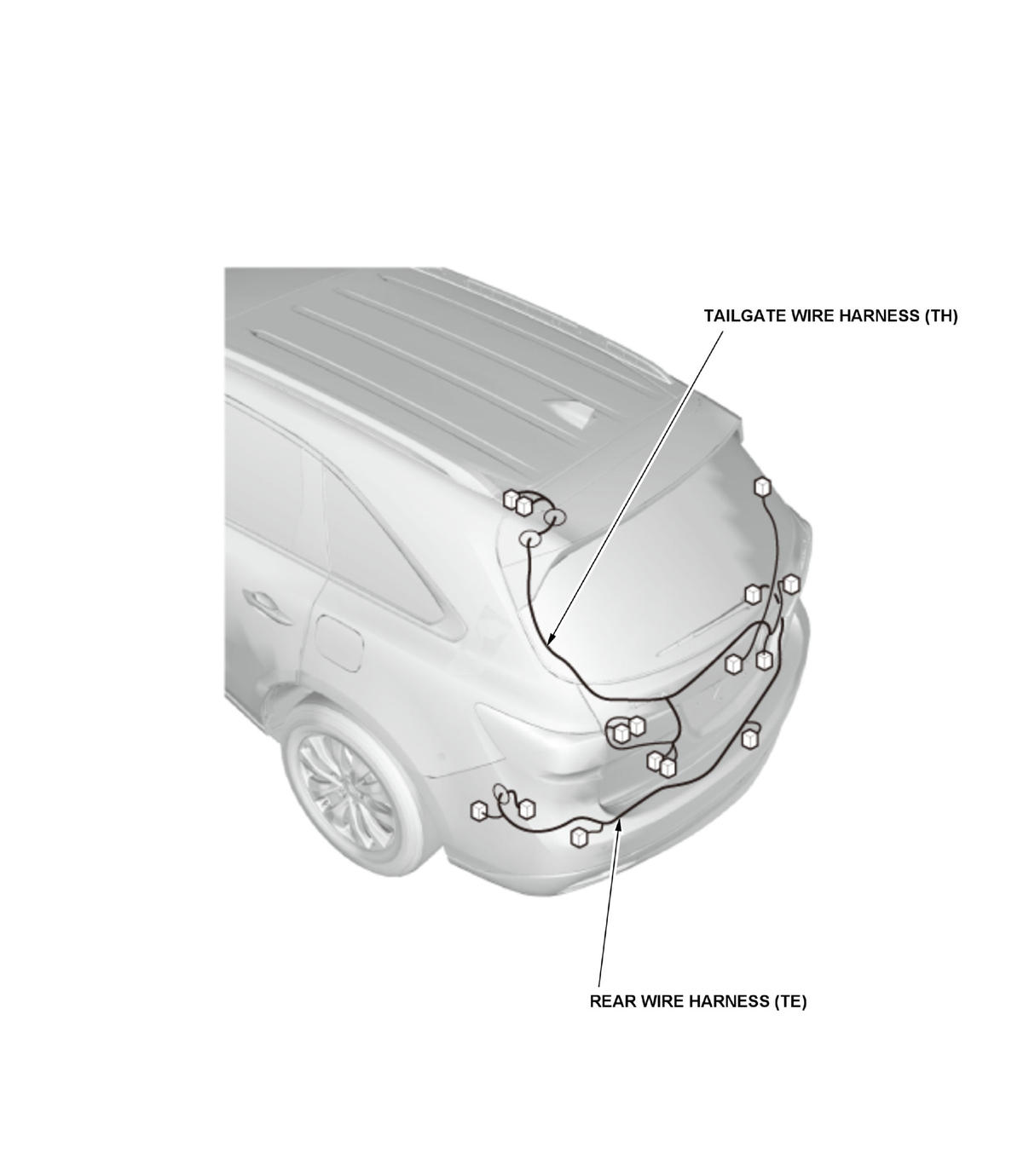

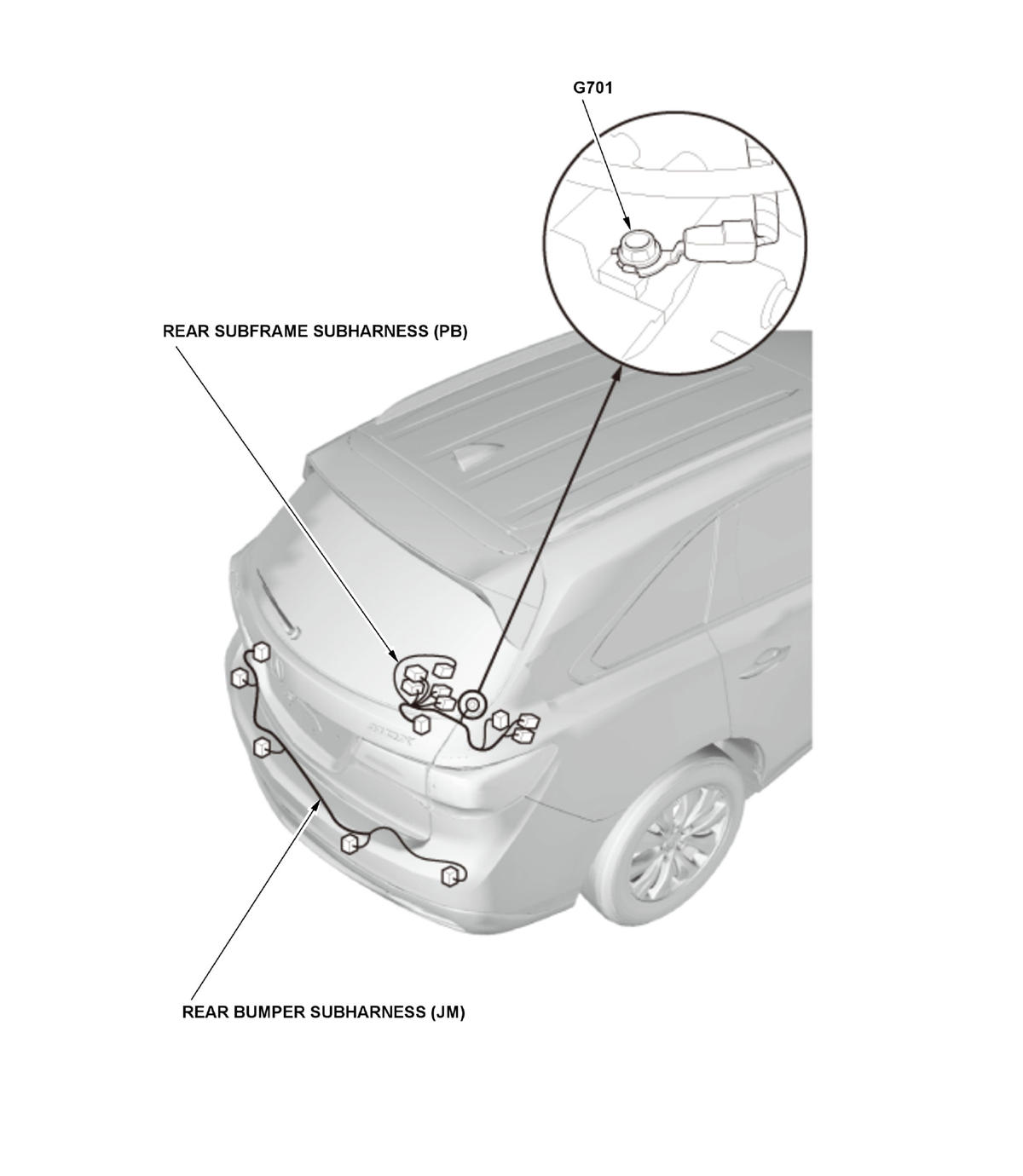

Rear (1/2)

Courtesy of HONDA, U.S.A., INC.

Rear (2/2)

Courtesy of HONDA, U.S.A., INC.

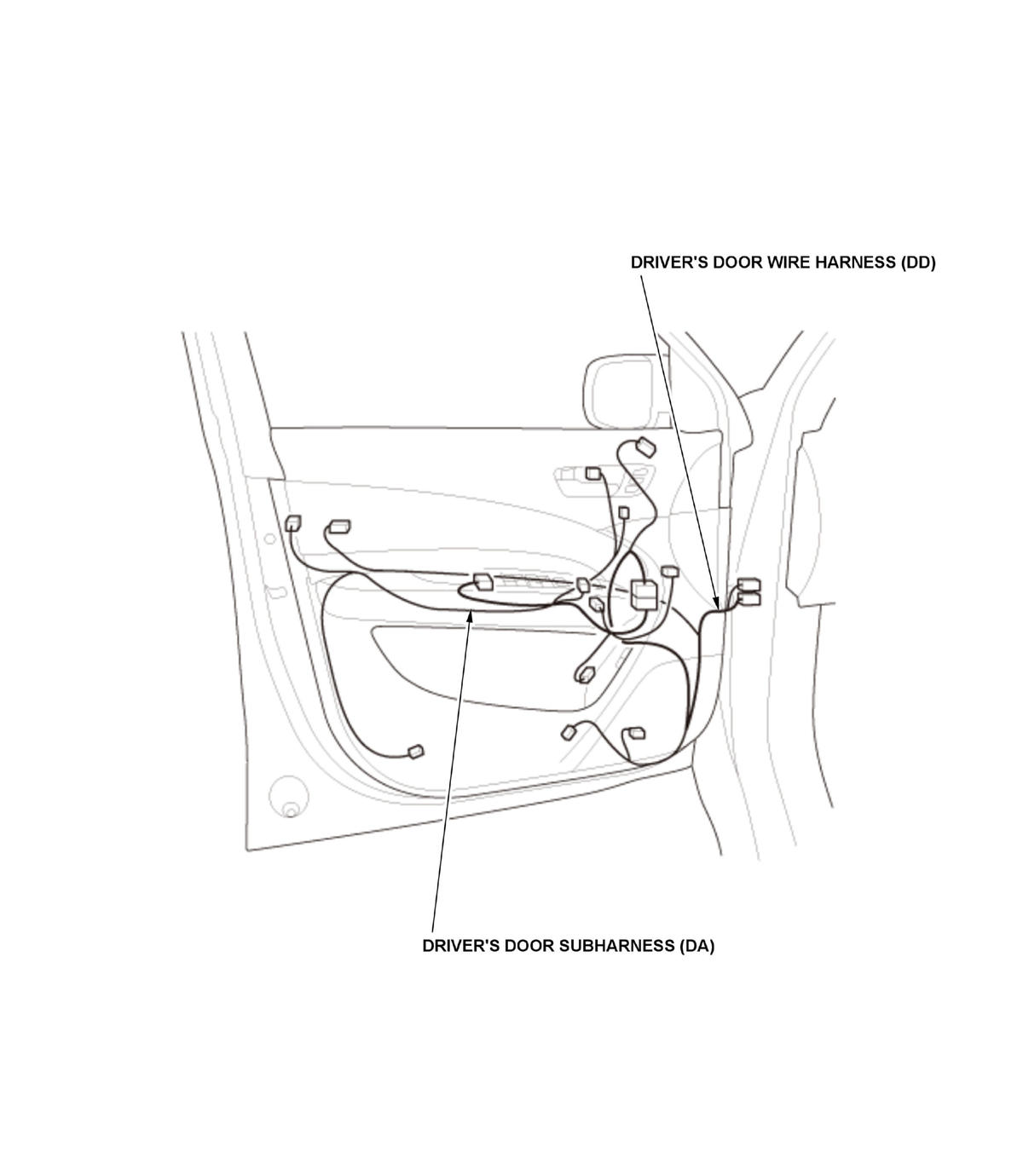

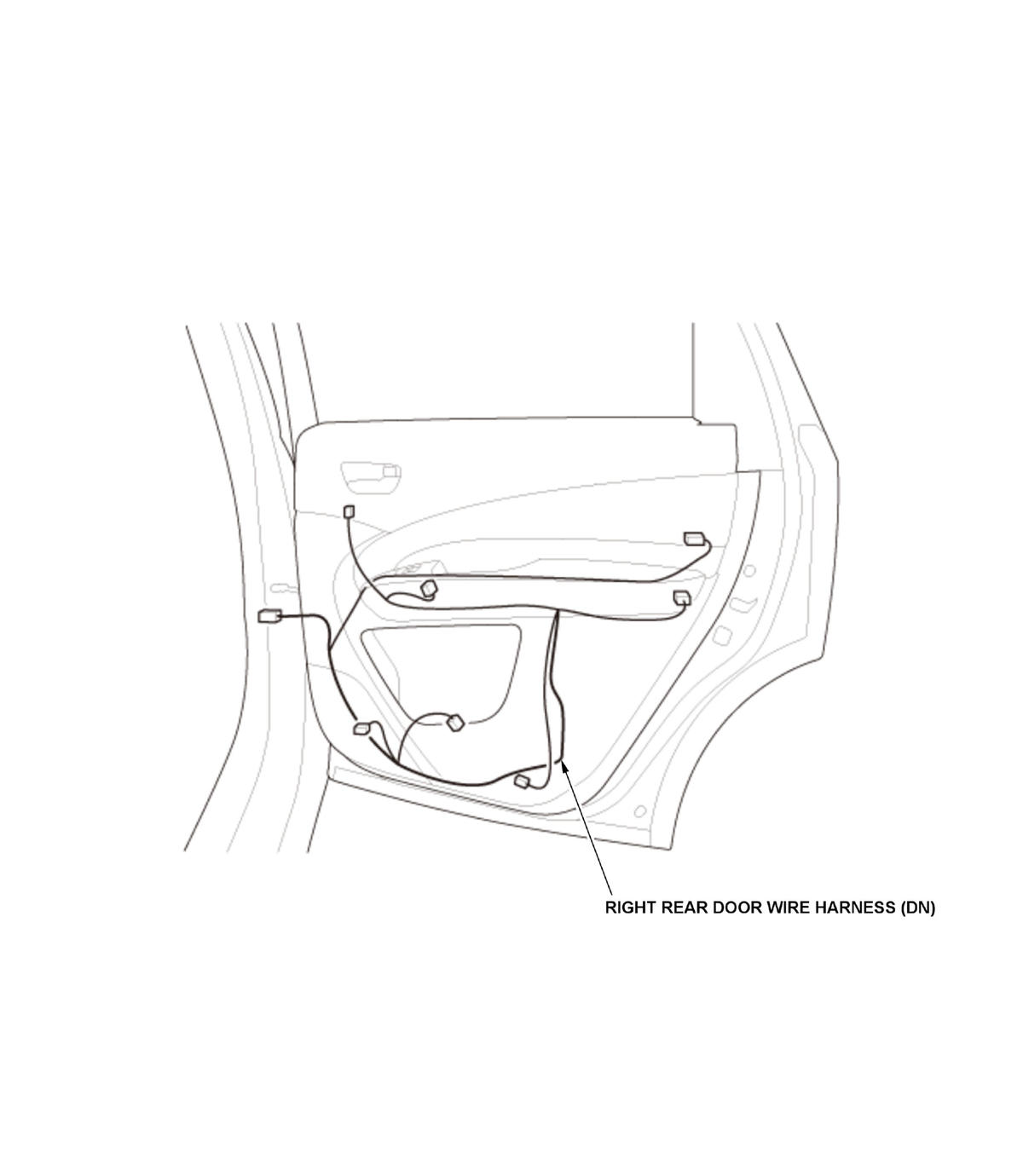

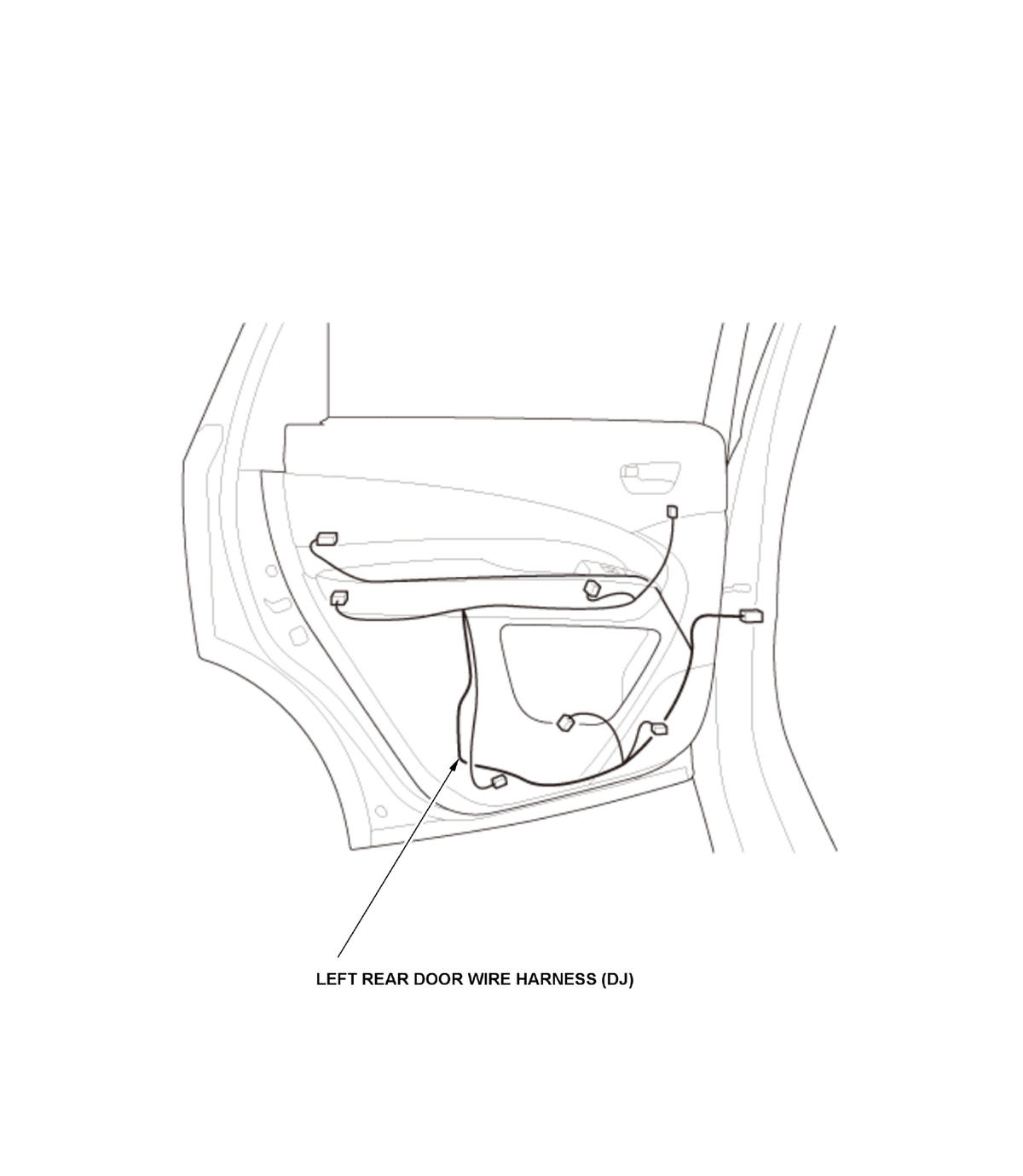

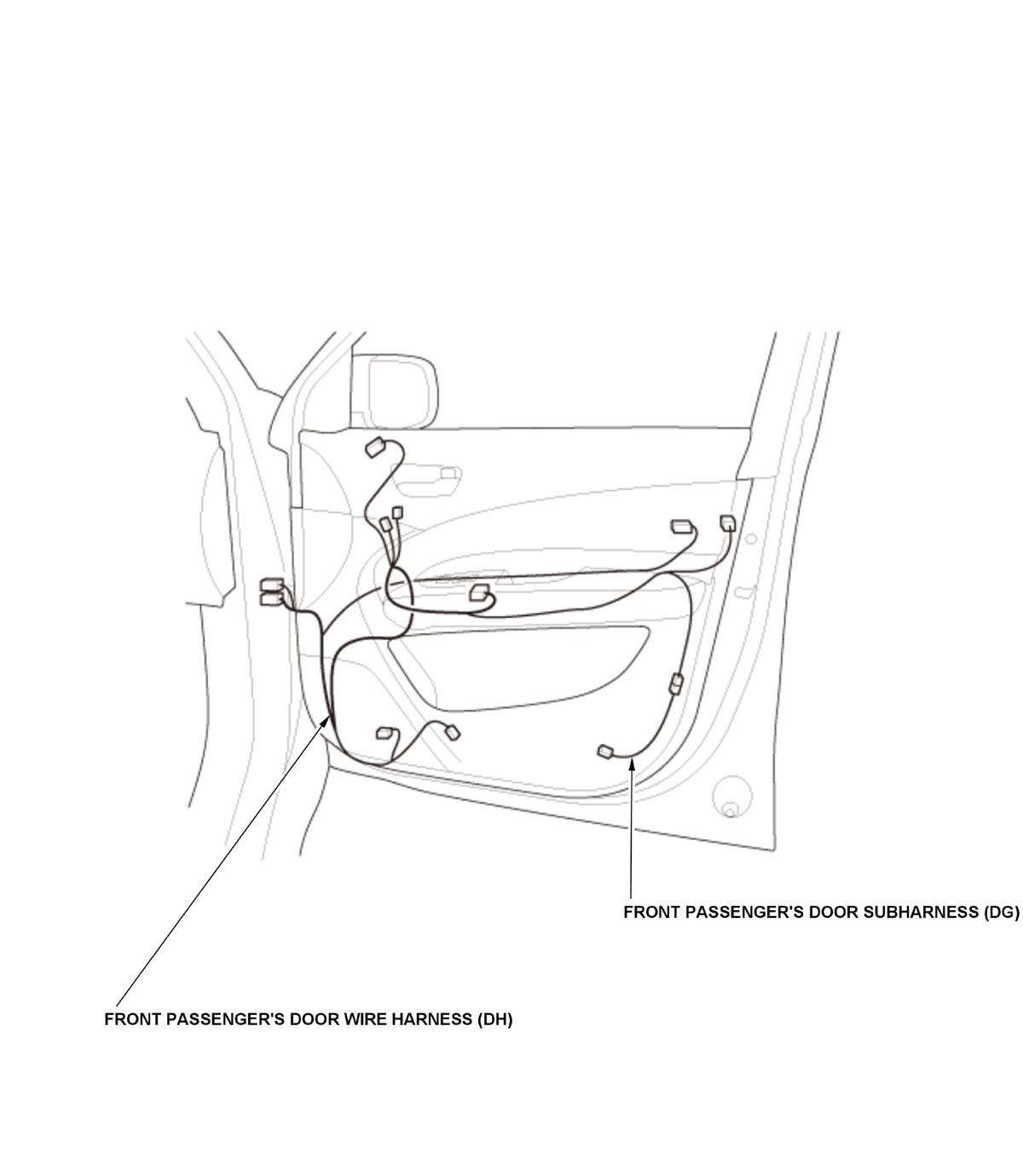

Door (1/4)

Courtesy of HONDA, U.S.A., INC.

Door (2/4)

Courtesy of HONDA, U.S.A., INC.

Door (3/4)

Courtesy of HONDA, U.S.A., INC.

Door (4/4)

Courtesy of HONDA, U.S.A., INC.

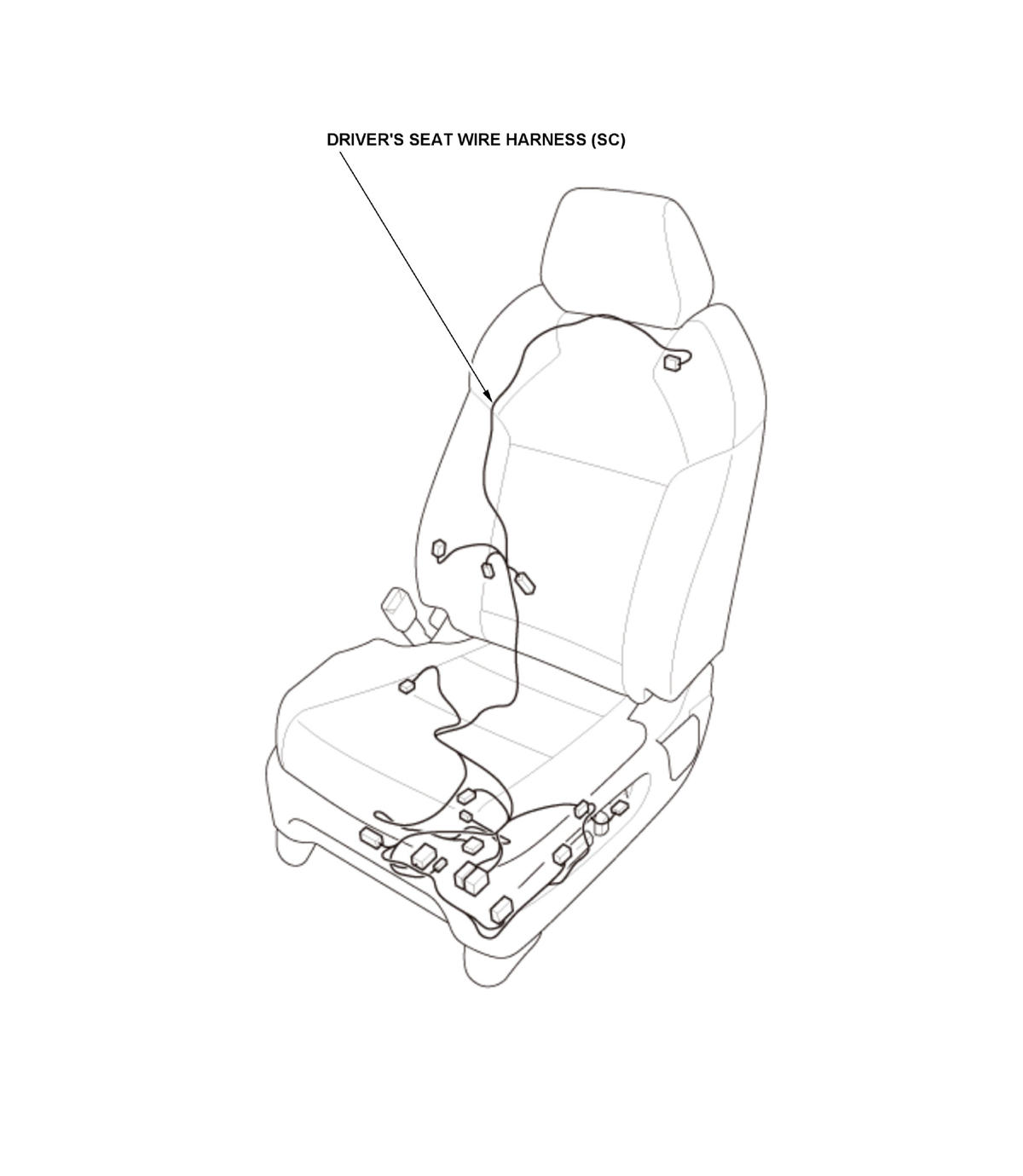

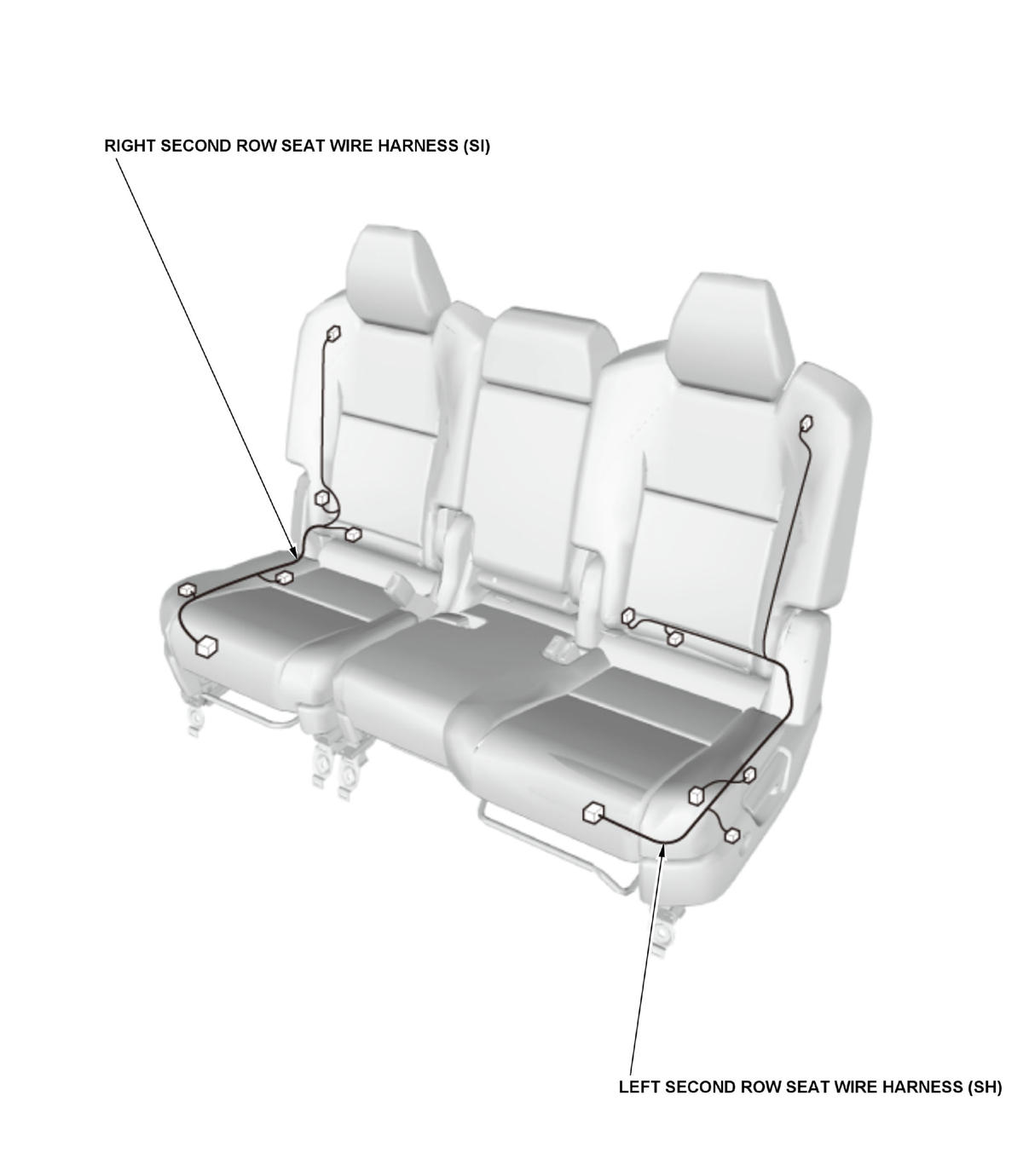

Seat (1/3)

Courtesy of HONDA, U.S.A., INC.

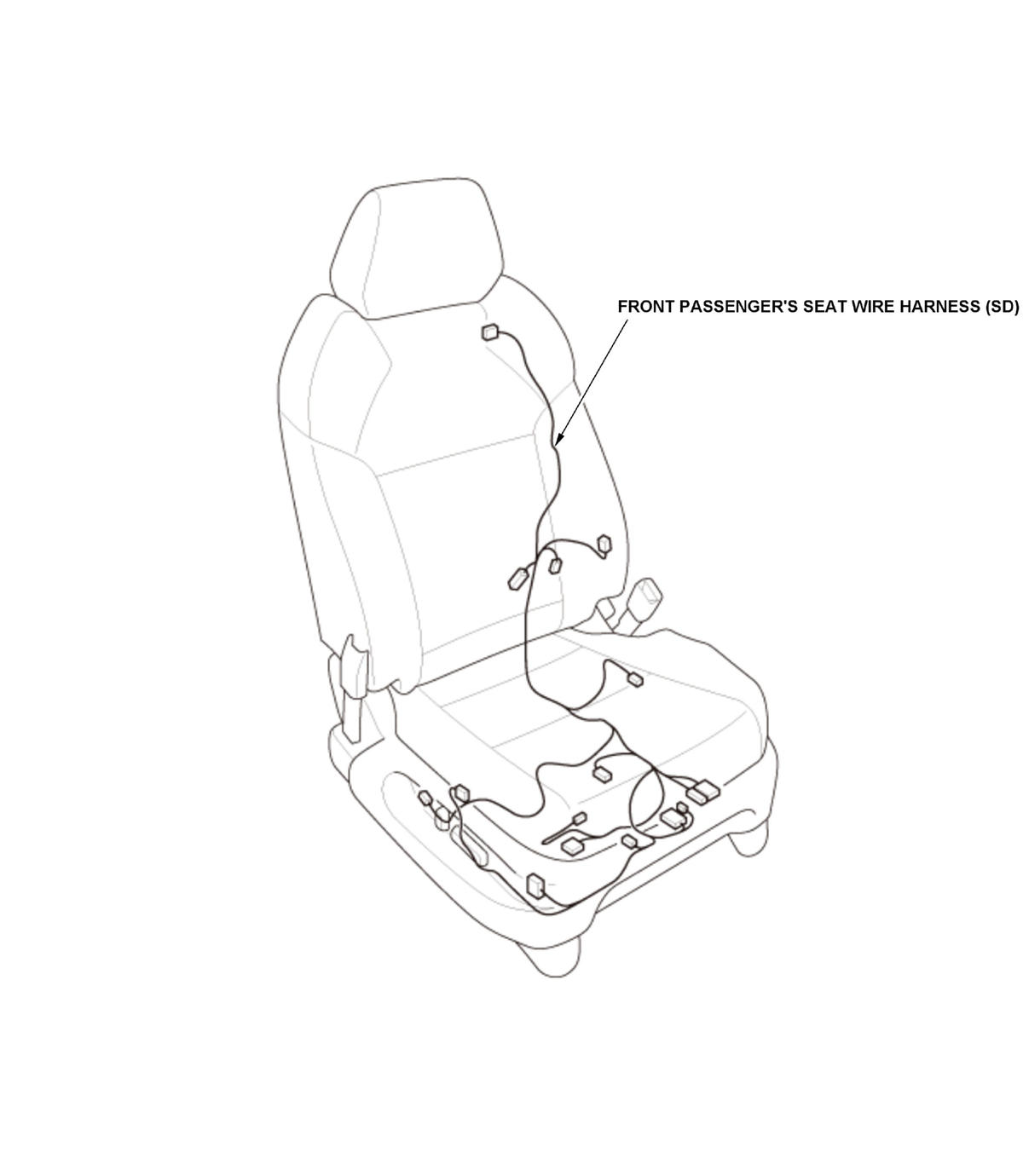

Seat (2/3)

Courtesy of HONDA, U.S.A., INC.

Seat (3/3)

Courtesy of HONDA, U.S.A., INC.
