C417 Connector End View (Female)

G00671004Courtesy of HONDA, U.S.A., INC.
No.  Color  Name
1 GRY +B
2 RED SDNP
3 BRN TCU_GND_2
4 GRY TCU_PG
5 WHT ATP-R
6 BLU ATP-P
7 TAN IG1(VBSOL)
8 LT_GRN SUPP
11 GRN IGNTRX
12 PNK TCU_W/U
13 BLK TCU_GND_1

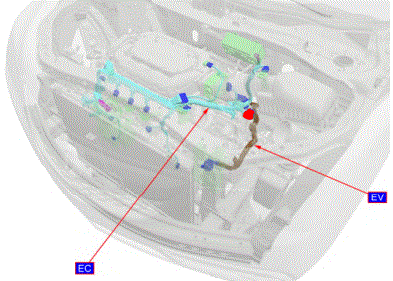

G00671008Courtesy of HONDA, U.S.A., INC.
