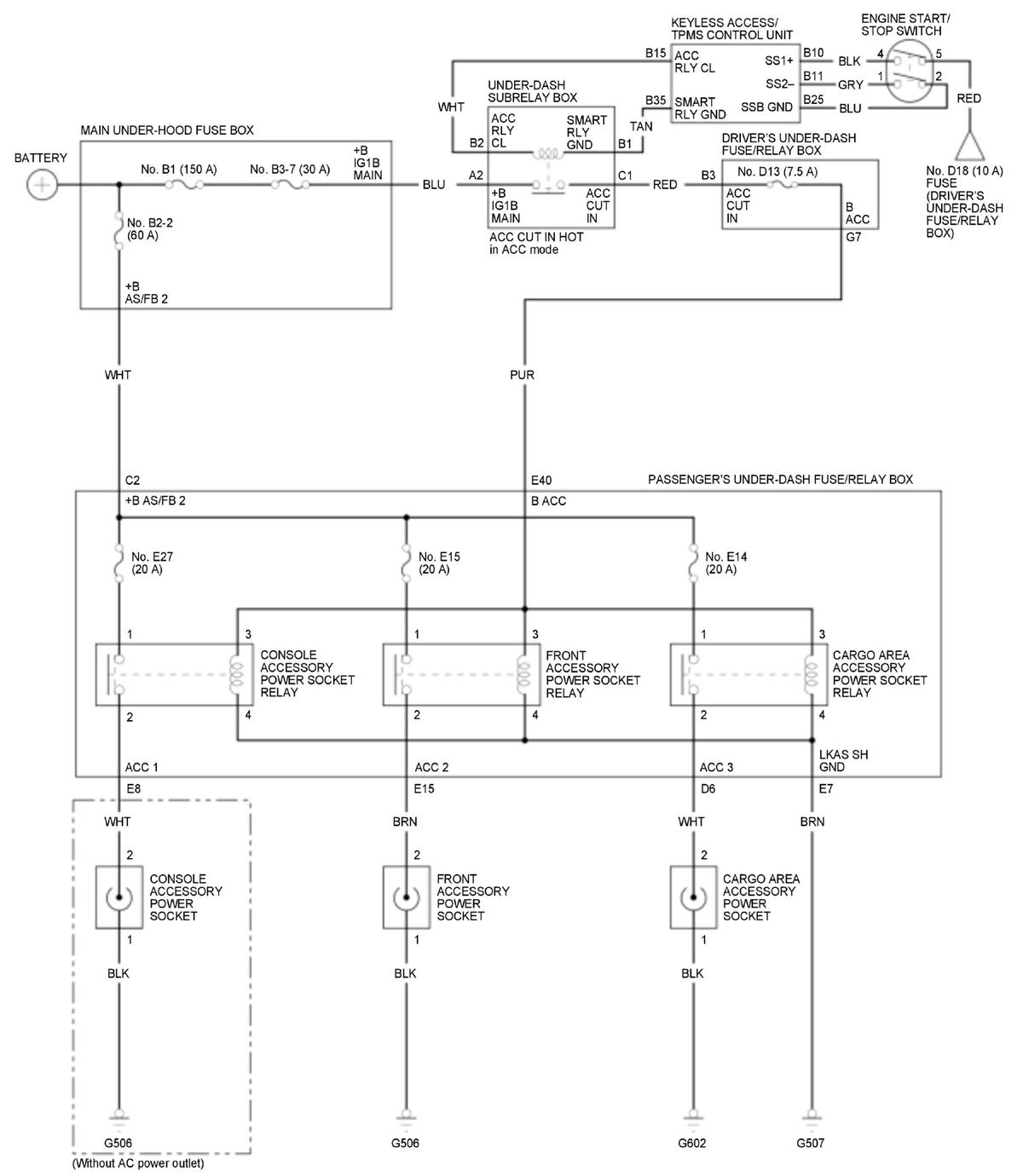

Accessory Power Sockets Circuit Diagram (2017 2018 2019 2020)

GHH317968

Courtesy of HONDA, U.S.A., INC.
