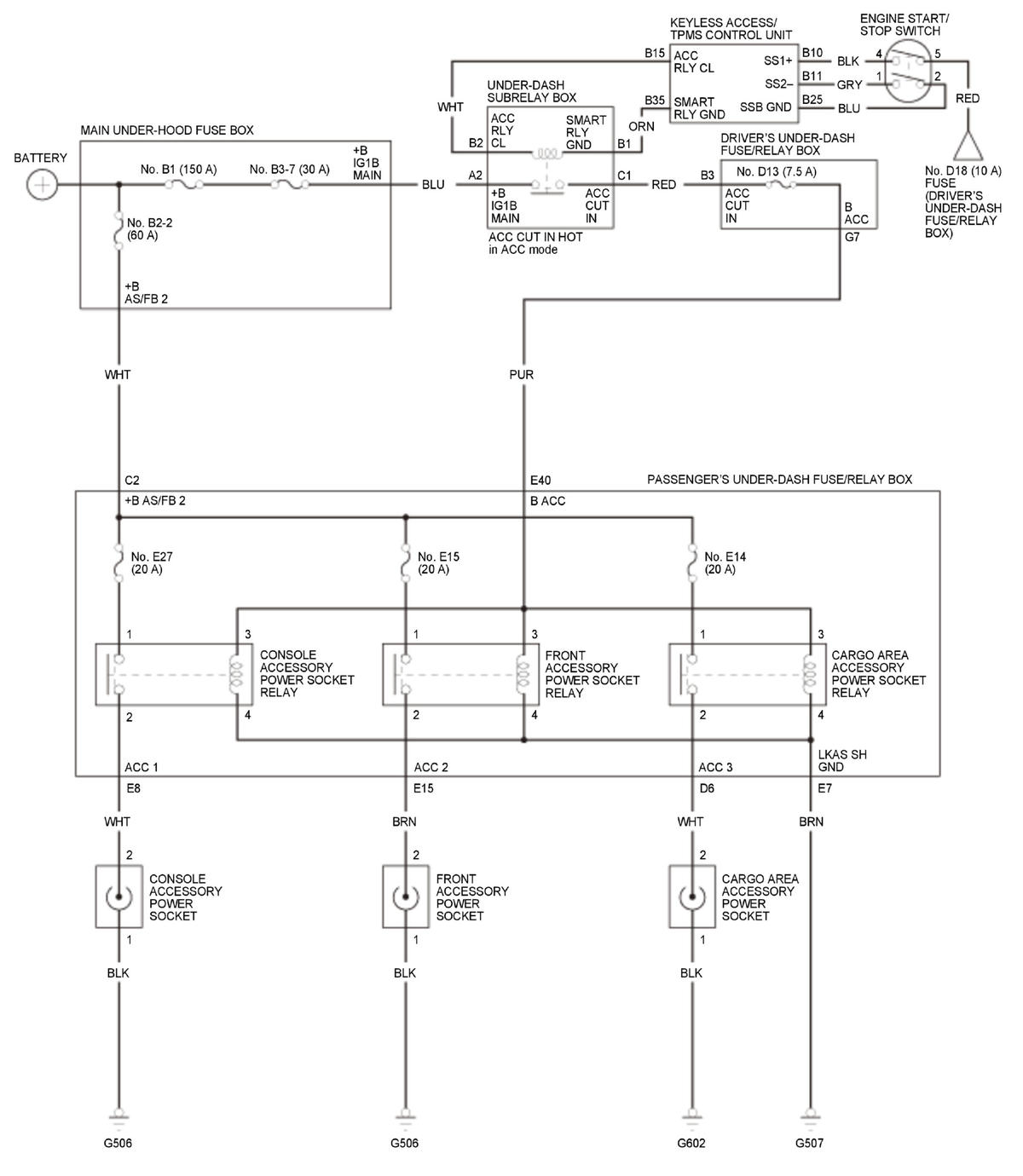

Accessory Power Sockets Circuit Diagram (2014 2015 2016)

GHH317967

Courtesy of HONDA, U.S.A., INC.
