Parking and Back-Up Sensor Switch Removal, Installation, and Test (2017 2018 2019 2020): Test

Parking and Back-Up Sensor Switch - Test

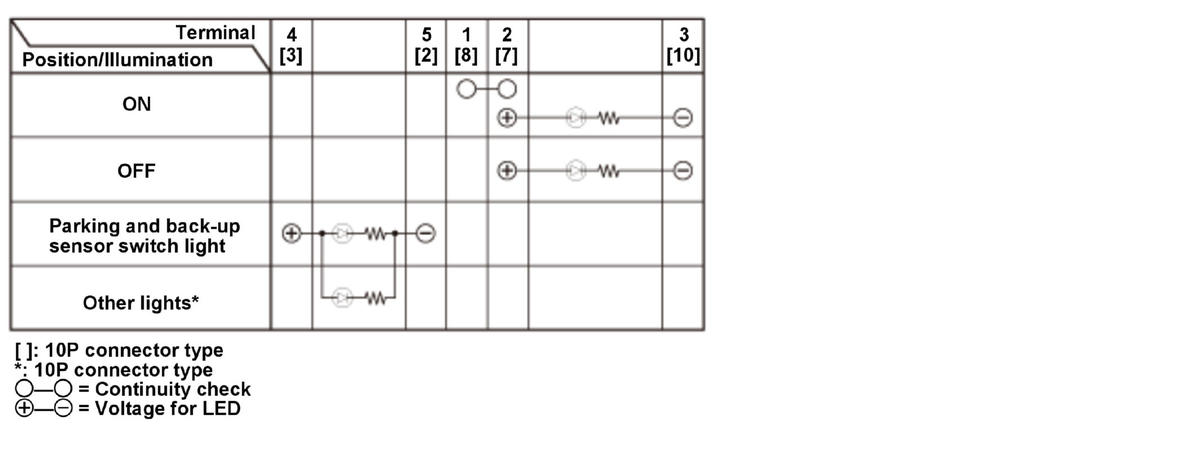

1. Check the parking and back-up sensor switch (A) according to the table.
NOTE:
- When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
- Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
6P connector type

Courtesy of HONDA, U.S.A., INC.

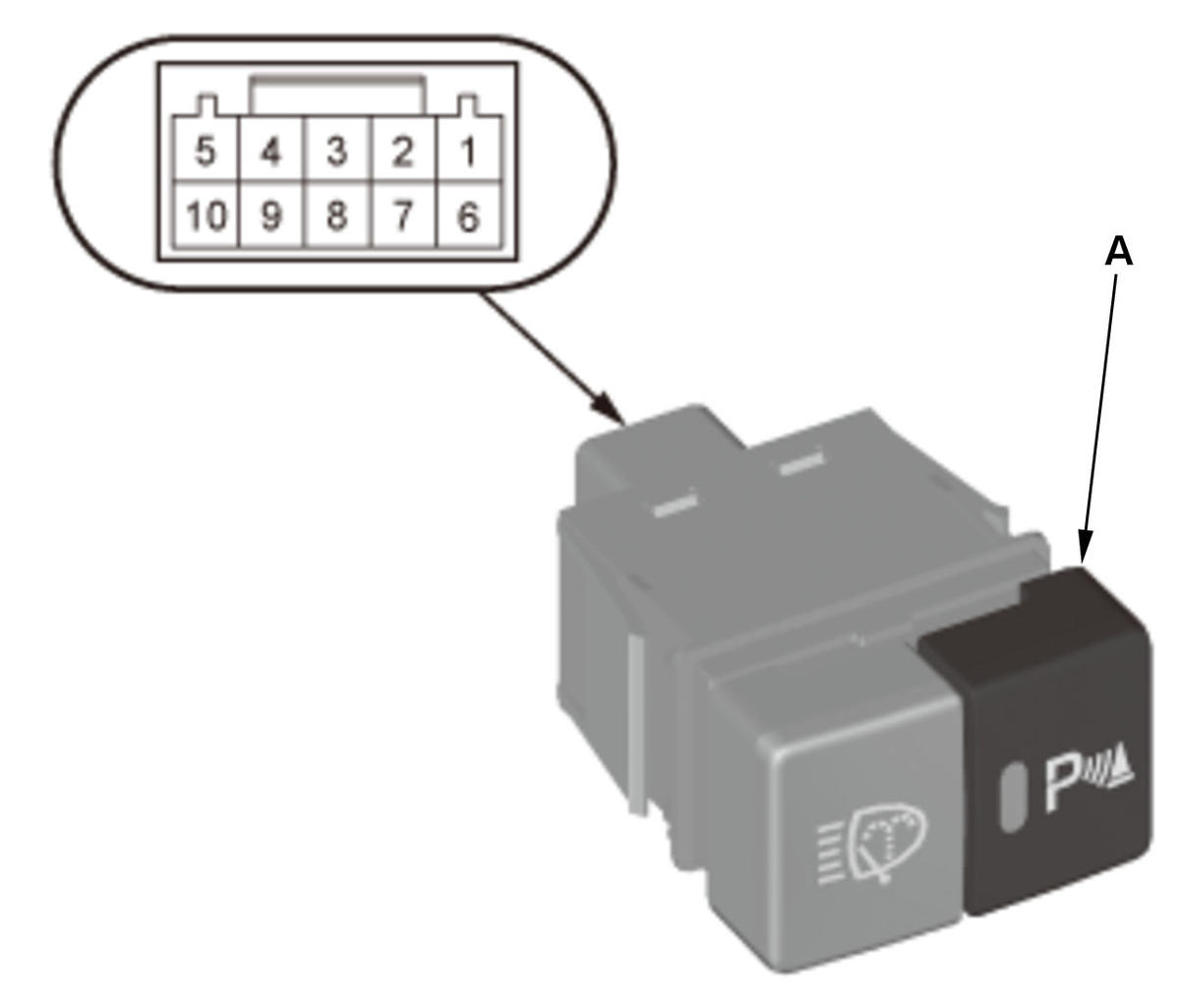

10P connector type

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

2. If the result is not as specified, replace the parking and back-up sensor switch.
