Removal and Installation

  1. Driver's Dashboard Lower Cover - Remove - Refer to: Driver's Dashboard Center Lower Cover Removal and Installation
  2. Parking and Back-Up Sensor Switch - Remove

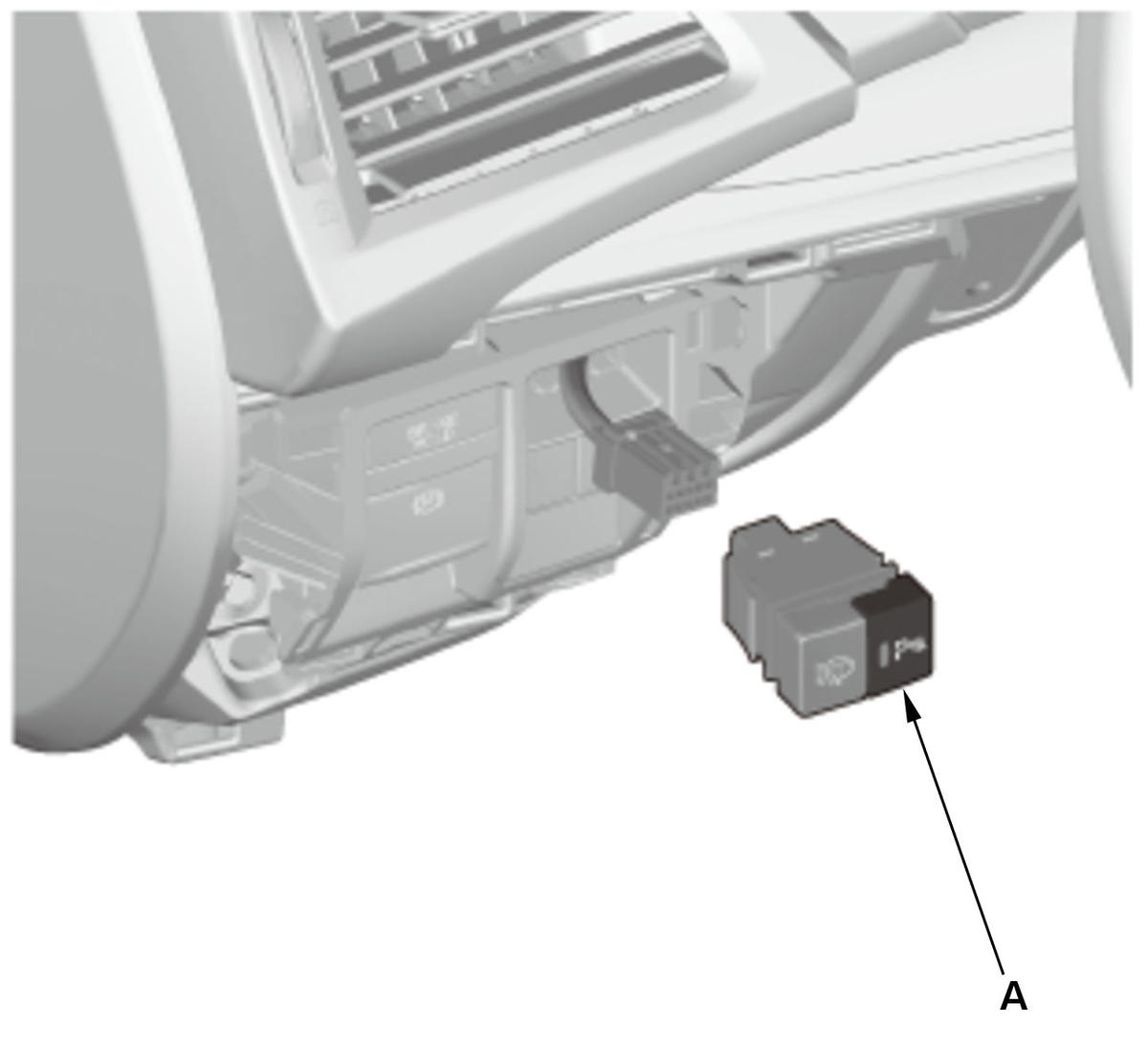

    GHH322105Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the parking and back-up sensor switch (A).

    2. Disconnect the parking and back-up sensor switch connector.
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
