Transmission Range Switch Removal and Installation: Removal

  1. Front Bulkhead Cover - Remove

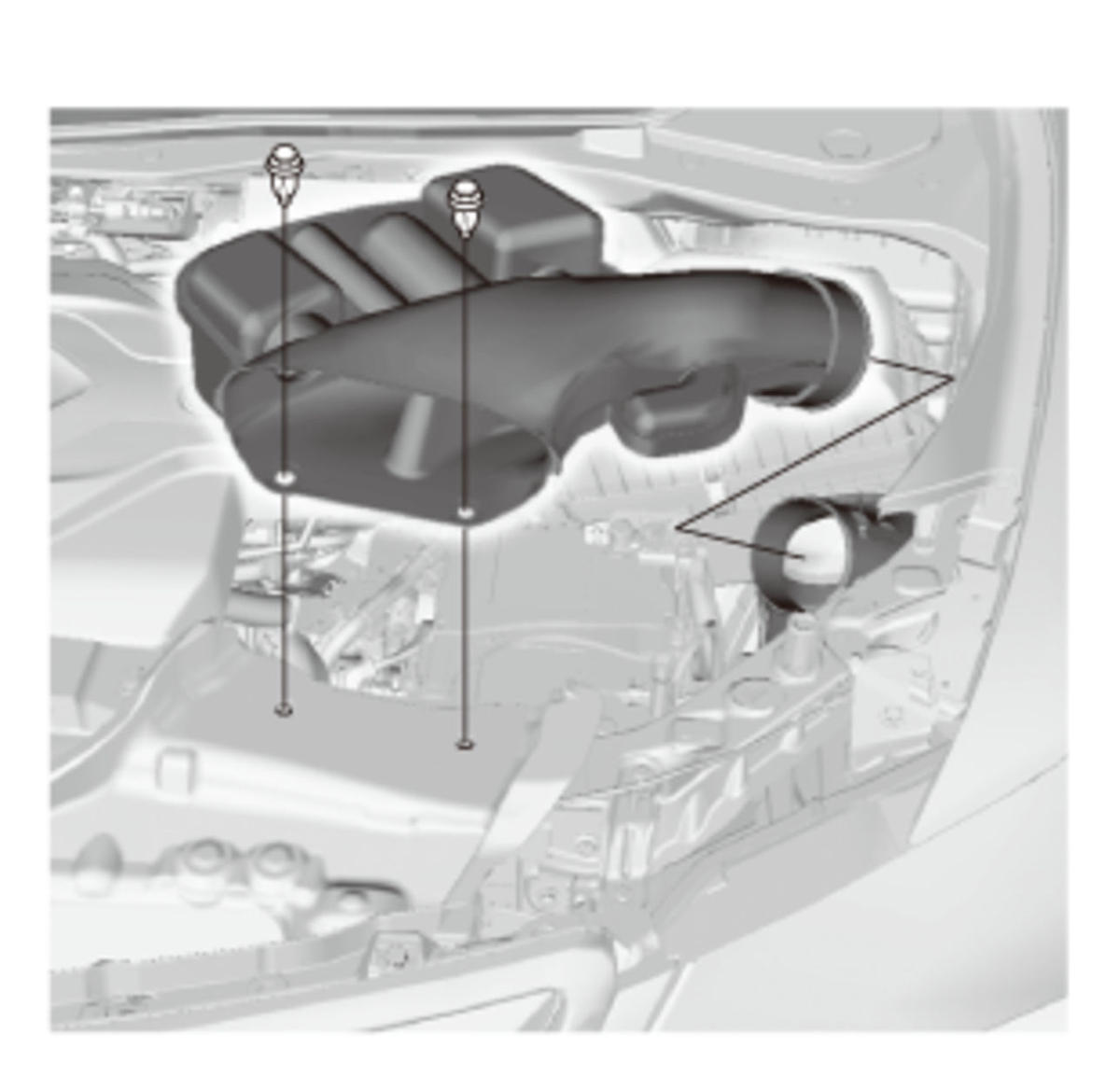

  2. Air Intake Tube - Remove
    GHH322135Courtesy of HONDA, U.S.A., INC.
  3. Battery - Remove - Refer to: Battery Removal and Installation (2014 2015) , or Battery Removal and Installation (2016 2017 2018 2019 2020)
  4. Air Cleaner - Remove
  5. Transmission Range Switch - Remove
    GHH322136Courtesy of HONDA, U.S.A., INC.

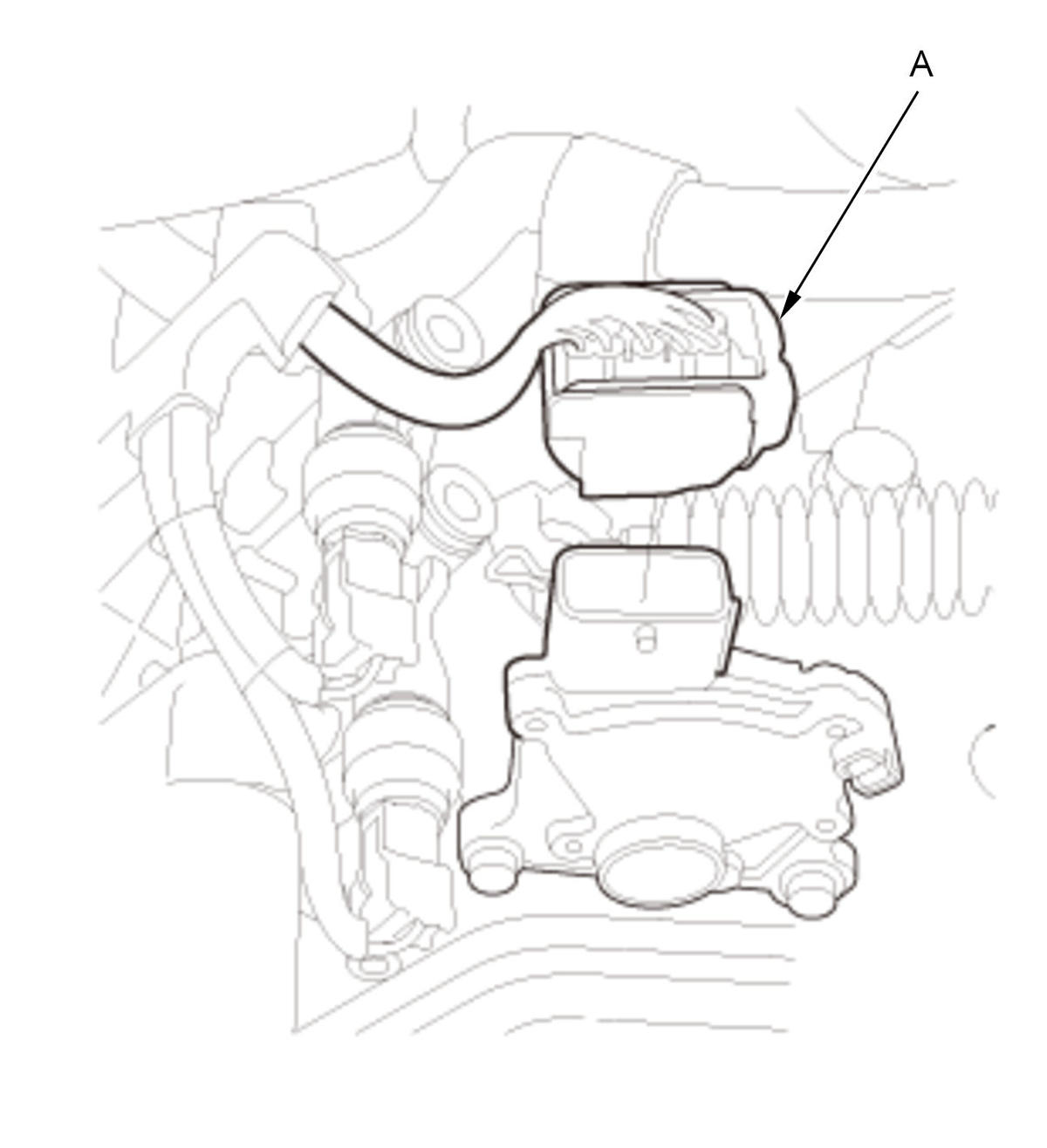

    		 1. Shift the shift lever to N.

    2. Disconnect the transmission range switch connector (A).
    GHH322137Courtesy of HONDA, U.S.A., INC.

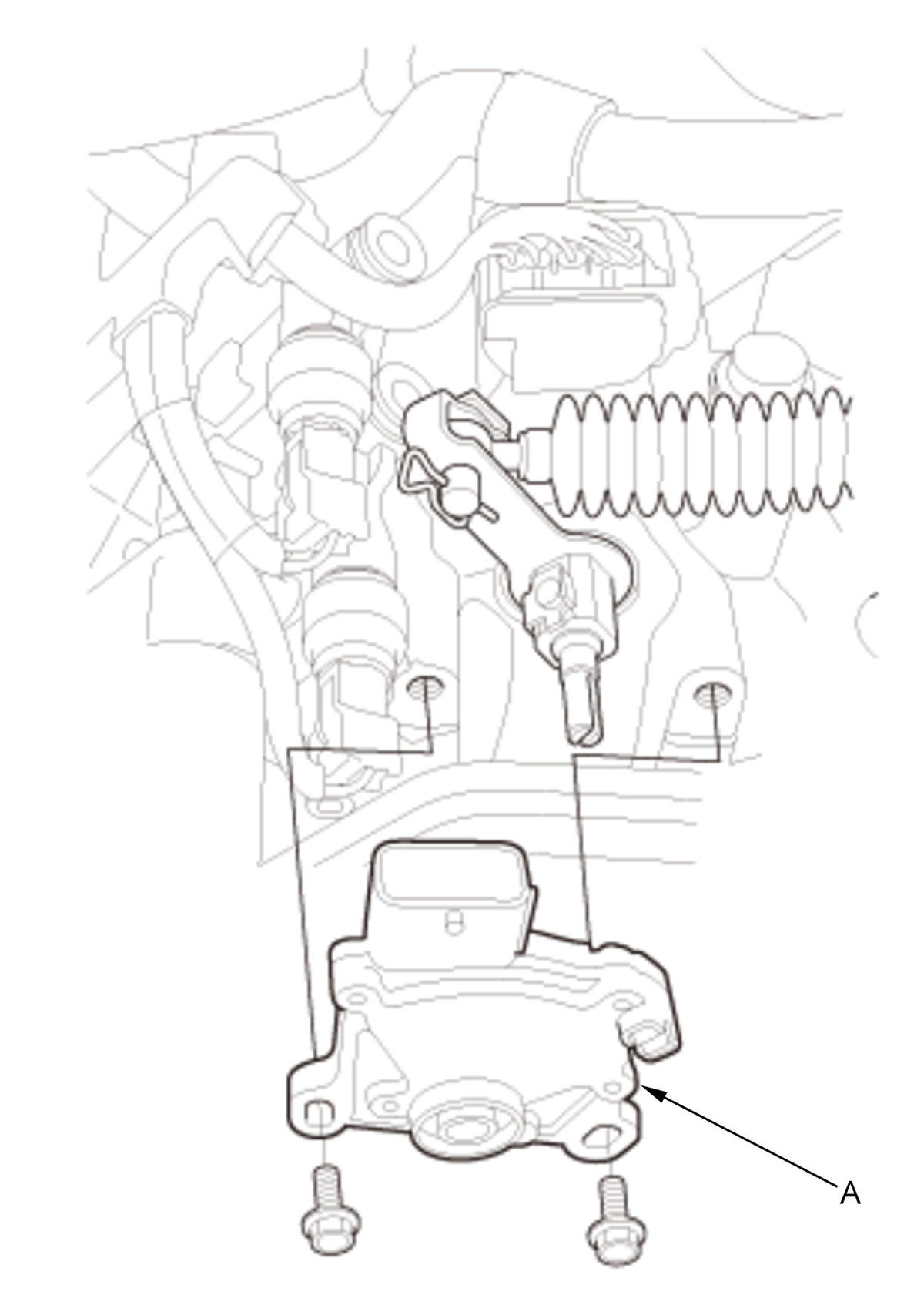

    		 3. Remove the transmission range switch (A).
