Removal and Installation

  1. Center Console Panel - Remove - Refer to: Center Console Removal and Installation
  2. Left Center Console Panel Garnish - Remove
  3. A/T Gear Position Indicator - Remove

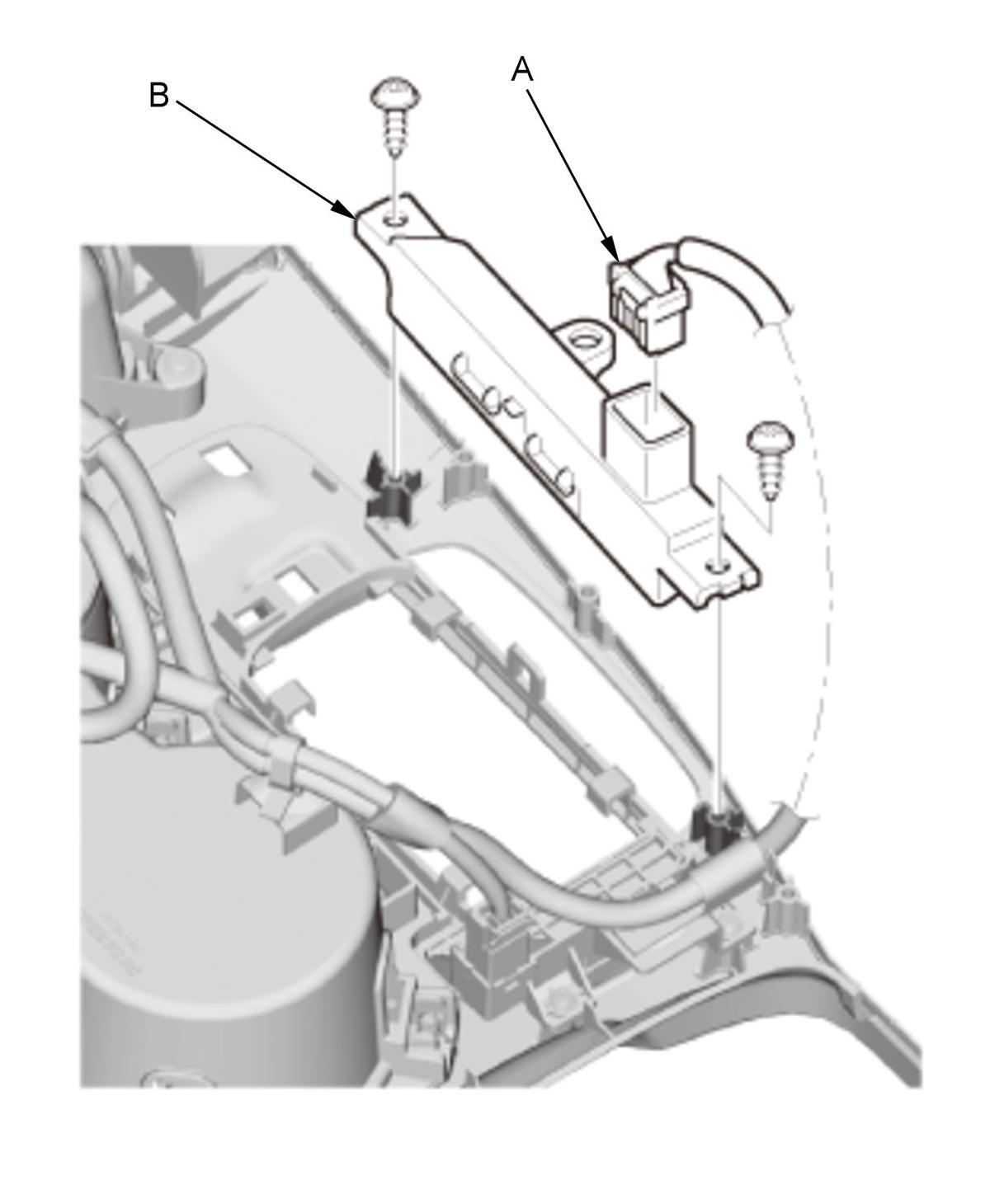

    GHH322128Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the A/T gear position indicator connector (A).

    2. Remove the screw with a TORX T20 bit.

    3. Remove the A/T gear position indicator (B).
  4. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
