VSA DTC 59-1 (2016)
DTC 59-1 : Brake Diag Circuit ON Failure
NOTE: Before you troubleshoot, review the general troubleshooting information - Refer to:
How to Troubleshoot the VSA System (2014 2015 2016)
| DTC Description | DTC | Freeze Frame |
|---|---|---|
| 59-1 Brake Diag Circuit ON Failure |
DTCs (VSA)
- Problem verification
- 1. Turn the vehicle to the ON mode.
- 2. Clear the DTC with the HDS.
- 3. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
- 4. Wait 2 seconds or more without pressing the brake pedal.
- 5. Check for DTCs with the HDS.
DTC Description DTC Freeze Frame 59-1 Brake Diag Circuit ON Failure Is DTC 59-1 indicated?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting - Refer to:
How to Troubleshoot the VSA System (2014 2015 2016)
If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the Freeze data/on-board snapshot.
- Brake light relay check
- 1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Check the brake lights without pressing the brake pedal.
Are the brake lights on?
YES
Replace the brake light relay.
NO
Go to step 3.
- Shorted wire check (BRAKE LAMP line) 1
- 1. Turn the vehicle to the ON mode.
- 2. Check the brake lights without pressing the brake pedal.
Are the brake lights on?
YES
Go to step 4.
NO
Go to step 5.
- Shorted wire check (BRAKE LAMP line) 2
- 1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the following connector.
VSA modulator-control unit 38P connector - 3. Turn the vehicle to the ON mode.
- 4. Check the brake lights without pressing the brake pedal.
Are the brake lights on?
YES
Repair a short to ground in the wire between the brake light relay 5P socket No. 5 and the VSA modulator-control unit 38P connector No. 14.
NO
The BRAKE LAMP wire is OK. Go to step 7.
- Open wire check (STOP SW line)
- 1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Short the SCS line with the HDS.
- 3. Disconnect the following connectors.

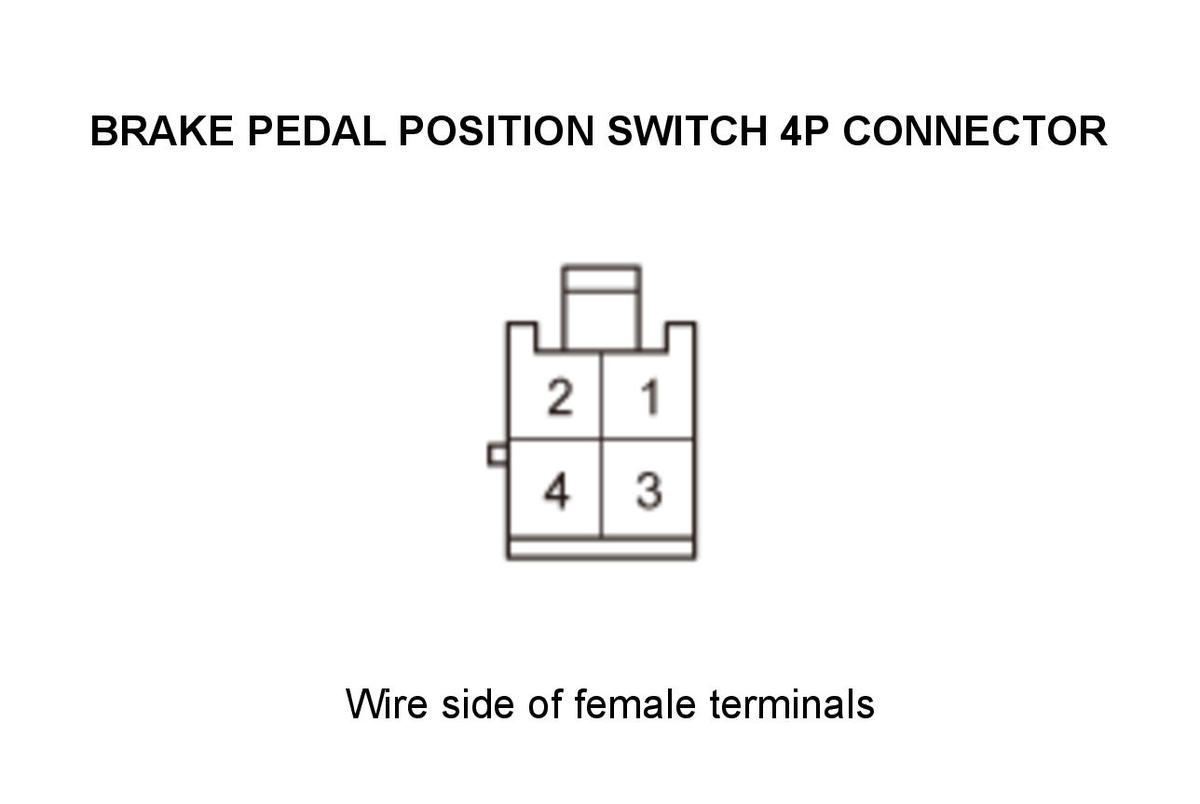

PCM connector A (51P) Brake pedal position switch 4P connector - 4. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode PCM connector A (51P): disconnected Brake pedal position switch 4P connector: disconnected Test point 1 PCM connector A (51P) No. 25 - Refer to:
PCM Connector for Inputs and Outputs (2014 2015) or
PCM Connector for Inputs and Outputs (2016) or
PCM Connector for Inputs and Outputs (2017 2018 2019 2020)Test point 2 Brake pedal position switch 4P connector No. 1 Is there continuity?
YES
The STOP SW wire is OK. Go to step 6.
NO
Repair an open in the wire between the PCM and the brake pedal position switch.
- PCM check (update or substitution)
- 1. Reconnect the following connectors.
PCM connector A (51P) Brake pedal position switch 4P connector - 2. Update the PCM if it does not have the latest software,
or substitute a known-good PCM. Refer to:
PCM Removal and Installation (2016 2017 2018 2019 2020)
- 3. Clear the DTC with the HDS.
- 4. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
- 5. Wait 2 seconds or more without pressing the brake pedal.
- 6. Check for DTCs with the HDS.
DTC Description DTC Freeze Frame 59-1 Brake Diag Circuit ON Failure Is DTC 59-1 indicated?
YES
Go to step 7.
NO
If the PCM was updated, troubleshooting is complete. If the PCM was substituted, replace the original PCM - Refer to:
- VSA modulator-control unit check (update)
- 1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Reconnect the following connector.
VSA modulator-control unit 38P connector (if disconnected) - 3. Update the VSA modulator-control unit if it does not have the latest software.
- 4. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
- 5. Wait 2 seconds or more without pressing the brake pedal.
- 6. Check for DTCs with the HDS.
DTC Description DTC Freeze Frame Is DTC 59-1 indicated?
YES
Check for loose terminals and poor connections in the VSA modulator-control unit 38P connector. If the VSA modulator-control unit was updated and the symptom/indication is still present, replace the VSA modulator-control unit .
NO
Troubleshooting is complete.
