DTC C0031-14, C0034-14, C0037-14, C003A-14

DTC C0031-14  : Left Front Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)

DTC C0034-14  : Right-Front Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)

DTC C0037-14  : Left Rear Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)

DTC C003A-14  : Right Rear Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)

NOTE:  Before you troubleshoot, review the general troubleshooting information - Refer to:

How to Troubleshoot the VSA System (2014 2015 2016) or

How to Troubleshoot the VSA System (2017 2018 2019 2020) .

DTC (VSA)

1. Problem verification

   - 1. Turn the vehicle to the ON mode.

   - 2. Clear the DTC with the HDS.

   - 3. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.

   - 4. Check for DTCs with the HDS.

   DTC Description	DTC	Freeze Frame
   C0031-14 Left Front Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)
   C0034-14 Right-Front Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)
   C0037-14 Left Rear Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)
   C003A-14 Right Rear Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)

   Is DTC C0031-14, C0034-14, C0037-14, or C003A-14 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting - Refer to:

   How to Troubleshoot the VSA System (2014 2015 2016) or

   How to Troubleshoot the VSA System (2017 2018 2019 2020) .

   If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

2. Shorted wire check (Wheel speed sensor lines to ground)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   VSA modulator-control unit 38P connector

   - 3. Check for continuity between body ground and the appropriate wheel speed sensor +B and GND terminals of the VSA modulator-control unit 38P connector individually (see table).

   Test condition	Vehicle OFF (LOCK) mode
   	VSA modulator-control unit 38P connector: disconnected

   Connector	DTC	Test point 1	Test point 2
   VSA modulator-control unit 38P connector - Refer to: VSA Modulator-Control Unit Connector for Inputs and Outputs (2014 2015), or VSA Modulator-Control Unit Connector for Inputs and Outputs (2016), or VSA Modulator-Control Unit Connector for Inputs and Outputs (2017 2018 2019 2020)	C0031-14 Left-front	No. 21	Body ground
   		No. 9
   	C0034-14 Right-front	No. 24
   		No. 13
   	C0037-14 Left-rear	No. 33
   		No. 22
   	C003A-14 Right-rear	No. 23
   		No. 35

   Is there continuity?

   YES

   Wheel speed sensor wires are shorted to ground. Go to step 3.

   NO

   Wheel speed sensor wires are not shorted to ground. Go to step 4.

3. Wheel speed sensor (s) check 1

   - 1. Disconnect the following connector.

   Appropriate wheel speed sensor 2P connector

   - 2. On the sensor side, check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	VSA modulator-control unit 38P connector: disconnected
   	Appropriate wheel speed sensor 2P connector: disconnected
   Test circuit 1

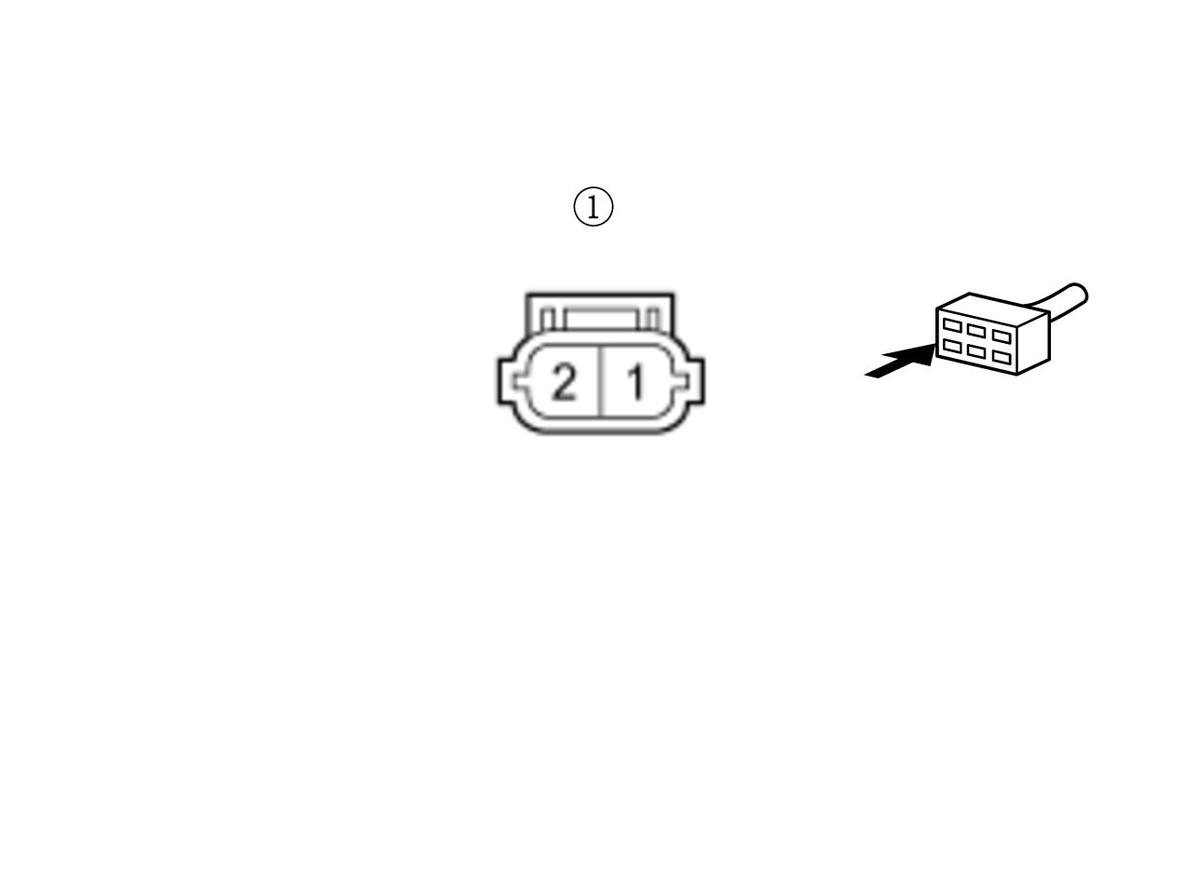

   Test point 1	Appropriate wheel speed sensor 2P connector (male terminals) No. 1:
   Test point 2	Body ground

   Test circuit 2
   Test point 1	Appropriate wheel speed sensor 2P connector (male terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Replace the appropriate wheel speed sensor - Refer to:

   Wheel Speed Sensor Removal and Installation (2014 2015 2016) , or

   Wheel Speed Sensor Removal and Installation (2017 2018 2019 2020), .

   NO

   Repair a short to ground in the wire between the VSA modulator-control unit and the wheel speed sensor.

4. Shorted wire check (Wheel speed sensor lines to power)

   - 1. Turn the vehicle to the ON mode.

   - 2. Measure the voltage between body ground and the appropriate wheel speed sensor +B and GND terminals of the VSA modulator-control unit 38P connector individually (see table).

   Test condition	Vehicle ON mode
   	VSA modulator-control unit 38P connector: disconnected

   Connector	DTC	Test point 1	Test point 2
   VSA modulator-control unit 38P connector - Refer to: VSA Modulator-Control Unit Connector for Inputs and Outputs (2014 2015), or VSA Modulator-Control Unit Connector for Inputs and Outputs (2016), or VSA Modulator-Control Unit Connector for Inputs and Outputs (2017 2018 2019 2020)	C0031-14 Left-front	No. 21	Body ground
   		No. 9
   	C0034-14 Right-front	No. 24
   		No. 13
   	C0037-14 Left-rear	No. 33
   		No. 22
   	C003A-14 Right-rear	No. 23
   		No. 35

   Is there 1 V or more?

   YES

   The wheel speed sensor wires are shorted to power. Go to step 5.

   NO

   The wheel speed sensor wires are not shorted to power. Go to step 6.

5. Wheel speed sensor (s) check 2

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   Appropriate wheel speed sensor 2P connector

   - 3. Turn the vehicle to the ON mode.

   - 4. On the sensor side, measure the voltage between test points 1 and 2.

   Test condition

   Vehicle ON mode

   	VSA modulator-control unit 38P connector: disconnected
   	Appropriate wheel speed sensor 2P connector: disconnected
   Test circuit 1
   Test point 1	Appropriate wheel speed sensor 2P connector (male terminals) No. 1:
   Test point 2	Body ground

   Test circuit 2
   Test point 1	Appropriate wheel speed sensor 2P connector (male terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there 1 V or more?

   YES

   Replace the appropriate wheel speed sensor - Refer to:

   Wheel Speed Sensor Removal and Installation (2014 2015 2016) , or

   Wheel Speed Sensor Removal and Installation (2017 2018 2019 2020), .

   NO

   Repair a short to power in the wire between the VSA modulator-control unit and the appropriate wheel speed sensor.

6. Shorted wire check (Wheel speed sensor lines wire to wire)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   Appropriate wheel speed sensor 2P connector

   - 3. Check for continuity between the appropriate VSA modulator-control unit 38P connector wheel speed sensor +B and GND terminals (see table).

   Test condition	Vehicle OFF (LOCK) mode
   	VSA modulator-control unit 38P connector: disconnected
   	Appropriate wheel speed sensor 2P connector: disconnected

   Connector	DTC	Test point 1	Test point 2
   VSA modulator-control unit 38P connector - Refer to: VSA Modulator-Control Unit Connector for Inputs and Outputs (2014 2015), or VSA Modulator-Control Unit Connector for Inputs and Outputs (2016), or VSA Modulator-Control Unit Connector for Inputs and Outputs (2017 2018 2019 2020)	C0031-14 Left-front	No. 21	No. 9
   	C0034-14 Right-front	No. 24	No. 13
   	C0037-14 Left-rear	No. 33	No. 22
   	C003A-14 Right-rear	No. 23	No. 35

   Is there continuity?

   YES

   Repair a short in the wires between the VSA modulator-control unit and the appropriate wheel speed sensor.

   NO

   The wheel speed sensor wires are not shorted in the wires. Go to step 7.

7. Open wire check (Wheel speed sensor lines) 1

   - 1. Check for continuity between the appropriate VSA modulator-control unit 38P connector terminal and the appropriate wheel speed sensor 2P connector terminal (see table).

   Test condition	Vehicle OFF (LOCK) mode
   	VSA modulator-control unit 38P connector: disconnected
   	Appropriate wheel speed sensor 2P connector: disconnected

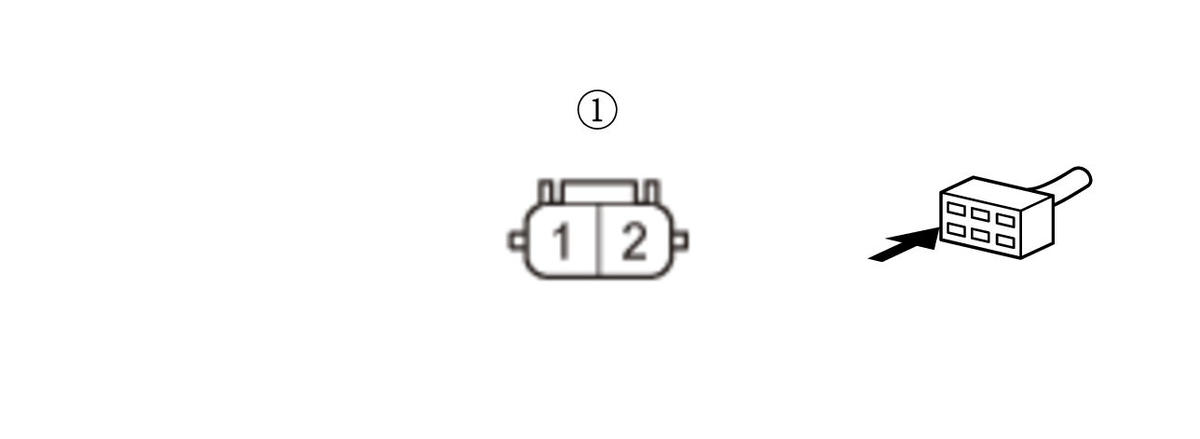

   DTC	VSA modulator-control unit 38P connector - Refer to: VSA Modulator-Control Unit Connector for Inputs and Outputs (2014 2015), or VSA Modulator-Control Unit Connector for Inputs and Outputs (2016), or VSA Modulator-Control Unit Connector for Inputs and Outputs (2017 2018 2019 2020)	Appropriate Wheel Speed Sensor 2P Connector (female terminals) Terminal:
   C0031-14 Left-front	No. 21	No. 1
   C0034-14 Right-front	No. 24	No. 1
   C0037-14 Left-rear	No. 33	No. 1
   C003A-14 Right-rear	No. 23	No. 1

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 8.

   NO

   Repair an open in the wire between the VSA modulator-control unit and the appropriate wheel speed sensor.

8. Open wire check (Wheel speed sensor lines) 2

   - 1. Check for continuity between the appropriate VSA modulator-control unit 38P connector terminal and the appropriate wheel speed sensor 2P connector terminal (see table).

   Test condition	Vehicle OFF (LOCK) mode
   	VSA modulator-control unit 38P connector: disconnected
   	Appropriate wheel speed sensor 2P connector: disconnected

   DTC	VSA modulator-control unit 38P connector - Refer to: VSA Modulator-Control Unit Connector for Inputs and Outputs (2014 2015), or VSA Modulator-Control Unit Connector for Inputs and Outputs (2016), or VSA Modulator-Control Unit Connector for Inputs and Outputs (2017 2018 2019 2020)	Appropriate Wheel Speed Sensor 2P Connector (female terminals) Terminal:
   C0031-14 Left-front	No. 9	No. 2
   C0034-14 Right-front	No. 13	No. 2
   C0037-14 Left-rear	No. 22	No. 2
   C003A-14 Right-rear	No. 35	No. 2

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The wheel speed sensor wires are OK. Go to step 9.

   NO

   Repair an open in the wire between the VSA modulator-control unit and the appropriate wheel speed sensor.

9. Wheel speed sensor (s) check (substitution)

   - 1. Substitute a known-good wheel speed sensor.  Refer to:

   Wheel Speed Sensor Removal and Installation (2014 2015 2016) , or

   Wheel Speed Sensor Removal and Installation (2017 2018 2019 2020), .

   DTC	Appropriate Wheel Speed Sensor
   C0031-14	Left-front
   C0034-14	Right-front
   C0037-14	Left-rear
   C003A-14	Right-rear

   - 2. Reconnect the following connectors.

   VSA modulator-control unit 38P connector

   Wheel speed sensor 2P connector

   - 3. Turn the vehicle to the ON mode.

   - 4. Clear the DTC with the HDS.

   - 5. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.

   - 6. Check for DTCs with the HDS.

   DTC Description	DTC	Freeze Frame
   C0031-14 Left Front Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)
   C0034-14 Right-Front Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)
   C0037-14 Left Rear Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)
   C003A-14 Right Rear Wheel Speed Sensor Circuit Failure (Circuit Short To Ground or Open)

   Is DTC C0031-14, C0034-14, C0037-14, or C003A-14 indicated?

   YES

   Check for loose terminals and poor connections in the VSA modulator-control unit 38P connector. If they are OK, replace the VSA modulator-control unit .

   NO

   Replace the original wheel speed sensor - Refer to:

   Wheel Speed Sensor Removal and Installation (2014 2015 2016) , or

   Wheel Speed Sensor Removal and Installation (2017 2018 2019 2020), .
