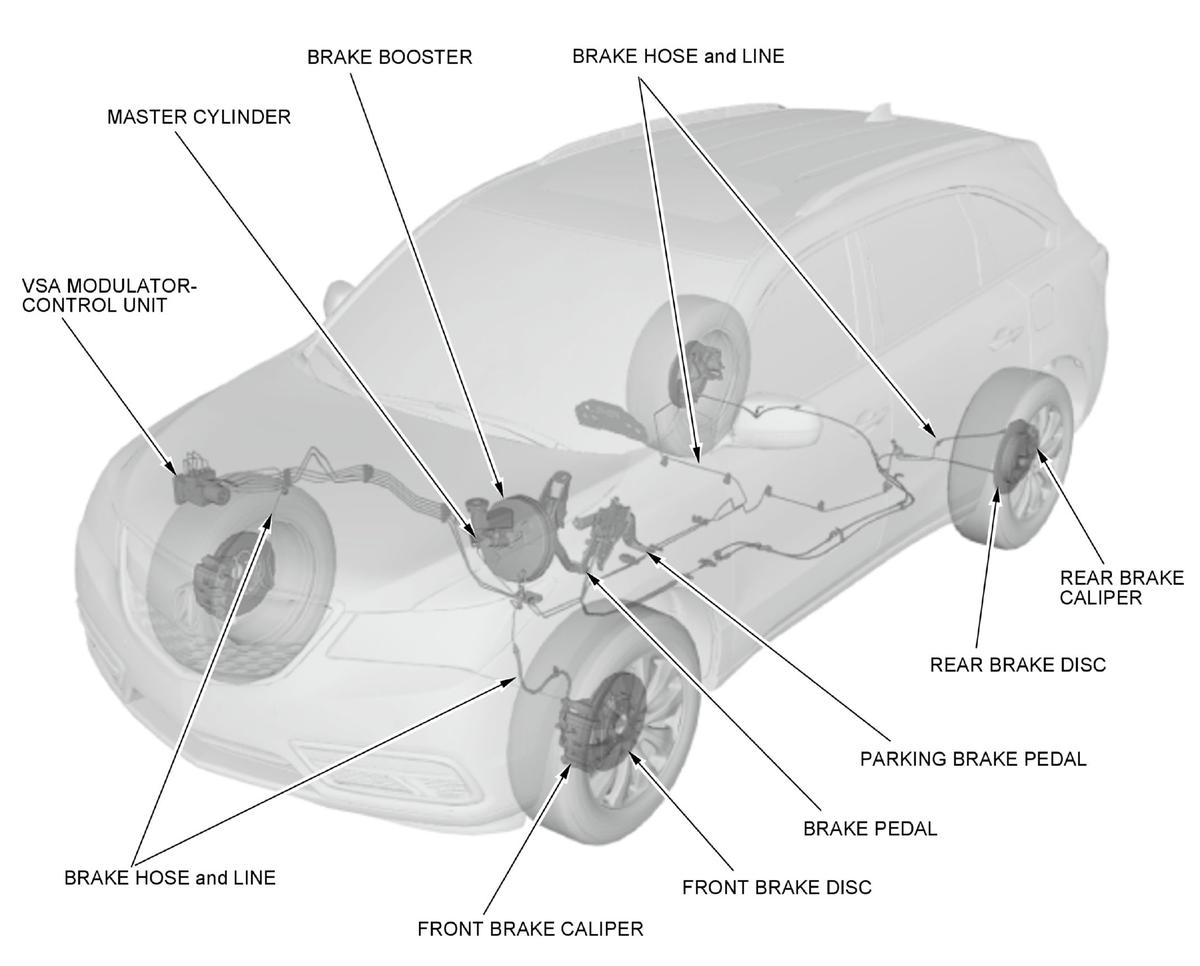

Brake System Description - Overview (2014 2015 2016)

Courtesy of HONDA, U.S.A., INC.

Measurement	Qualification	Specification
Service brake	Front	Power-assisted self-adjusting ventilated disc
	Rear	Power-assisted self-adjusting solid disc
Parking brake	Type	Mechanical actuating, rear wheels in disc
	Operation	Pedal
Brake booster		10. 5 inch single type vacuum booster
