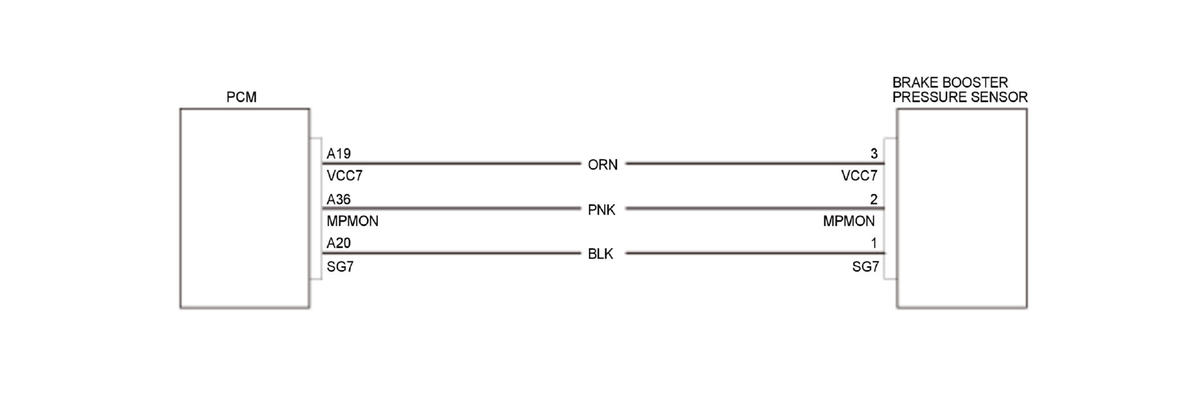

Brake Booster Pressure Monitoring System Circuit Diagram (2016)

GHH316444

Courtesy of HONDA, U.S.A., INC.
