Exterior Lighting - Service, Testing And Troubleshooting (Except Hybrid)
>>
Description
>>
Exterior Lights System Description - System Diagram (2017 2018 2019 2020)
Exterior Lights System Description - System Diagram (2017 2018 2019 2020)

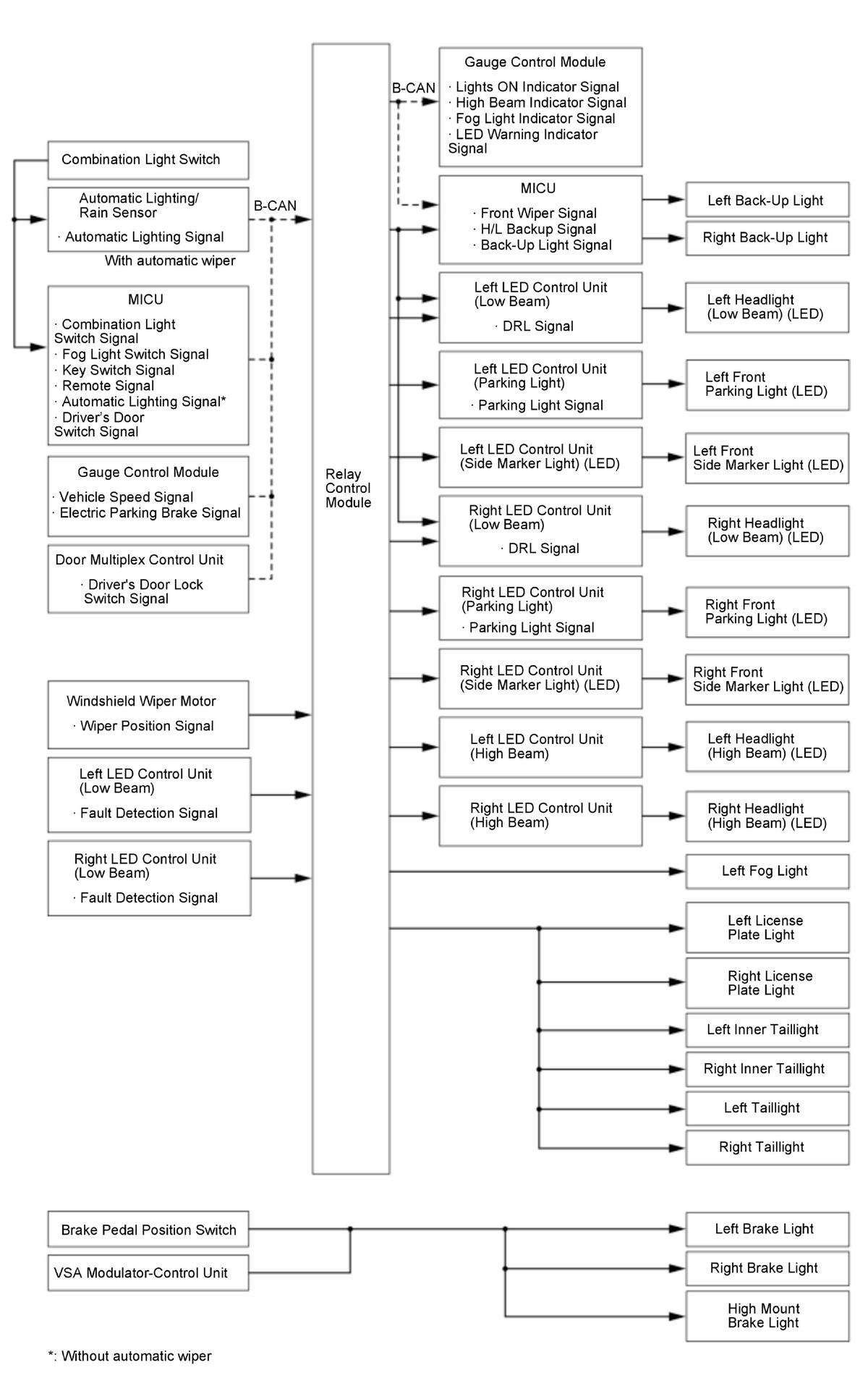

Except Turn Signal Lights
Courtesy of HONDA, U.S.A., INC.

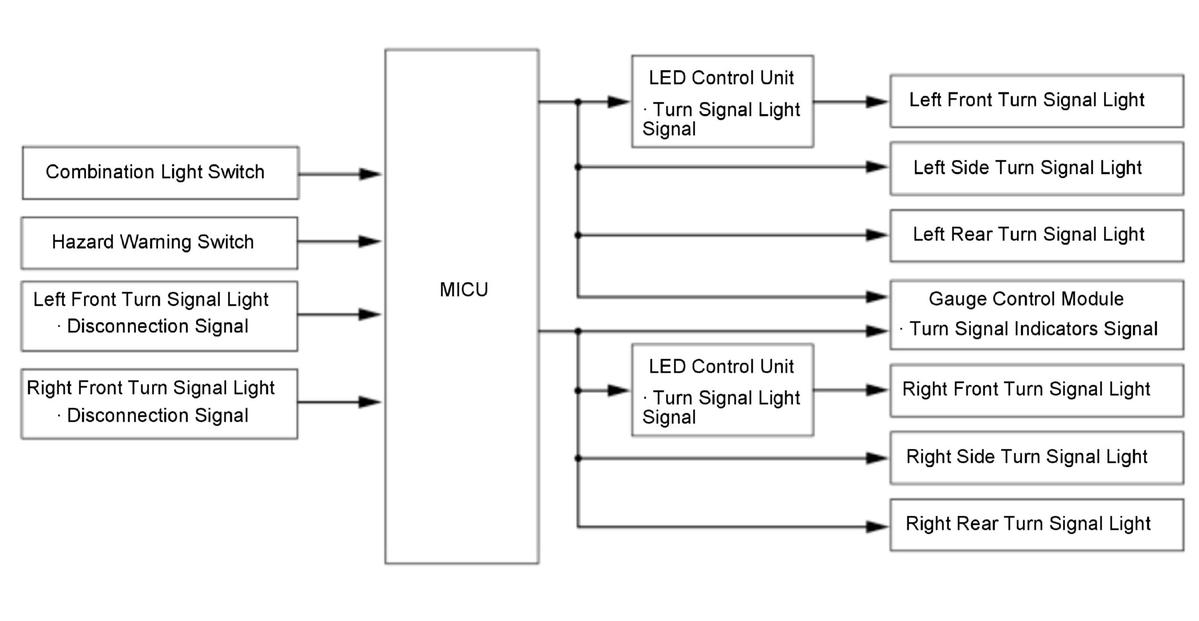

Turn Signal Lights
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
