Description
>>
Exterior Lights System Description - System Diagram (2016)
Exterior Lights System Description - System Diagram (2016)

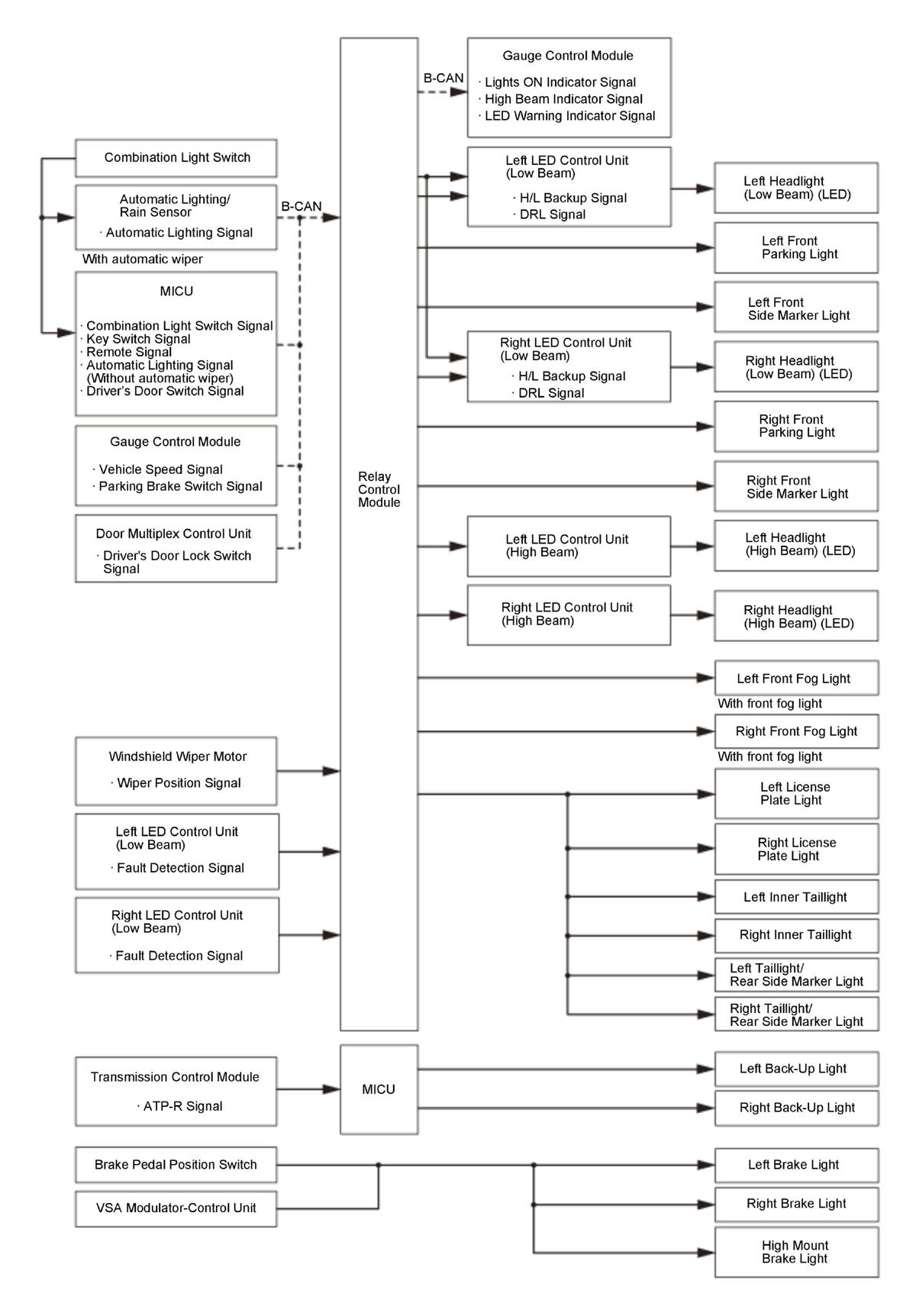

Except Turn Signal Lights
Courtesy of HONDA, U.S.A., INC.

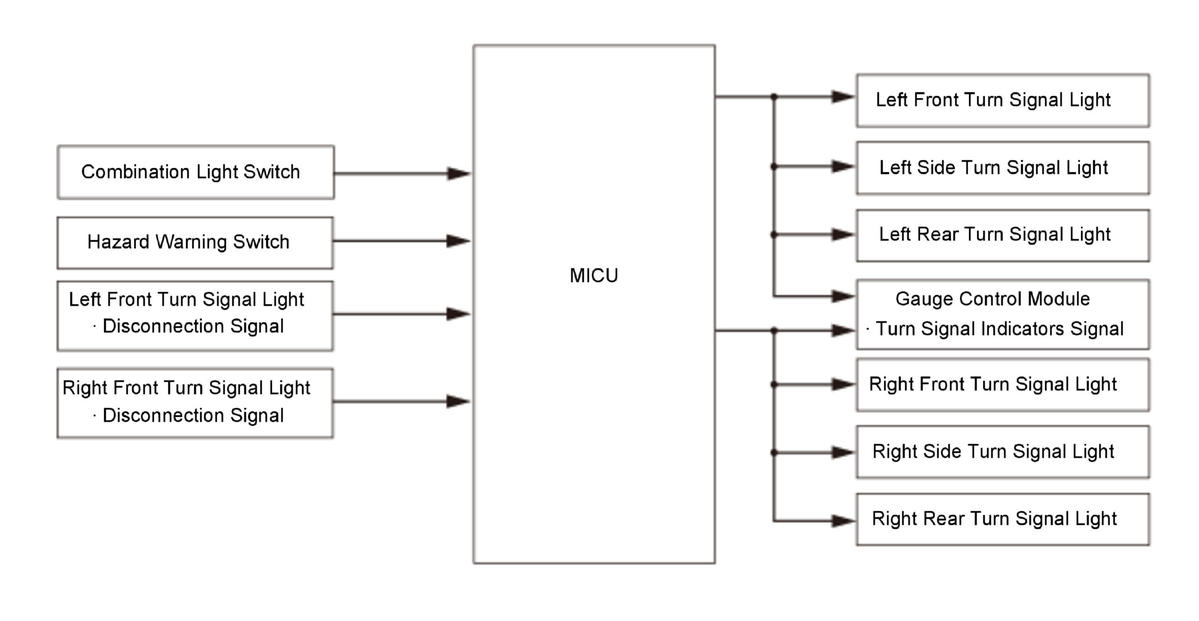

Turn Signal Lights
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
