Description
>>
Exterior Lights System Description - System Diagram (2014 2015)
Exterior Lights System Description - System Diagram (2014 2015)

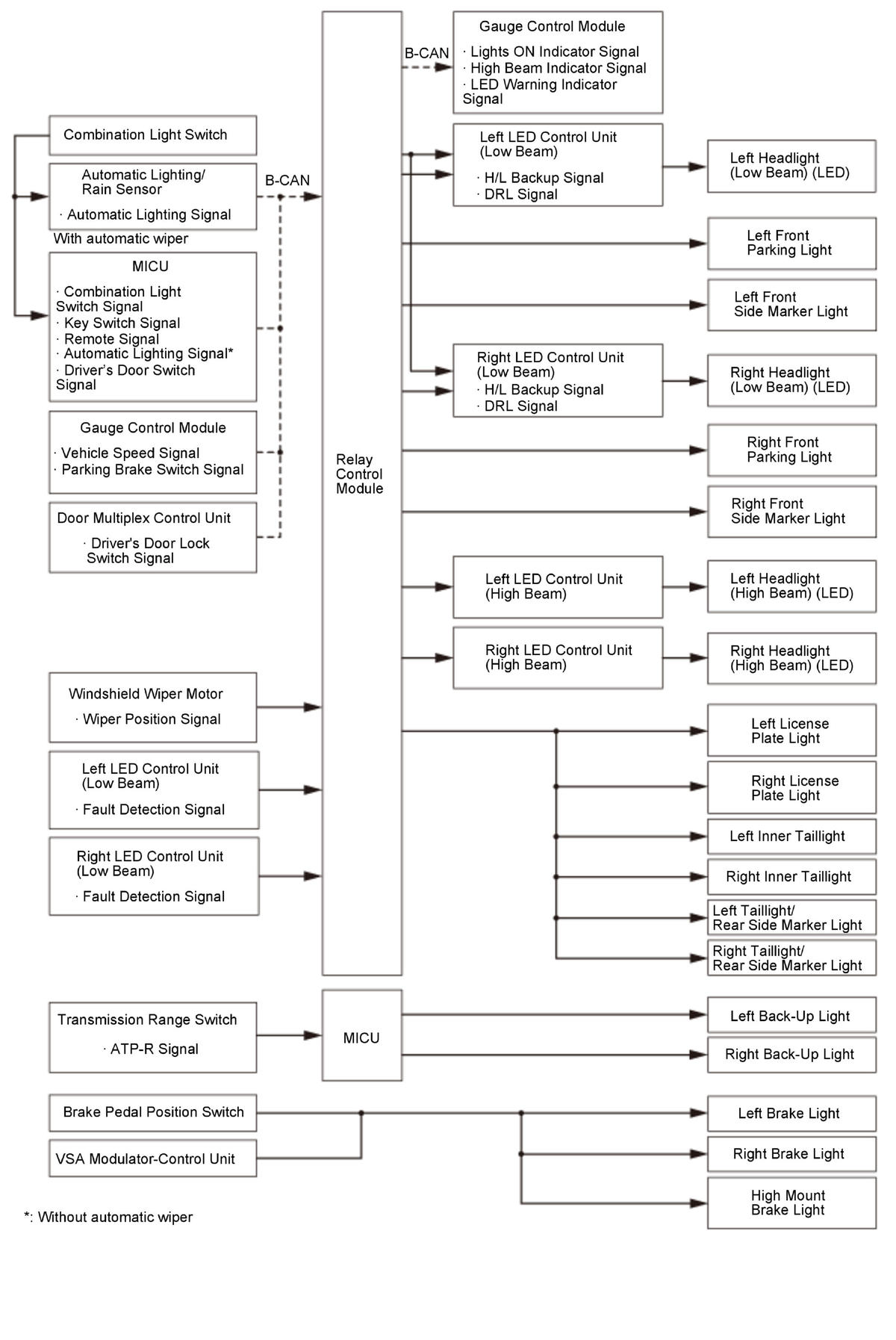

Except Turn Signal Lights
Courtesy of HONDA, U.S.A., INC.

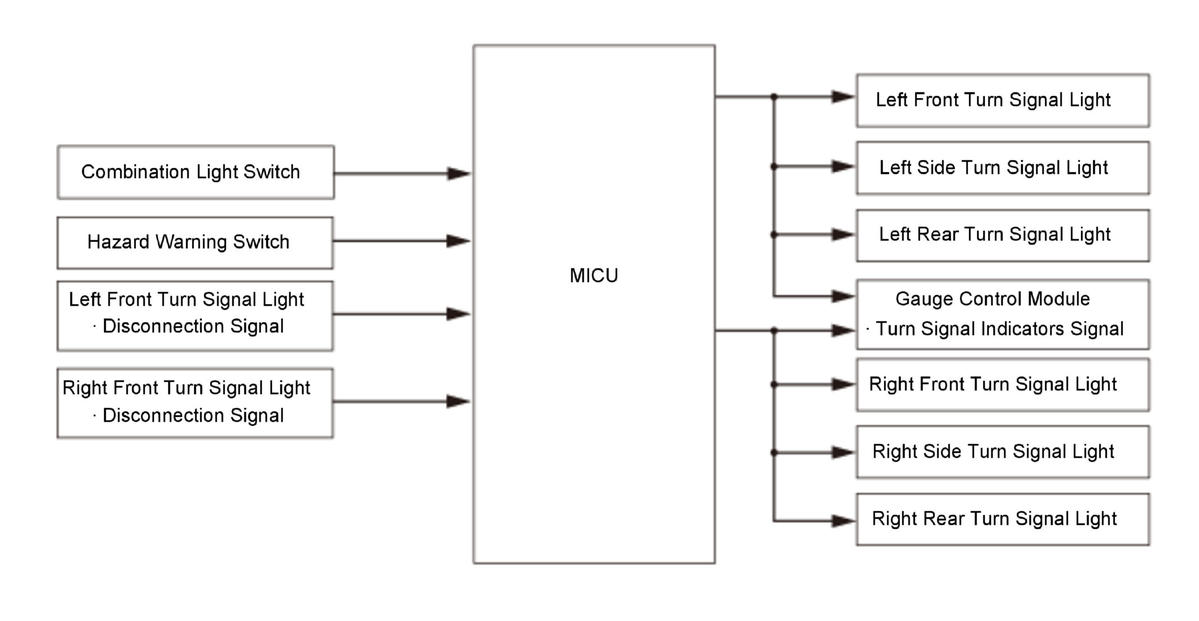

Turn Signal Lights
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
