Exterior Lights System Description - Overview (2016)

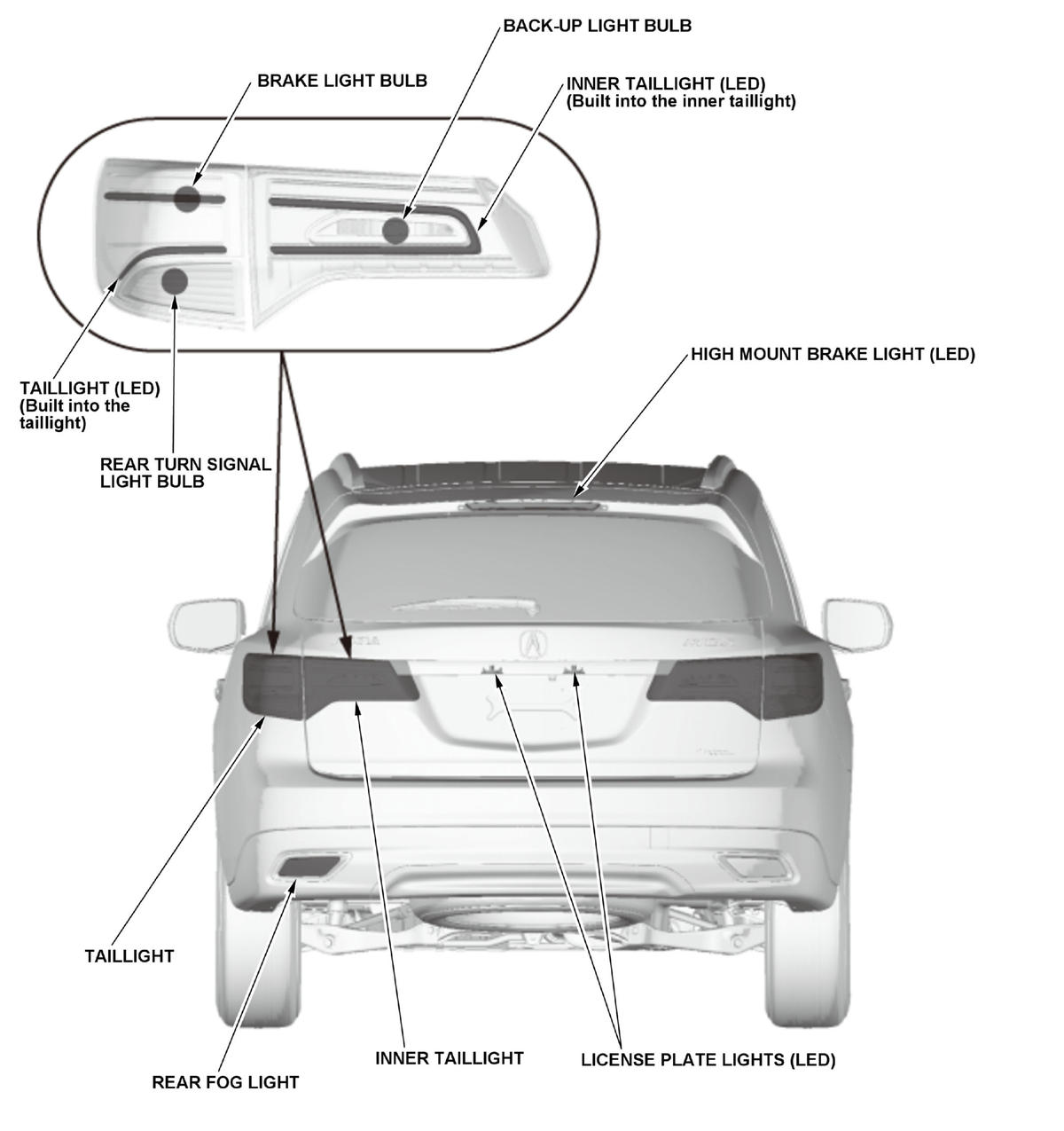

The exterior lights system includes the exterior lights, the fog lights, the turn signal lights, the automatic lighting system, and the daytime running lights system.

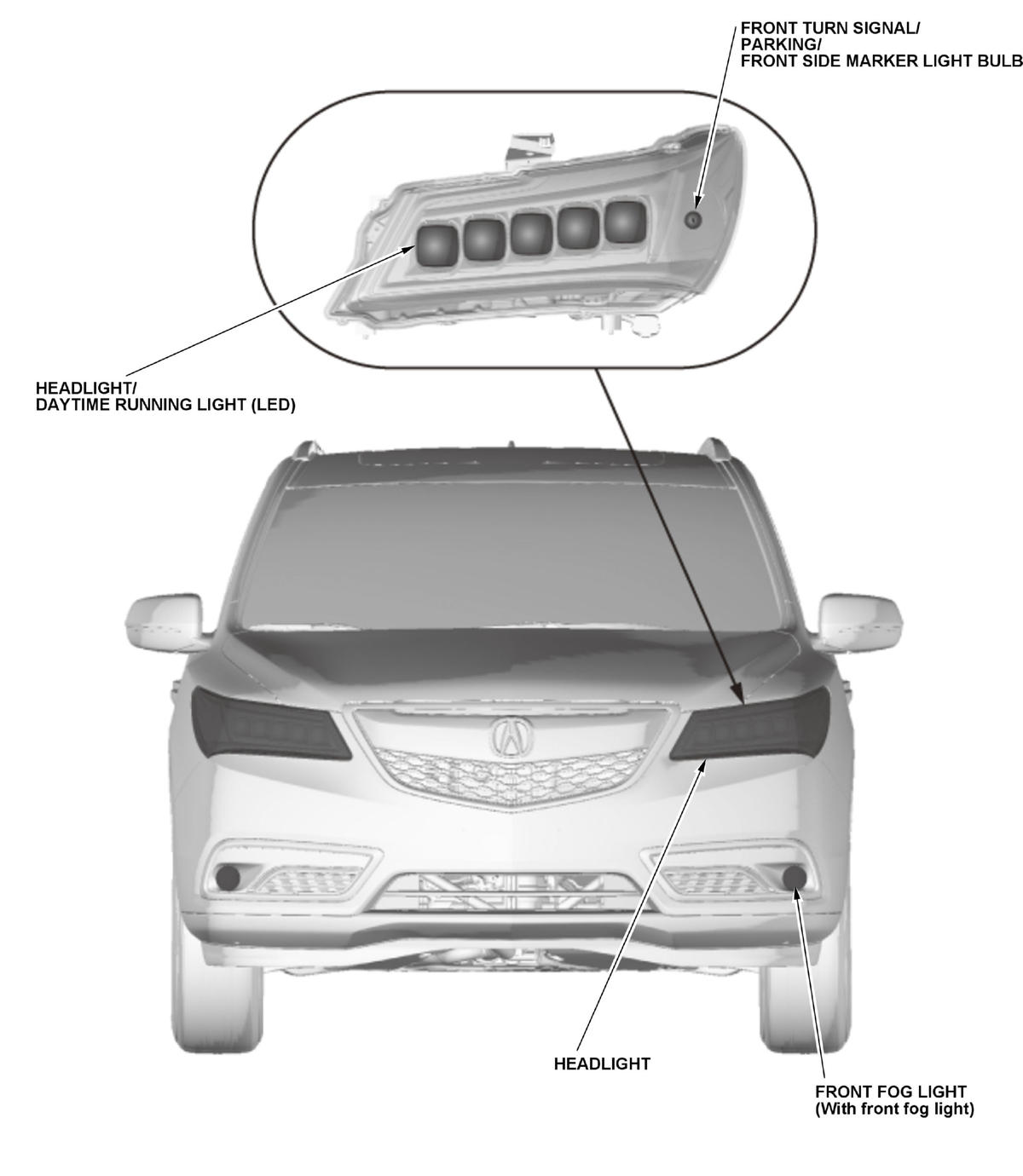

Headlights

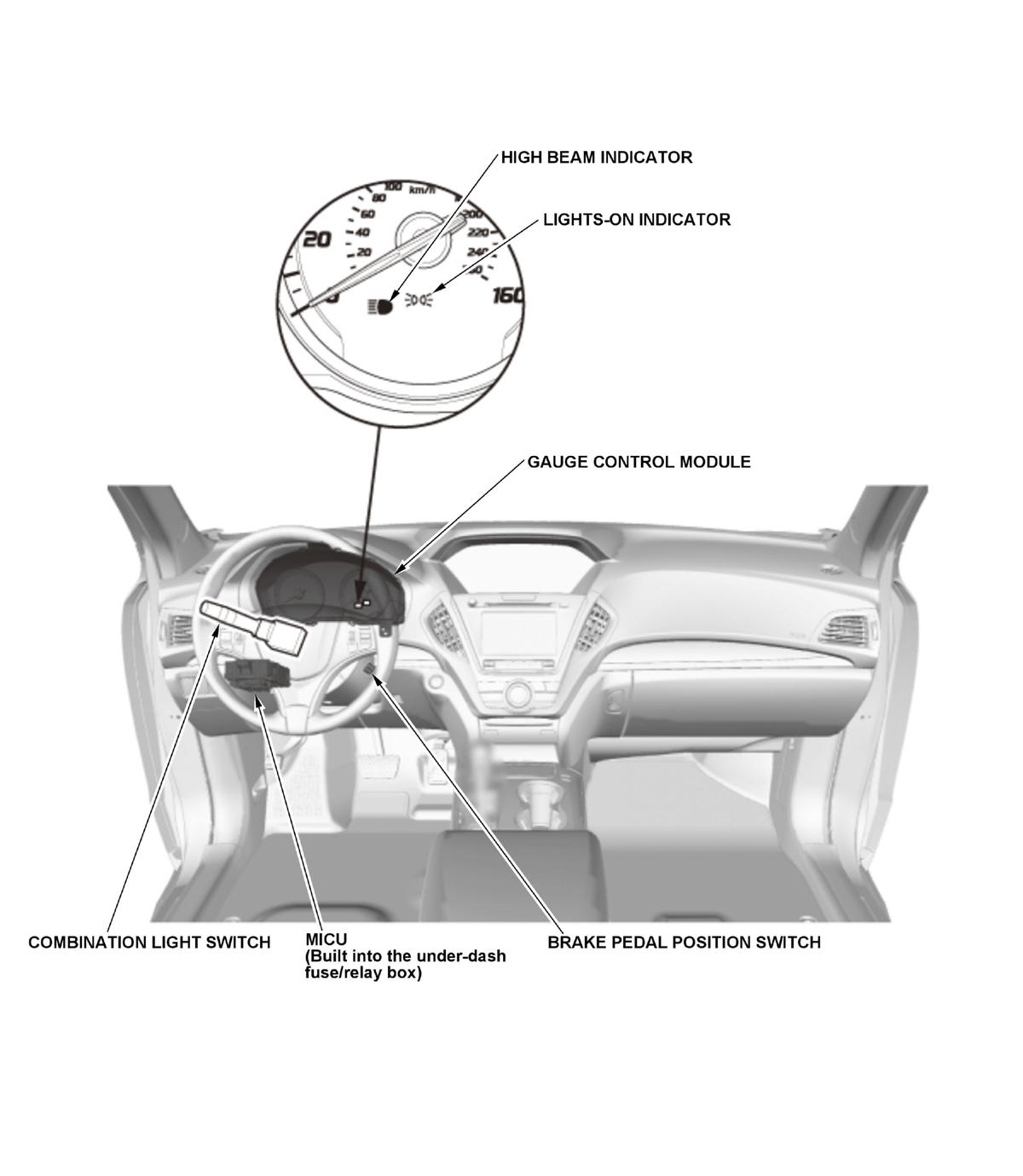

The LED headlight system consists of the LED lights, the LED control units, the MICU, the combination light switch, the relay control module, and the gauge control module for lighting indicators.
In the event, the LED headlights do not turn on, warning indicator in the gauge control module will be illuminated, and the warning will be displayed on the multi-information display (MID).
Fog Lights
The LED fog light system consists of the LED lights, the LED control units, the MICU, the combination light switch, the gauge control module, and the relay control module.
Daytime Running Lights
The daytime running lights system includes the MICU, the relay module, the left and right headlight low beams, and the parking brake switch. The daytime running lights operate with the vehicle in ON mode, the headlights off (headlight switch OFF or AUTO position), and the parking brake released.
Automatic Lighting System

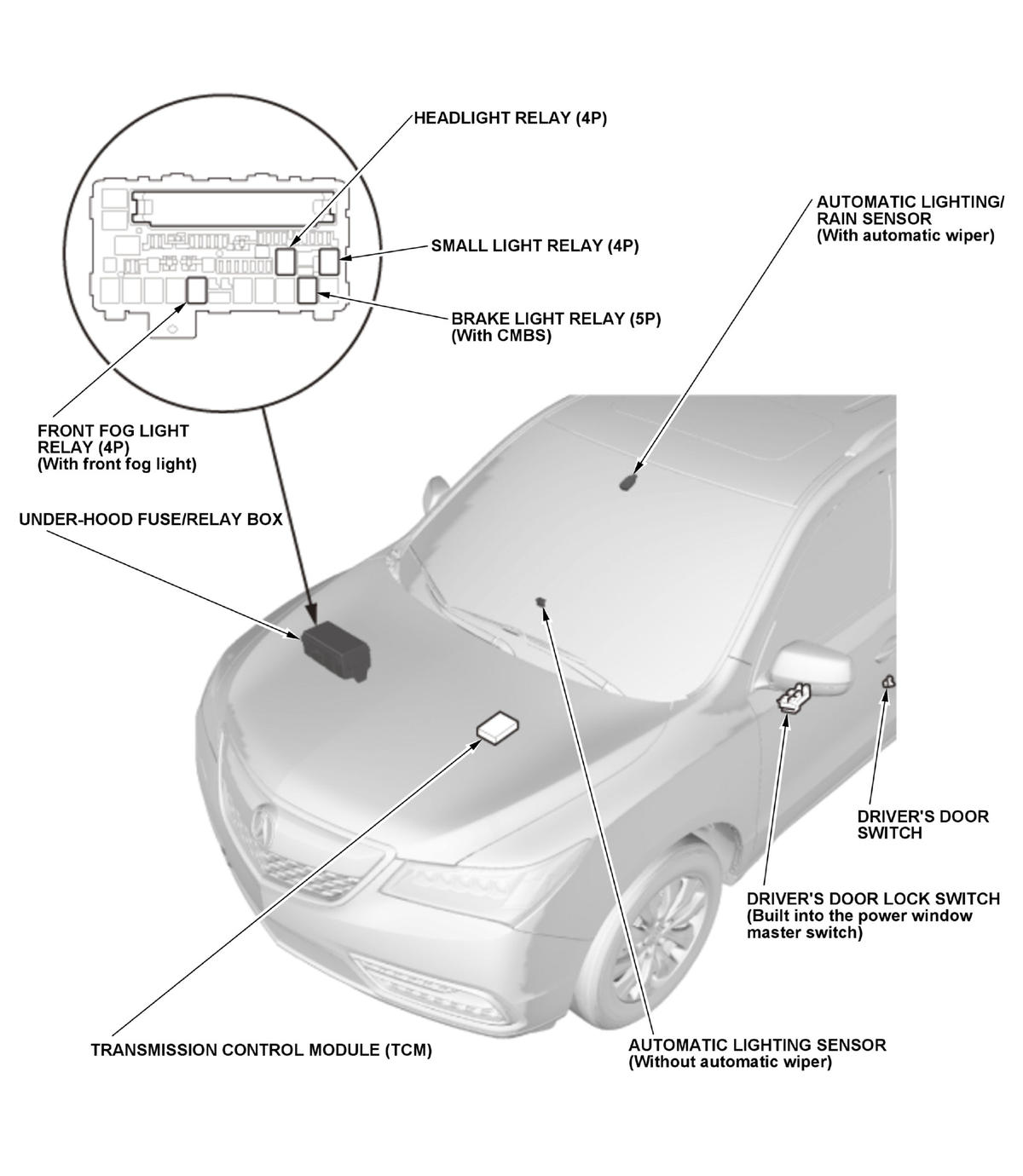

The automatic lighting system consists of the MICU, the relay control module, the automatic lighting/rain sensor* 1, the automatic lighting sensor* 2, the combination light switch, and the gauge control module for lighting the light control indicator. The system automatically controls the lighting operation. *1: With automatic wiper*2: Without automatic wiper
