Exterior Lighting - Service, Testing And Troubleshooting (Except Hybrid)
>>
Description
>>

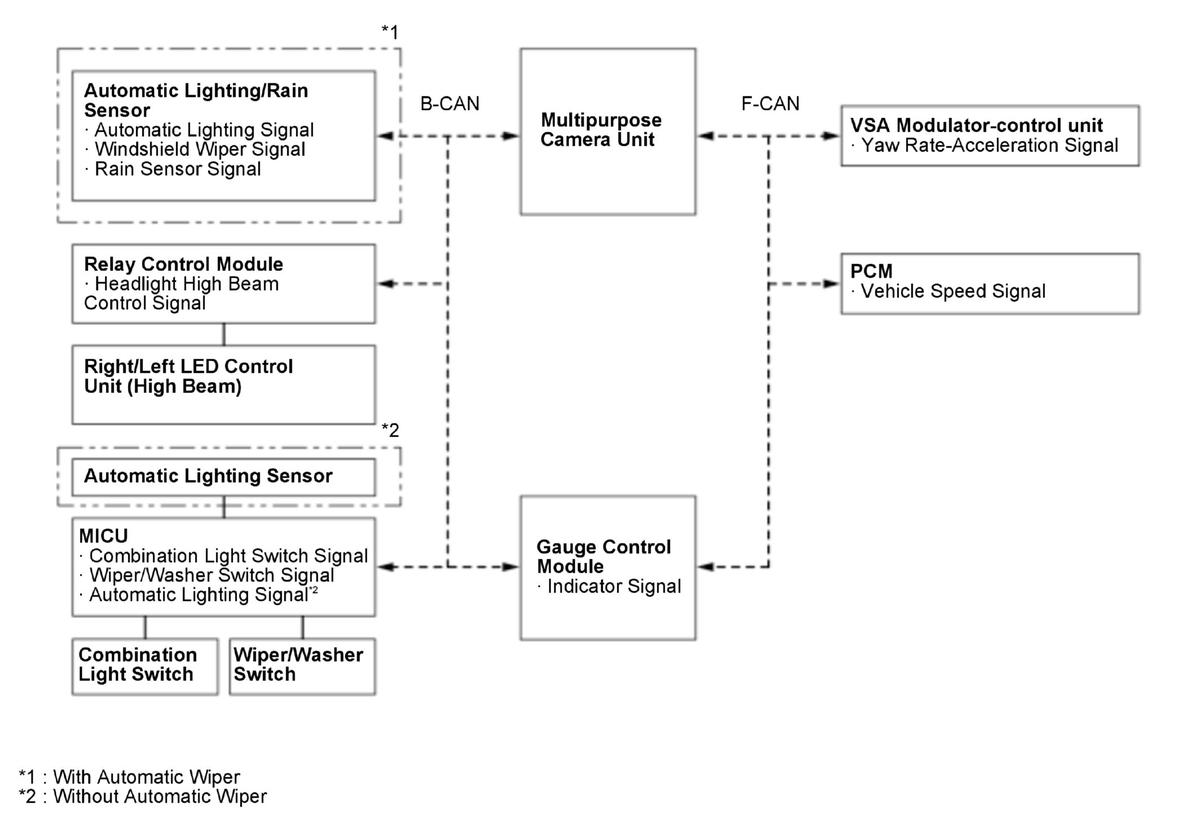

Auto High-Beam (High-Beam Support System) Description - System Diagram
Auto High-Beam (High-Beam Support System) Description - System Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
