Turn Signal/Hazard Warning Lights Component Location Index (2017 2018 2019 2020)

GHH320663

Courtesy of HONDA, U.S.A., INC.

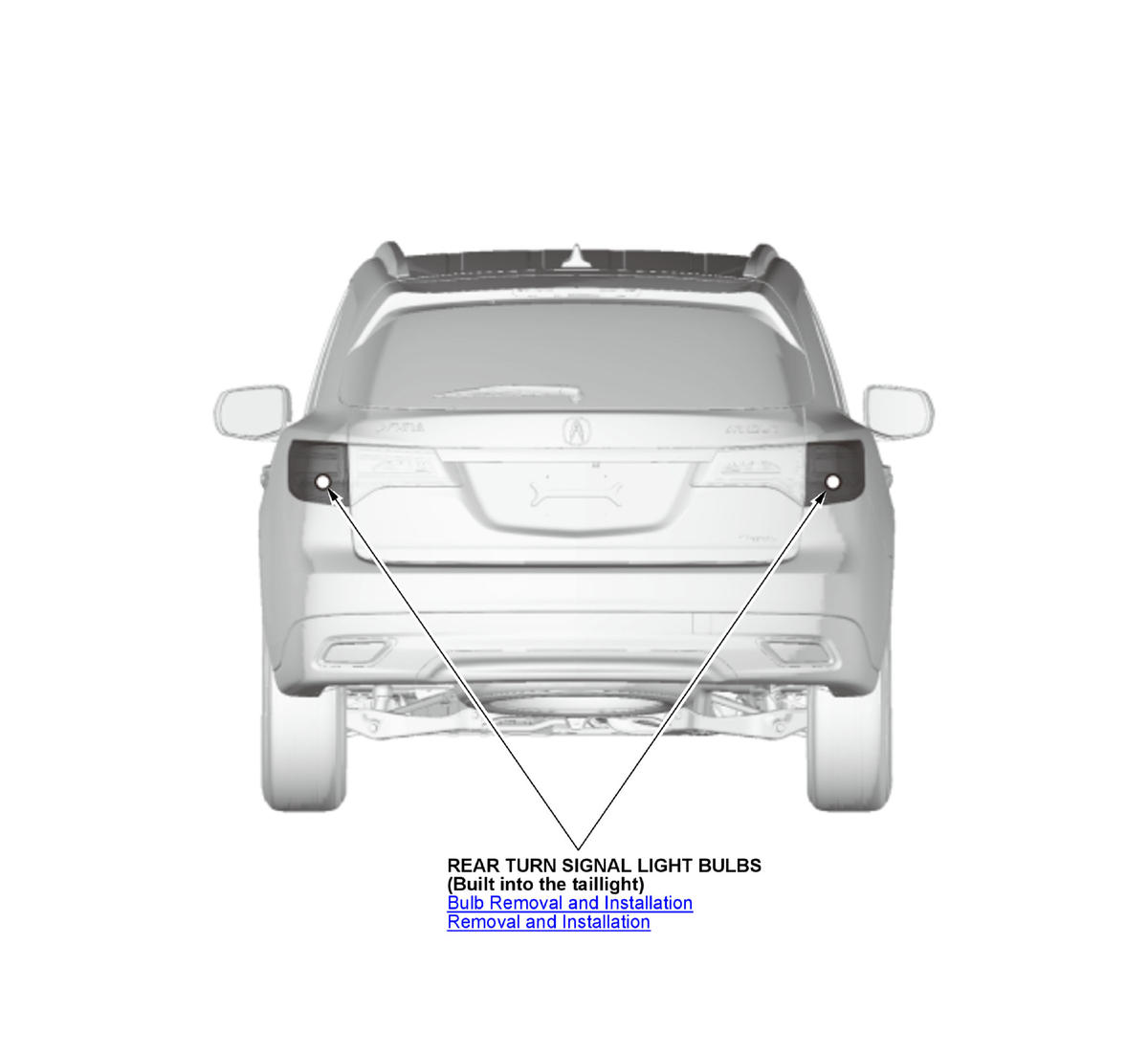

GHH320664

Courtesy of HONDA, U.S.A., INC.

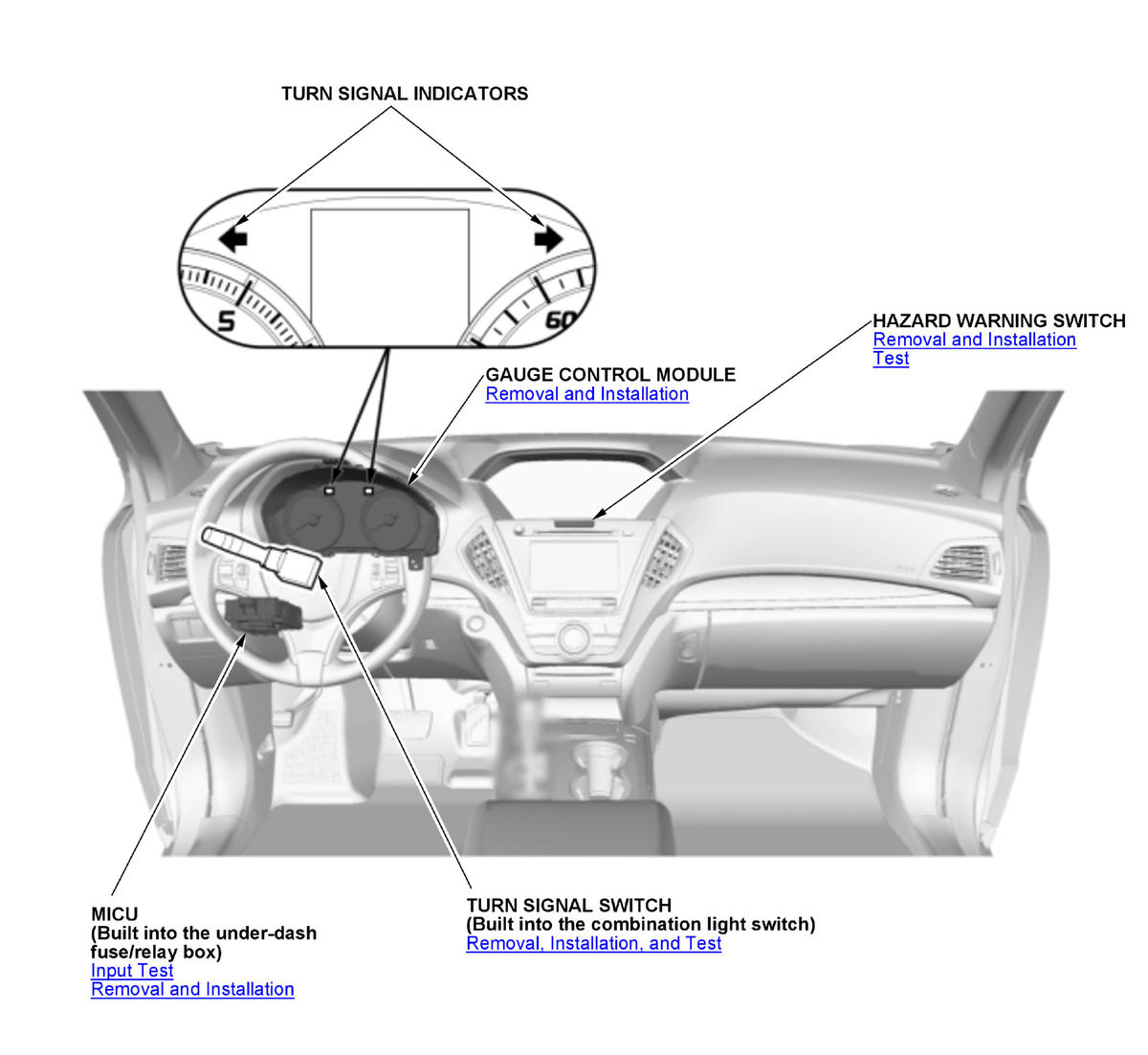

GHH320665

Courtesy of HONDA, U.S.A., INC.
