Turn Signal/Hazard Warning Lights Component Location Index (2014 2015 2016)

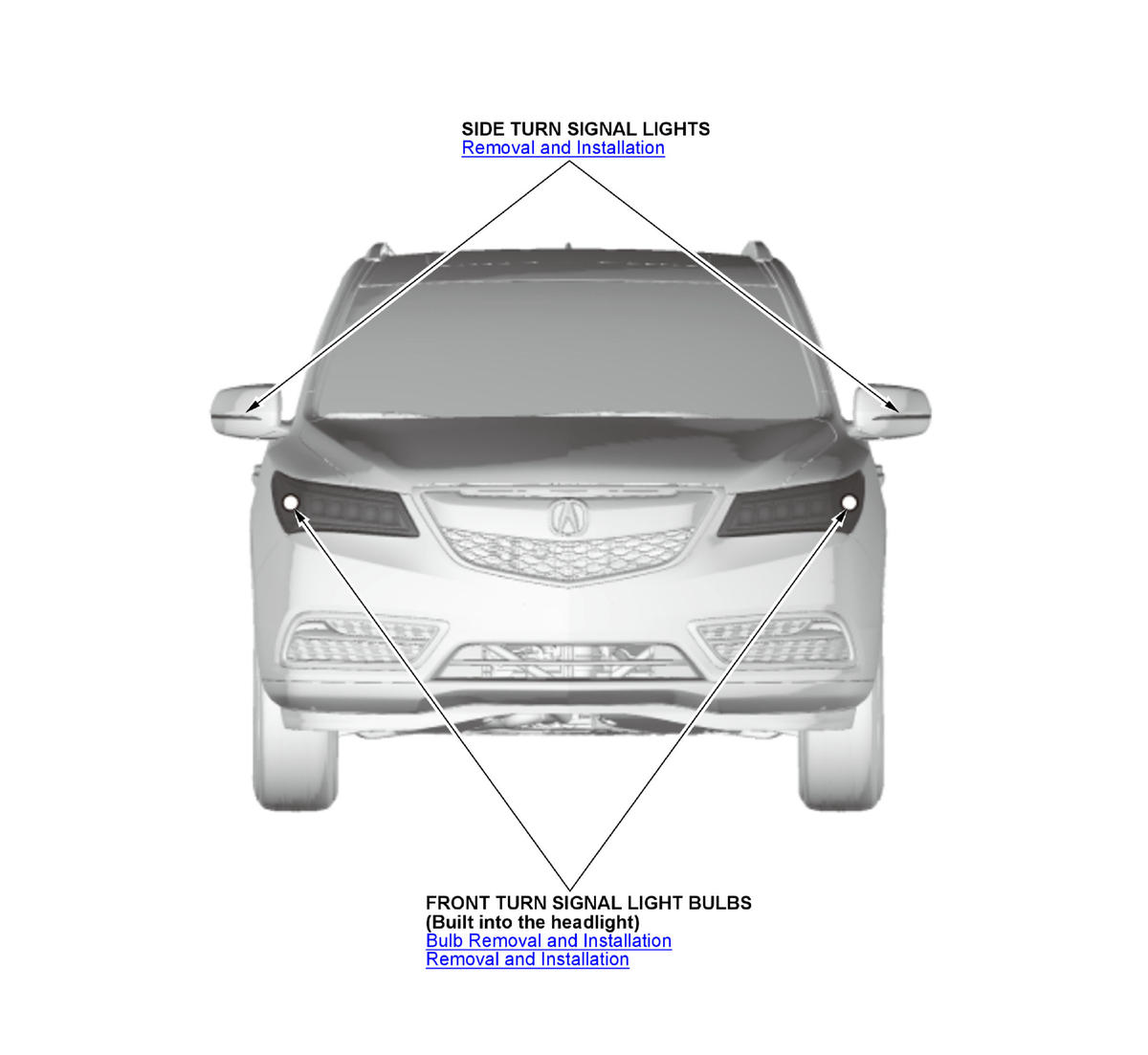

GHH320666

Courtesy of HONDA, U.S.A., INC.

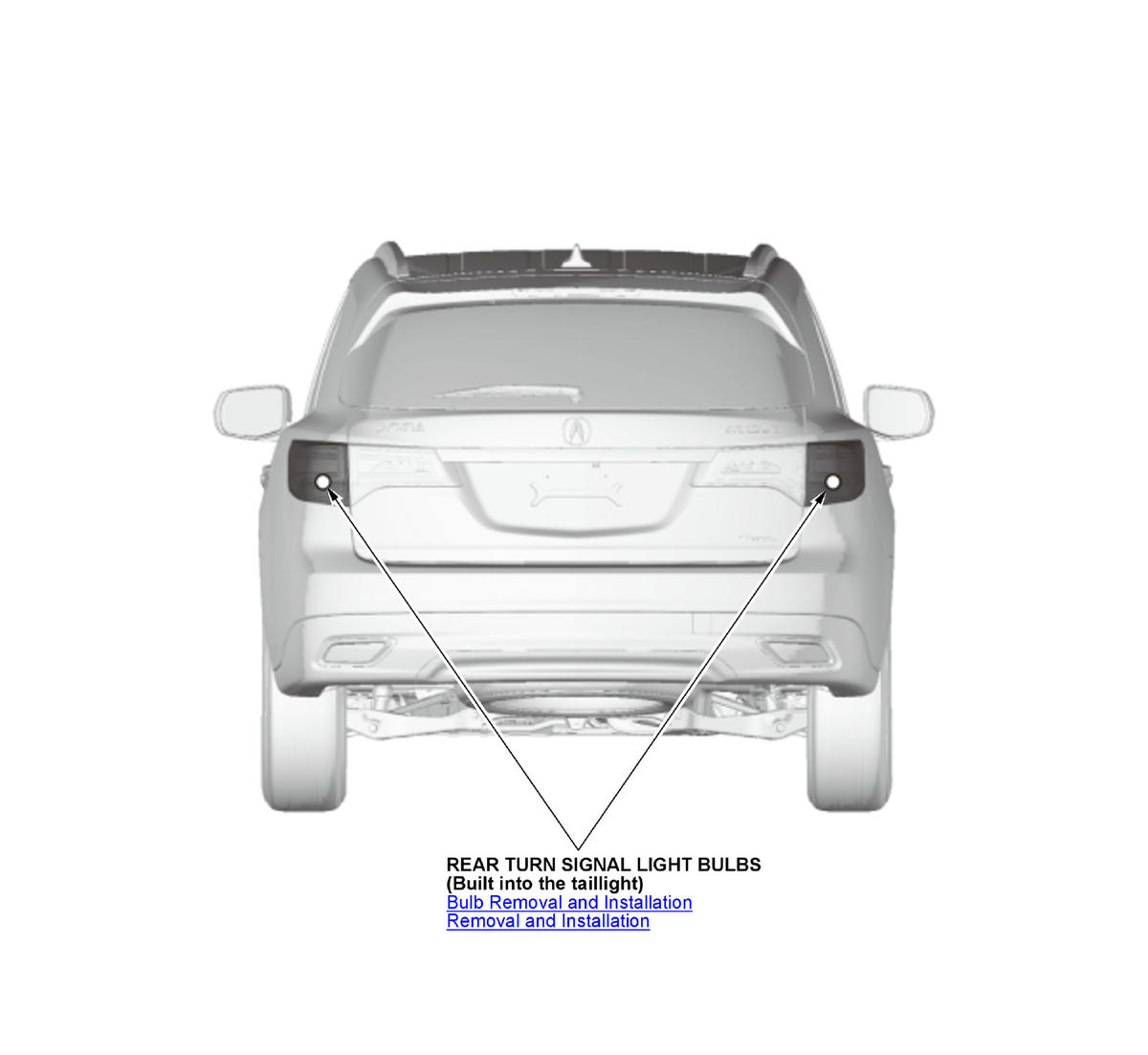

GHH320667

Courtesy of HONDA, U.S.A., INC.

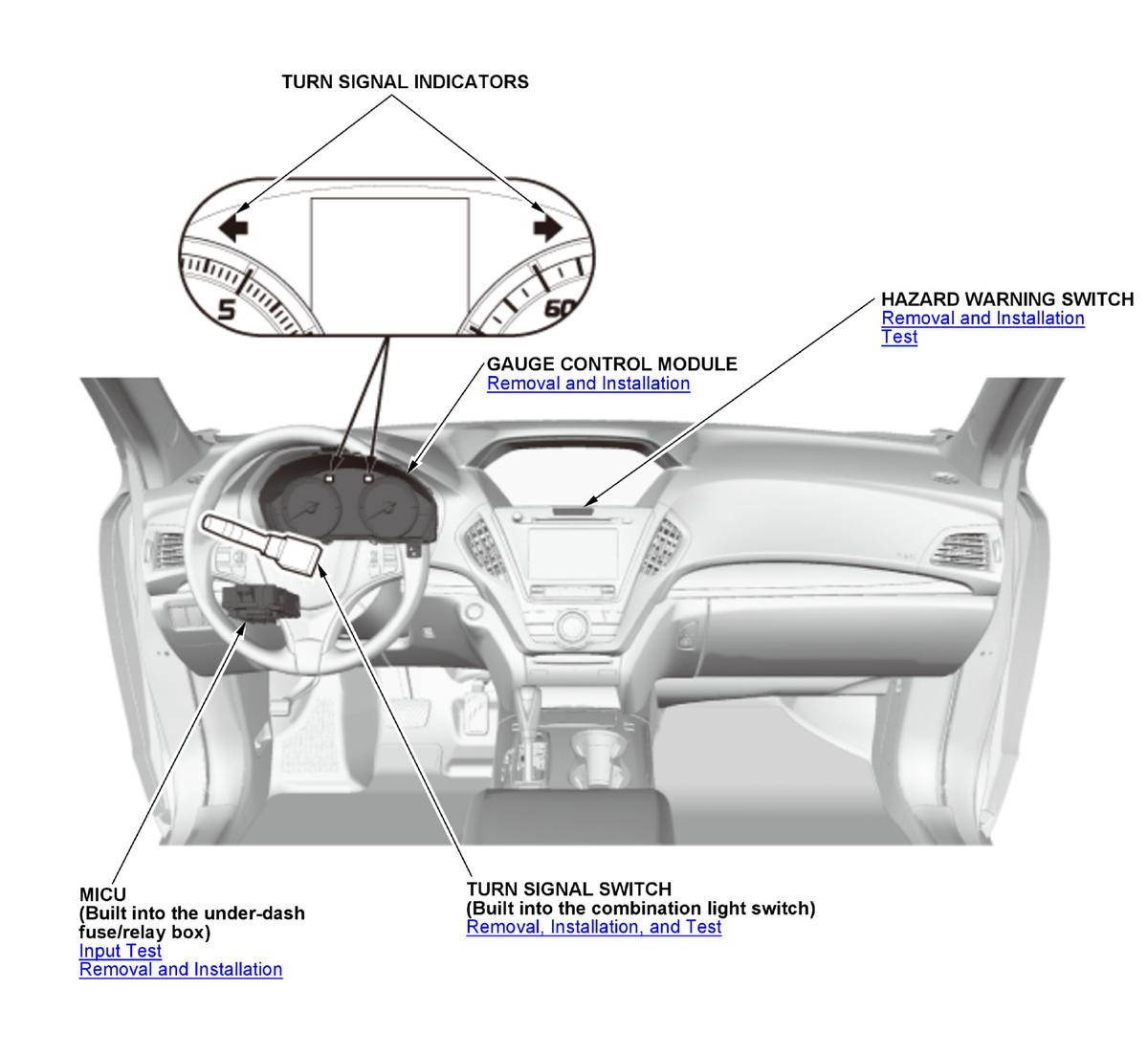

GHH320668

Courtesy of HONDA, U.S.A., INC.
